Product
SKUs
|
|

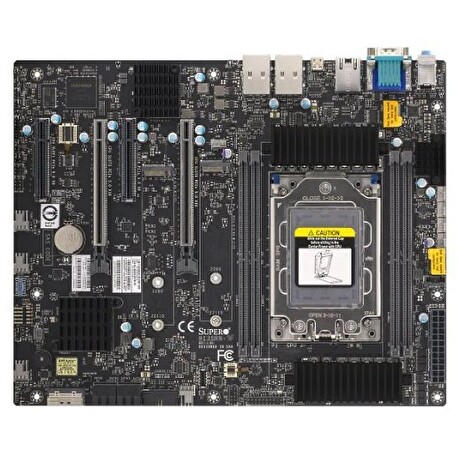

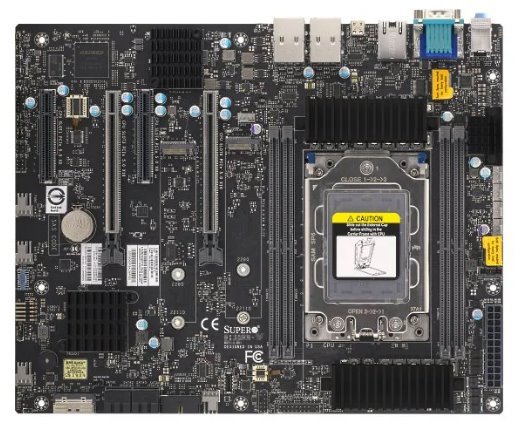

| MBD-H13SRA-TF | |
| Physical Stats | |
| Form Factor | ATX |
| Dimension | 12" x 9.6" (30.48cm x 24.384cm) |
| Processor | |
| CPU | AMD Ryzen™ Threadripper™ PRO 7000 WX-Series, AMD Ryzen™ Threadripper™ 7000 Series |
| Single Socket LGA-4844 (Socket sTR5) supported, CPU TDP supports Up to 350W TDP | |
| Core | Up to 96 cores, 192 threads |
| System Memory | |
| Memory Capacity | 4 DIMM slots |
| Up to 4TB ECC Registered RDIMM/3DS RDIMM, DDR5-5200MHz | |
| Memory addressing up to 1TB/channel is subject to AMD Infrastructure Roadmap for Socket sTR5 Processors | |
| Memory Type | 5200 MT/s ECC DDR5 RDIMM/3DS RDIMM |
| DIMM Sizes | RDIMM/3DS RDIMM: 16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB, 512GB, 1024GB |
| Memory Voltage | 1.1V |
| On-Board Devices | |
| Chipset | TRX50 |
| SATA | 4 SATA3 ports; RAID 0,1,10 |
| Audio | ALC 888S HD Audio 5.1 Channel |
| Network Controllers | Single LAN with ASPEED AST2600, Dedicated LAN for IPMI |
| Dual LAN with 10Gb Broadcom BCM57416 | |
| Input / Output | |
| USB | 2 USB 2 port(s) (2 via header) |
| 1 USB 3.2 Gen2x2 port(s) (1 rear type C) | |
| 2 USB 3.2 Gen1x1 port(s) (2 via header) | |
| 5 USB 3.2 Gen2x1 port(s) (4 rear type A; 1 header type C) | |
| Video Output | 1 VGA port(s) |
| Serial Port | 1 COM Port(s) (1 COM rear) |
| TPM | 1 TPM Header |
|
Expansion
Slots
|
|
| PCIe | 2 PCIe 5.0 x8, Open rear, |
| 2 PCIe 5.0 x16, metal armor protection, support 2 triple/dual/single-width GPU cards, | |
| 1 PCIe 4.0 x8, MCIO connector | |
| M.2 | M.2 Interface: 2 PCIe 4.0 x4, RAID 0, 1 |
| Form Factor: 2280/22110 | |
| Key: M-Key | |
| System BIOS | |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| BIOS Features | ACPI 6.5 |
| SMBIOS 3.6 or later | |
| UEFI 2.9 | |
| RTC (Real Time Clock) Wakeup | |
| Management | |
| Software | Redfish API, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), SuperDoctor® 5, Super Diagnostics Offline , KVM with dedicated LAN , IPMI 2.0 |
| PC Health Monitoring | |
| Voltage | System temperature, PCH temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, Vmem, GPU temperature, NvMe temperature, Vcore, SAS HDD temperature |
| FAN | 7x 4-pin fan headers (up to 7 fans) |
| Fan speed control, CPU/System Overheat LED, Fan failed LED, UID/remote UID, HDD activity LED, LAN activity LED, CPU/Suspend-state indicator LED, 2 4-pin fan headers for CPU liquid cooling pump | |
| Other Features | RoHS |
| Chassis intrusion detection | |
| Power supply monitoring | |
| Operating Environment | |
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) |
| Non-Operating Temperature Range | -20°C - 60°C (-4°F - 140°F) |
| Operating Relative Humidity Range | 10% - 85% |
| Non Operating Relative Humidity Range | 10% - 95%
|
| M.2 slot | 2 |
|---|---|
| Maximální frekvence paměti [MHz] | 5100 |
| Podpora ECC | ANO |
| Typ paměti | DDR5 |
| Čipová sada | AMD TRX40 |
| Počet CPU socketů | Single socket |
| Výrobce čipsetu | AMD |
| Formát | ATX |
