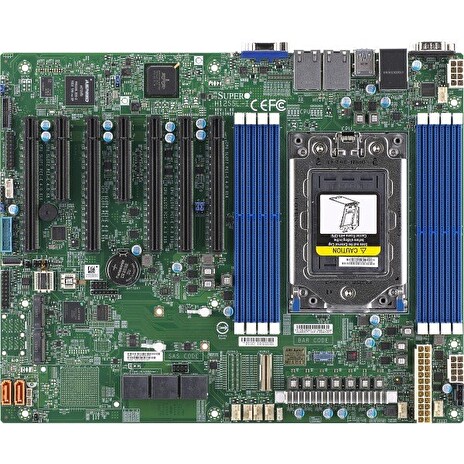

Supermicro MB 1xSP3 (Epyc 7002 SoC), 8x DDR4, 16x SATA3 nebo 8x SATA+2x NVMe, 2x M.2, PCIe 4.0 (5 x16, 2 x8), 2x1Gb,IPMI

Product SKUs

MBD-H12SSL-i H12SSL-i

MBD-H12SSL-i-O H12SSL-i (Retail Pack)



Physical Stats

Form Factor ATX

Dimensions 12" x 9.6" (30.5cm x 24.4cm)



Processor/Chipset

CPU Single AMD EPYC™ 7003/7002 Series Processor
(7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
Socket SP3

Cores Up to 64 Cores

Chipset System on Chip



System Memory

Memory Capacity 8 DIMM slots
Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM
8-channel memory bus

Memory Type DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs

DIMM Sizes 8GB, 16GB, 32GB, 64GB, 128GB, 256GB

Memory Voltage 1.2V

Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)



On-Board Devices

SATA SATA3 (6 Gbps)

IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC

Network Controllers Dual gigabit LAN via Broadcom BCM5720
1 Realtek RTL8211F PHY (dedicated IPMI)

VGA ASPEED AST2500 BMC



Input / Output

SATA 8 SATA3 (6 Gbps) ports

SATA/NVMe Hybrid 8 SATA3 or 2 NVMe via single SlimSAS x8

LAN 2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

USB 6 USB 3.0 ports
(4 rear + 2 via header)

VGA 1 VGA port

Others 1 COM port (rear)
2 SATA DOM power connectors
1 TPM 2.0 header



Expansion Slots

PCI-Express 5 PCI-E 4.0 x16
2 PCI-E 4.0 x8


M.2 Interface: 2 PCI-E 4.0 x4
Form factor: 2280, 22110
Key: M-key







Chassis ( Optimized for H12SSL-i )

1U SC813MFTQC-350CB2
SC813MFTQC-R407CB

2U SC213AC-R1K23LPB
SC216BE1C4-R1K23LPB
SC825MBTQC-R802LPB
SC825TQC-R802LPB
SC826BE1C4-R1K23LPB

3U SC835TQC-R802B
SC836BE1C-R1K23B

4U SC846BE1C-R1K23B



System BIOS

BIOS Type AMI 256Mb SPI Flash EEPROM

BIOS Features Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 5.1
USB Keyboard Support
SMBIOS 3.1.1



Management

Software Super Doctor 5
Watch Dog
NMI
SUM
IPMI 2.0, KVM with dedicated LAN

Power Configurations ACPI Power Management
Power-on mode control for AC power loss recovery



PC Health Monitoring

CPU Monitors CPU Core Voltages, +3.3V, +5V, +5V standby, +3.3V standby
CPU switching voltage regulator
Supports system management utility
VBAT

FAN Up to 7-fan status tachometer monitoring
Up to 7 4-pin fan headers
Dual Cooling Zone
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 7x Fan connectors
I2C Temperature Sensing Logic

LED CPU / System Overheat LED

Other Features Chassis Intrusion Detection
Chassis Intrusion Header
UID



Operating Environment / Compliance

Environmental Specifications Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
