SUPERMICRO 1U ultraserver 2x LGA3647, iC621, 24x DDR4 ECC R, 4x SATA3 HS (3,5"), 2x750W, 4x1GbE, IPMI

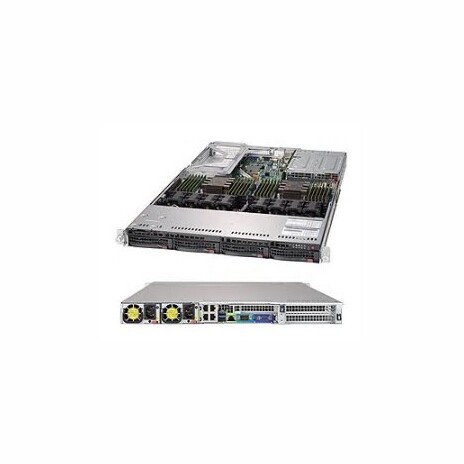

Supermicro 1U ultraserver 2x LGA3647, iC621, 24x DDR4 ECC R, 4x SATA3 HS (3,5"), 2x750W, 4x1GbE, IPMI
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Dobrá komunikace s obchodem,rychlé dodání.Zatim nezapojeno,doufám,že bude v pořádku

Ověřený zákazník

Supermicro 1U ultraserver 2x LGA3647, iC621, 24x DDR4 ECC R, 4x SATA3 HS (3,5"), 2x750W, 4x1GbE, IPMI

Key Features Virtualization Cloud Computing High End Enterprise Server 1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡ 2. 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM†† 3. 2 PCI-E 3.0 x16 slots (FH, 10.5" L), 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP) 4.
Kód: 2891204PN: SYS-6019U-TR4Výrobce: SupermicroZáruka: 6 měsíců
Výrobek pochází z oficiální české distribuce.Více informací…
41 099   včetně DPH
Cena bez DPH: 33 966 Kč
Běžná maloobchodní cena: 41 470 Kč
Ušetříte 371 Kč
Cena po registraci:
40 699 Kč
Cena bez DPH: 33 636 Kč
Nákup po telefonu
+420 587 407 456
Skladem
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již 2.11. / ZDARMA!
Přepravní službou (ČR)4.11. / od 120 Kč
Na výdejním místě (ČR)4.11. / od 120 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.
Toto zboží je možné koupit pouze na IČ.

Popis produktu

Key Features

Virtualization
Cloud Computing
High End Enterprise Server

1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)

2. 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM††

3. 2 PCI-E 3.0 x16 slots (FH, 10.5" L), 2 PCI-E 3.0 x8 slots (1 LP, 1 internal LP)

4. 4 Gigabit Ethernet ports

5. 4 Hot-swap 3.5" Drive Bays; Optional M.2 NVMe and SATA3 ports

6. 8 Heavy duty fans w/ optimal fan speed control

7. 750W Redundant Power Supplies Platinum Level (94%+)

Specifications

Product SKUs

SYS-6019U-TR4
  • SuperServer 6019U-TR4 (Black)

Motherboard


Super X11DPU

Processor/Cache

CPU
  • Dual Socket P (LGA 3647)
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
    Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
Cores
  • Up to 28 Cores
Note BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).

Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.

System Memory

Memory Capacity
  • 24 DIMM slots
  • Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
  • Supports Intel® Optane™ DCPMM††
Memory Type
  • 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
  • 2666 ECC DDR4 NVDIMM
Note 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
†† Cascade Lake only. Contact your Supermicro sales rep for more info.

On-Board Devices

Chipset
  • Intel® C621 chipset
SATA
  • SATA3 (6Gbps); RAID 0, 1, 5, 10
Network Connectivity
  • 4 Gigabit Ethernet ports via AOC-UR-I4G (Intel® i350AM4)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
  • ASPEED AST2500 BMC

Input / Output

SATA
  • 4 SATA3 (6Gbps) ports
LAN
  • 4 RJ45 Gigabit Ethernet ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 3 USB 3.0 ports (2 rear, 1 Type A)
Video
  • 2 VGA ports (1 rear, 1 onboard)
Serial Port
  • 1 Serial header
DOM
  • 2 SATA DOM (Disk on Module) support with embedded power

System BIOS

BIOS Type
  • AMI 32Mb SPI Flash ROM

Management

Software
Power Configurations
  • ACPI Power Management

PC Health Monitoring

CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 4+1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors

Chassis

Form Factor
  • 1U Rackmount
Model
  • CSE-819UTS-R751P-T

Dimensions and Weight

Height
  • 1.7" (43mm)
Width
  • 17.2" (437mm)
Depth
  • 29.7" (754mm)
Weight
  • Net Weight: 26 lbs (11.8 kg)
  • Gross Weight: 41 lbs (18.6 kg)
Available Color
  • Black

Front Panel

Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Overheat LED / Fan fail LED /
    UID LED

Expansion Slots

PCI-Express
  • 2 PCI-E 3.0 x16 (Full-height, 10.5" L)
  • 2 PCI-E 3.0 x8 (1 LP, 1 internal LP)


  •
  •
  • (Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)

Drive Bays / Storage

Hot-swap
  • 4 Hot-swap 3.5" drive bays
  • 4 SATA3 (optional SAS3 via AOC)
M.2
  • 1 M.2 PCI-E 3.0 x4 M-Key NVMe or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional riser card (see optional parts list)
  • 2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2


System Cooling

Fans
  • 8 Heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud

Power Supply

750W Redundant AC-DC Power Supplies, +12V/+12Vsb output
AC Input
  • 100-127Vac, 50-60Hz
  • 200-240Vac, 50-60Hz
+12V
  • Max: 62.5A & Min: 0A (100Vac-127Vac)
  • Max: 62.5A & Min: 0A (200Vac-240Vac)
12V SB
  • Max: 2.1A
  • Min: 0A
Certification Platinum Level Certified94%+  Platinum Level


  [ Test Report ]

Operating Environment

RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
Parts List

Parts List - (Items Included)

  Part Number Qty Description
Motherboard / Chassis MBD-X11DPU

CSE-819UTS-R751P-T
1

1
Super X11DPU Motherboard

1U Chassis
Add-on Card / Module AOC-UR-I4G 1 1U Ultra Riser based on Intel i350AM4 controller with 4 GbE RJ45 ports and 1 internal PCI-E x8 3.0 slot
Backplane BPN-SAS3-815TQ 1 1U 4-Port 12Gbps Backplane Support 4x3.5
Cable 1 CBL-PWEX-0702 1 PWEX,2X4F/P4.2 TO 1X4F/P5.08/RA,32CM,18AWG,YEL,BLK*2,RED
Cable 2 CBL-SAST-0654 1 MINI SAS(RA-RS EXIT)-4 SATA,INT,52/42/41/51CM,52CM SB,30AWG
FAN 1 FAN-0101L4 8 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
Air Shroud MCP-310-81910-0N 1 Plastic air shroud for SC819U, 119U (X11 24DIMM, left side)
Air Shroud MCP-310-81911-0N 1 Plastic air shroud for SC819U, 119U (X11 24DIMM, right side)
Riser Card RSC-R1UW-2E16 1 1U LHS WIO Riser card with two PCI-E x16 slots
Riser Card RSC-R1UW-E8R 1 1U RHS WIO Riser card with one PCI-E x8 slot
Heatsink / Retention SNK-P0067PS 2 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
* Power Supply PWS-751P-1R 2 1U 750W Redundant Platinum Single Output Power Supply w/Pmbus W73.5xH40xL203mm,RoHS/REACH
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.

Optional Parts List

  Part Number Qty Description
Ultra Platform CPRS Power Supply PWS-1K02A-1R
PWS-1K22A-1R
PWS-1K62A-1R
PWS-1K30D-1R
CBL-PWEX-0710-JP
2
2
2
2
2
1U 800/1000W Redundant Titanium PSU CRPS 73.5x203x40mm
1U 1200W/800W Redundant Titanium PSU CRPS 73.5x203x40mm
1U 1000W/1600W Redundant Titanium PSU CRPS 73.5x203x40mm
1U 1300W -48Vdc Redundant PSU
-48V DC Input PSU 400cm Cable, Positronic CBD Connector
Add-on card for internal M.2 NVMe AOC-SLG3-2M2 1 Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules
DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT4
DVM-TEAC-DVDRW-SBT4
DVM-PLDS-DVDRW-SBT5
1 SLIM DVD-ROM / DVD-RW SATA DRIVE
DVD-ROM / DVD-RW Installation Kit MCP-220-81502-0N 1 Slim SATA DVD kit
Hot-Swap 2.5" Slim HDD Tray (FDD Slot) MCP-220-81504-0N & CBL-0210L 1 12G 2.5" Hot-swap Slim Floppy Size Drive Kit w/Status LED
Hot-Swap 2.5" Slim HDD Tray (DVD Slot) MCP-220-81506-0N & CBL-0210L 1 12G 2.5" Hot-swap Slim DVD Size Drive Kit with Status LED
USB Port Tray
(FDD Slot)
MCP-220-00153-0B 1 Black 2x USB 3.0 port tray in slim FDD bay
Internal Drive Tray for Two 2.5" Drives MCP-120-82916-0N

CBL-PWEX-0650
CBL-0080L

CBL-0484L Or
CBL-SAST-0654 Or
CBL-SAST-0948
1

1
2

2
1
1
Internal drive plate Supports Two 2.5" Drive, PCI slots

Power cable for Two internal 2.5" drives


SATA3 S-S Cable
miniSAS(iPass) to 4 SATA Cable
miniSAS HD to 4 SATA Cable
Hot-swap 3.5" to 2.5" SATA/SAS Drive Trays MCP-220-00118-0B

MCP-220-00043-0N
1~4 Tool-less black hot-swap 3.5-to-2.5 converter HDD drive tray (Red tab)

Black hot-swap 3.5-to-2.5 converter HDD drive tray (Red tab)
2 Internal M.2 slots (1 SATA, 1 NVMe) RSC-UMR-8 &
CBL-SAST-0538 &
FST-SCRW-0074L
1 1U Ultra RHS Riser Card with 1 PCIE/SATA Hybrid M.2 &1 PCIE X8
Storage Control Card and Cable(s) AOC-S3008L-L8e &
1x CBL-SAST-0948

AOC-S3008L-L8i &
1x CBL-SAST-0948

AOC-S3108L-H8iR &
1x CBL-SAST-0948

AOC-S3108L-H8iR-16DD & 1x CBL-SAST-0948
1 Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA; MINI SAS HD,12G,INT,60CM,30AWG

Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E; MINI SAS HD,12G,INT,60CM,30AWG

Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG

Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG
Network Card(s) AOC-SGP-i2/4

AOC-STGN-i1S/i2S

AOC-STGF-i2S

AOC-STG-i4S

AOC-STG-b4S

AOC-STG-i2T

AOC-STGS-i1/2T

AOC-STG-i4T

AOC-STG-i2

AOC-S25G-m2S

AOC-S40G-i2Q

More
-

-

-

-

-

-

-

-

-

-

-

-
Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350

Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN

Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel XL710-BM2

Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel XL710

Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S

Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540

Standard LP, 1/2x 10GbE RJ45, PCI-E x8, Intel X550

Standard LP, 4x 10GbE RJ45, PCI-E x8, Intel XL710

Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB

Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN

Standard LP 2-port 40GbE controller, Intel Fortville XL710

AOC Compatibility Matrix
CacheVault(s) BTR-CV3108-1U1

BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05
-

-
CacheVault for Broadcom 3108 with Supercap mounting in 1U 40x56 fan tray

CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location
1U Cable Management Arm MCP-290-00152-0N 1 1U Supermicro Cable Management Arm 2nd Gen
TPM security module AOM-TPM-9670H-S
AOM-TPM-9671H-S
1
1
TCG 2.0 compliant trusted platform module (TPM), Horizontal FF
TCG 1.2 compliant trusted platform module (TPM), Horizontal FF
Intel VROC RAID Key AOC-VROCINTMOD

AOC-VROCSTNMOD

AOC-VROCPREMOD
1

1

1
Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)

Intel VROC Standard, RAID 0, 1, 10

Intel VROC Premium, RAID 0, 1, 5, 10
Global Services & Support OS4HR3/2/1

OSNBD3/2/1
-

-
3/2/1-year onsite 24x7x4 service

3/2/1-year onsite NBD service
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
