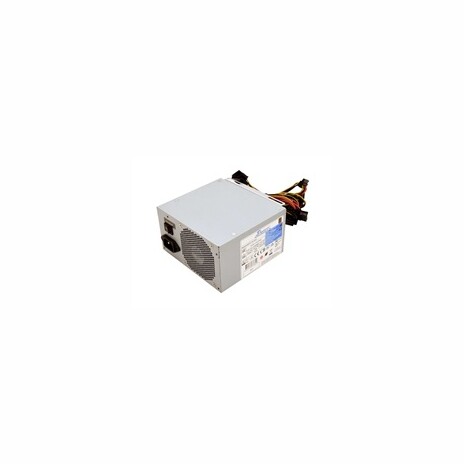

ET2 ATX Power Supply
This Seasonic industrial power supply is version 12 V v.2.3
compliant and 80 PLUS Bronze rated. Its double forward converter
circuit, super low noise fan control and great protection features
make it a dependable choice for a wide range of systems. This unit
is PCIe and SATA cable ready and with its full AC input range. It
is a stable, efficient and reliable power supply, ready to be used
in any ATX form factor build. The newly released ES2 complies fully
to the new safety standard of IEC 62368-1.
Specifications
SSP-350ES2
| Specifications |
| Input frequency |
50 / 60 Hz |
| Efficiency |
80 PLUS Bronze |
| Line regulation |
± 1 % (typical) |
| Load regulation |
± 5 % (typical) |
| Cross regulation |
± 5 % (typical) |
| MTBF, full load @ 25 °C ambient (excl. DC fan) |
> 100,000 hours |
| Active Power Factor Correction |
99 % (typical) |
| DC Outputs |
| +3.3 V |
+5 V |
+12 V1 |
+12 V2 |
-12 V |
+5 Vsb |
Total continuous power |
Input Type |
| 12 A |
20 A |
18 A |
18 A |
0.3 A |
2.5 A |
350 W |
100–240 VAC |
| 130 W (max.) |
324 W (max.) |
3.6 W |
12.5 W |
