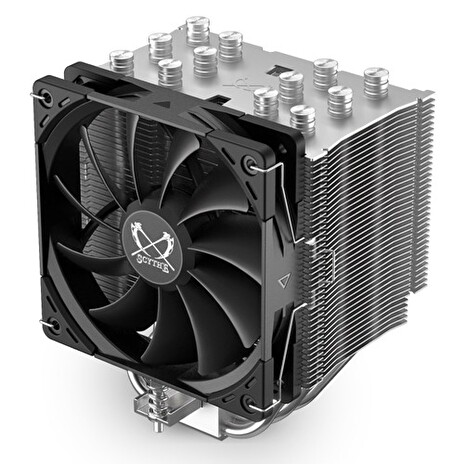

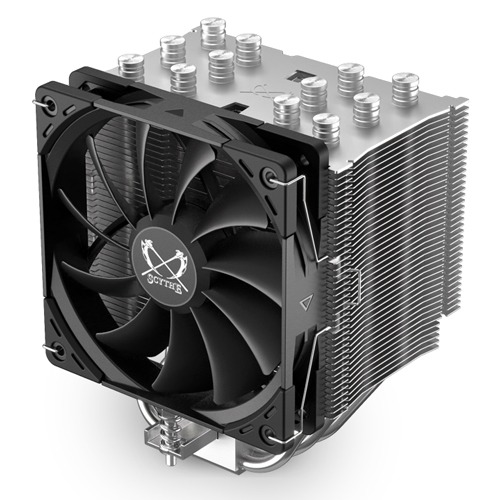

Scythe SCMG-5200 Mugen 5 Rev. C

Mugen 5 Rev. C
Oceňovaný chladič CPU Mugen 5 je k dispozici v revidované revizi C. Mezi nové funkce patří vylepšený montážní systém, který nyní nabízí plnou kompatibilitu se socketem LGA-1700 Intel, a nový ventilátor Kaze Flex II PWM. Kromě změny designu má ventilátor Kaze Flex II PWM rozšířený rozsah regulace od 300 do 1 500 ot./min. To umožňuje vyšší chladicí výkon, zatímco přizpůsobený rám ventilátoru zajišťuje zvýšené proudění vzduchu. Samostatné kapalinové ložisko (Sealed Precision FDB) a pogumované oddělovače umožňují extrémně hladký chod s průměrnou životností 120 000 hodin. Samotný chladič zůstává oproti svému úspěšnému předchůdci nezměněn. Asymetrická struktura ponechává dostatek prostoru pro volný přístup k paměťovým bankám. S výškou 154,5 mm se chladič snadno vejde do většiny standardních skříní. Pět měděných heatpipe a leštěná, vysoce kvalitní měděná základní deska jsou jako obvykle bohatě poniklované.

Mugen 5 Rev. C
The award-winning Mugen 5 CPU cooler is available in the revised revision C. The new features include an improved mounting system, which now offers full compatibility with Intel’s LGA-1700 socket, and a new Kaze Flex II PWM fan. In addition to a change of design, the Kaze Flex II PWM fan has an extended control range from 300 to 1,500 rpm. This enables higher cooling performance, while an adapted fan frame ensures increased airflow. A self-contained liquid bearing (Sealed Precision FDB) and rubberized decouplers enable extremely smooth running with an average service life of 120,000 hours. The heatsink itself remains unchanged from its successful predecessor. The asymmetrical structure leaves enough space for free access to the memory banks. With a height of 154.5 mm the cooler fits easily into most standard cases. As usual, the five copper heatpipes and the polished, high-quality copper baseplate are lavishly nickel-plated.

Asymmetric design
The heatpipes of the Mugen 5 Rev. C are gently sloped backwards so that the radiator is not centered directly above the baseplate, but slightly offset. This design offers excellent access to memory banks and enables the use of RAM modules with high heatsinks. The cut-out fins on the back allow compatibility with LGA2011 / LGA 2066 motherboards.

Kaze Flex II 120 PWM Fan
The Mugen 5 Rev. C is equipped with a new Kaze Flex II PWM fan featuring an increased control range of 300 to 1500 RPM. The self-contained liquid bearing (Sealed Precision FDB) reduces friction and wear to a minimum with the help of a special oil film and ensures a high level of stability and an average lifespan of 120,000 hours. Rubberized pads have a decoupling effect and prevent the transmission of any vibrations.

Hyper Precision Mounting System IV
The Mugen 5 Rev. C CPU Cooler uses the updated H.P.M.S IV mounting system which now offers full LGA 1700 compatibility. A pre-assembled mounting bar with spring-loaded screws ensures balanced pressure distribution. During the installation process, the universal backplate is securely fixed to the mainboard by rubberized spacers, making the process considerably easier.

Dual Fan Mount Structure
Like its predecessors, the Mugen 5 Rev. C was designed to mount a second fan (not included). This leads to an increased cooling performance by making use of the push / pull principle. A second set of fan-clips is included.

CPU Cooler Specification

Model Name
Mugen 5 Rev. C CPU Cooler

Model Number
SCMG-5200

EAN
4571225058009

Compatibility to Intel® Sockets
Socket LGA1150
Socket LGA1151
Socket LGA1155
Socket LGA1156
Socket LGA1200
Socket LGA1700
Socket LGA2011 / 2011-v3 (Square ILM)
Socket LGA2066

Compatibility to AMD® Sockets
Socket AM2
Socket AM2+
Socket AM3
Socket AM3+
Socket AM4
Socket FM1
Socket FM2
Socket FM2+

Overall Dimensions (WxHxD)
136 x 154.5 x 109.5 mm / 5.35 x 4.31 x 6.08 (incl. Fan)

Weight
900g / 37.7 oz (incl. Fan)

Accessory
Mounting parts for Intel and AMD sockets, fan, fan clips, thermal grease, installation manual

Baseplate Material / Heatpipes
Nickel-plated copper

Fan Specification

Model Name
Kaze Flex II 120 PWM

Model No.
KF1225FD15-P

Fan Dimensions
120 x 120 x 26 mm / 4.72 x 4.72 x 1.02

Noise Level
4 ~ 26 dBA

Fan Speed
300 (±200 rpm) ~ 1500 rpm (±10%)

Airflow
16.9 ~ 67.62 CFM / 28.7 ~ 114.88 m3/h

Connector
4-Pin PWM

Static Pressure
0.74 ~ 14.71 Pa / 0.075 ~ 1.50 mmH2O

Bearing
Sealed Precision FDB

Voltage
12 V

Amperage
0.16 A

MTTF
120,000 hours
