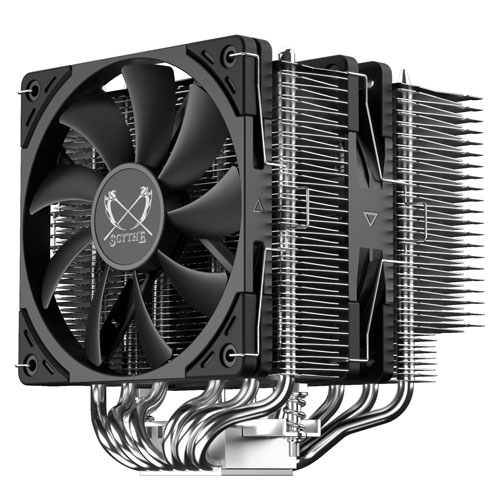

Scythe SCMF-2100 Fuma 2 Rev. B

FUMA 2 Rev. B
Fuma 2 Rev. B byla revidována a je nyní plně kompatibilní s LGA 1700 díky H.P.M.S. IV montážní systém. Jinak Fuma 2 Rev. B následuje konstrukční princip svého předchůdce a nabízí výkonný dvouvěžový chladič s asymetrickou strukturou. Šest vysoce kvalitních 6mm heatpipe spojuje samostatné chladiče s masivní měděnou základní deskou. Všechny měděné části byly důkladně poniklovány. Asymetrické zarovnání a vybrání na zadní straně druhého chladicího bloku umožňují neomezené použití všech paměťových bank. Dokonce i paměťové moduly na zadní straně patice CPU jsou podporovány až do výšky 55 mm. Fuma 2 Rev. B se dodává se dvěma novými ventilátory Kaze Flex II 120 PWM. Pro zachování nízkých rozměrů je kromě běžného modelu použita také slim verze s šířkou rámu pouhých 15 mm. Fuma 2 využívá principu konstrukce „Dual Fan Reverse Airflow“, ve které se ventilátory otáčejí v opačných směrech. To vytváří vyšší statický tlak a zvýšené a konzistentní proudění vzduchu. Rozsah PWM byl zvýšen na 1 500 ot./min., aby nabídl větší rezervy pro špičkové zatížení. Pro další maximalizaci chladicího výkonu lze nainstalovat další ventilátor. Potřebné montážní držáky jsou součástí dodávky.

FUMA 2 Rev. B
The Fuma 2 Rev. B has been revised and is now fully LGA 1700 compatible thanks to the H.P.M.S. IV mounting system. Otherwise, the Fuma 2 Rev. B follows the design principle of its predecessor and offers a powerful twin-tower heat sink with an asymmetrical structure. Six high-quality 6mm heatpipes connect the separate heatsinks to the massive copper base plate. All copper parts have been elaborately nickel-plated. The asymmetrical alignment and a recess on the back of the second cooling block allow unrestricted use of all memory banks. Even memory modules on the backside of the CPU socket are supported up to a height of 55 mm. The Fuma 2 Rev. B ships with two new Kaze Flex II 120 PWM fans. In addition to a regular model, a slim version with a frame width of only 15 mm is also used to keep the dimensions low. The Fuma 2 takes advantage of the principle of a “Dual Fan Reverse Airflow” design, in which the fans rotate in opposite directions. This creates higher static pressure and increased and consistent airflow. The PWM range has been increased to 1,500 rpm to offer more reserves for peak loads. An additional fan can be installed to further maximize cooling performance. The required mounting brackets are included in the scope of delivery.

Twin-Tower-Design
The classic twin-tower design of the Fuma 2 is not centered directly above the CPU socket, but offset by inclined heat pipes. This asymmetrical design offers maximum free space for the memory banks. The cooling fins of the second tower are designed in such a way that RAM modules with a height of up to 55 mm can also be operated on the back of the CPU socket without restricting the effectiveness of the heat sink. Despite the enormous cooling surface, the Fuma 2 remains at a height of 154.5 mm and thus fits into any standard PC case.

Dual Fan Reverse Airflow
The Fuma 2 Rev. B CPU cooler uses two newly developed Kaze Flex II 120 fans, each working in a PWM range of up to 1,500 rpm. In addition, the fans rotate in opposite directions. This creates higher static pressure and increased and consistent airflow. In addition, a third fan can be mounted for more performance. Appropriate fan clips are included in the scope of delivery.

Kaze Flex II PWM Fans
Both of the Kaze Flex 120 II fans use a sealed fluid dynamic bearing (Sealed Precision FDB) that reduces friction and wear to a minimum thanks to a special oil film. Rubberized pads coveringe the frame have a decoupling effect and prevent the transmission of noise and vibrations to the case.

H.P.M.S. IV (Hyper Precision Mounting System IV)
The Fuma 2 Rev. B CPU Cooler uses the updated H.P.M.S IV mounting system which now offers full LGA 1700 compatibility. A pre-assembled mounting bar with spring-loaded screws ensures balanced pressure distribution. During the installation process, the universal backplate is securely fixed to the mainboard by rubberized spacers, making the process considerably easier.

CPU Cooler Specification

Model Name
FUMA 2 Rev. B CPU Cooler

Model Number
SCFM-2100

EAN
4571225058221

Compatibility to Intel® Sockets
Socket LGA1150
Socket LGA1151
Socket LGA1155
Socket LGA1156
Socket LGA1200
Socket LGA1700
Socket LGA2011 / 2011-v3 (Square ILM)
Socket LGA2066

Compatibility to AMD® Sockets
Socket AM2
Socket AM2+
Socket AM3
Socket AM3+
Socket AM4
Socket FM1
Socket FM2
Socket FM2+

Overall Dimensions (WxHxD)
137 x 154.5 x 129 x 154.5 mm/ 5.39 x 6.08 x 5.08 in (incl. fan)

Weight
1.000 g / 35.27 oz (incl. fan)

Accessory
Mountingparts for Intel- & AMD Sockets, two Kaze Flex II 120 Fans, Manual, Thermal Grease (Thermal Elixer 2), Fan Clips, Screwdriver

Baseplate Material / Heatpipes
nickel-plated copper

Fan Specification

Model Name
Fan 1: Kaze Flex II 120 Slim PWM
Fan 2: Kaze Flex II 120 PWM

Model No.
Fan 1: SU1215FD12H-CNP
Fan 2: SU1225FD12M-CHP

Fan Dimensions
Fan 1: 120 x 120 x 15 mm / 4.72 x 4.72 x 0.59 in
Fan 2: 120 x 120 x 26 mm / 4.72 x 4.72 x 1.02 in

Noise Level
Fan 1: 2.58 ~ 23.8 dBA
Fan 2: 4.0 ~ 26.80 dBA

Fan Speed
Fan 1: 300 (±200 rpm) ~ 1500 rpm (±10%) (PWM-controlled)
Fan 2: 300 (±200 rpm) ~ 1500 rpm (±10%) (PWM-controlled)

Airflow
Fan 1: 8.16 ~ 39.44 CFM - 13.86 ~ 67.00 m3/h
Fan 2: 16.6 ~ 51.17 CFM - 28.71 ~ 114.89 m3/h

Connector
4-pin PWM

Static Pressure
Fan1: 0.44 ~ 9.41 Pa / 0.045 ~ 0.96 mmH2O
Fan 2: 0.74 ~ 14.71 Pa / 0.075 ~ 1.50 mmH2O

Bearing
Sealed Precision FDB
Voltage
12 V
