MSI MB Sc LGA1700 PRO H610M-G DDR4, Intel H610, 2xDDR4, 1xDP, 1xHDMI, 1xVGA, mATX
MSI MB Sc LGA1700 PRO H610M-G DDR4, Intel H610, 2xDDR4, 1xDP, 1xHDMI, 1xVGA, mATXMSI MB Sc LGA1700 PRO H610M-G DDR4, Intel H610, 2xDDR4, 1xDP, 1xHDMI, 1xVGA, mATXMSI MB Sc LGA1700 PRO H610M-G DDR4, Intel H610, 2xDDR4, 1xDP, 1xHDMI, 1xVGA, mATX
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

super....profesionální přístup

Ověřený zákazník

MSI MB Sc LGA1700 PRO H610M-G DDR4, Intel H610, 2xDDR4, 1xDP, 1xHDMI, 1xVGA, mATX

PRO H610M-G DDR4 Supports 12th Gen Intel Core™, Pentium Gold and Celeron processors for LGA 1700 socket Supports DDR4 Memory, up to 3200(MAX) MHz Core Boost: With premium layout and digital power design to support more cores and provide better performance Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility…
Kód: 3429880PN: PRO H610M-G DDR4Výrobce: MSIZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
3 199   včetně DPH
Cena bez DPH: 2 644 Kč
Cena po registraci:
3 099 Kč
Cena bez DPH: 2 561 Kč
Nákup po telefonu
+420 587 407 456
Skladem
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již 28.6. / ZDARMA!
Přepravní službou (ČR)30.6. / od 120 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.

Popis produktu

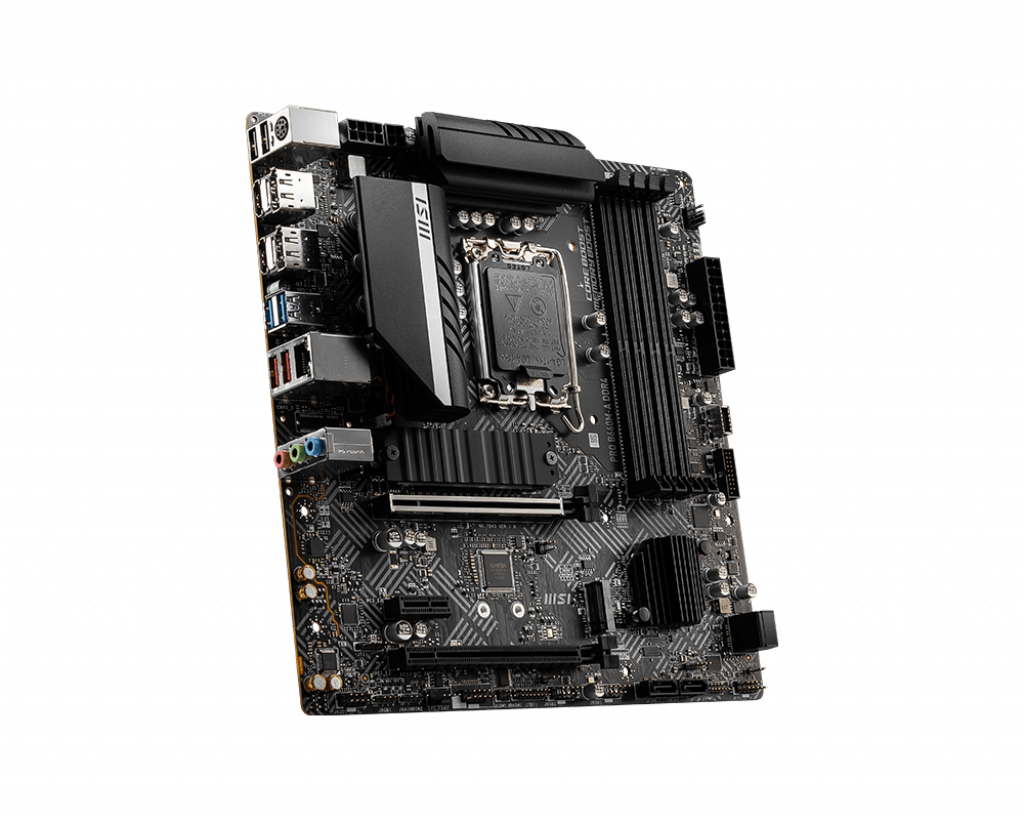

PRO H610M-G DDR4

  • Supports 12th Gen Intel Core™, Pentium Gold and Celeron processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 3200(MAX) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Experience: PCIe 4.0
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

PROCESSOR

Supports 12th Gen Intel Core™ Processors, Pentium Gold and Celeron Processors*
Processor socket LGA1700
*Please go to www.msi.com to get the newest support status as new processors are released.

CHIPSET

Intel H610 Chipset

MEMORY

2x DDR4 memory slots, support up to 64GB*
Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
*Please refer to www.msi.com for more information on compatible memory.

EXPANSION SLOT

1x PCIe x16 slot (From CPU)
Supports up to PCIe 4.0 x16
1x PCIe x1 slot
Supports PCIe 3.0 x1
1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)

ONBOARD GRAPHICS

1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz */**
1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*
x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz */**
*Available only on processors featuring integrated graphics.
**Graphics specifications may vary depending on the CPU installed.

SATA PORTS

4x SATA 6Gb/s ports*
* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

M.2 SSD SLOT

1x M.2 slot (Key M, from chipset)*
Supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Supports Intel Smart Response Technology for Intel Core™ processors
*SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot

USB

Intel H610 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)

AUDIO

Realtek ALC892/ ALC897 Codec
7.1-Channel High Definition Audio

LAN

1x Intel I219V 1Gbps LAN controller

POWER CONNECTORS

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector

FAN CONNECTORS

1x 4-pin CPU fan connector
1x 4-pin system fan connector

SYSTEM CONNECTORS

1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector

JUMPERS

1x Clear CMOS jumper

LED FEATURES

1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
4x EZ Debug LED

BACK PANEL PORTS

HDMI
VGA
DisplayPort
Keyboard/Mouse
USB 3.2 Gen 1 5Gbps Type-A
LAN port
Audio connector
USB 2.0
MSI H510M-A PRO back panel ports

DIMENSIONS

mATX Form Factor
9.29 x 7.95 in. (23.6 cm x 20.2 cm)

OPERATING SYSTEM

Support for Windows 11 64-bit

Parametry

Další rozhraníM.2
Formát základní deskymicro ATX
ChipsetIntel H610
Integrovaná LAN karta1
PCI Express x161
Podpora RAIDBez RAID podpory
Socket (patice)Socket 1700
Technologie paměti RAMDDR4
