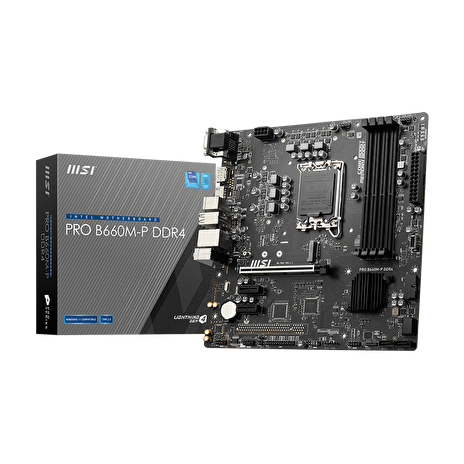

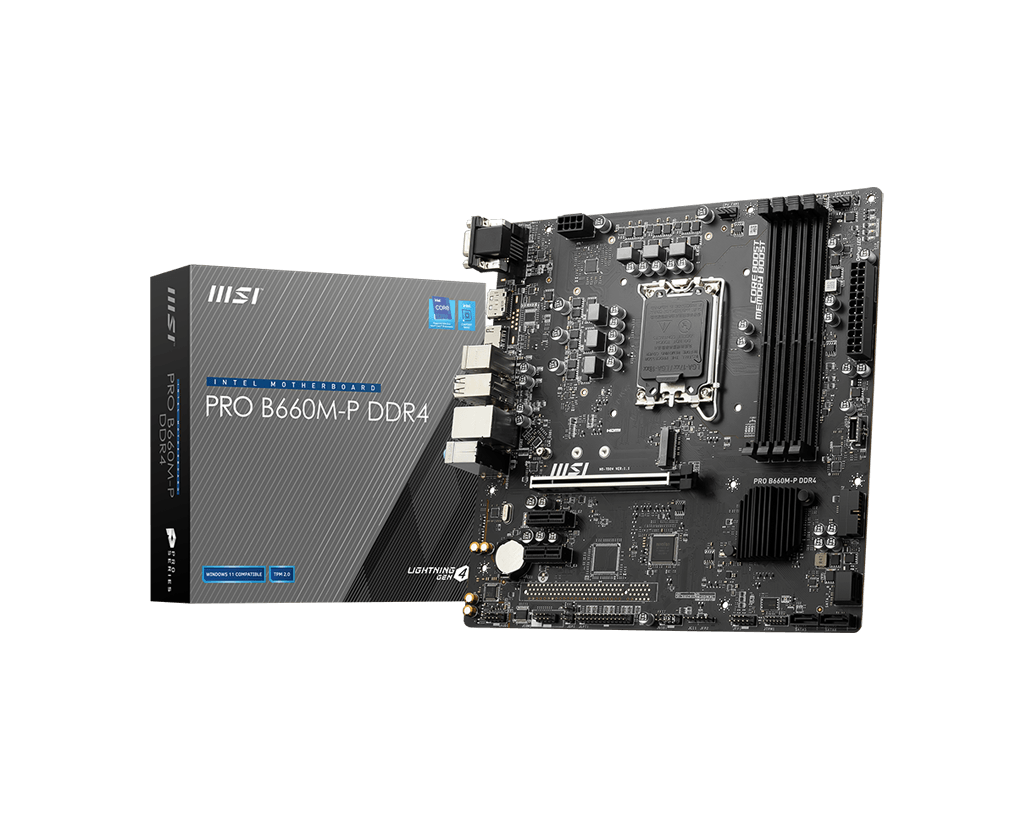

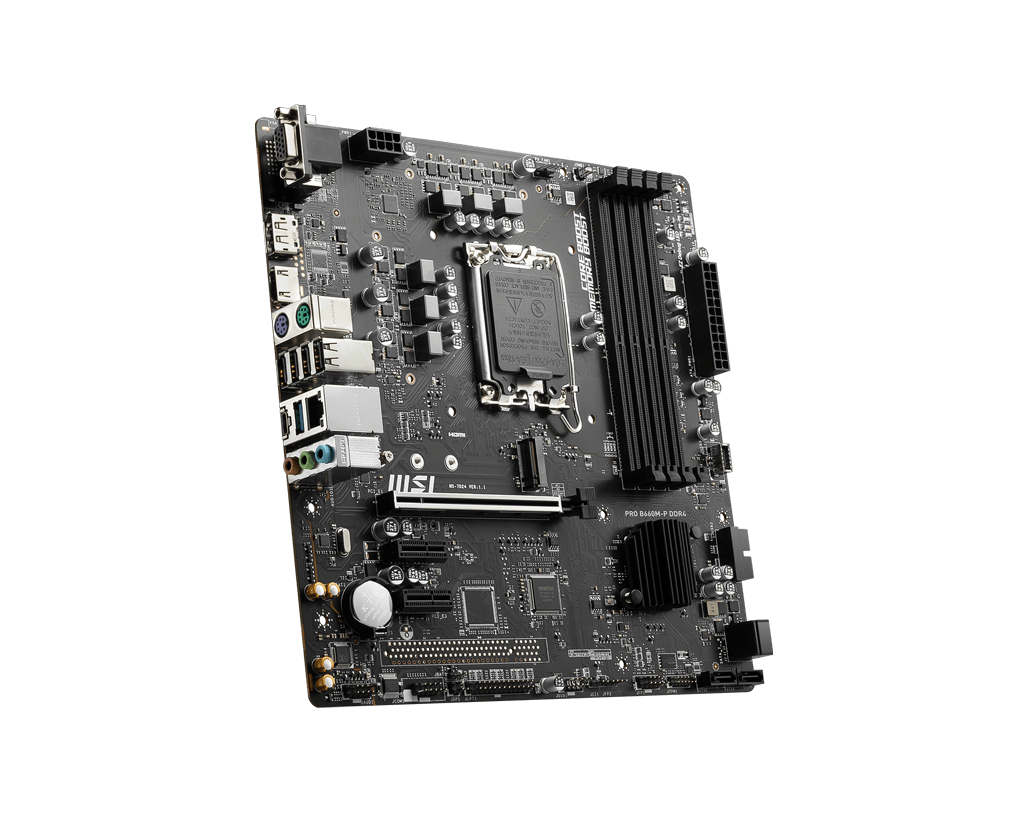

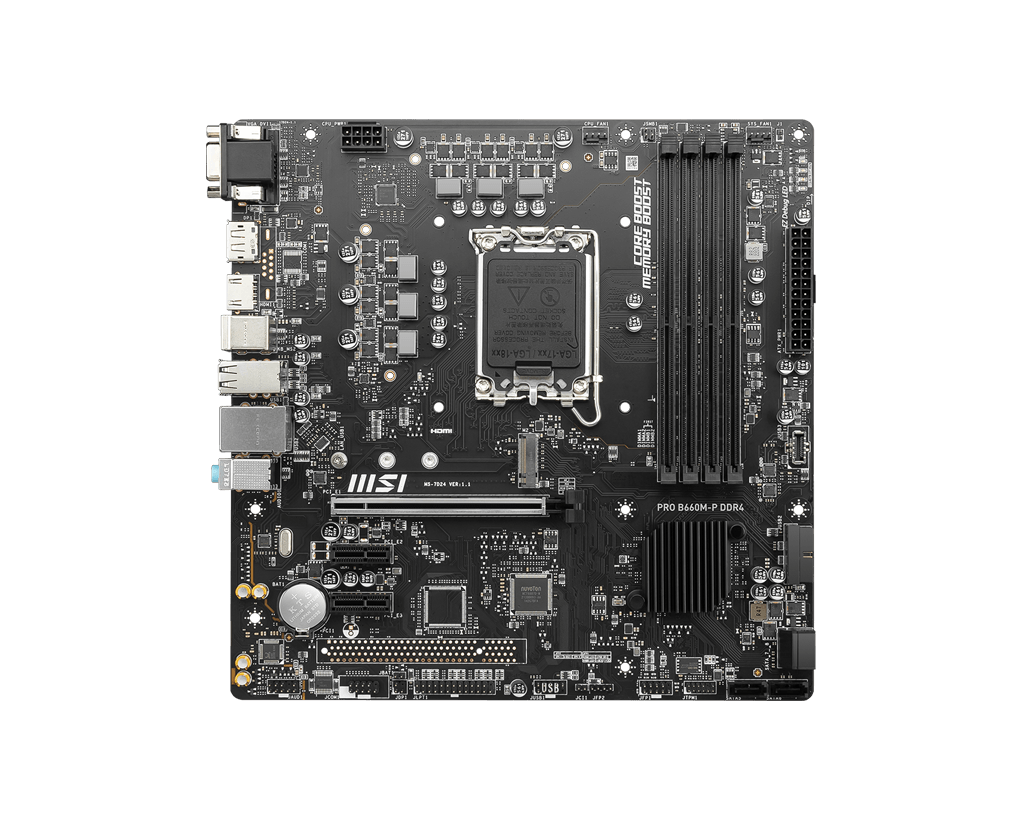

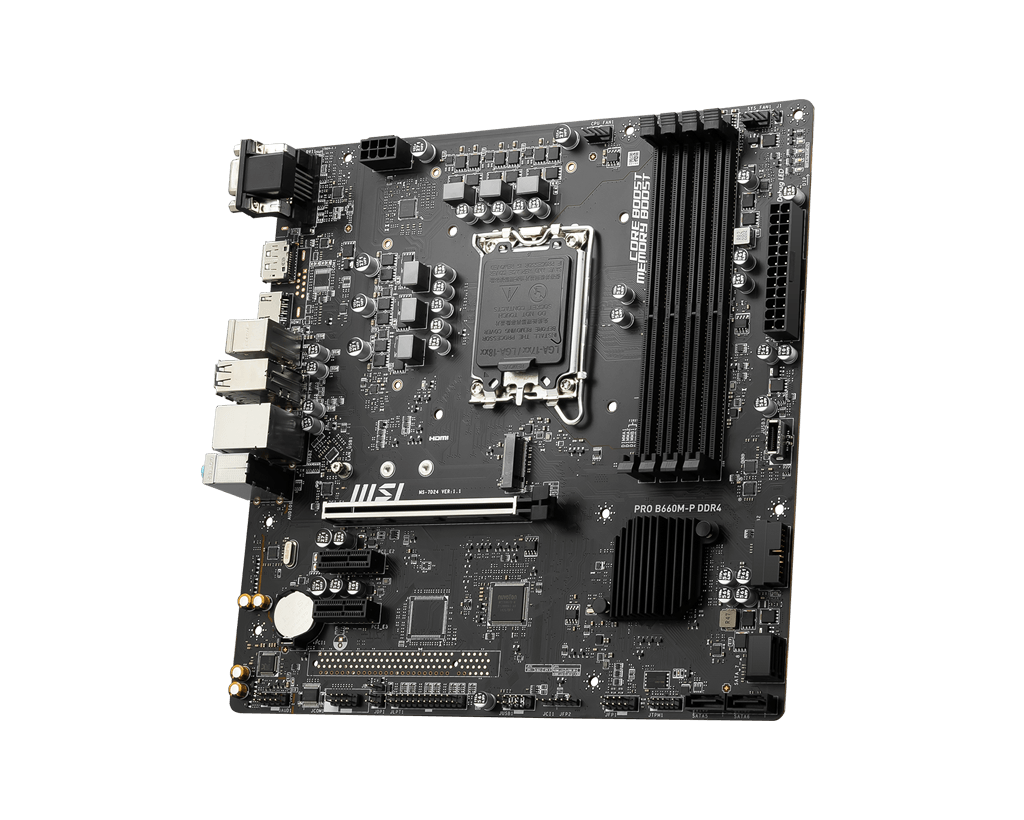

PRO B660M-P DDR4

• Supports 12th Gen Intel Core™, Pentium Gold and Celeron processors for LGA 1700 socket
• Supports DDR4 Memory, up to 4600+(OC) MHz
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2
• Audio Boost: Reward your ears with studio grade sound quality
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

CPU

Supports 12th Gen Intel Core™ Processors, Pentium Gold and Celeron Processors*
Processor socket LGA1700
*Please go to msi.com to get the newest support status as new processors are released.

CHIPSET

Intel B660 chipset

MEMORY

4x DDR4 memory slots, supporting up to 128GB*
Supports 1R 2133/2666/3200 MHz (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 4600+ MHz
1DPC 2R Max speed up to 4000+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 3600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
*Please refer www.msi.com for more information on compatible memory.

EXPANSION SLOT

1x PCIe x16 slot
PCI_E1 (From CPU)
Supports up to PCIe 4.0 x16
2x PCIe x1 slots
PCI_E2 & PCI_E3 (Fom B660 chipset)
Supports up to PCIe 3.0

ONBOARD GRAPHICS

1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz*/**
1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz*/**
1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available for the processor with integrated graphics.
**Graphics specifications may vary depending on the CPU installed.

AUDIO

Realtek ALC897 Codec
7.1-Channel High Definition Audio
LAN1x Realtek RTL8111H 1Gbps LAN controller

STORAGE

4x SATA 6Gb/s ports (From B660 chipset)*
1x M.2 slot (Key M)
M2_1 slot (From B660 Chipset)
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
*SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

FORM FACTOR

M-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

BIOS FEATURES

1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.4
Multi-language

POWER CONNECTORS

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector

INTERNAL USB CONNECTORS

1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset)
1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset)
Supports additional 2 USB 3.2 Gen 1 5Gbps ports
1x USB 2.0 Type-A connector (From B660 chipset)
Supports additional 2 USB 2.0 ports

FAN CONNECTORS

1x 4-pin CPU fan connector
1x 4-pin system fan connector

SYSTEM CONNECTORS

1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x parallel port connector
1x Serial port

JUMPERS

1x Clear CMOS jumper

LED FEATURE

4x EZ Debug LED

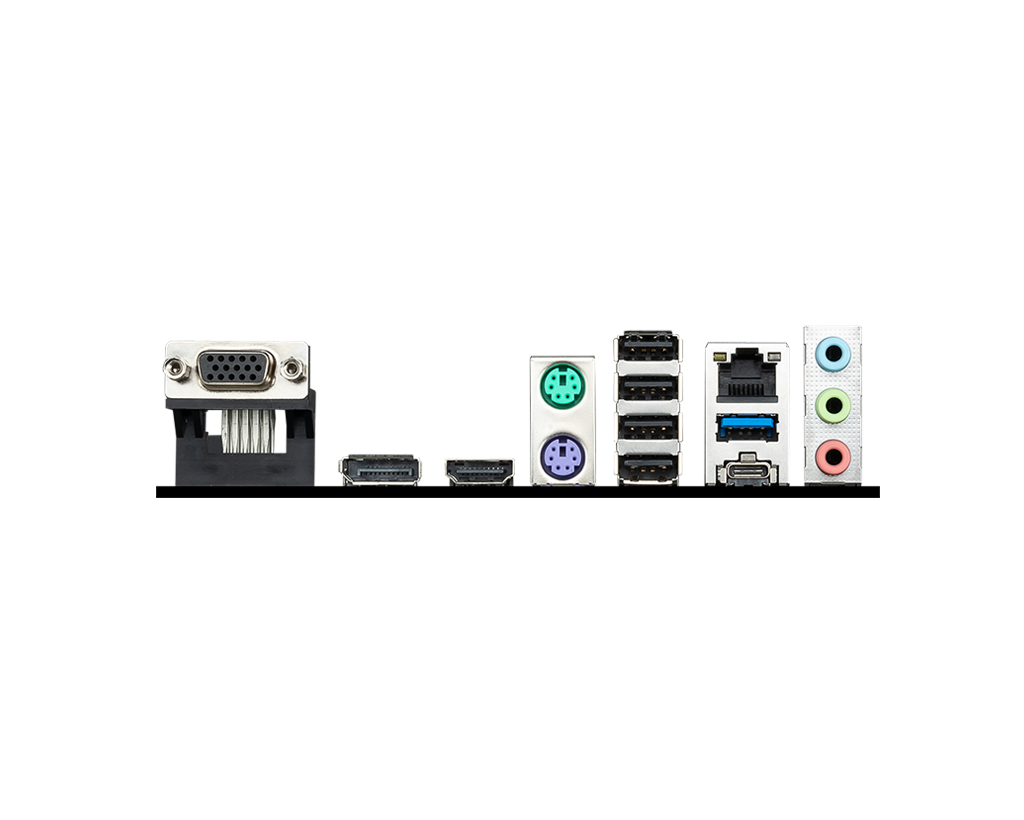

BACK PANEL CONNECTORS

VGA
DisplayPort
HDMI
Keyboard / Mouse
USB 2.0
LAN port
Audio connectors
USB 3.2 Gen 2 10Gbps Type-C
USB 3.2 Gen 1 5Gbps Type-A
