Supports 12th Gen Intel Core™, Pentium Gold and Celeron
processors *
Processor socket LGA1700
* Please go to msi.com to get the newest support status as new
processors are released.
Intel Z690 Chipset
4x DDR5 memory slots, supporting up to 128GB *
Supports 1R 4800 MHz (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 6400+ MHz
1DPC 2R Max speed up to 5400+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Intel XMP 3.0 OC
Supports Dual Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
* Please refer to www.msi.com for
more information on compatible memory.
3x PCIe x16 slots
PCI_E1 (From CPU)
Support up to PCIe 5.0 x16
PCI_E3 (From Z690 chipset)
Support up to PCIe 3.0 x4
PCI_E4 (From Z690 chipset)
Support up to PCIe 3.0 x1
1x PCIe 3.0 x1 slot (From Z690 chipset)
Supports AMD CrossFire™ Technology
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K
60Hz */**
1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of
4K 60Hz */**
* Available only on processors featuring integrated graphics.
**Graphics specifications may vary depending on the CPU
installed.
6x SATA 6Gb/s ports (From Z690 chipset)
4x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (From Z690 chipset)
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280 storage devices
M2_3 slot (From Z690 chipset)
Supports up to PCIe 3.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_4 slot (From Z690 chipset)
Supports up to PCIe 4.0 x4
Supports up to SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Intel Optane™ Memory Ready for M.2 slots from Z690 Chipset
Supports Intel Smart Response Technology for Intel Core™
processors
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage
devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Intel Z690 Chipset
1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel
4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector, 3
Type-A ports on the back panel)
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2
ports through the internal connector)
1x USB 2.0 Type-A port on the back panel
Hub-GL850G
5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports
available through internal connectors)
Realtek ALC4080 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
1x Intel I225V 2.5Gbps LAN controller
Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.2
1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
4x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen
1 5Gbps ports)
2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0
ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x TPM module connector
1x Clear CMOS jumper
1x TBT connector (supports RTD3)
1x Tuning Controller connector
1x EZ LED Control switch
1x 4-pin RGB LED connectors
3x 3-pin RAINBOW LED connectors
4x EZ Debug LED

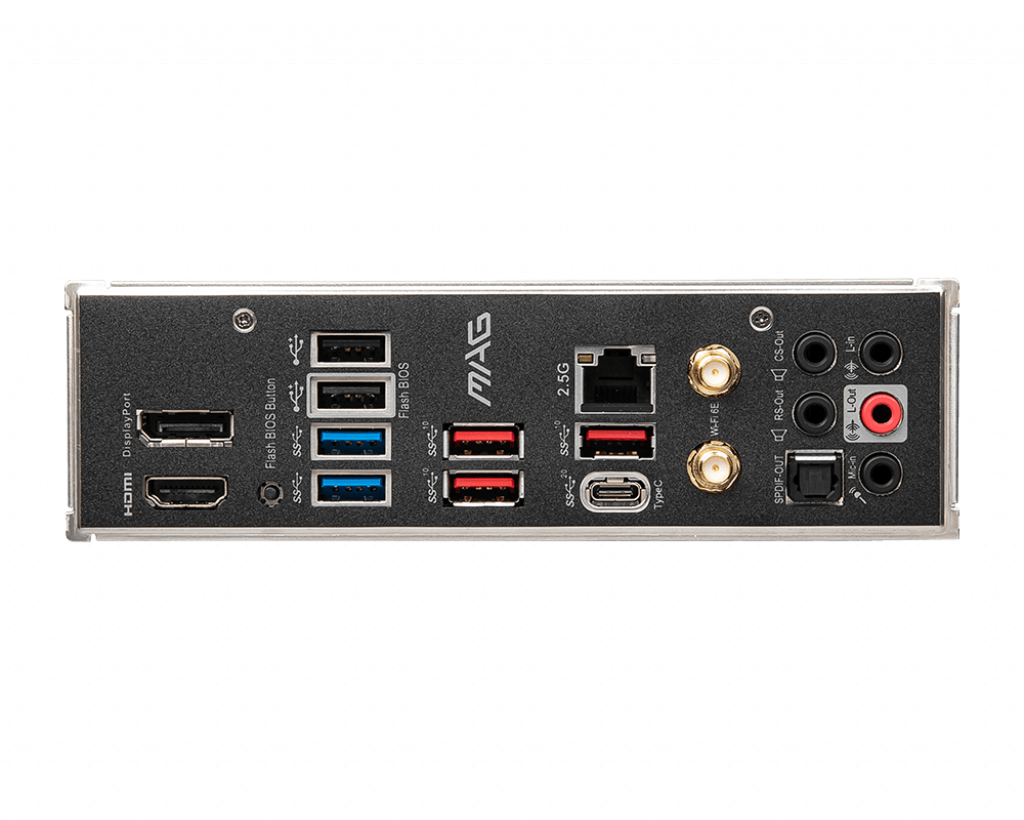

DisplayPort 1.4
USB 2.0 Port
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port
Wi-Fi / Bluetooth Antenna
HD Audio Connectors
HDMI 2.1 Port
Flash BIOS Button
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2 10Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
Optical S/PDIF OUT
MAG Z690 TOMAHAWK WIFI DDR4 back panel ports
ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
BlueTooth | Ano |
---|---|
COM port (interní) | Ne |
DisplayPort / miniDisplayPort | Ano |
DVI | Ne |
eSATA | Ne |
Grafická karta | Ano (v závislosti na CPU) |
HDMI | Ano |
Chipset | Z690 |
IEEE 1394 | Ne |
Integrované CPU na MB | Ne |
LPT port (interní) | Ne |
Max. velikost op. paměti (GB) | 128 |
Maximální frekvence pamětí | 6400 |
Patice | LGA 1700 |
Počet konektorů SATA 6Gb/s | 6 |
Počet LAN výstupů | 1x LAN konektor |
Počet paměťových slotů | 4 |
Počet pinů USB 2.0 (interní) | 2 |
Počet pinů USB 3.x (interní) | 1 |
Počet slotů M.2 | 4 |
Počet slotů PCIe x1 | 1 |
Počet slotů PCIe x16 | 3 |
Počet USB 2.0 (externí) | 2 |
Počet USB 3.x (externí) | 5 |
Podpora pro paměti typu | DDR5 |
RAID řadič | Ano |
ThunderBolt (interní) | Ne |
TPM Header | Ano |
Typ síťové karty | Intel |
Velikost základní desky | ATX |
VGA | Ne |
Výrobce chipsetu | Intel |
WiFi | Ano |
XMP | Ano |
