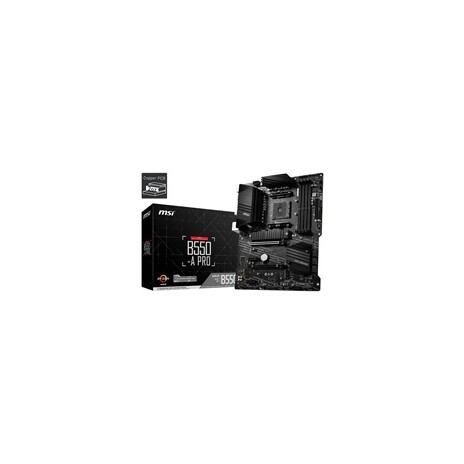

MSI MB Sc AM4 B550-A PRO, AMD B550, 4xDDR4, VGA, ATX
MSI MB Sc AM4 B550-A PRO, AMD B550, 4xDDR4, VGA, ATXMSI MB Sc AM4 B550-A PRO, AMD B550, 4xDDR4, VGA, ATXMSI MB Sc AM4 B550-A PRO, AMD B550, 4xDDR4, VGA, ATX
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Vše v naprostém pořádku.

Ověřený zákazník

MSI MB Sc AM4 B550-A PRO, AMD B550, 4xDDR4, VGA, ATX

B550-A PRO TECHNICAL SPECIFICATIONS CPU Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update. Chipset AMD B550 Chipset Memory 4x DDR4 memory slots, support up to 128GB 1 Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466…
Kód: 2977887PN: B550-A PROVýrobce: MSIZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
4 499   včetně DPH
Cena bez DPH: 3 718 Kč
Nákup po telefonu
+420 587 407 456
Skladem poslední 3 kusy
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již 19.1. / ZDARMA!
Přepravní službou (ČR)21.1. / od 120 Kč
Na výdejním místě (ČR)21.1. / od 120 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.

Popis produktu

B550-A PRO

TECHNICAL SPECIFICATIONS

CPU Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update.
Chipset AMD B550 Chipset
Memory
  • 4x DDR4 memory slots, support up to 128GB 1
  • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
  • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/
  • 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
  • 1DPC 1R Max speed 4800 MHz
  • 1DPC 2R max speed 3866 MHZ
  • 2DPC 1R max speed 4000 MHZ
  • 2DPC 2R max speed 3600 MHZ
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory

Please refer www.msi.com for more information on compatible memory.

Slots
  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
  • 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2
  • 2x PCIe 3.0 x1 slots
    The supported specification depends on installed processor.When installing PCIe SSD in M.2_2, PCI_E3 slot will be unavailable.
Multi-GPU
  • Supports 2-Way AMD CrossFire™ Technology
Onboard Graphics
  • 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1
  • 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
  • Maximum shared memory of 2048 MB
    Available for the processor with integrated graphics.
Storage

AMD B550 Chipset

  • 6x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
  • M2_1 slot (from AMD Processor)
  • Supports PCIe 4.0/ 3.0 x4 1
  • Supports SATA 6Gb/s
  • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 slot (from AMD B550 chipset)
  • Supports PCIe 3.0x4
  • Supports 2242/ 2260/ 2280 storage devices
  • The supported specification depends on installed processor.
RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB

AMD B550 Chipset

  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

  • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio
  • Realtek ALC892 Codec
    7.1-Channel High Definition Audio
LAN
  • 1x Realtek 8111H Gigabit LAN controller
Internal Connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1xTPM module connector
  • 1x Clear CMOS jumper
Back Panel Ports
  • Keyboard / Mouse
  • DisplayPort
  • LAN
  • HD Audio Connectors
  • Flash BIOS Button
  • USB 2.0
  • HDMI
  • USB 2.0
  • USB 3.2 Gen 1 5Gbps Type-A
  • USB 3.2 Gen 2 10Gbps Type-A+C
Mounting
  • 9 mounting holes
Dimensions
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Parametry

FormátATX
ChipsetAMD
Integrovaná grafická kartaAno
Integrovaná LAN karta1
PCI express 16xVíce než 1
RozhraníHDMI
RozhraníUSB 2.0
RozhraníUSB 3.2
Rozhraní3.5mm Jack
RozhraníLAN
RozhraníDisplayPort
RozhraníUSB Type-C
Socket (patice)Socket AM4
Technologie paměti RAMDDR4
