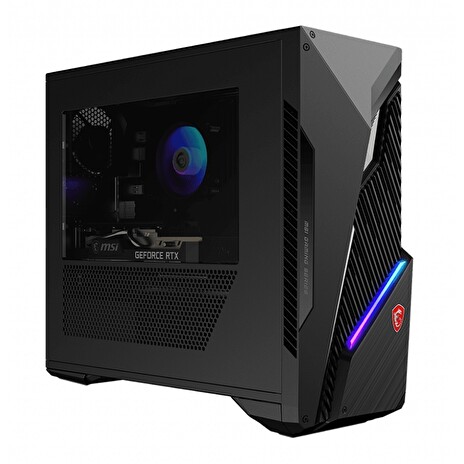

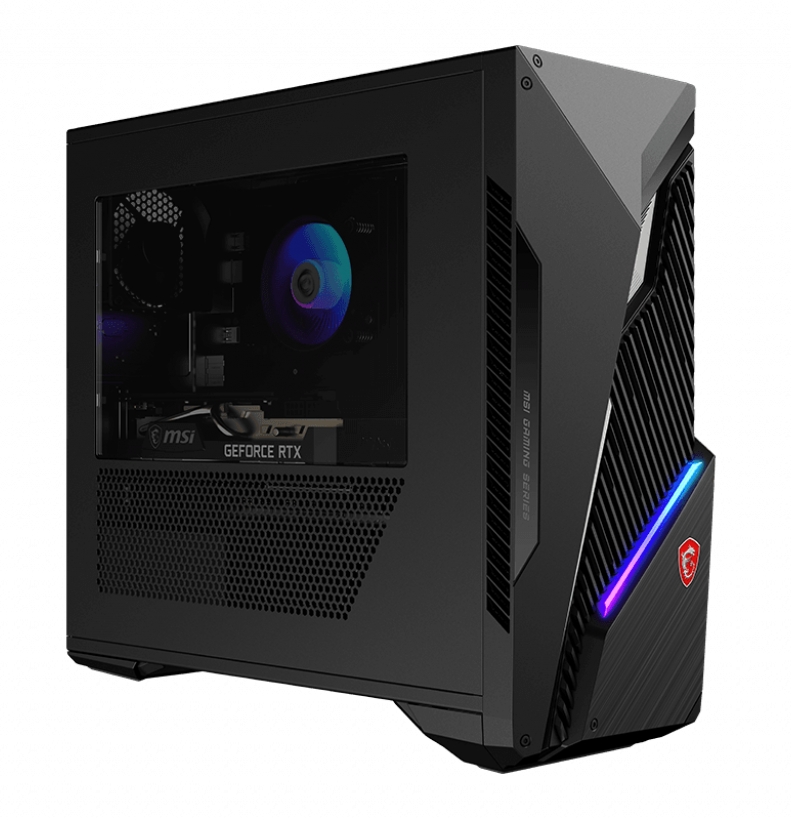

MSI MAG Infinite S3 13TC-625EU/i7-13700F/16GB/1TB SSD/RTX 3060 ventus 2X, 8GB OC/Win 11 home

MSI MAG Infinite S3 13TC-625EU/i7-13700F/16GB/1TB SSD/RTX 3060 ventus 2X, 8GB OC/Win 11 home

MKT Spec MAG Infinite S3 13TC-625EU
Website Name MAG Infinite S3 13th
Color ID1/Black-Black-Black
System/Barebone System
Processor
CPU Core Name RAPTOR LAKE
CPU Socket LGA-1700pin
CPU Number Intel Core i7-13700F
CPU Clock 2.1GHz
CPU Cores 16
TDP 65W
CPU Cooler Air cooling 65W
Max Turbo Frequency up to 5.20 GHz
Cache 30 MB Intel® Smart Cache
Threads 24
Chipset
Chipsets H610
MB Ori. MKT Name PRO H610M-G DDR4?PRO H610M-G
Graphics
GPU1 Vendor NVIDIA
GPU1 MKT Name GeForce RTX 3060
GPU1 Number RTX 3060 VENTUS 2X
GPU1 VRAM Size 8G
VGA I/O Port HDMIx1, Display Portx3
VGA MKT Name GeForce RTX 3060 VENTUS 2X 8G OC
Memory
Memory Size 16GB(8GB*2)
Memory Type DDR4 SDRAM
Memory Speed 1600(3200)MHz
Module Type U-DIMM
Memory Slot 2
Memory Slot(Total) 2
Memory Slot(Free)
Max Capacity Max 64GB
Storage
SSD Interface PCIe GEN3x4 w/o DRAM NVMe
SSD Form Factor M.2-2280 M-KEY
SSD Config 1TB*1
SSD Size 1TB
HDD1 Interface N/A
HDD1 Form Factor N/A
HDD1 Size N/A
HDD1 RPM N/A
ODD(Type) N/A
ODD Height N/A
ODD Type
mSATA slots N/A
mSATA slots(Total) NA
mSATA slots(Free)
M.2 slots 1
M.2 slots(Total) 1
M.2 slots(Free)
2.5" Drive Bays N/A
2.5" Drive Bays(Total) 2
2.5" Drive Bays (Free)
3.5" Drive Bays N/A
3.5" Drive Bays(Total) 1
3.5" Drive Bays(Free)
Communications
LAN Intel I219-V
WLAN INTEL/AX210.NGWG.NV
WLAN Version 802.11a/b/g/n/ac/ax 2x2+BT
BT Version 5.2
VESA
VESA size NA
Audio
Audio Chipset Realtek ALC897
Audio Type 7.1 Channel HD Audio
Speaker N/A
I/O Ports (Front)
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
USB 3.2 Gen 2 Type C NA
USB 3.2 Gen 2 Type A NA
USB 3.2 Gen 1 Type C 1
USB 3.2 Gen 1 Type A 1
USB 2.0 Type A NA
USB 2.0 Type C NA
Thunderbolt N/A
Audio Mic-in 1
Audio Headphone-out 1
Audio Headphone-out (HiFi/SPDIF) NA
Mic-in/Headphone-out combo NA
Card Reader N/A
I/O Ports (Rear)
USB 3.2 Gen 2x2 Type C (R) NA
USB 3.2 Gen 2x2 Type A (R) NA
USB 3.2 Gen 2 Type C (R) NA
USB 3.2 Gen 2 Type A (R) NA
USB 3.2 Gen 1 Type C (R) NA
USB 3.2 Gen 1 Type A (R) 2
USB 2.0 Type C (R) NA
USB 2.0 Type A (R) 4
Thunderbolt (R) NA
RJ45 1
WiFi Antenna 1
Card Reader (R) NA
VGA out 1
VR-Link N/A
HDMI out 1x (v1.4)
DP out 1x (v1.2)
mini DP in NA
mini DP out NA
PS/2 1
COM Port NA
DVI-D out NA
Audio jack 3
S/PDIF NA
Flash BIOS Button NA
Power
Power 500W
Power Certification 80PLUS BRONZE
Formfactor ATX
Type POWER SUPPLY
Operating Systems
OS MULTI-LANGUAGE(WIN 11 HOME ADVANCED OLC OA3)
OS Type W11MA
Operating Systems Windows 11 Home
Pallet
W/O KB Pallet Q'ty (by air) 12
W/O KB Pallet Q'ty (by sea) 24
W/KB Pallet Q'ty (by air) 12
W/KB Pallet Q'ty (by sea) 24
Dimension&Weight
Product Dimension (WxDxH) (mm) 173.8 x 446.97 x 407.17
Product Dimension (WxDxH) (inch) 6.84 x 17.6 x 16.03
Inside Carton Dimension (WxDxH) (mm) N/A
Inside Carton Dimension (WxDxH) (inch) N/A
Outer Carton Dimension Standard (WxDxH) (mm) 585 x 317 x 510
Outer Carton Dimension Standard (WxDxH) (inch) 23.03 x 12.48 x 20.08
Outer Carton Dimension with bundle item (WxDxH) (mm) 585 x 317 x 510
Outer Carton Dimension with bundle item (WxDxH) (inch) 23.03 x 12.48 x 20.08
Weight (Net kg) 7.73
Net Weight (lbs) 17.04
Weight (Gross kg) 10.44
Gross Weight (lbs) 23.02
Liter 32
Pint 67.63
Warranty
Warranty 24months
SW Feature - 3rd Party Royalty
Nahimic Sound effect N/A
HDMI Royalty Y
Mechanical and Environmental
Operating, Storage Temperature 0° C ~ 35° C ; -20° C ~ 60° C
Operating, Storage Humidity 0% ~ 85%;0% ~ 90%
Regulatory Compliance FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick)
Accessories
AC Adaptor N/A
Power Cord 1
Warranty Card N/A
Quick Guide 3
User Manual N/A
VESA Mount kit N/A
Keyboard N/A
Keyboard Interface N/A
Mouse N/A
Mouse Interface N/A
Model Info
Series Name Gaming
Segment Name Infinite
Segment Name2 MAG Infinite S3
Segment Name3 MAG Infinite S3 13TC
Barcode Info
EAN 4711377032926
