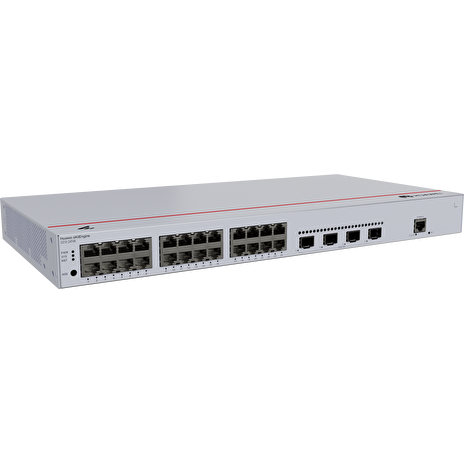

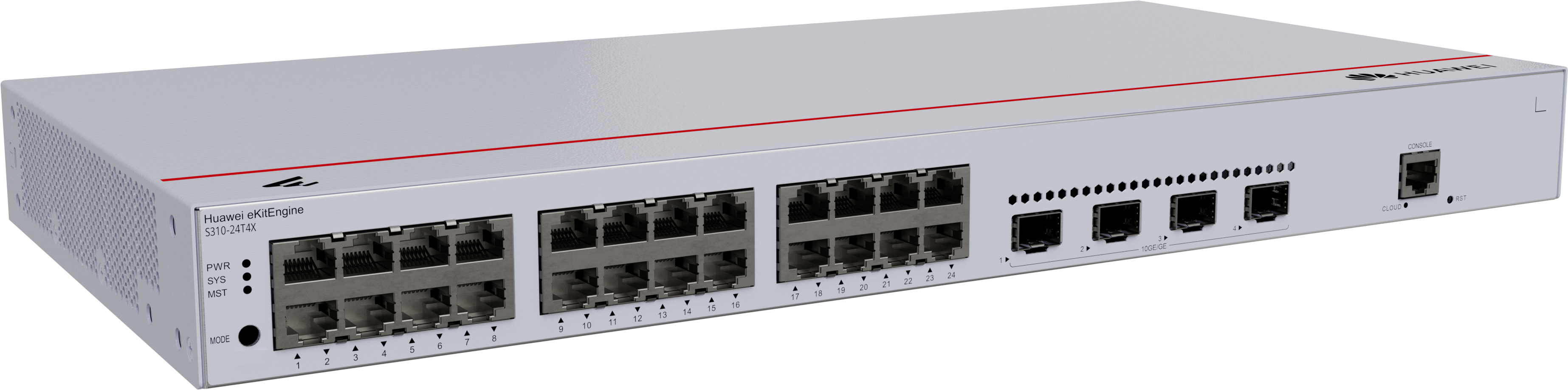

Huawei S310-24T4X Switch (S310-24T4X (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, built-in AC power)
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Rychlá a bezproblémová komunikace, příjemné jednání. Vše naprosto bez chyby.

Ověřený zákazník

Huawei S310-24T4X Switch (S310-24T4X (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, built-in AC power)

24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, built-in AC power Based on the next-generation high-performance hardware and software platform, Huawei eKitEngine S310 series switches stand out with features such as intelligent stack (iStack), flexible Ethernet networking, and diversified security control. In addition, eKitEngine S310 series switches support Layer 3 routing…
Kategorie: Switche Huawei
Kód: 3761137PN: 98012381Výrobce: HuaweiZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
15 099   včetně DPH
Cena bez DPH: 12 479 Kč
Nákup po telefonu
+420 587 407 456
Skladem poslední 2 kusy
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již 29.2. / ZDARMA!
Přepravní službou (ČR)4.3. / od 160 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.

Popis produktu

24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, built-in AC power

Based on the next-generation high-performance hardware and software platform, Huawei eKitEngine S310 series switches stand out with features such as intelligent stack (iStack), flexible Ethernet networking, and diversified security control. In addition, eKitEngine S310 series switches support Layer 3 routing protocol, delivering higher performance and more powerful service processing capabilities. These make them ideal for various application scenarios, such as enterprise campus access and gigabit to the desktop.

Switching capacity
128 Gbps
Packet forwarding
95 Mpps
Fixed port
24 x 10/100/1000BASE-T ports, 4 x 10GE SFP+ ports
Chassis dimensions (H x W x D)
43.6 mm x 442 mm x 220 mm
Chassis height
1 U
Weight in full configuration (including packaging materials)
3.44 kg
Power module type
Built-in AC power module
Rated voltage
100 V to 240 V AC, 50/60 Hz
Maximum power consumption
35.04 W
Input voltage range [V]
ƒ AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Noise
ƒ Sound power at normal temperature: 47 dB (A)
ƒ Sound power at high temperature: 51 dB (A)
ƒ Sound pressure at normal temperature: 35 dB (A)



First supported version
V600R023C00
Integrated fixed device
Y
Dimensions without packaging (H x W x D) [mm(in.)]
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Chassis height [U]
1
Installation type
Rack mounting,Desk mounting,Wall mounting
Chassis material
Metal
Weight without packaging [kg(lb)]
2.32 (5.11)
Weight with packaging [kg(lb)]
3.44 (7.58)
Typical power consumption [W]
27.27
Typical heat dissipation [BTU/hour]
93.05
Maximum power consumption [W]
35.04
Maximum heat dissipation [BTU/hour]
119.56
Static power consumption [W]
19.00
100% power consumption [W]
27.27
MTBF [year]
70.75
MTTR [hour]
2
Availability
> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]
47
Noise at high temperature (acoustic power) [dB(A)]
51
Noise at normal temperature (acoustic pressure) [dB(A)]
35
Number of card slots
0
Number of power slots
0
Number of fans modules
1
Maximum number of physical ports on the entire device
28
Maximum number of 100GE ports
0
Maximum number of 40GE ports
0
Maximum number of 25GE ports
0
Maximum number of 10GE ports
4
Maximum number of 5GE ports
0
Maximum number of 2.5GE ports
0
Maximum number of GE ports
28
Maximum number of FE ports
24
Uplink ports
4 x 10GE SFP+ ports
Downlink ports
24 x 10/100/1000BASE-T ports
Dedicated stack port
Not supported
Redundant power supply
Not supported
Long-term operating temperature [°C(°F)]
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F).
Storage temperature [°C(°F)]
–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]
5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)]
0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]
0-5000 m (0-16404 ft.)
Power supply mode
AC built-in
Rated input voltage [V]
AC input: 100–240 V AC; 50/60 Hz
Input voltage range [V]
AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz
Maximum input current [A]
0.8 A
CPU
1.1 GHz, 2 cores
Memory
2 GB
Flash memory
Physical space: 1 GB
Console port
RJ45
Eth Management port
Not supported
USB
Not supported
Hardware real-time power detection
Not supported
Dying gasp
Supported
RTC
Not supported
RPS input
Not supported
Complete device sleeping
Not supported
Service port surge protection [kV]
Common mode: ±7 kV
Power supply surge protection [kV]
Differential mode: ±6 kV; common mode: ±6 kV
Ingress protection level (dustproof/waterproof)
IP20
Types of fans
Built-in
Heat dissipation mode
Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction
Air intake from left and front, air exhaustion from right
PoE
Not supported
Certification
EMC certification Safety certification Manufacturing certification

Parametry

Počet portů24
PoE 802.3afNe
Rychlost přenosu10/100/1000
SFPAno
SprávaManagovatelný
VýrobceHuawei
