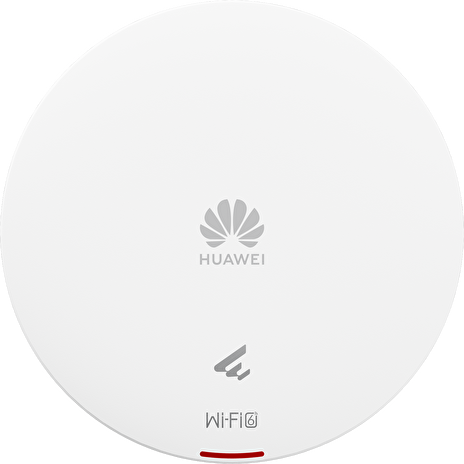

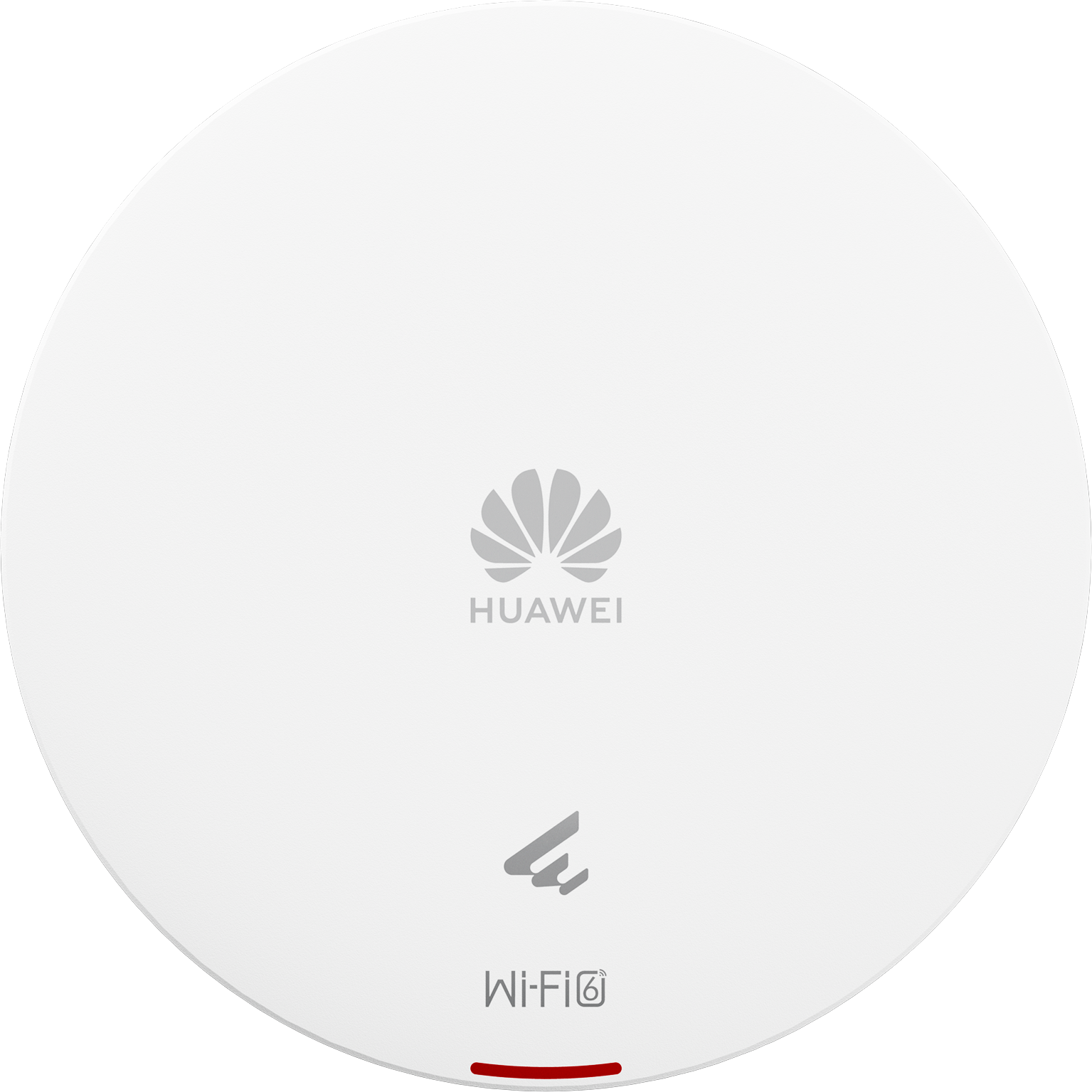

Huawei eKitEngine AP361 is an indoor access point (AP) in
compliance with the Wi-Fi 6 (802.11ax) standard. It provides
services simultaneously on the 2.4 GHz (2x2 MIMO) and 5 GHz (2x2
MIMO) frequency bands, achieving a maximum device rate of 1.775
Gbps. This AP features high bandwidth, high concurrency, and
compact size, facilitating flexible deployment and saving customer
investment. Such strengths make the AP a good fit for indoor
coverage scenarios, such as small and micro enterprise workplaces,
small- and medium-sized hospitals, commercial real estate, budget
chain hotels, and primary and secondary schools.
-Dual-radio mode: 2.4 GHz (2x2) + 5 GHz (2x2), providing a maximum
rate of 575 Mbps and 1.2 Gbps, respectively, and a rate of up
to1.775 Gbps for the device.
- 1 x GE electrical port.
- Built-in smart antenna: automatically adjusts the coverage
direction and signal strength based on the intelligent switchover
algorithm. Such capability enables the AP to flexibly adapt to the
application environment changes, providing accurate and stable
coverage as STAs move.
- Working modes: Fit, Fat, and cloud management.
- Deployment and O&M through the HUAWEI eKit app
First supported version
V200R023C00
Integrated fixed device
Y
Installation Type
Wall,Ceiling,T-Rail
Dimensions without packaging (H x W x D) [mm(in.)]
Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.)
Dimensions with packaging (H x W x D) [mm(in.)]
200 mm x 231 mm x 61 mm (7.87 in. x 9.09 in. x 2.40 in.)
Weight without packaging [kg(lb)]
0.45 kg (0.99 lb)
Weight with packaging [kg(lb)]
0.75 kg (1.65 lb)
CPU
2-core, 1.2 GHz
Memory
DDR3 256 MB
Console port
None
Power supply mode
PoE
Storage
NAND Flash 256 MB
Rated input voltage [V]
NA
Input voltage range [V]
PoE: 802.3af
Service port surge protection
PoE port: Common mode (8 wires to ground): 4 kV (1.2/50 us, 42
ohms), criterion B Differential mode (48 V-RTN): 0.5 kV (1.2/50 us,
42 ohms), criterion B
Maximum number of physical ports on the entire device
GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)]
0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to
16404.20 ft.], the maximum temperature of the device decreases by
1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Storage temperature [°C(°F)]
–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]
5% RH to 95% RH
Long-term operating altitude [m(ft.)]
–60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa]
53kPa - 106kPa ETSI 300 019-2-3
Ground
floating ground
Radio number
2
MIMO spatial streams
Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2
Wi-Fi standard
2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax
Radio interface
Built-in smart antennas
Antenna gain
2.4G: 4 dBi/chain (peak) 2 dBi (combined gain) 5G: 5 dBi/chain
(peak value) 3 dBi (combined gain)
Maximum transmit power
2.4G: 17 dBm/chain 20 dBm (combined power) 5G: 17 dBm/chain 20 dBm
(combined power)
MTBF [year]
440.3
MTTR [hour]
2
Maximum power consumption [W]
8.8
Maximum heat dissipation [BTU/hour]
28.5
802.3bt power supply description
No function is limited.
802.3at power supply description
No function is limited.
802.3af power supply description
No function is limited.
DC power supply description
DC power supply is not supported.
Operating frequency band
2.4GHz,5GHz
Frequency stability [ppm]
+/-20
