WRX80-SU8-IPMI AMD WRX80 Motherboard with sWRX8 4094 Socket, 8-Channel DDR4 RDIMM 8 x DIMMs, Aspeed AST2500 BMC, Dual M.2, Dual Intel Server 10G and 1G LAN, 7 x PCIe 4.0 x16 Slots for multi cards AMD Ryzen™ Threadripper™ PRO 3000WX Series Processors, sWRX8 4094 Socket 8-Channel DDR4 RDIMM/LRDIMM 8 x DIMMs Aspeed AST2500 BMC Dual Intel Server 10G LAN and GbE LAN 7 PCIe…
Kód: 3174061PN: GA-WRX80-SU8-IPMIVýrobce: GIGABYTEZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
Aktuálně není v nabídce

Popis produktu

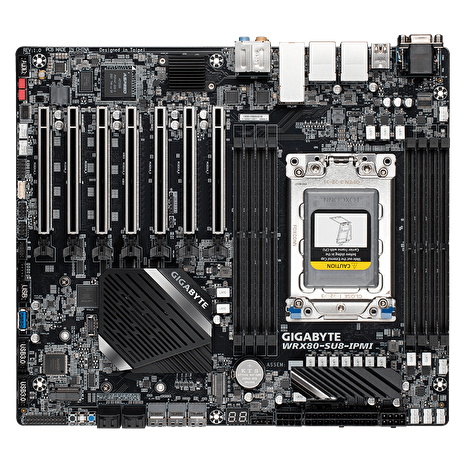

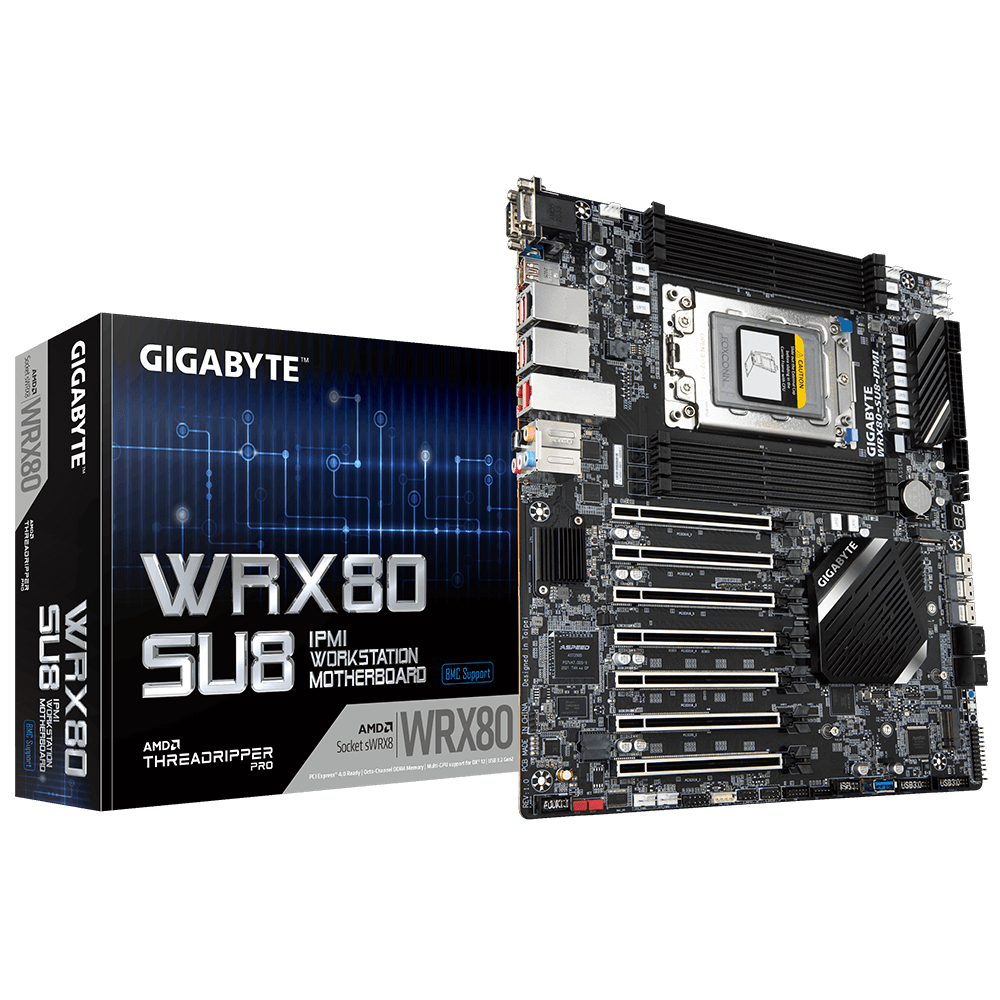

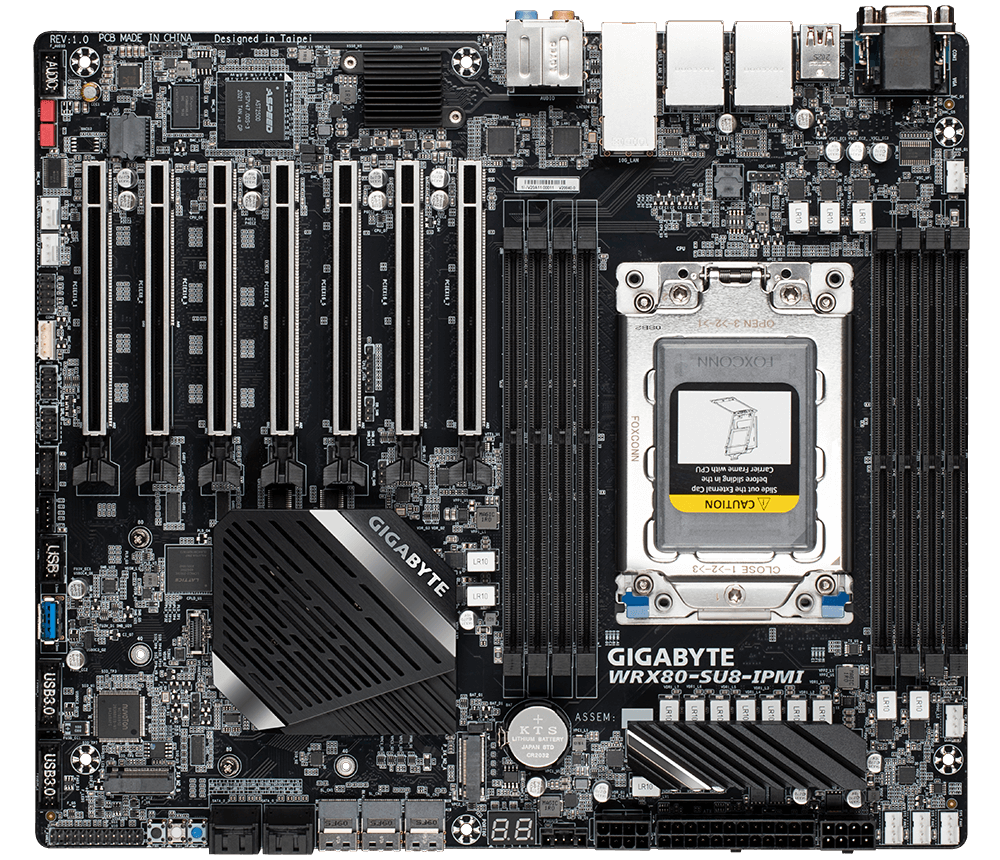

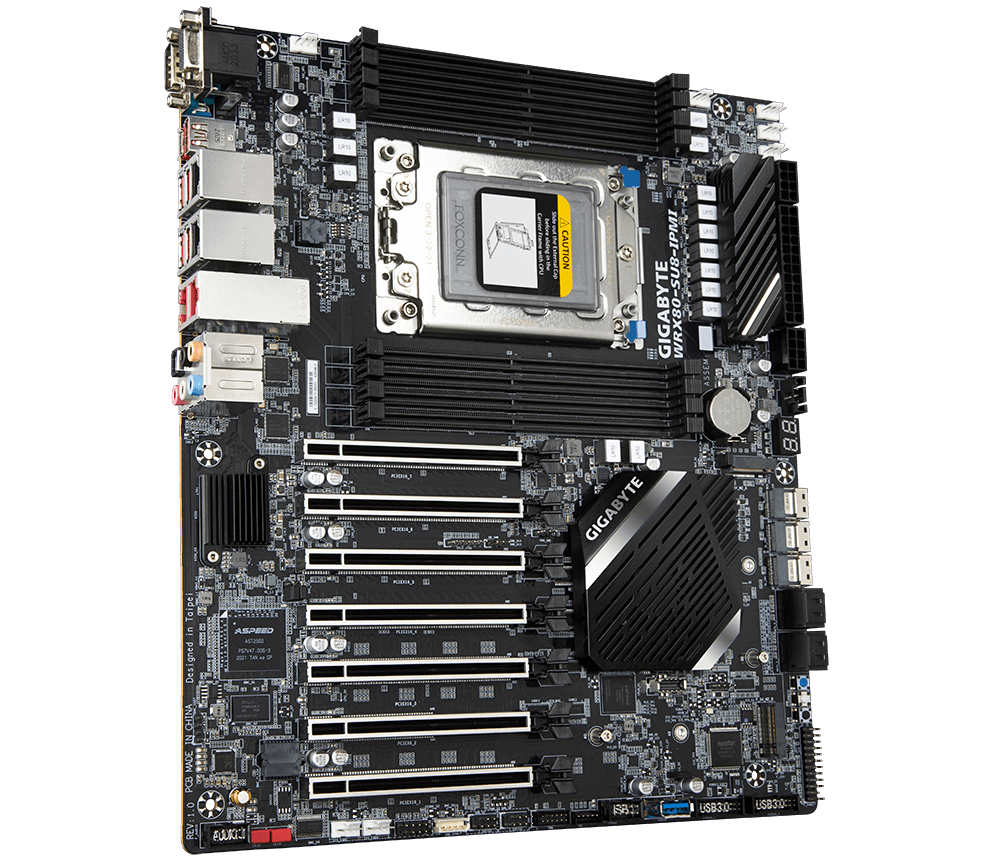

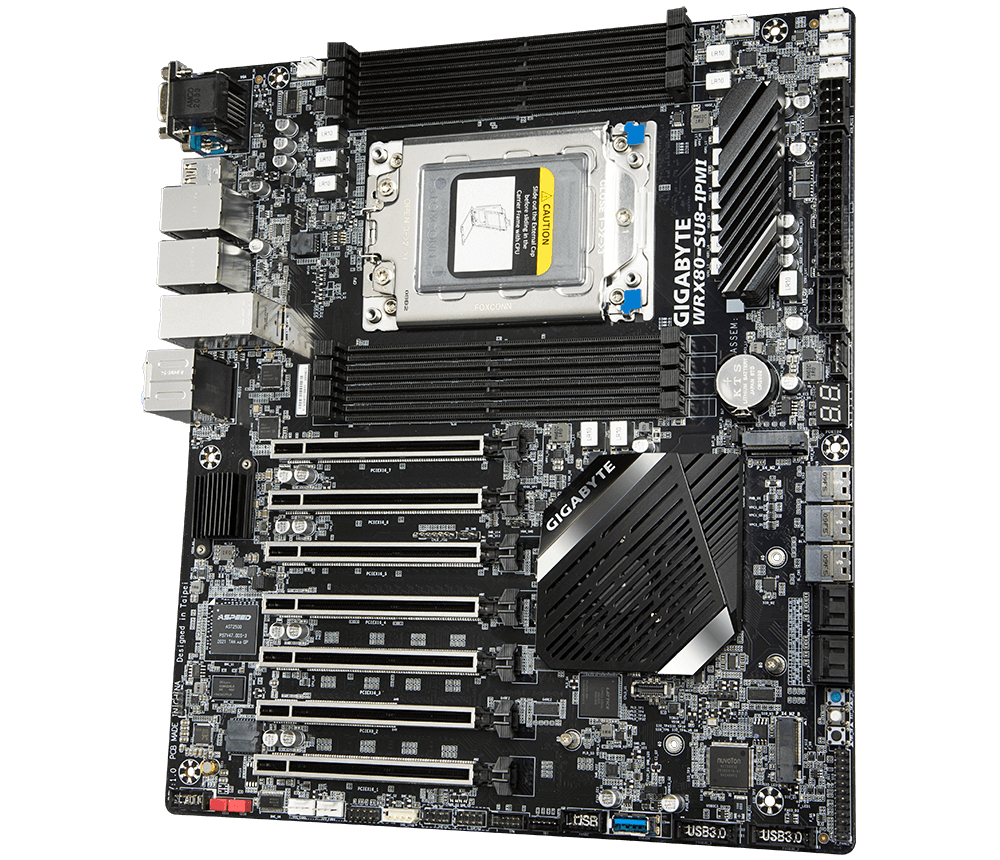

WRX80-SU8-IPMI

AMD WRX80 Motherboard with sWRX8 4094 Socket, 8-Channel DDR4 RDIMM 8 x DIMMs, Aspeed AST2500 BMC, Dual M.2, Dual Intel Server 10G and 1G LAN, 7 x PCIe 4.0 x16 Slots for multi cards

  • AMD Ryzen™ Threadripper™ PRO 3000WX Series Processors, sWRX8 4094 Socket
  • 8-Channel DDR4 RDIMM/LRDIMM 8 x DIMMs
  • Aspeed AST2500 BMC
  • Dual Intel Server 10G LAN and GbE LAN
  • 7 PCIe 4.0 x16 Slots for Multi-GPU, supports for DirectX 12
  • Multiple storage interface: 4 SATA3 Ports, 3 SlimSAS ports (NVMe and SATA are available)
  • Next-gen transfer speeds: Dual M.2 (NVMe and SATA mode) and 6 USB 3.2 Gen2 including 1 Type-C
  • Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
  • 120dB SNR AMP-UP Audio with ALC1220

CPU

Ryzen™ Threadripper™ PRO 3000WX (up to 64C)
Single sWRX8 4094 socket; CPU TDP supports up to 280W

Chipset

AMD WRX80 Chipset

Memory

8 x DDR4 DIMM slots supports
8 channels memory architecture (1 DIMM per channel)
Support up to DDR4 3200/2933/2600 MHz
Support for UDIMM (ECC), RDIMM, 3DS RDIMM and LRDIMM memory modules
Support system memory capacity up to 1024GB

Audio

Realtek ALC1220-VB codec

High Definition Audio

2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN

Dual Intel X550 10GbE LAN
Dual Intel i210AT GbE LAN (NCSI MLAN)

Expansion Slots

(Slot7) PCIe x16 (running at Gen4 x16)
(Slot6) PCIe x16 (running at Gen4 x16)
(Slot5) PCIe x16 (running at Gen4 x16)
(Slot4) PCIe x16 (running at Gen4 x16)
(Slot3) PCIe x16 (running at Gen4 x16)
(Slot2) PCIe x16 (running at Gen4 x8)
(Slot1) PCIe x16 (running at Gen4 x16)

Storage Interface

4 x SATA 6Gb/s connectors (support software RAID 0; RAID1; RAID5; RAID10)
2 x M.2 Connectors (Socket 3; M key; Form Factor 2242/2280 ; Supports PCIe gen4 x4 or SATA mode)
2 x slimSAS (PCIe gen4 x4 or 4x SATAIII) + 1 x slimSAS (PCIe gen4 x4) connectors

USB

1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
1 x USB Type-C™ header onboard, with USB3.2 Gen2 support
2 x USB 3.2 Gen 1 header onboard
1 x USB 3.2 Gen 1 vertical connector onboard
1 x USB 2.0 header on board

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V CPU power connector
1 x 8-pin ATX 12V GPU power connector
1 x CPU fan header
6 x system fan headers
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
3 x slimSAS connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 vertical connector
2 x USB 3.2 Gen 1 header
1 x USB 2.0 header
1 x Thunderbolt™ add-in card connector
1 x Trusted Platform Module(TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x chassis intrusion header
1 x Clear CMOS jumper
2 x SATA SGPIO headers
1 x BMC_VGA jumper
1 x BMC_WATCHD jumper
1 x SMB_IPMB connector
1 x PMBUS header
1 x Speaker

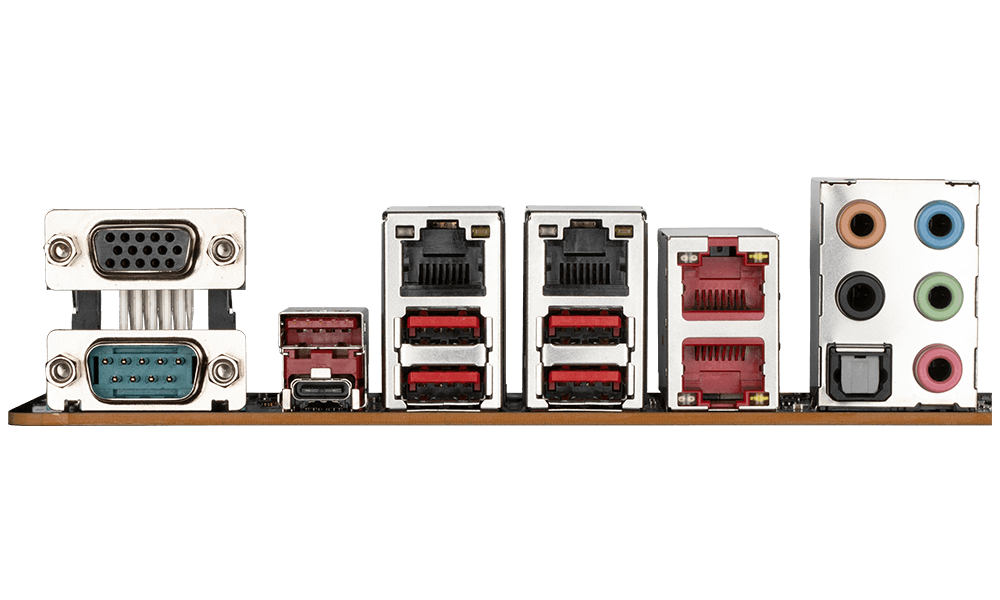

Back Panel Connectors

1 x D-sub port
1 x serial port
1 x USB 3.2 Gen 2 Type-C port (red)
5 x USB 3.2 Gen 2 Type-A port (red)
2 x GbE RJ-45 ports
2 x 10GbE RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks

I/O Controller

ASPEED AST2500 BMC chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8 - 80%
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 5% - 95%

Form Factor

CEB Form Factor; 30.5cm x 26.7cm

Support OS

Windows 10
Linux

Parametry

3.5mm JackAno
Další rozhraníS/PDIF
Formát základní deskyCEB
ChipsetAMD
Integrovaná LAN karta2
PCI Express x16Více než 1
Podpora RAID1
Podpora RAID5
Podpora RAID10
Pro procesoryAMD
Socket (patice)Socket WRX8
Technologie paměti RAMDDR4
