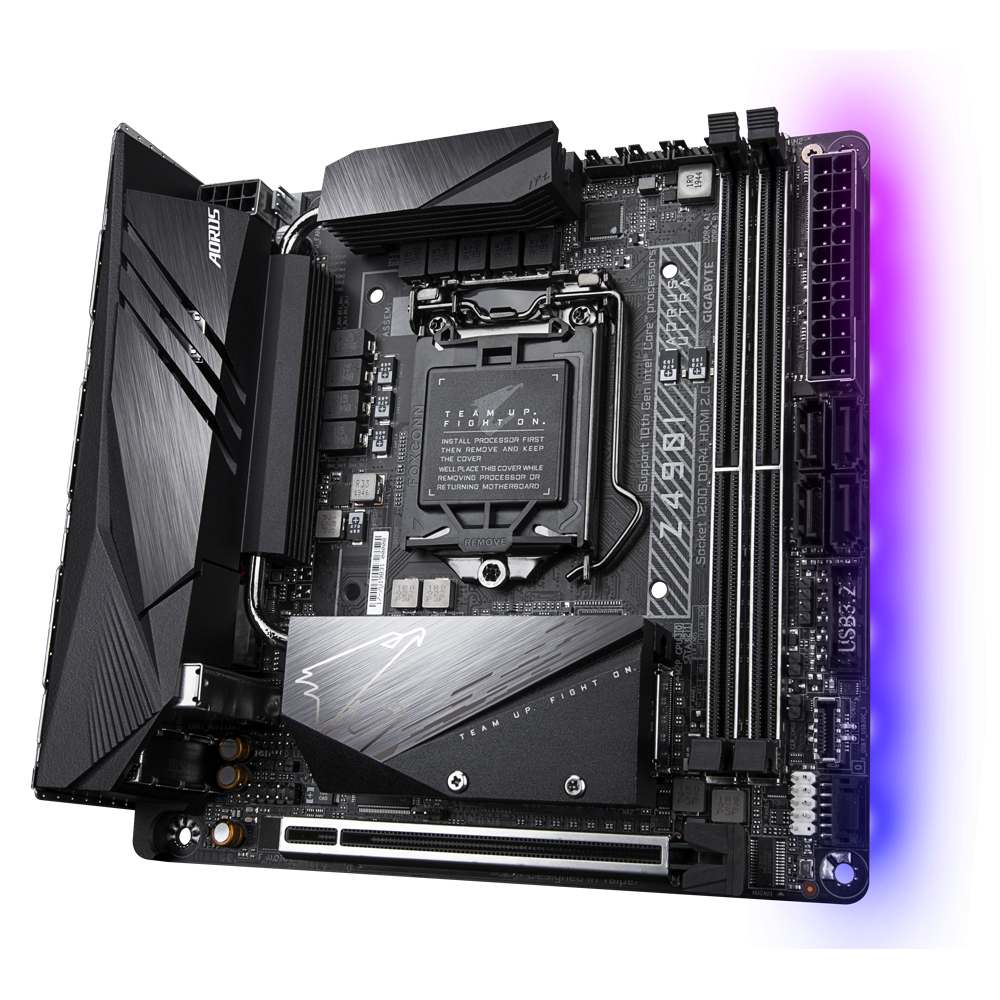

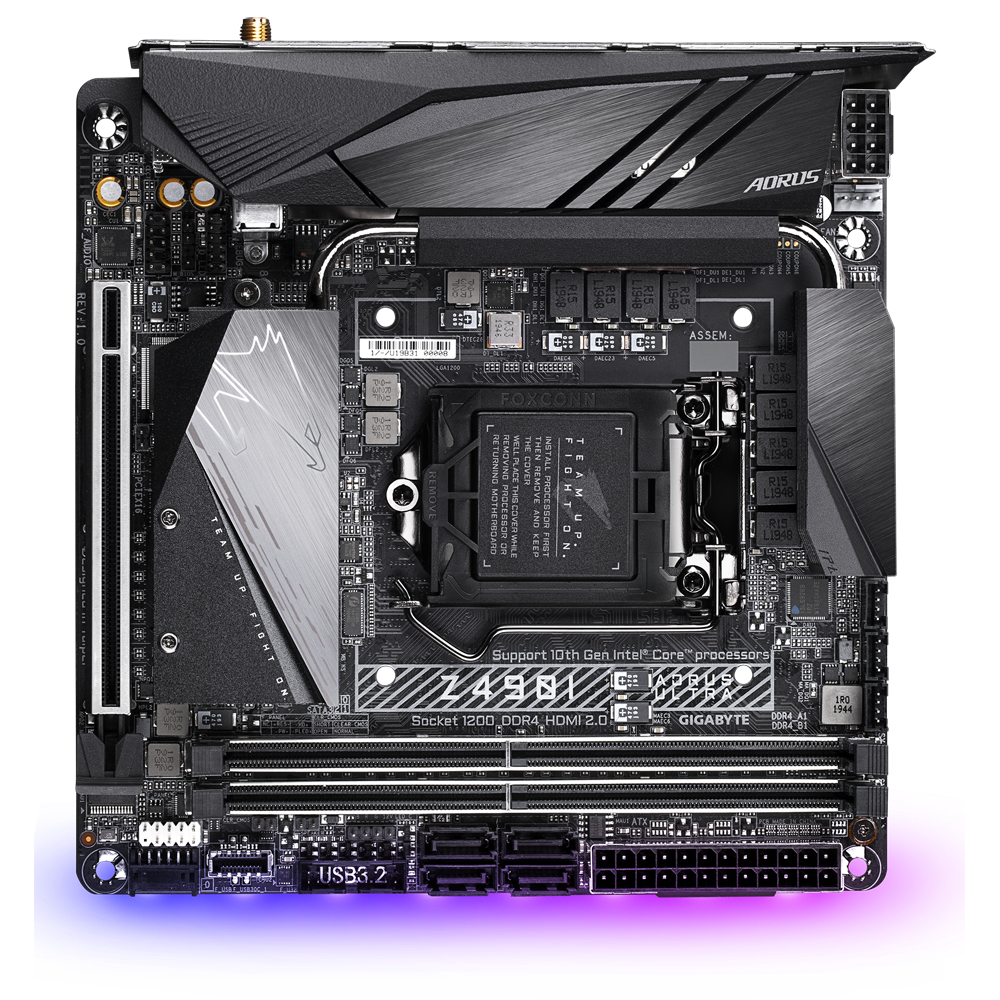

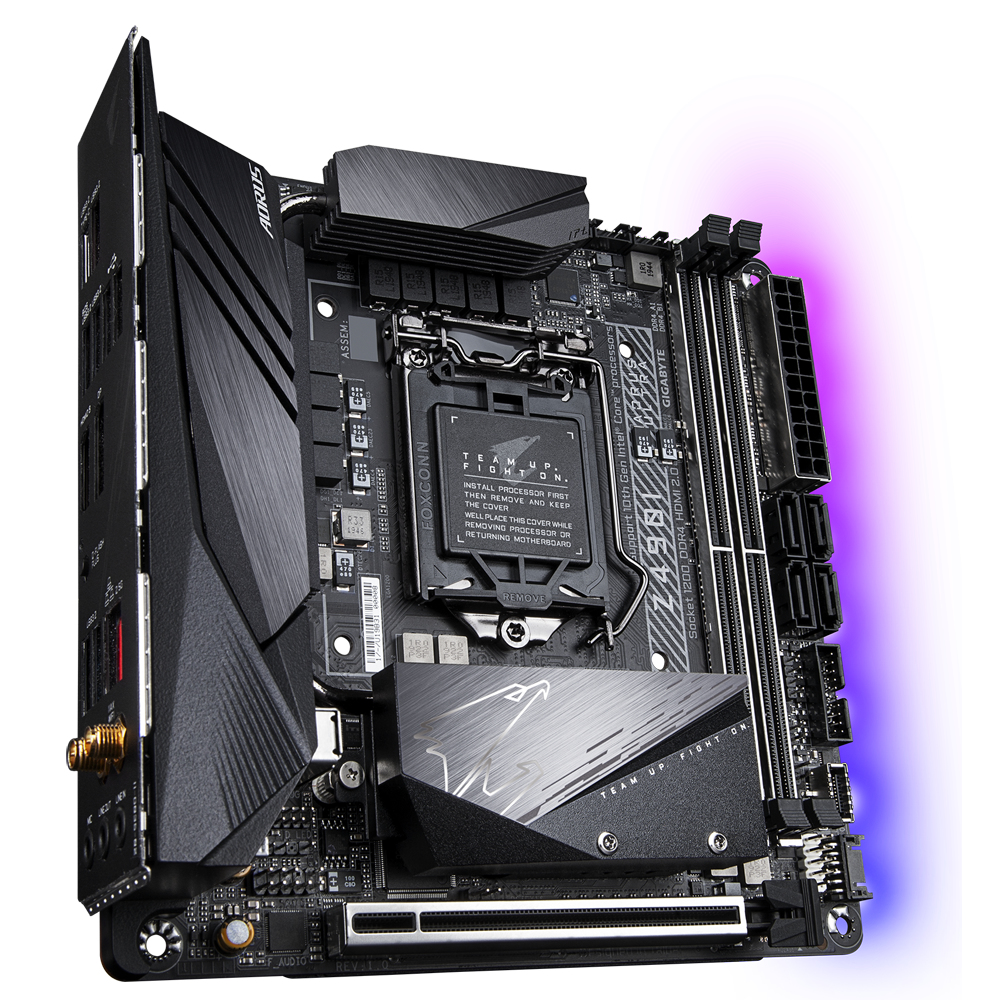

Z490I AORUS ULTRA (rev. 1.0)
Intel Z490 Mini-ITX AORUS Motherboard with Direct 8 Phase
Digital VRM Design, Advanced Thermal Solution, Intel WiFi 6
802.11ax, Intel 2.5GbE LAN, HDMI 2.0, RGB FUSION 2.0
- Supports 10th Gen Intel Core™ Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2DIMMs
- Intel Optane™ Memory Ready
- Direct 8 Phase Digital VRM Solution with 90A Smart Power
Stage
- Extended MOSFET Heatsink and Multi-Layered PCH M.2 Heatsink
with Heatpipes
- Onboard Intel WiFi 6 802.11ax 2T2R & BT 5 with AORUS
Antenna
- Blazing Fast Intel 2.5GbE LAN with cFosSpeed
- AMP-UP Audio with ALC1220-VB for Rear 120dB SNR
- HDMI 2.0 supports Premium 4K
- Dual Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guard
- RGB FUSION 2.0 with Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors and Hybrid
Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and
Graphics Card
TECHNICAL SPECIFICATIONS
CPU |
- Support for 10th Generation Intel Core™ i9 processors/Intel
Core™ i7 processors/Intel Core™ i5 processors/Intel Core™ i3
processors/Intel Pentium processors/Intel Celeron processors in the
LGA1200 package
- L3 cache varies with CPU
|
Chipset |
- Intel Z490 Express Chipset
|
Memory |
- Intel Core™ i9/i7 processors:
Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/
4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) /
4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) /
3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) /
3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 /
2133 MHz memory modules
- Intel Core™ i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
- 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM
capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
(operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory
modules
- Support for Extreme Memory Profile (XMP) memory modules
|
Onboard Graphics |
Integrated Graphics Processor+PARADE PS175 chip:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version, HDCP 2.3, and HDR.
Integrated Graphics Processor-Intel HD Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Maximum shared memory of 512 MB
|
Audio |
- Realtek ALC1220-VB codec
* The back panel line out jack supports DSD audio.
- Support for DTS:X Ultra
- High Definition Audio
- 2/4/5.1/7.1-channel
* To configure7.1-channel audio, you have to use an HD front panel
audio module and enable the multi-channel audio feature through the
audio driver.
|
LAN |
- Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
|
Wireless Communication module |
Intel Wi-Fi 6 AX201
- WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5
GHz Dual-Band
- BLUETOOTH 5.1
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps
data rate
* Actual data rate may vary depending on environment and
equipment.
|
Expansion Slots |
- 1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0
standard.)
|
Storage Interface |
- 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and
PCIe x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector on the back of the motherboard (Socket 3, M
key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
- Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices
for the M.2 and SATA connectors.
- Intel Optane™ Memory Ready
|
USB |
Chipset:
- 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available
through the internal USB header
- 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2
support
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports
available through the internal USB header)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports
available through the internal USB header)
|
Internal I/O Connectors |
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 3 x system fan headers
- 1 x addressable LED strip header
- 1 x RGB LED strip header
- 4 x SATA 6Gb/s connectors
- 2 x M.2 Socket 3 connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x speaker header
- 1 x USB Type-C™ header, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x Clear CMOS jumper
- 1 x chassis intrusion header
|

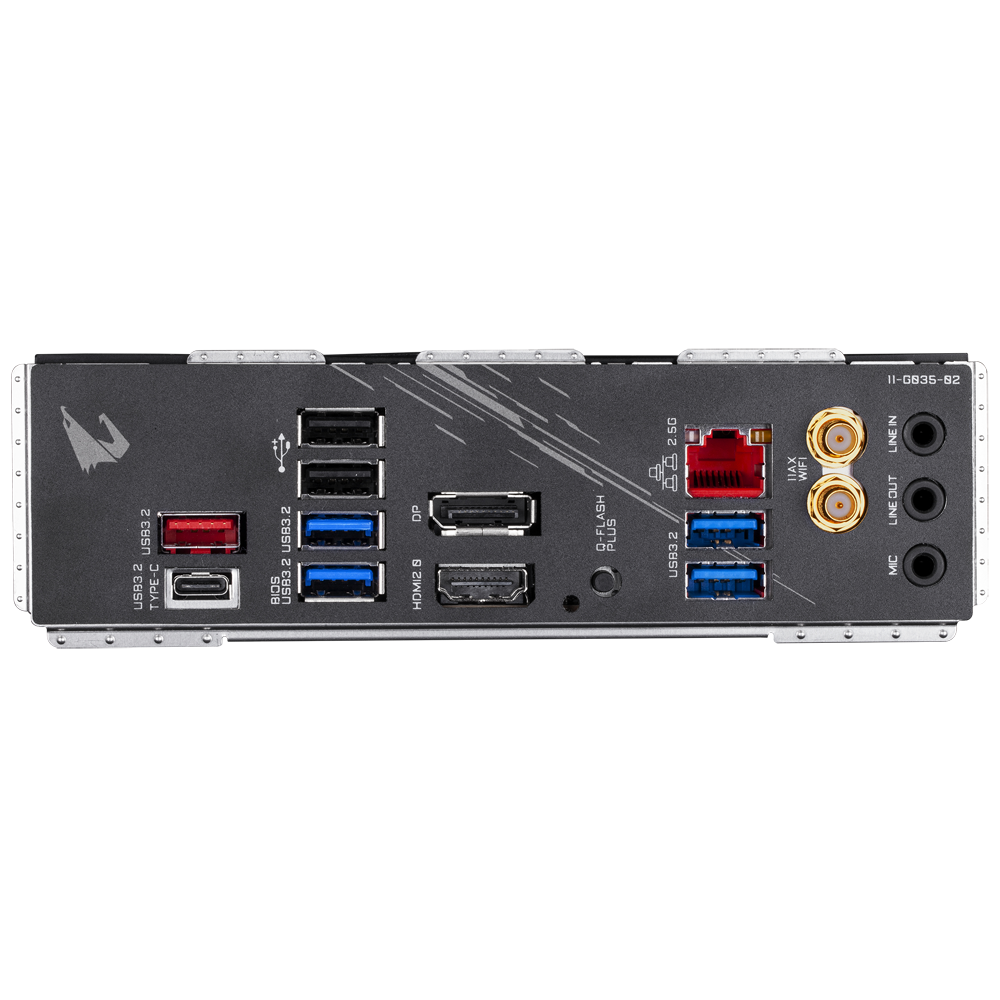

Back Panel Connectors |
- 1 x DisplayPort
- 1 x HDMI port
- 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 2 Type-A port (red)
- 4 x USB 3.2 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x Q-Flash Plus button
- 1 x RJ-45 port
- 2 x SMA antenna connectors (2T2R)
- 3 x audio jacks
|
I/O Controller |
- iTE I/O Controller Chip
|
H/W Monitoring |
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend
on the cooler you install.
|
BIOS |
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
Unique Features |
- Support for APP Center
* Available applications in APP Center may vary by motherboard
model. Supported functions of each application may also vary
depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
- Support for Q-Flash Plus
- Support for Q-Flash
- Support for Xpress Install
|
Bundled Software |
- Norton Internet Security (OEM version)
- cFosSpeed
- XSplit Gamecaster + Broadcaster (12 months license)
|
Operating System |
- Support for Windows 10 64-bit
|
Form Factor |
- Mini-ITX Form Factor; 17.0cm x 17.0cm
|
