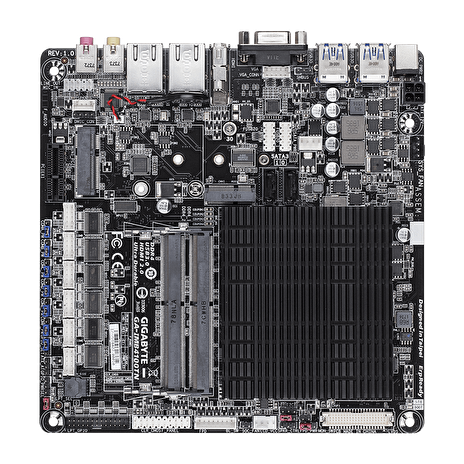

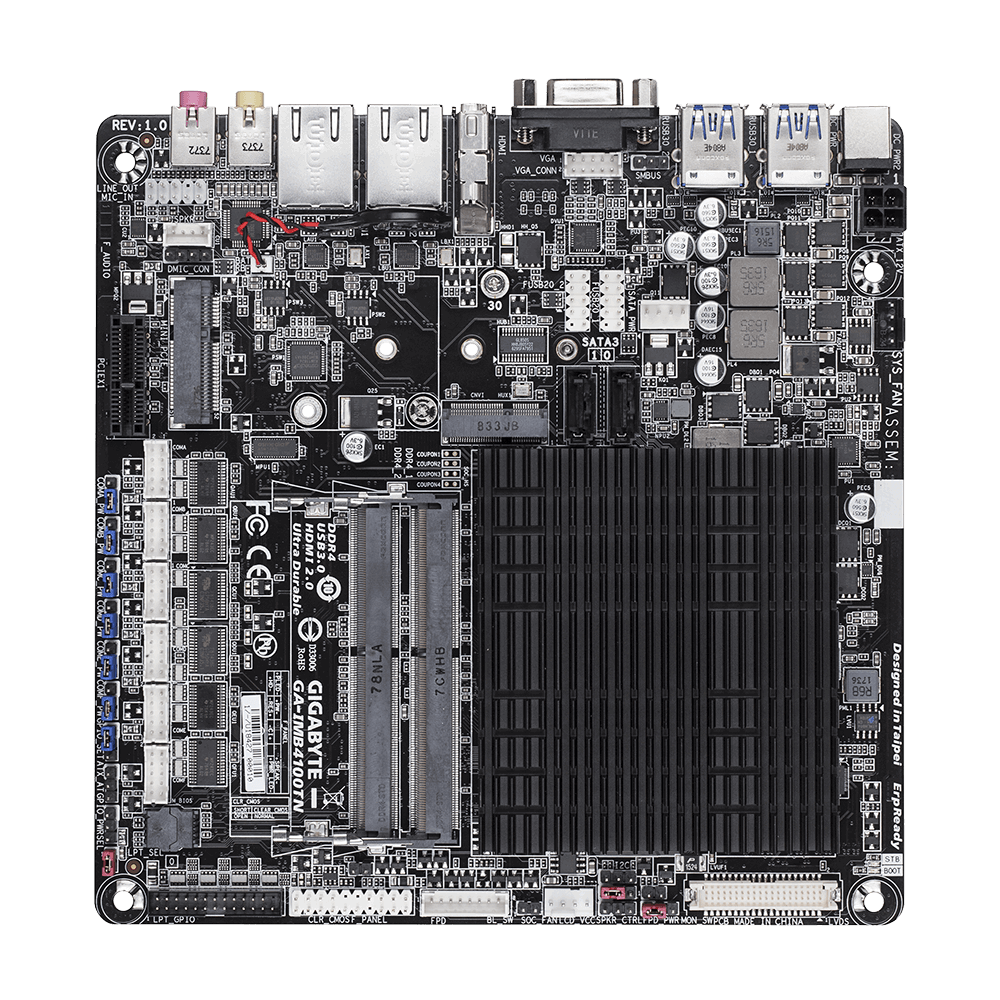

GIGABYTE MB Sc GA-IMB4100TN

1. Support for 10th Generation Intel Core™ i9 processors/Intel Core™ i7 processors/Intel Core™ i5 processors/Intel Core™ i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package up to 65W
2. L3 cache varies with CPU

1. Intel H410 Express Chipset

1. 2 x DDR4 SO-DIMM socket supporting up to 32 GB of system memory
2. Support for DDR4 2666/2933 MHz memory modules

Integrated Graphics Processor-Intel HD Graphics support:

1. 1 x D-Sub port (Optional and share with one HDMI1.4 Port, Default support HDMI)
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
   * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
3. 2 x HDMI1.4a, supporting a maximum resolution of 4096 x 2160@30Hz

Support for up to 2 displays at the same time
Maximum shared memory of 1 GB

1. Realtek ALC887 codec
2. High Definition Audio
3. 2/4/5.1-channel

1. 2 x Intel GbE LAN chips (10/100/1000 Mbit)

1. Infineon chip, supporting TPM 2.0 (Optional)

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2. 1 x M.2 Socket 1 connector for PCIe wireless module
3. 1 x full size Mini PCIe connector (MSATA_PCIE)
   * The MSATA_PCIE slot shares bandwidth with the SATA3 2 connector. When an MSATA SSD is populated, the SATA3 2 connector becomes unavailable.
   * The MSATA_PCIE connector can also be used as an MSATA connector.
   (The Mini PCI Express slot conforms to PCI Express 2.0 standard.)

Chipset:

1. 1 x M.2 connector on the top of the motherboard (Socket 3, M key, type 2280 SATA and PCIe x1 SSD support)
2. 2 x SATA 6Gb/s connectors

Chipset:

1. 4 x USB 3.0/2.0 ports on the back panel
2. 4 x USB 2.0/1.1 ports available through the internal USB headers

1. 1 x 4-pin ATX 12V power connector
2. 1 x CPU fan header
3. 1 x system fan header
4. 1 x M.2 Socket 3 connector on the back of the motherboard
5. 2 x SATA 6Gb/s connectors
6. 1 x Mini PCIe/MSATA connector
7. 1 x USIM connector on the back of the motherboard
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x battery power cable connector
11. 2 x USB 2.0/1.1 headers
12. 4 x serial port power select jumpers
13. 1 x AT/ATX mode switch jumper (AT_ATX)
14. 4 x serial port
15. 1 x SATA Power connector
16. 1 x GPIO header
17. 1 x LVDS header
18. 1 x LVDS drive voltage jumper (LCD_VCC)
19. 1 x flat panel display switch header (MON_SW)
20. 1 x flat panel display header (FPD)
21. 1 x speaker header (SPKR)
22. 1 x buzzer header (SPEAKER)
23. 1 x Clear CMOS jumper
24. 1 x chassis intrusion header
25. 1 x I2C header
26. 1 x SMbus header

1. 4 x USB 3.0/2.0 ports
2. 2 x RJ-45 ports
3. 1x HDMI2.0 port (Note)
4. 2 x HDMI1.4a
5. 2 x audio jacks

1. NuvoTon NCT6116D

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for @BIOS
2. Support for Q-Flash

1. Support for Windows 10 64-bit /Linux

1. Thin Mini ITX Form Factor: 17.0 x 17.0 cm

1. 0?°C to +60°C
