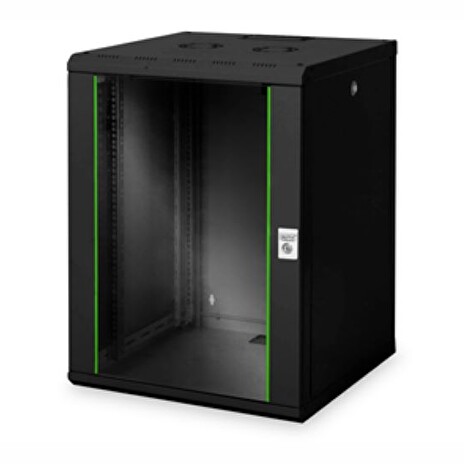

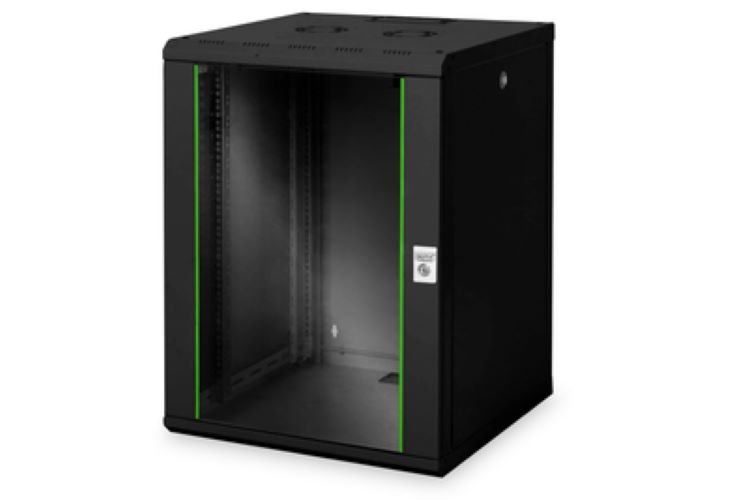

DIGITUS Nástěnná skříňka 16U, Unique Series 820x600x600 mm, barva černá (RAL 9005)

16U wall mounting cabinet, Unique 820x600x600 mm, color black (RAL 9005)

The DIGITUS® Professional Unique Series is made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany
Robust steel construction for sturdy wall mounting
Lockable safety-glass door with steel frame
Side panels are lockable and removable

The Wall Mounting Cabinets of the Unique Series were designed for the user friendly installation of active- and passive network components accompanied by a neat cable management. Each rack consists of up to 1.5 mm strong steel sheet material which ensures a very good stability as a robust steel construction. The color is created by powder coating in grey (RAL 7035) and black (RAL 9005). Wall installation can be done easily, there are two steps: Mount the rear wall of the housing on your wall and then simply connect it with the housing. Separately leveling feet or castors are available for free standing purposes. Door and side panels are easy to detach and the door stop can be changed from right to left. The roof contains air ventilation slots for a better air circulation. Each wall mounting cabinet contains one pair (two pieces) of mounted 483 mm (19”) profile rails inside (wall mounting cabinets from 600 mm depth contain two pairs). They are galvanized, with height unit marking (countable from both directions) and variable in depth. An important aspect for each installation is the cable management. The roof of each cabinet is equipped with a sliding cable entry panel with rubber sealing. Punched out cable entries with plastic cover are present on the rear wall and base. An extensive portfolio of accessories for cable management, shelves, etc. will help to meet many requirements in daily use.




Technical Details

Safety class rating IP20
Lockable safety-glass door with steel frame
210° door opening angle
1-point-locking-mechanism on the front door
Side panels are lockable and removable
483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
483 mm (19“) profile rails are adjustable in depth and with height unit marking
Max. installation depth: 450 mm
Cable entry on the rear side and base with plastic cover and top with sliding cover
Roof is prepared for fan units (punched out entries)
Ventilation slots for active and passive ventilation and exhausting
Several earthing points for rack components
Incl. installation set (screws, cage nuts, washers)
Rack is completely mounted
Equipment mounting depth min.-max.: 320-450 mm
Color: black, RAL 9005
Depth: 600 mm
Front door: Glass door
Units: 16
Load capacity: 100 kg
Cabinet type: Wall mounting cabinet
Width: 600 mm
