Monitor

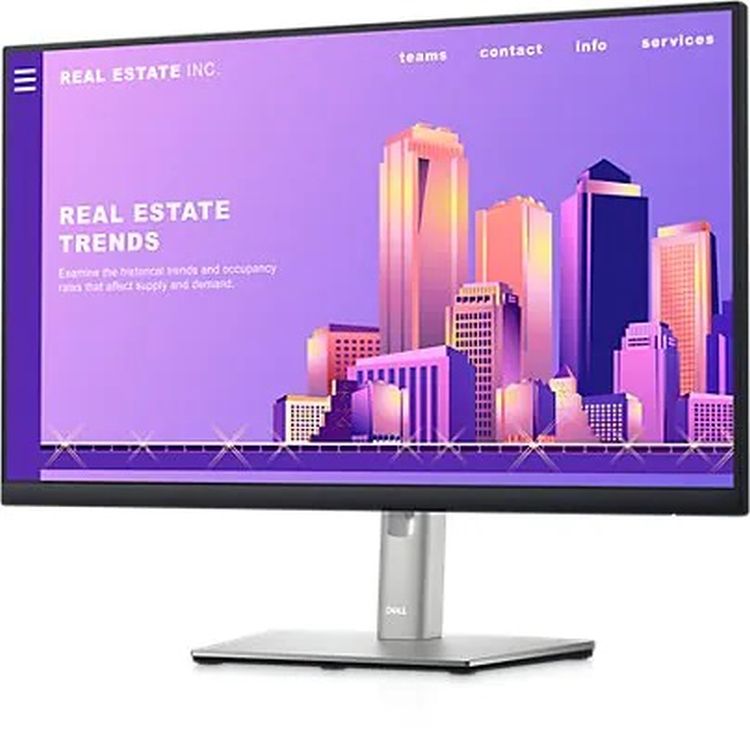

Dell 24 Monitor – P2422H
Diagonal Viewing Size
604.70 mm (23.8 inches)
Active Display Area
Width
Height
527.04 mm (20.75 inches)
296.46 mm (11.67 inches)
Maximum Preset Resolution
1920 x 1080 at 60 Hz
Aspect Ratio
16:9
Pixel Pitch
0.2745 mm x 0.2745 mm
Pixel Per Inch (PPI)
93
Brightness
250 cd/m˛ (typical)
Color Support
Color gamut: sRGB 99% (typical)
Color depth: 16.7 million colors
Contrast Ratio
1000:1 (typical)
Viewing Angle
178°/178°
Response Time
5 ms typical (Fast) (gray to gray)
8 ms (Normal mode) (gray to gray)
Panel Type
In-Plane Switching Technology
Display Screen Coating
Anti-Glare
Backlight Technology
White LED edgelight system
ComfortView Plus with Flicker-free screen
Yes
Dell Display Manager Compatibility
Yes
Remote Asset Management
Yes, via Dell Command I Monitor
GSA/TAA
Yes
Optional Soundbar
SB521A
Connectivity
Connectors
1 x HDMI 1.4 (HDCP 1.4)
1 x DisplayPort 1.2 (HDCP 1.4)
1 x VGA
1 x SuperSpeed USB 5Gbps (USB3.2 Gen1) upstream
4 x SuperSpeed USB 5Gbps (USB3.2 Gen1)
HDCP Support
HDMI HDCP 1.4
DP HDCP 1.4
Design Features
Adjustability
Height adjustable stand (150 mm), Tilt (-5° to 21°), Swivel (-45°
to 45°), Pivot (-90° to 90°)
Security
Security lock slot (cable lock sold separately)
Flat Panel Mount Interface
VESA (100 mm x 100 mm)
Power
AC input
voltage/frequency/current
100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 1.5 A (typical)
Power Consumption (Operational)
0.2 W (Off mode)6
0.3 W (Standby Mode)6
12 W (On Mode)6
48 W (Max.)7
Power Consumption Stand by / Sleep
Less than 0.3W
Dimensions (with stand)
Height
496.11 mm (19.53 inches)
Width
537.80 mm (21.17 inches)
Depth
179.57 mm (7.07 inches)
Weight
Weight (panel only - for VESA mount/
no cables)
3.39 kg (7.47 lb)
Weight (monitor and cables with stand)
5.57 kg (12.28 lb)
Weight (with packaging)
7.95 kg (17.53 lb)
Standard Service Plan
Premium Panel Exchange, 3 Years Advanced Exchange Service2 &
Limited Hardware Warranty5
Optional Service Plan
Dell ProSupport3
Environmental Compliance
ENERGY STAR® certified monitor, EPEAT® Gold registered where
applicable8, RoHS-compliant, TCO Edge Certified Displays, BFR/PVC
free monitor (excluding external cables), Meets NFPA 99 leakage
current requirements, Arsenic-free glass and Mercury-free for the
panel only.
What's in the box?
Components
•
Monitor with stand
Cables
•
Power cable
•
DisplayPort to DisplayPort cable (1.8m)
•
VGA cable (Japan only)
•
HDMI 1.4 cable (Brazil only)
•
SuperSpeed USB 5Gbps (USB3.2 Gen1) upstream cable
Documentation
•
Quick Setup Guide
•
Safety and regulatory information
