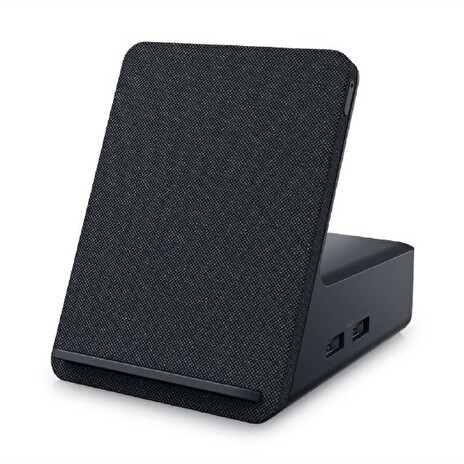

Dell DUAL CHARGE DOCK – HD22Q2, USB-C, 130W

DELL DUAL CHARGE DOCK – HD22Q2

DISPLAY SUPPORT
For a HBR2* PC
2 x FHD @ 60Hz
1 x 4K @ 30Hz

For a HBR3 PC
2 x QHD @ 60Hz
1 x 4K @ 30Hz

For HBR3 PC supporting Display Stream Compression
2 x 4K @60Hz
1 x 8K @ 30Hz

MAX RESOLUTION
8K @ 30Hz with HBR3 systems supporting Display Stream Compression

VIDEO INTERFACES
1 x DP1.4
1 x HDMI 2.1

USB PORTS
USB-A: 4 x USB 3.2 Gen 1
USB-C: 1 x USB 3.2 Gen 2 with Power Delivery 3.0

NETWORKING
Gigabit Ethernet

MAC ADDRESS
Pass-Through MAC Address

MANAGEMENT FEATURES
PXE Boot
Wake-On-LAN
MAC address pass-through
Port Disablement
Wake-On-Dock button
Dell Command Update (DCU)

LED INDICATORS
Power Adapter LED
Power Button LED
Qi wireless charging LED
RJ45 LEDs

POWER
Power Adapter 130 Watt AC with up to 90 Watt power delivery to USB-C Notebooks

DIMENSIONS
90.5mm x 117.4mm x 113mm
670 g

WHAT’S IN THE BOX
Docking station
Power adapter and power cord
Documentation (Quick Start Guide, Safety, Environmental, and
Regulatory Information)
