Počítače a kancelář  Síťové prvky  Dahua IP kamera IPC-HFW5541E-ZE-27135-S3

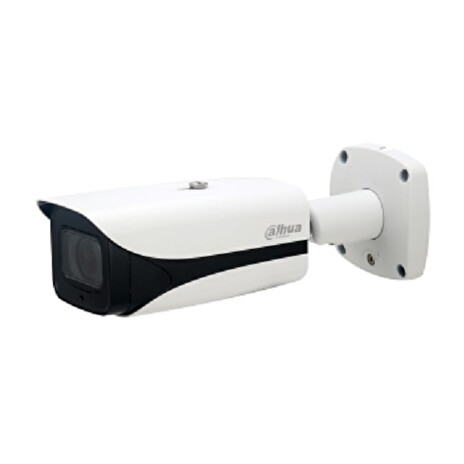

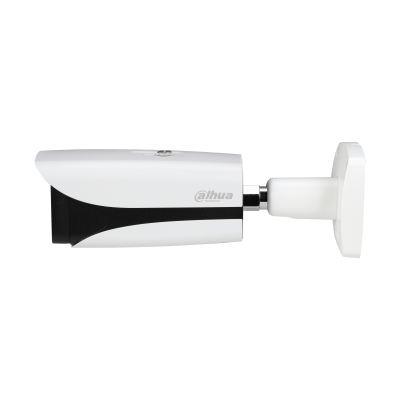

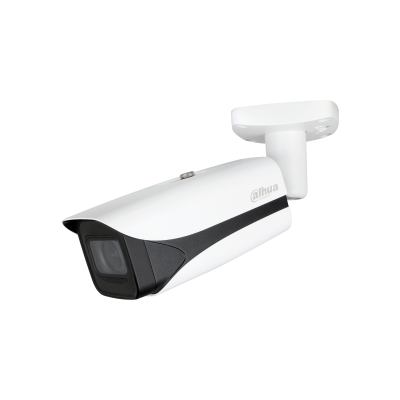

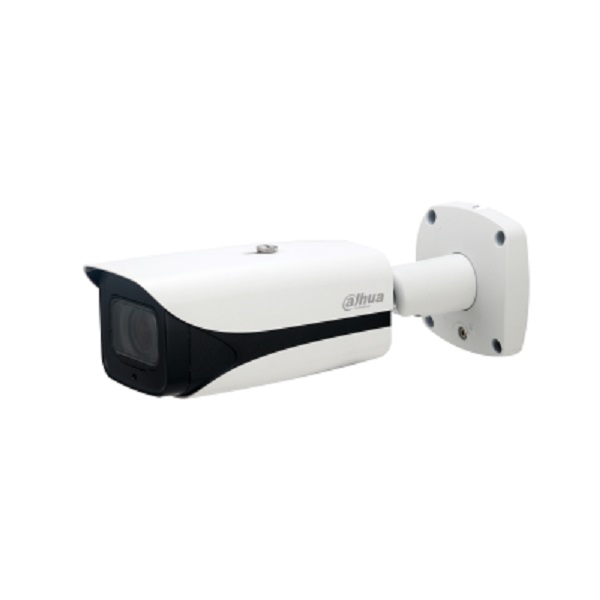

Dahua IP kamera IPC-HFW5541E-ZE-27135-S3
Dahua IP kamera IPC-HFW5541E-ZE-27135-S3Dahua IP kamera IPC-HFW5541E-ZE-27135-S3
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Vše v naprostém pořádku.

Ověřený zákazník

Dahua IP kamera IPC-HFW5541E-ZE-27135-S3

5MP IR Vari-focal Bullet WizMind Network Camera 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image. Outputs max. 5MP (2960×1668) @25/30 fps. Built-in IR LED, and the max. illumination distance is 60 m. ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
Kategorie: Síťové prvky
Kód: 3788057PN: IPC-HFW5541E-ZE-27135-S3Záruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
12 399   včetně DPH
Cena bez DPH: 10 247 Kč
Nákup po telefonu
+420 587 407 456
Skladem poslední 3 kusy
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již 18.4. / ZDARMA!
Přepravní službou (ČR)22.4. / od 120 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.

Popis produktu

5MP IR Vari-focal Bullet WizMind Network Camera

5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
Outputs max. 5MP (2960×1668) @25/30 fps.
Built-in IR LED, and the max. illumination distance is 60 m.
ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
12 VDC/PoE power supply; ePoE.
IP67 and IK10 protection.
SMD 3.0

Camera
Image Sensor
1/2.7" CMOS

Max. Resolution
2960 (H) × 1668 (V)

ROM
4 GB

RAM
1 GB

Scanning System
Progressive

Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s

Min. Illumination
0.0009 lux@F1.5(Color, 30 IRE)
0.0005 lux@F1.5(B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio
56 dB

Illumination Distance
Up to 60 m (196.85 ft) (IR)

Illuminator On/Off Control
Auto;Zoomprio;Manual

Illuminator Number
4 (IR LED)

Angle Adjustment
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens
Lens Type

Motorized vari-focal
Lens Mount
14

Focal Length
2.7 mm–13.5 mm

Max. Aperture
F1.5

Field of View
H: 114°–32°; V: 58°–17°; D: 138°–36°

Iris Control
Auto

Close Focus Distance
0.8 m (2.62 ft)

DORI Distance
Lens
Detect
Observe

Recognize
Identify
W
64.0 m (209.97 ft)
25.6 m
(83.99 ft)
12.8 m
(41.99 ft)
6.4 m
(20.99 ft)

T
210.0 m (688.98 ft)
84.0 m
(275.89 ft)
42.0 m
(137.80 ft)
21.0 m
(68.90 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Intelligence
IVS (Perimeter Protection)
Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
Smart Object Detection
Smart abandoned object; smart missing object
SMD
SMD 3.0
AcuPick
Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
AI SSA
Yes
Face Detection
Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
People Counting
Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management; generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.

Heat Map
Yes

Video Metadata
Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Smart Sound Detection

Yes

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 2960 × 1668@(1–25/30 fps)
Sub stream: D1@(1–25/30 fps)
Third stream: 1080p@(1–25/30 fps)
Fourth stream: 720p@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

4 streams

Resolution

5M (2960 × 1668); 5M (2880 × 1620); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–16384 kbps; H.265: 12 kbps–11776 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Stabilization

Electronic Image Stabilization (EIS)

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

LDC

Yes

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection

Network

Network Port

RJ-45 (10/100 Enhancement Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI;

User/Host

20 (Total bandwidth: 80 M)

Storage

FTP; SFTP; Micro SD card (support max. 512 GB); NAS

Browser

IE: IE 9 and later
Chrome: Chrome 102 and later
Firefox: Firefox 88 and later

Management Software

SmartPSS Lite; DSS; DMSS

Mobile Client

iOS; Android

Cyber Security

Configuration encryption; trusted execution; Digest; security logs; WS

Parametry

InstalaceVenkovní i vnitřní
IR přísvitAno
Optický zoomAno
ProvedeníDome
Rozlišení5 Mpix
VýrobceDAHUA
Wi-Fi + EthernetEthernet
