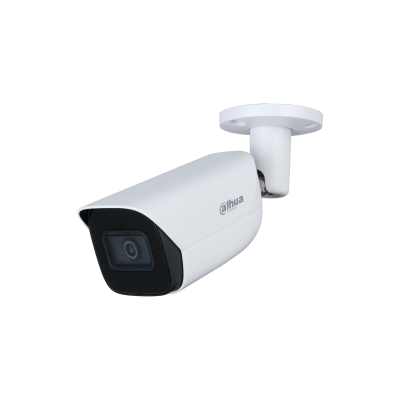

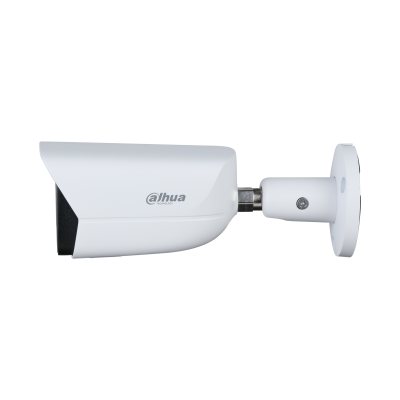

Dahua IP kamera IPC-HFW3842E-AS-0360B
Dahua IP kamera IPC-HFW3842E-AS-0360B
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Byl jsem spokojený doporučuji

Ověřený zákazník

Dahua IP kamera IPC-HFW3842E-AS-0360B

8 MP IR Fixed-focal Bullet WizSense Network Camera 8 MP 1/1.8" CMOS image sensor, excellent low luminance performance and high definition of images. Outputs max. 8 MP (3840 × 2160) @25/30 fps. H.265 codec, high compression rate, ultra-low bit rate. Built-in IR LED, max. IR distance: 30 m. ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various…
Kategorie: Síťové prvky
Kód: 3820353PN: IPC-HFW3842E-AS-0360BZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
9 099   včetně DPH
Cena bez DPH: 7 520 Kč
Nákup po telefonu
+420 587 407 456
Skladem poslední 3 kusy
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)25.6. / ZDARMA!
Přepravní službou (ČR)27.6. / od 120 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.

Popis produktu

8 MP IR Fixed-focal Bullet WizSense Network Camera

8 MP 1/1.8" CMOS image sensor, excellent low luminance performance and high definition of images.
Outputs max. 8 MP (3840 × 2160) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, max. IR distance: 30 m.
ROI, SMART H.264 +/H.265+, AI H.264/H.265. flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; max. 256 G Micro SD card. built-in Mic.
12 VDC/PoE power supply facilitates installation.
IP67 protection.
SMD 4.0, AI SSA.

Camera
Image Sensor
1/1.8" CMOS

Max. Resolution
3840 (H) × 2160 (V)

ROM
128 MB

RAM
1 GB

Scanning System
Progressive

Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s

Min. Illumination
0.003 lux@F1.6 (Color, 30 IRE)
0.0005 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio
56 dB

Illumination Distance
Up to 30 m (98.42 ft)

Illuminator On/Off Control
Auto/Manual

Illuminator Number
1 (IR LED)

Angle Adjustment
Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°

Lens
Lens Type
Fixed-focal

Lens Mount
M12

Focal Length
3.6 mm

Max. Aperture
F1.6

Field of View
3.6 mm: H:87°; V: 49°; D: 99°

Iris Control
Fixed

Close Focus Distance
3.6 mm: 2.3 m (7.55 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

98.0 m

(321.52 ft)

39.2 m

(128.61 ft)

19.6 m

(64.30 ft)

9.8 m

(32.15 ft)

Intelligence
IVS (Perimeter Protection)
Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
AI SSA
Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions
Quick Pick
With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
Smart Search
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video
Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec
Smart H.265+
Smart H.264+

AI Coding
AI H.265
AI H.264

Video Frame Rate
Main stream: 3840 × 2160 @ (1–25/30) fps
Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
Sub stream 2: 1920 × 1080 @ (1–25/30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity

Stream Capability
3 streams

Resolution
8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304×1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480)

Bit Rate Control
CBR/VBR

Video Bit Rate
H.264: 3 kbps–16384 kbps
H.265: 3 kbps–16384 kbps

Day/Night
Auto (ICR)/Color/B/W

BLC
Yes

HLC
Yes

WDR
120 dB

Scene Self-adaptation (SSA)
Yes

White Balance
Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control
Auto

Noise Reduction
3D NR

Motion Detection
OFF/ON (4 areas, rectangular)

Region of Interest (RoI)
Yes (4 areas)

Defog
Yes

AFSA
Yes

Image Rotation
0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower)

Mirror
Yes

Privacy Masking
4 areas

Audio
Built-in Mic
Yes, built-in Mic

Audio Compression
G.711a; G.711Mu; PCM; G.726; G.723

Alarm
Alarm Event
No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception

Network
Network Port
RJ-45 (10/100 Base-T)

SDK and API
Yes

Network Protocol
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP

Cyber Security
Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI

User/Host
20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE: IE11
Chrome
Firefox

Management Software

SmartPSS Lite; DSS; DMSS

Mobile Client

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port
Audio Input
1 channel (RCA port)

Audio Output
1 channel (RCA port)

Alarm Input
1 channel in: wet contact, 5 mA 3 V–5 VDC

Alarm Output
1 channel out: wet contact, 300 mA 12 VDC

Power
Power Supply
12 VDC/PoE (802.3af)

Power Consumption
Basic: 3.6 W (12 VDC); 4.5 W (PoE)
Max. (WDR + IR intensity + Intelligence): 6.1 W (12 VDC); 7.5 W (PoE)

Environment
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity
?95%

Storage Temperature
–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity
?95%

Protection
IP67

Structure
Casing
Metal

Product Dimensions
192.7 mm × 70.5 mm × 66.4 mm
(7.59" × 2.77" × 2.61") (L × W × H)

Net Weight
590 g (1.30 lb)

Gross Weight
780 g (1.72 lb)

Parametry

InstalaceVenkovní i vnitřní
IR přísvitAno
Optický zoomAno
ProvedeníBullet
Rozlišení8 Mpix
VýrobceDAHUA
Wi-Fi + EthernetEthernet
