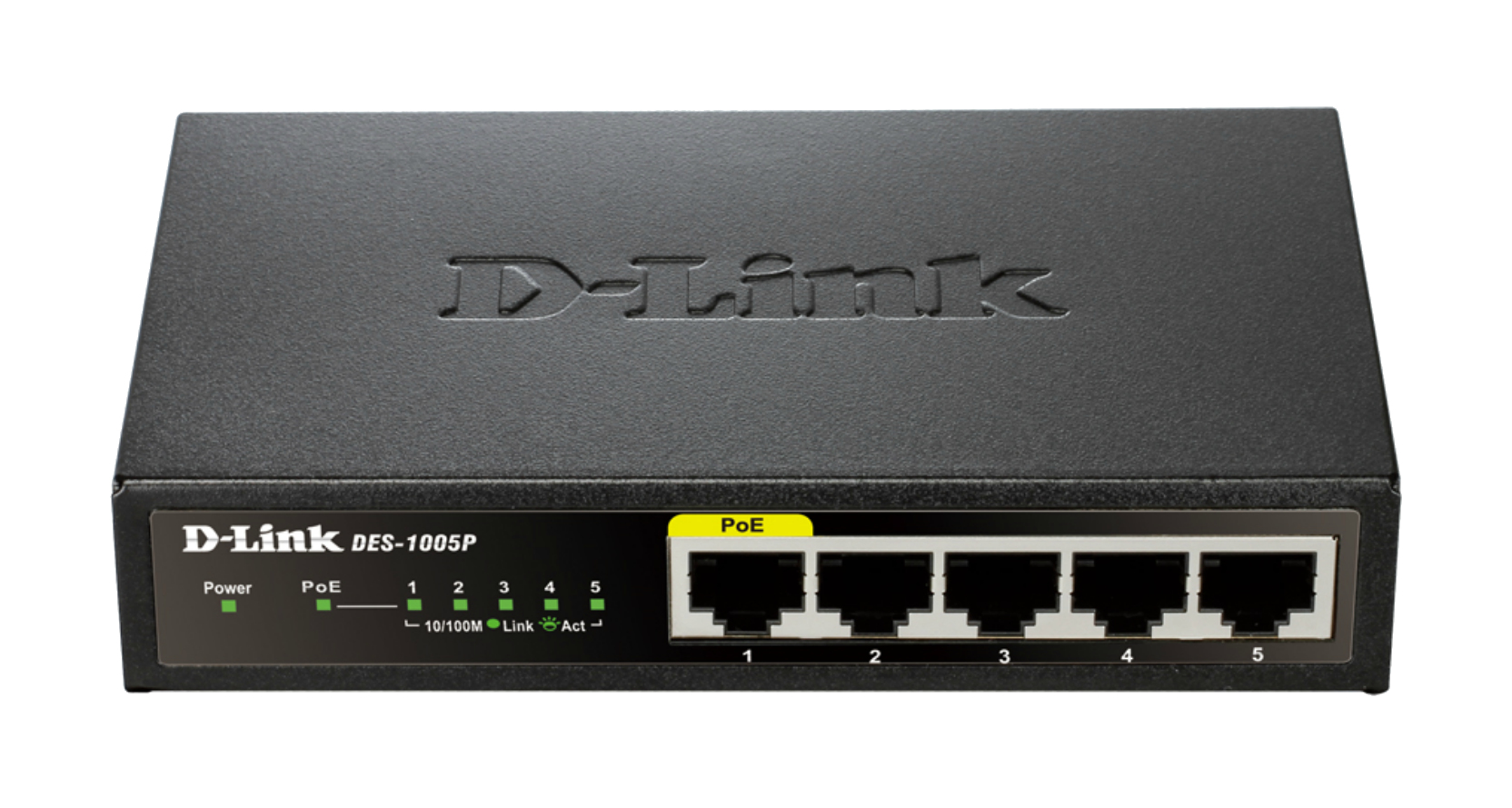

D-Link DES-1005P 5-Port Fast Ethernet PoE Desktop Switch
Key Features
Five 10/100 Mbps Fast Ethernet ports with one PoE enabled port
Auto MDI/MDIX Crossover for all ports
Store-and-forward Switching Scheme
Full/half-duplex for Ethernet/Fast
Ethernet Speeds
IEEE 802.3x Flow Control
Plug-and-play Installation
Built-in D-Link Green Technology
RoHS Compliant
IEEE…
Kategorie: Síťové prvky D-Link
Kód: 522740PN: DES-1005P/EVýrobce: D-LinkZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
1 799 Kč včetně DPH
Cena bez DPH: 1 487 Kč
Cena bez DPH: 1 487 Kč
Skladem posledních 6 kusů
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již 20.6. / ZDARMA!
Přepravní službou (ČR)24.6. / od 120 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.
Popis produktu
Key Features
Five 10/100 Mbps Fast Ethernet ports with one PoE enabled port
Auto MDI/MDIX Crossover for all ports
Store-and-forward Switching Scheme
Full/half-duplex for Ethernet/Fast
Ethernet Speeds
IEEE 802.3x Flow Control
Plug-and-play Installation
Built-in D-Link Green Technology
RoHS Compliant
IEEE 802.1p QoS (4 Queues, Strict Mode)
Switching Capacity
1 Gbps
Standards
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
ANSI/IEEE 802.3 NWay Auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1p QoS
PoE Features
Supports IEEE 802.3af
Supplies power to PD: up to 15.4 watts
Total PoE budget: 15.4 watts
PoE port count/Average PoE watts
Data Transfer Rates
Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)
Topology
Star
Media Interface Exchange
Auto MDI/MDIX adjustment for all ports
Network Cables
10BASE-T
UTP CAT 3/4/5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
LED Indicators
Per port: Link/Activity/Speed/PoE Status
Per device: Power/PoE Max
Transmission Method
Store-and-forward
MAC Address Table
2K Entries per device
MAC Address Learning
Automatic update
Packet Filtering/Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
RAM Buffer
64 KBytes per device
Power Consumption
Power On (Standby):
DC input: 0.9 watts
AC input: 1.8 watts
Maximum (PoE Off)
DC input: 2.05 watts
AC input: 2.7 watts
Maximum (PoE On)
DC input: 17.29 watts
AC input: 20.2 watts
Power Adapter
Switching 48 V/0.5 A Level V power adapter
MTBF
324,616 hours
Operating Temperature
0 to 40 °C (32 to 104 °F)
Storage Temperature
-40 to 70 °C (104 to 158 °F)
Operating Humidity
0% to 95% RH non-condensing
Storage Humidity
0% to 95% RH non-condensing
Device Dimensions (W x D x H)
140 x 85 x 28 mm (5.5 x 3.3 x 1.1 inches)
Certifications
FCC Class B
ICES-003 Class B
cUL
Five 10/100 Mbps Fast Ethernet ports with one PoE enabled port
Auto MDI/MDIX Crossover for all ports
Store-and-forward Switching Scheme
Full/half-duplex for Ethernet/Fast
Ethernet Speeds
IEEE 802.3x Flow Control
Plug-and-play Installation
Built-in D-Link Green Technology
RoHS Compliant
IEEE 802.1p QoS (4 Queues, Strict Mode)
Switching Capacity
1 Gbps
Standards
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
ANSI/IEEE 802.3 NWay Auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1p QoS
PoE Features
Supports IEEE 802.3af
Supplies power to PD: up to 15.4 watts
Total PoE budget: 15.4 watts
PoE port count/Average PoE watts
Data Transfer Rates
Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)
Topology
Star
Media Interface Exchange
Auto MDI/MDIX adjustment for all ports
Network Cables
10BASE-T
UTP CAT 3/4/5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
LED Indicators
Per port: Link/Activity/Speed/PoE Status
Per device: Power/PoE Max
Transmission Method
Store-and-forward
MAC Address Table
2K Entries per device
MAC Address Learning
Automatic update
Packet Filtering/Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
RAM Buffer
64 KBytes per device
Power Consumption
Power On (Standby):
DC input: 0.9 watts
AC input: 1.8 watts
Maximum (PoE Off)
DC input: 2.05 watts
AC input: 2.7 watts
Maximum (PoE On)
DC input: 17.29 watts
AC input: 20.2 watts
Power Adapter
Switching 48 V/0.5 A Level V power adapter
MTBF
324,616 hours
Operating Temperature
0 to 40 °C (32 to 104 °F)
Storage Temperature
-40 to 70 °C (104 to 158 °F)
Operating Humidity
0% to 95% RH non-condensing
Storage Humidity
0% to 95% RH non-condensing
Device Dimensions (W x D x H)
140 x 85 x 28 mm (5.5 x 3.3 x 1.1 inches)
Certifications
FCC Class B
ICES-003 Class B
cUL
