TPS-700S
- 80PLUS Bronze certified
efficiency
- 650mm long cables for maximum case compatibility
- All modern protection and safety features included

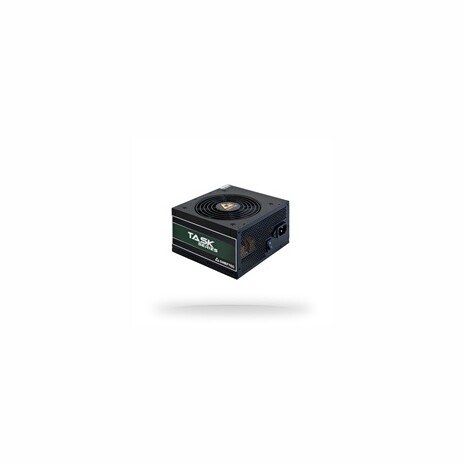

The CHIEFTEC Task Series PSU’s are true to their name, and take on
any task they are required for without any trouble.
With certified 80PLUS Bronze efficiency and all modern protection
and safety features, the PSU can be trusted to deliver power
efficiently and reliably. With cable lengths extended to 650mm for
motherboard and CPU, these power supplies will also serve
excellently for builds inside larger cases.
SPECIFICATIONS:
Performance
Model |
Task 700W |
Article no. |
TPS-700S |
EAN code |
0753263076502 |
Weight (without/with package) |
1.74 kg / 2.15 kg |
AC
Input |
100-240V / 10.0A |
Frequency |
47-63Hz |
+5V |
17A |
+3,3V |
19A |
+5V &
+3,3V combined |
110W |
+12V 1 |
648W / 54A |
+12V 2 |
- |
+12V
1 & +12V 2 combined |
- |
P.F. |
>0,9 |
-12V |
0,3A / 3,6W |
+5VsB |
2,5A / 12,5W |
Maximum Power |
700W |
Connectors
24PIN ATX |
1 |
8 PIN
EPS (4+4) |
1 |
8 PIN
PCIe (6+2) |
2 |
SATA |
6 |
MOLEX |
3 |
Cable length
24PIN ATX |
650 |
8 PIN
EPS (4+4) |
650 |
8 PIN
PCIe (6+2) |
500/150 |
MOLEX |
500/150/150 |
SATA |
500/150/150 |
SATA |
500/150/150 |
Features
Specification |
ATX 12V 2.3 |
Form factor |
PS II |
Efficiency |
80 PLUS Bronze |
Dimension (DxWxH) |
140 mm x 150 mm x 87
mm |
PFC |
Active PFC (0.9) |
Fan |
120mm silent
fan |
Security |
- AFC (Automatic Fanspeed Control)
- OPP (Overload Protection)
- OTP (Over Temperature Protection)
- OVP (Overvoltage Protection)
- SCP (Short Circuit Protection)
- SIP (Surge & Inrush Protection)
- UVP (Undervoltage Protection)
|
Warranty |
24
Months |
