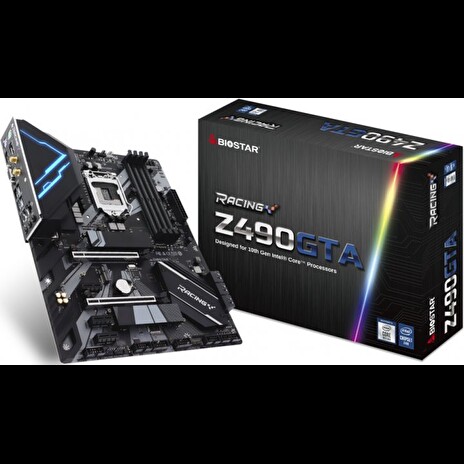

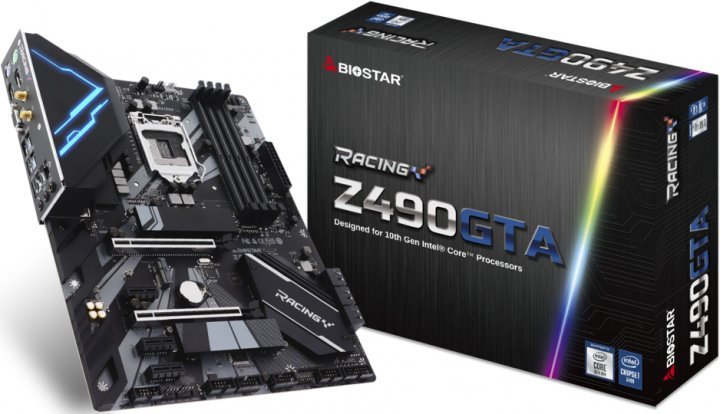

Biostar Z490GTA, ATX, soc. Intel 1200, Z490, DDR4
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Zboží přišlo bez problému,spokojenost

Ověřený zákazník

Biostar Z490GTA, ATX, soc. Intel 1200, Z490, DDR4

Chipset Intel Z490 CPU SUPPORT Support for 10th/11th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package * Please refer to www.biostar.com.tw for CPU support list. MEMORY…
Kategorie: Základní desky
Kód: 3164163PN: Z490GTAZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
Aktuálně není v nabídce

Popis produktu

Chipset Intel Z490
CPU SUPPORT Support for 10th/11th Generation Intel® Core™ i9
processors/Intel® Core™ i7 processors/Intel® Core™ i5
processors/Intel® Core™ i3 processors/Intel® Pentium®
processors/Intel® Celeron® processors in the LGA1200 package
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY Supports Dual Channel DDR4 2133/ 2400/ 2666/ 2800/ 2933
Supports Dual Channel DDR4 3200(OC)/ 3600(OC)/ 3800(OC)/ 4000(OC)/ 4400+(OC)
4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory
Each DIMM supports non-ECC 4/ 8/ 16/ 32GB DDR4 module
Support for Extreme Memory Profile (XMP) memory modules
* Please refer to www.biostar.com.tw for Memory support list.

INTEGRATED VIDEO By CPU model
STORAGE Total supports 2 x M.2 slots and 6 x SATA III(6Gb/s) ports
1 x M2_32G_1 socket , with M key, type 2242/2260/2280/22110 storage devices support SATA & PCIE 3.0 x 4 mode/Intel Optane Technology
1 x M2_32G_2 socket , with M key, type 2242/2260/2280/22110 storage devices support SATA & PCIE 3.0 x 4 mode/Intel Optane Technology
6 x SATA III (6Gb/s) : Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology
* When using SATA SSD module on M2M_32G_1 slot, the SATA_3U connector will be disabled.
* When using SATA SSD module on M2M_32G_2 slot, the SATA_3L connector will be disabled.
LAN Intel i219V; 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Supports Super LAN Surge Protection
AUDIO CODEC ALC1150 7.1 Channels, High Definition Audio
USB 6 x USB 3.2 (Gen1) ports (4 on rear I/Os and 2 via internal header)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal header)
EXPANSION SLOT 3 x PCIe 3.0 x 1 Slots
2 x PCIe 3.0 x 16 Slots(x 16 + x 4)
REAR I/O 2 x WiFi Antenna Ports
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x HDMI Port
1 x DP Port
1 x VGA Port
4 x USB 3.2 (Gen1) ports
2 x USB 2.0 Ports
1 x LAN port
3 x Audio Jack
INTERNAL I/O 6 x SATA III Connectors (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type WiFi & Bluetooth module and Intel® CNVi
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 4-Pin Power Connector
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x CPU water cooling connector (CPU_OPT)
2 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header
1 x Thunderbolt 3 Header
2 x LED Header (5V)
1 x LED Header (12V)
* M.2 E Key wireless card is not provided.
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
DIMENSION ATX Form Factor Dimension: 30.5cm x 24.4cm ( W x L )
OS SUPPORT Supports Windows 10 (64bit)
?Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE BullGuard
ACCESSORIES 4 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x User Manual
FEATURES
Caution!! The specification and pictures are subject to change without notice!

Parametry

M.2 slot2
Maximální frekvence paměti [MHz]2933
PCI Express x162
Počet paměťových slotů4
Podpora ECCNE
Typ pamětiDDR4
Integrovaná grafická kartaNE
Čipová sadaIntel Z490 Chipset
Patice (CPU Socket)LGA 1200 socket
Počet CPU socketůSingle socket
Výrobce čipsetuIntel
FormátATX
HerníANO
UrčeníHraní a multimedia
