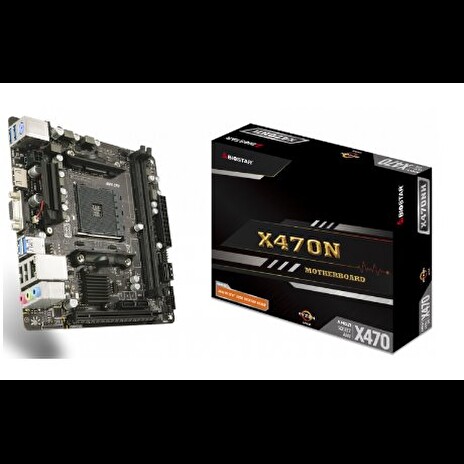

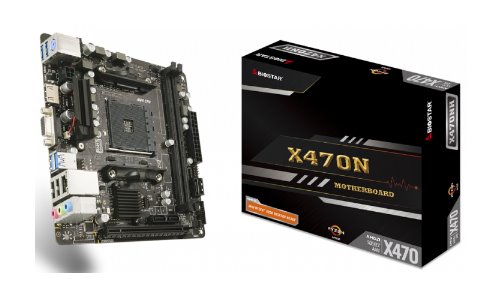

Biostar X470NH, Mini-ITX, soc. AMD AM4, X470, DDR4
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

výborná obsluha která vždy poradí ,a zboží je dodáno vždy v čas doporučuji

Ověřený zákazník

Biostar X470NH, Mini-ITX, soc. AMD AM4, X470, DDR4

Chipset AMD X470 CPU SUPPORT Supports AMD AM4 Socket for 3rd , 2nd and 1st Gen Ryzen/2nd and 1st Gen Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors MEMORY Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2667 Supports Dual Channel DDR4 2933(OC)/ 3200(OC)/ 3600(OC)/ 4000(OC) 2 x DDR4 DIMM…
Kategorie: Základní desky
Kód: 3164175PN: X470NHZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
Aktuálně není v nabídce

Popis produktu

Chipset AMD X470
CPU SUPPORT Supports AMD AM4 Socket for 3rd, 2nd and 1st Gen Ryzen/2nd and 1st Gen Ryzen with Radeon Vega
Graphics/Athlon with Radeon Vega Graphics Processors
MEMORY Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2667
Supports Dual Channel DDR4 2933(OC)/ 3200(OC)/ 3600(OC)/ 4000(OC)
2 x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB Memory
Each DIMM supports non-ECC and ECC Un-buffered 8/ 16 GB DDR4 module
* DDR4 - 2667 only for Ryzen CPU
* Please refer to www.biostar.com.tw for Memory support list
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
STORAGE 4x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10
1x M.2 (M Key) : Supports PCI-E 3.0 x4 (32Gb/s) & SATA III (6.0Gb/s) SSD
* M.2 : The bandwidth is depended on CPU
LAN Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC ALC887
7.1 Channels, Blu-ray Audio
USB 6x USB 3.1 Gen1 (5Gb/s) port (4 on rear I/Os and 2 via internal header)
4x USB 2.0 port (2 on rear I/Os and 2 via internal header)
EXPANSION SLOT 1 x PCI-E 3.0 x 16 slot (Bristol / Reven Ridge x8 , Summit Ridge x16)
REAR I/O 1x PS/2 Keyboard Port
1x HDMI Port
1x VGA Port
1x LAN port
4x USB 3.1 Gen1 (5Gb/s) Port
2x USB 2.0 Port
3x Audio Jack
INTERNAL I/O 4x SATA III 6.0Gb/s Connectors
1x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1x USB 3.1 Gen1 (5Gb/s) Header (each header supports 2 USB 3.1 Gen1 ports)
1x 4-Pin Power Connector
1x 24-Pin Power Connector
1x CPU Fan Connector
1x System Fan Connector
1x Front Panel Header
1x Front Audio Header
1x Clear CMOS Header
1x Internal Stereo Speaker Header
1x COM Port Header
1x S/PDIF out Connector
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION Mini ITX Form Factor Dimension: 170 mm x 170 mm ( W x L )
OS SUPPORT Supports Windows 7(64bit) / 10(64bit)
?Support Windows 7 (x64) for Bristol / Summit /Pinnacle Ridge only
Biostar reserves the right to add or remove support for any OS with or without notice
BUNDLE SOFTWARE BullGuard
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
FEATURES Supports uEFI GUI Interface BIOS
Caution!! The specification and pictures are subject to change without notice!
