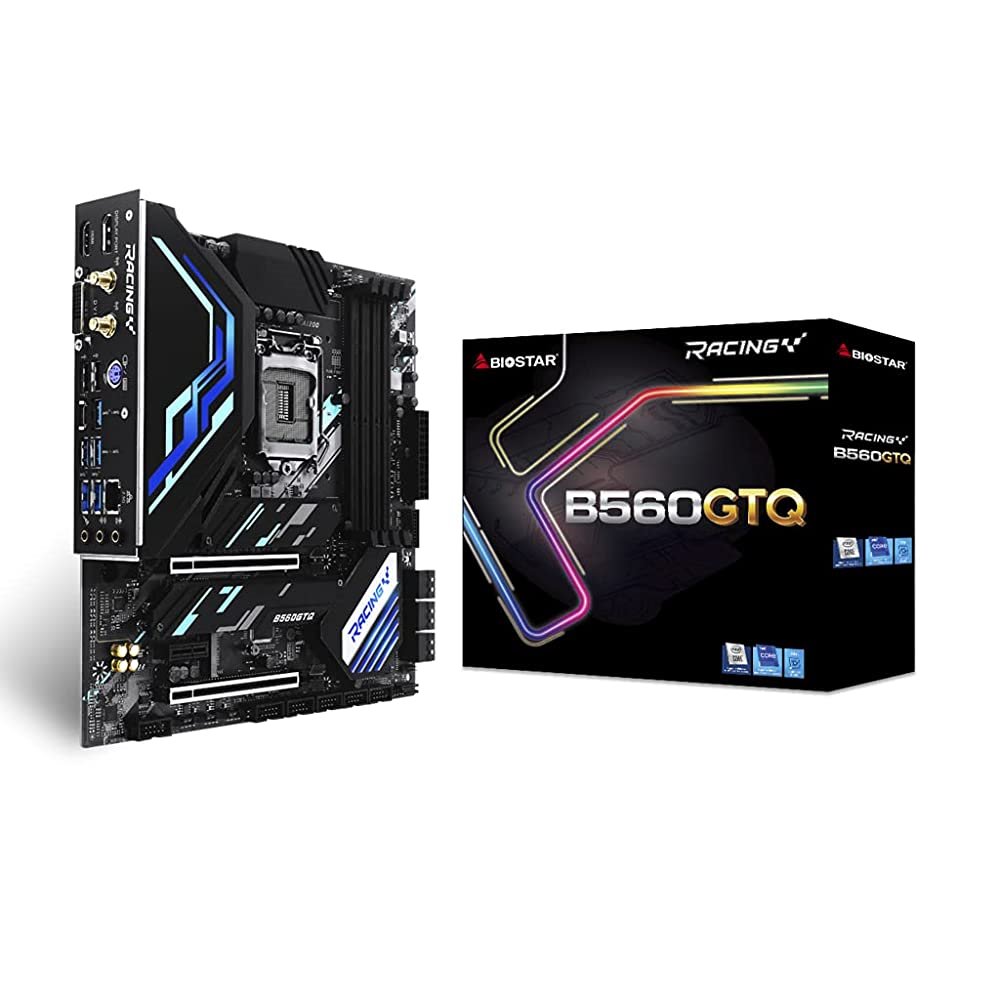

Biostar B560GTQ, mATX, soc. Intel 1200, B560, DDR4
Chipset
Intel B560
CPU SUPPORT
Support for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
Supports Intel Turbo Boost Max 3.0 Technology
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY
Supports Dual Channel DDR4…
Kategorie: Základní desky
Kód: 3164162PN: B560GTQZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
Aktuálně není v nabídce
Popis produktu
| Chipset | Intel B560 |
| CPU SUPPORT | Support for 10th/ 11th Generation Intel Core i9/ i7/ i5/ i3
processors and Intel Pentium processors/ Intel Celeron processors
in the LGA1200 package Supports Intel Turbo Boost Max 3.0 Technology * Please refer to www.biostar.com.tw for CPU support list. |
| MEMORY | Supports Dual Channel DDR4 4000+(OC)/ 3866(OC)/ 3800(OC)/
3733(OC)/ 3600(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory Each DIMM supports non-ECC 4/8/16/32GB DDR4 module Support Intel Extreme Memory Profile (XMP) memory modules * Please refer to www.biostar.com.tw for Memory support list. |
| INTEGRATED VIDEO | By CPU model Supports DX12 Supports HDCP |
| STORAGE | -- Total supports 2 x M.2 socket and 6x SATA III (6Gb/s)
ports 6 x SATA III Connectors (6Gb/s) : Supports AHCI, RAID 0, 1, 5, 10 & Intel Rapid Storage Technology 1 x M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY): Supports M.2 Type 2280 SSD module Supports PCI-E 4.0 x4 (64Gb/s) - NVMe/ AHCI SSD Support 11th Gen processor only 1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA_RST_1): Supports M.2 Type 2242/ 2260/ 2280/ 22110 SSD module Supports PCI-E 3.0 x4 (32Gb/s) - NVMe/ AHCI SSD & SATA III (6Gb/s) SSD Supports Intel Rapid Storage Technology and Intel Optane Technology * M.2 (M Key) Socket (M2_PCIEG4_64G_11TH_ONLY) support 11th Gen Rocket Lake-S CPU only. * When using SATA SSD module on M.2 slot(M2_PCIEG3_32G_SATA_RST_1), the SATA_6 connector will be disabled. |
| LAN | Realtek RTL8125B 10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability |
| AUDIO CODEC | ALC1220 7.1 Channels, High Definition Audio, Hi-Fi(Front) |
| USB | 1 x USB 3.2 (Gen2x2) Type-C port (1 on rear I/O) 2 x USB 3.2 (Gen2) ports (2 on rear I/Os) 5 x USB 3.2(Gen1) ports (3 on rear I/Os and 2 via internal headers) 6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers) |
| EXPANSION SLOT | 1 x PCIe 3.0 x 1 Slot 1 x PCIe 4.0 x 16 Slot (x16 mode) 1 x PCIe 3.0 x 16 Slot (x4 mode) * According to different CPUs will have different speeds. * PCIe 4.0 speed only for INTEL 11th Gen CPUs. |
| REAR I/O | 2 x WIFI Antenna Ports 1 x PS/2 Keyboard/ Mouse Port 1 x HDMI Port (HDMI2.0) 1 x DP Port 1 x DVI-D Port 1 x USB 3.2 (Gen2x2) Type-C Port 2 x USB 3.2 (Gen2) Ports 3 x USB 3.2 (Gen1) ports 2 x USB 2.0 ports 1 x 2.5 GbE LAN port 3 x Audio Jack |
| INTERNAL I/O | 6 x SATA III Connectors (6Gb/s) 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel® CNVi 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x CPU water cooling connector (CPU_OPT) 3 x System Fan Connectors 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header 1 x TPM Header 1 x Thunderbolt 3 Header 2 x LED Header (5V) 1 x LED Header (12V) 1 x IO LED Header 1 x SB LED Header * M.2 (E key) Wi-Fi card is not provided |
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring |
| DIMENSION | Micro ATX Form Factor Dimension: 24.4 cm x 24.4cm ( W x L ) |
| OS SUPPORT | Supports Windows 10(64bit) ?Biostar reserves the right to add or remove support for any OS with or without notice. |
| BUNDLE SOFTWARE | Racing GT Utility BullGuard |
| ACCESSORIES | 4 x SATA Cable 1 x DVD Driver 1 x Quick Guide |
| FEATURES | VIVID LED DJ M.2 Cooling Protection Tweak Tech BIOS-Flasher A.I FAN LED ROCK ZONE RGB Memory Sync BIOSTAR Flash BIOS EZ Mode /Advanced Mode Intel Optane technology |
| Caution!! The specification and pictures are subject to change without notice! | |
Driver 1 x Quick Guide FEATURES VIVID LED DJ M.2 Cooling Protection Tweak Tech BIOS-Flasher A.I FAN LED ROCK ZONE RGB Memory Sync BIOSTAR Flash BIOS EZ Mode /Advanced Mode Intel Optane technology Caution!! The specification and pictures are subject to change without notice!
Parametry
| M.2 slot | 2 |
|---|---|
| Maximální frekvence paměti [MHz] | 4133 |
| PCI Express x1 | 1 |
| PCI Express x16 | 1 |
| PCI Express x4 | 1 |
| Počet paměťových slotů | 4 |
| Podpora ECC | NE |
| Typ paměti | DDR4 |
| Integrovaná grafická karta | NE |
| Čipová sada | Intel B460 Chipset |
| Patice (CPU Socket) | LGA 1200 socket |
| Počet CPU socketů | Single socket |
| Výrobce čipsetu | Intel |
| Formát | mATX |
| Herní | ANO |
| Určení | Hraní a multimedia |
