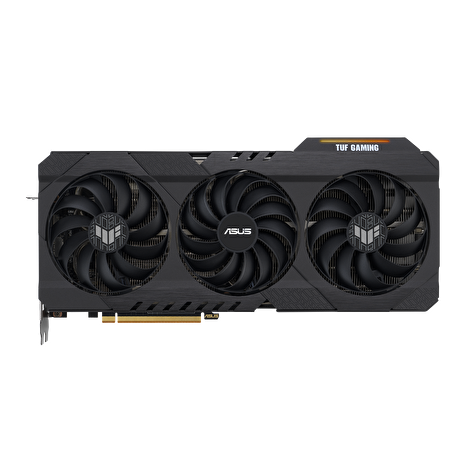

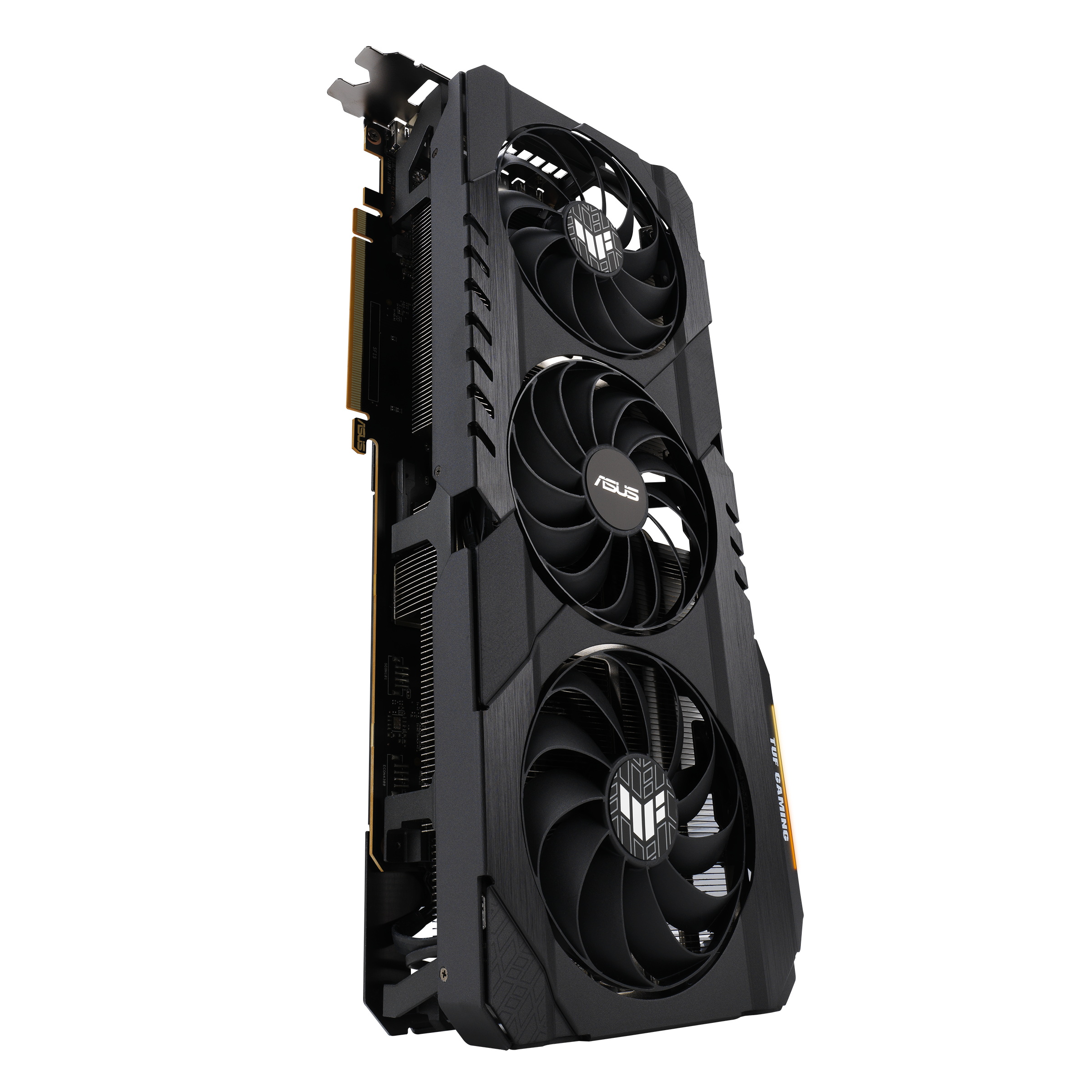

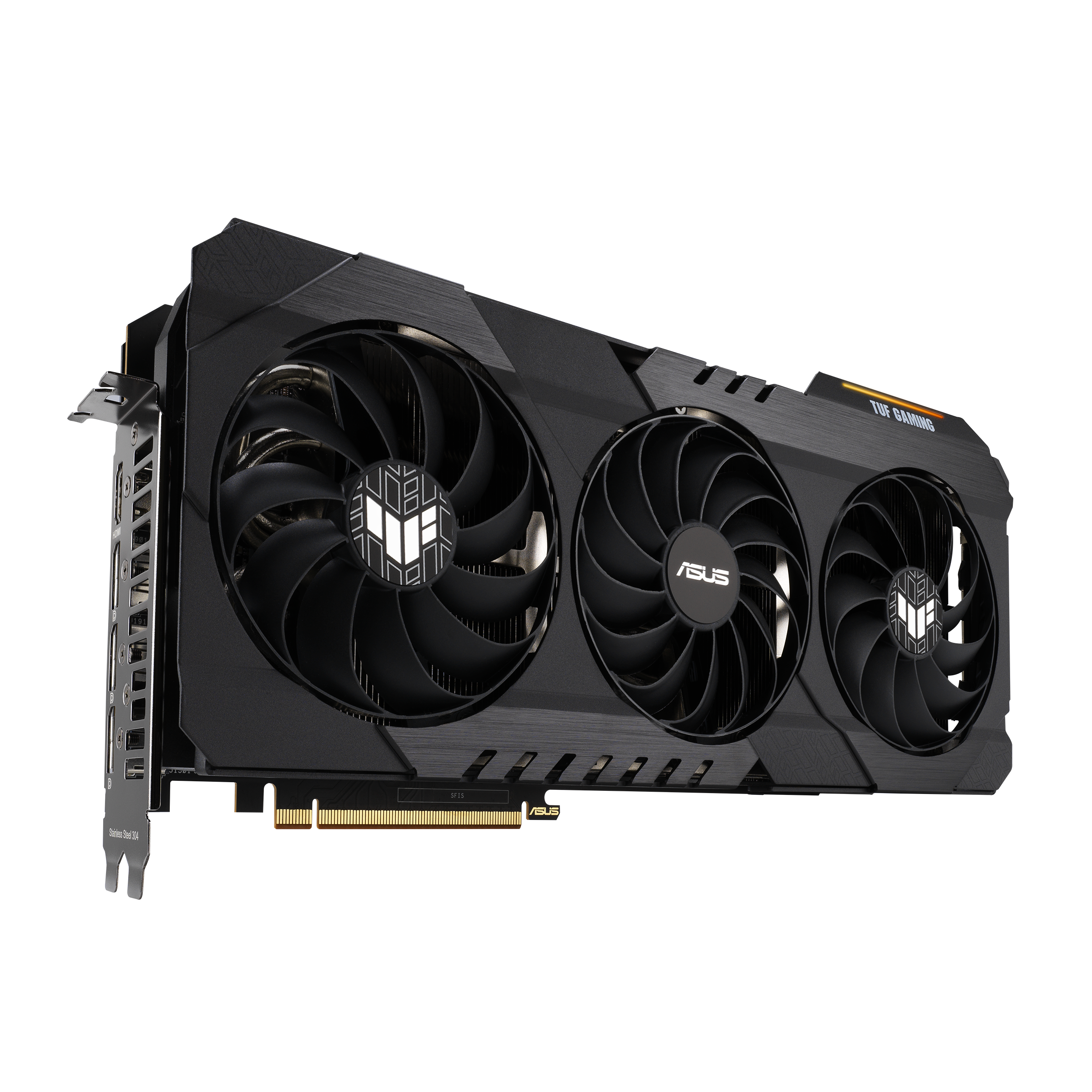

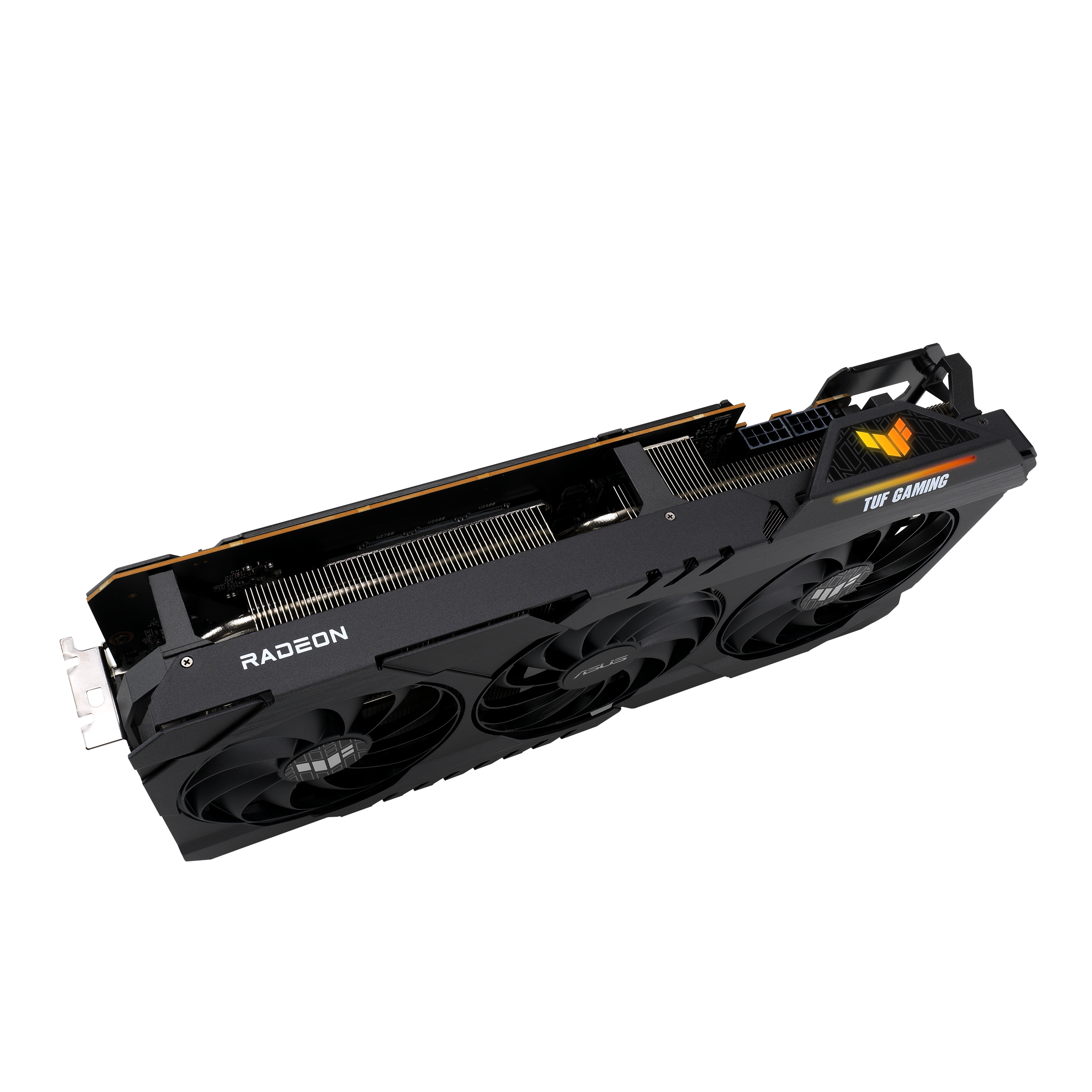

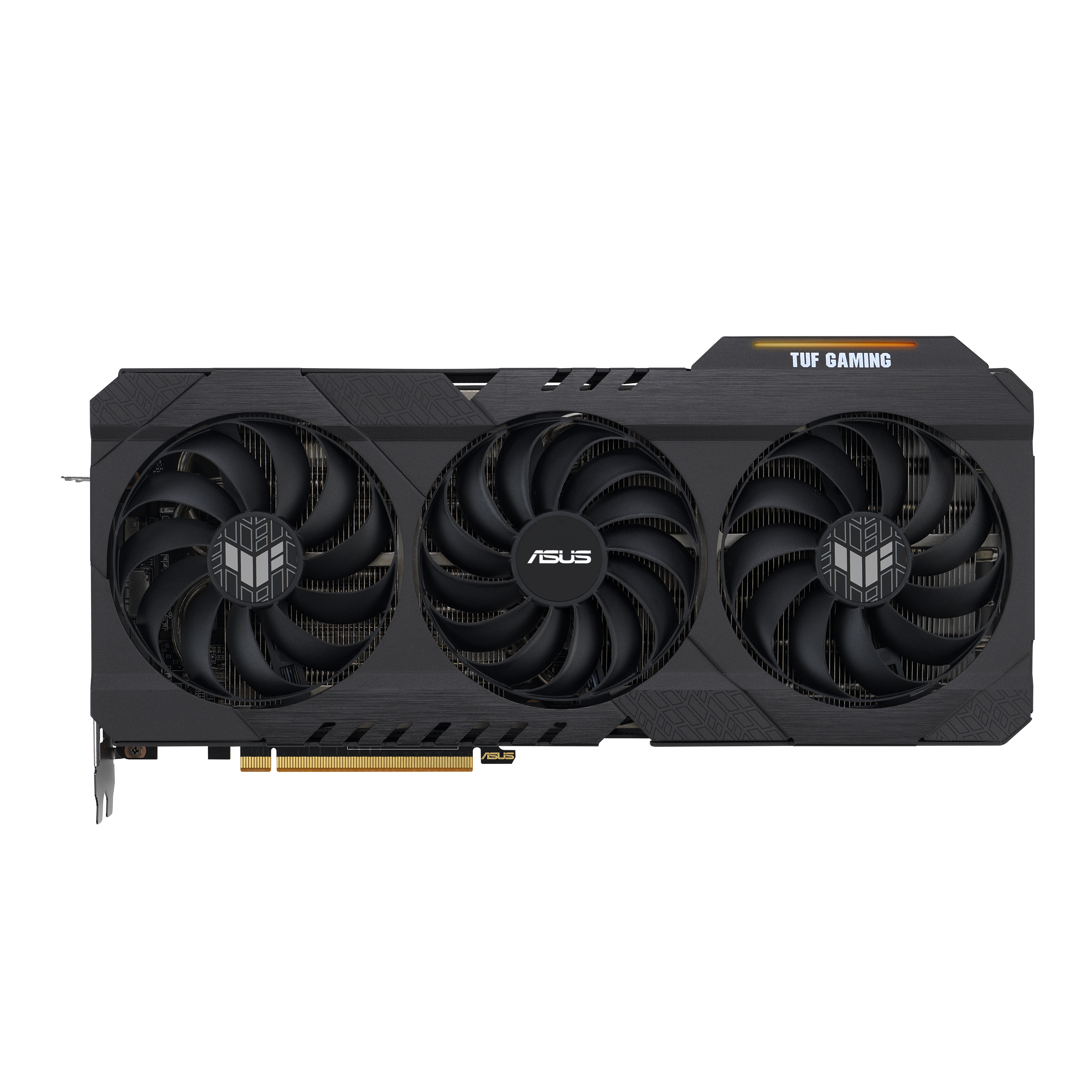

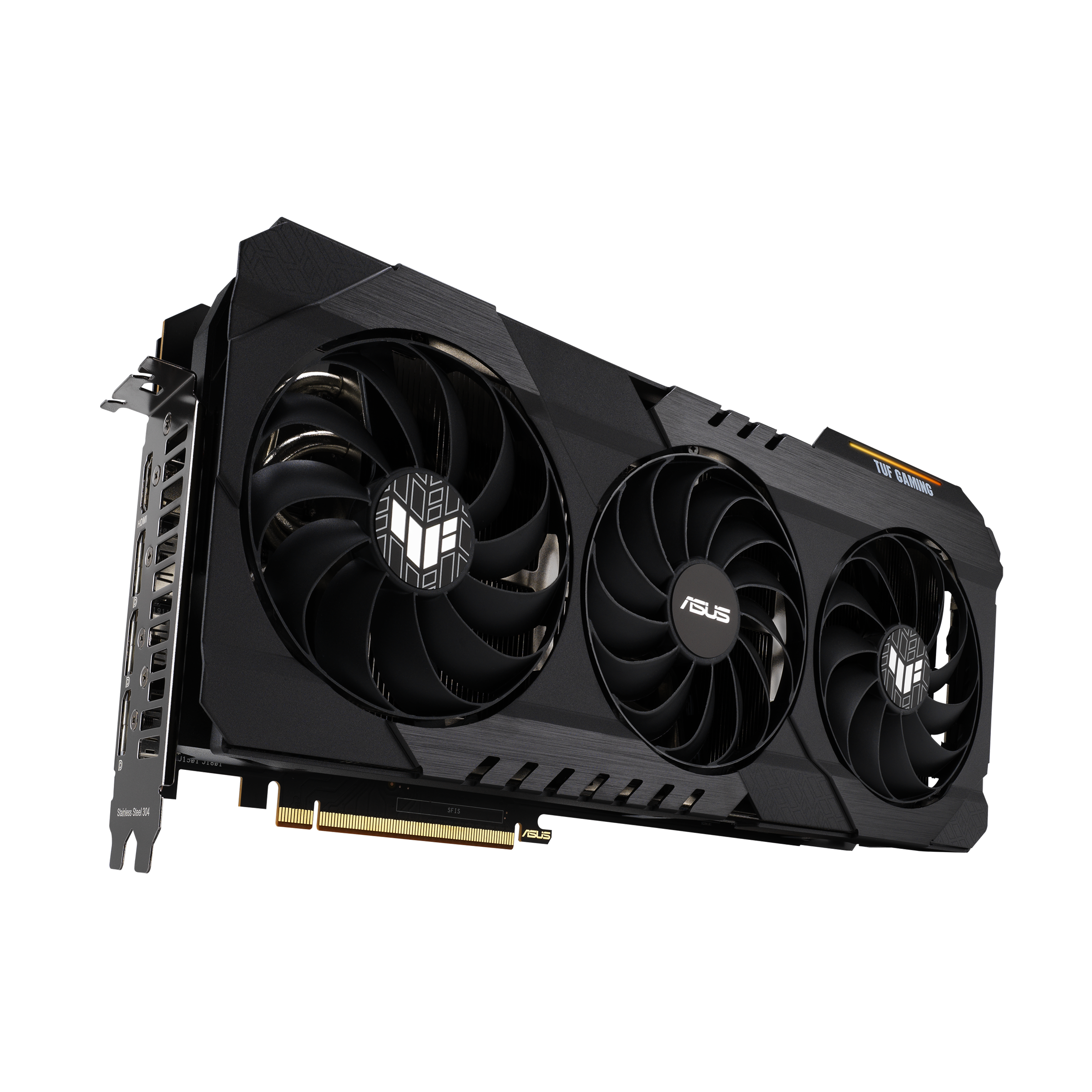

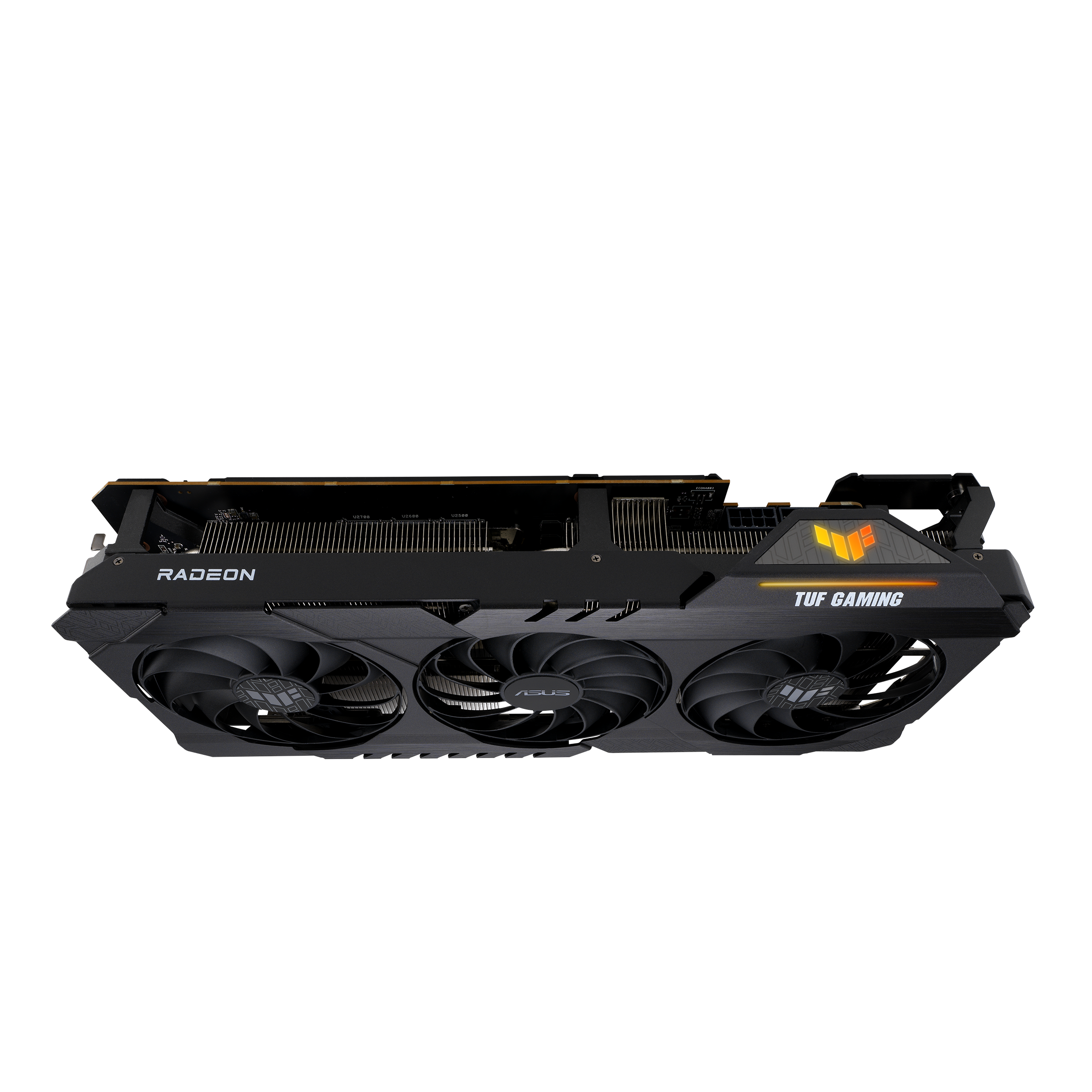

ASUS VGA AMD TUF Gaming Radeon RX 6950 XT OC Edition, RX 6950 XT, 16GB GDDR6, 3xDP, 1xHDMI

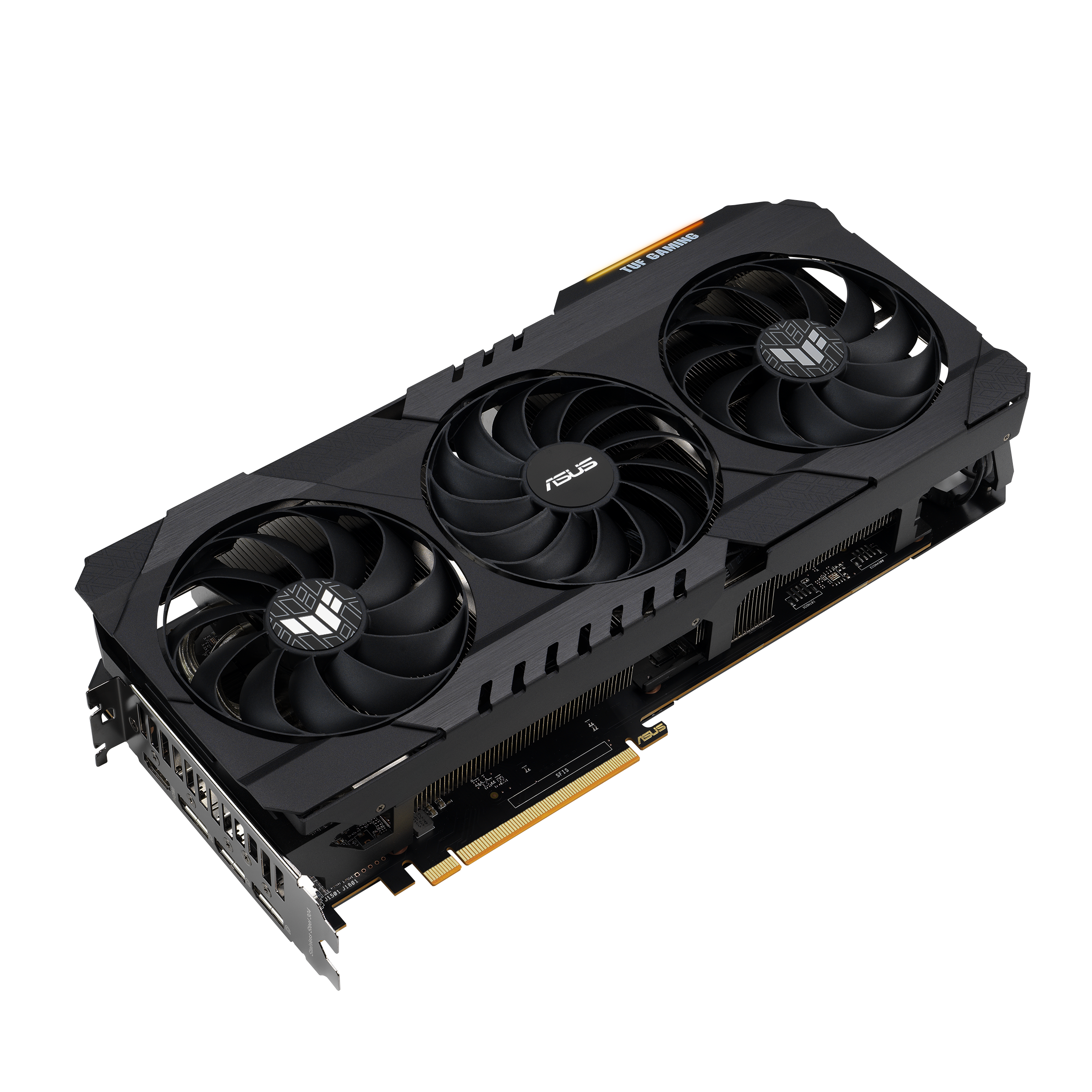

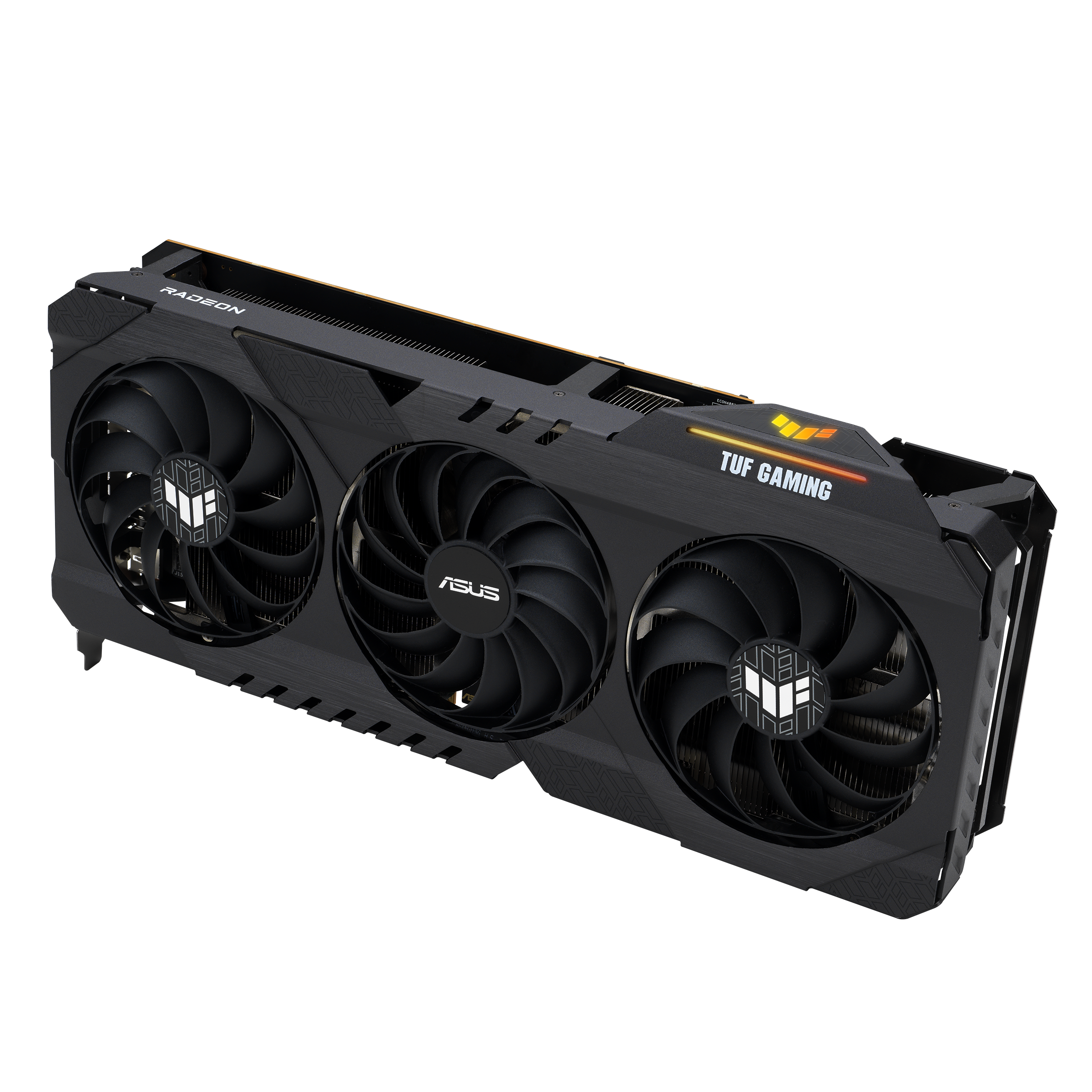

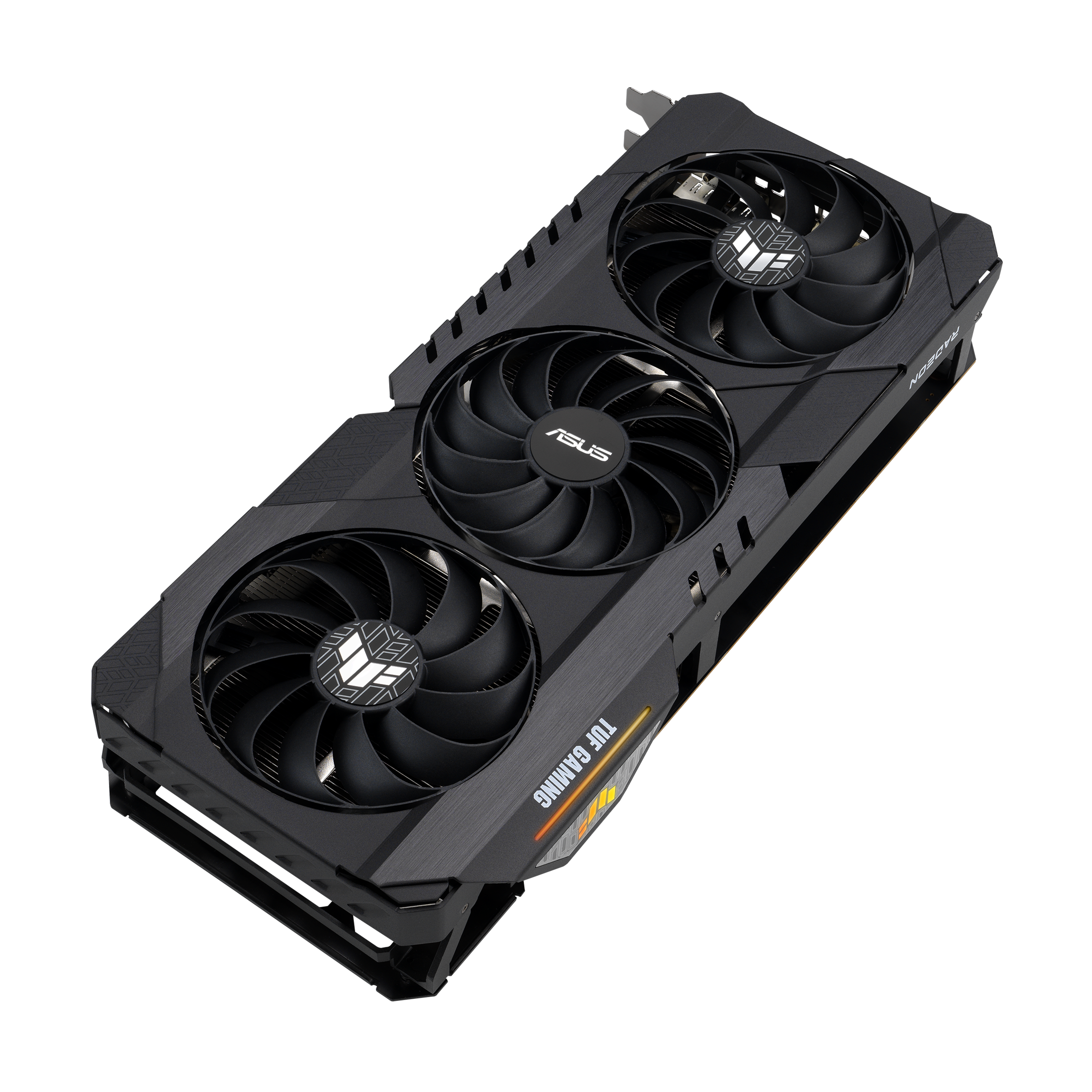

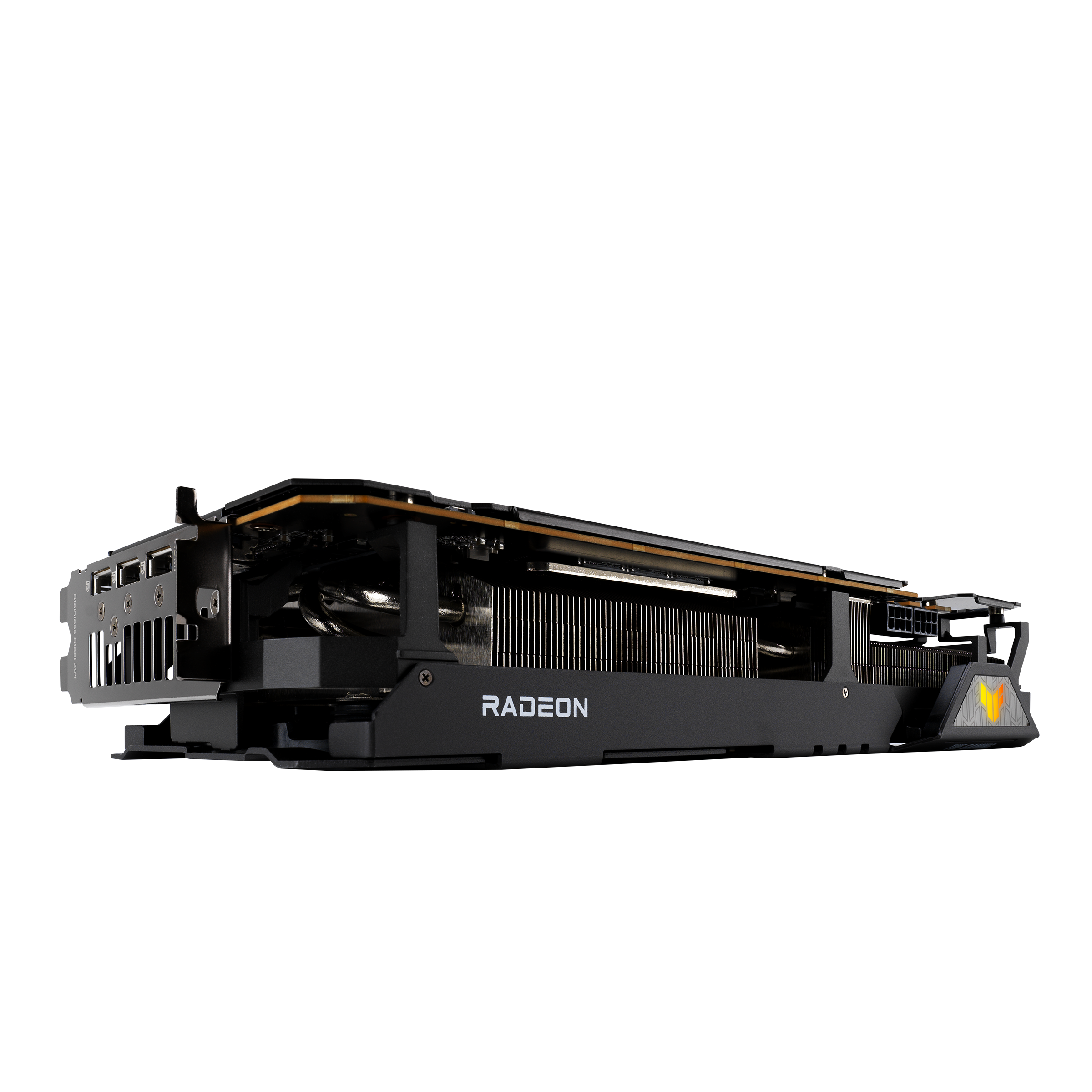

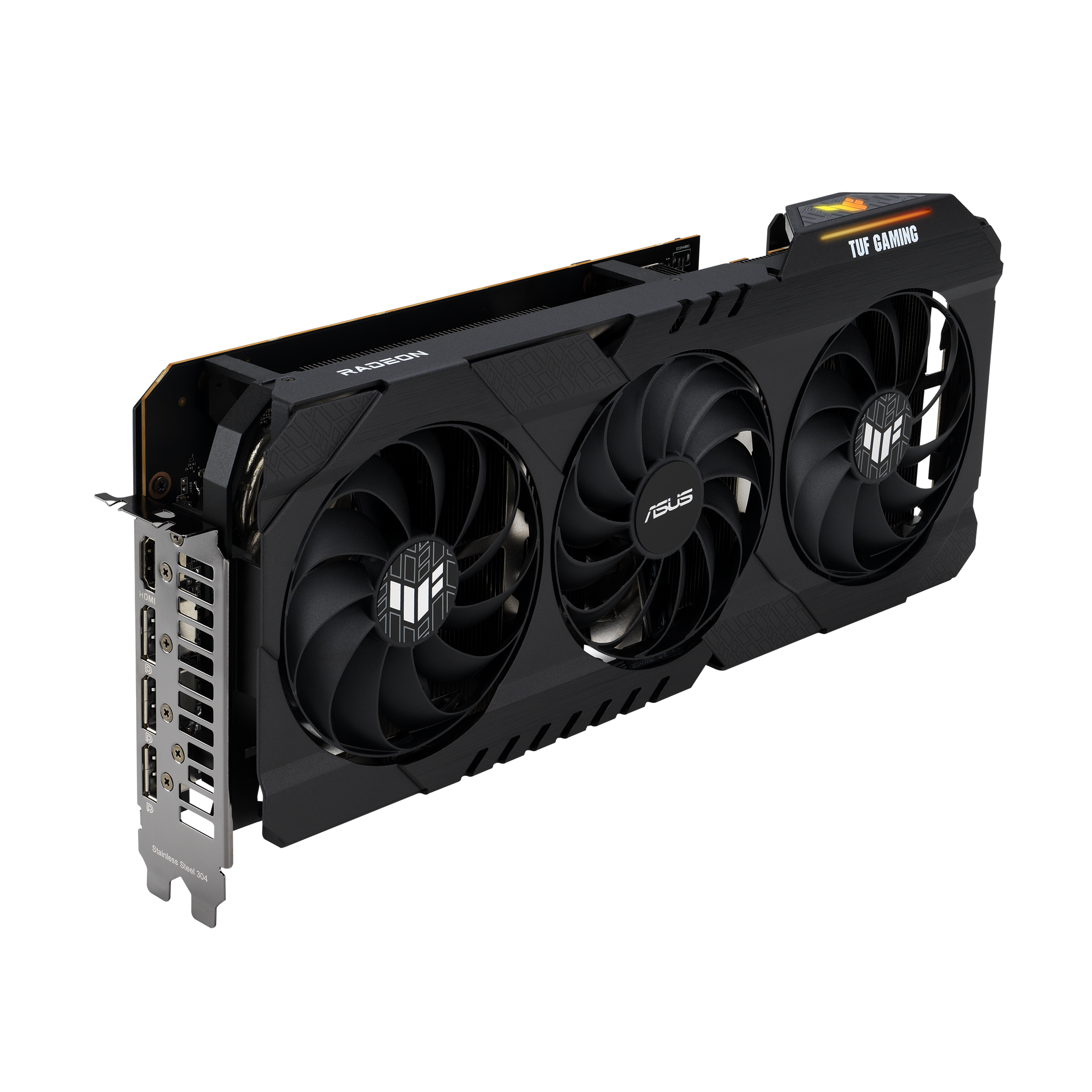

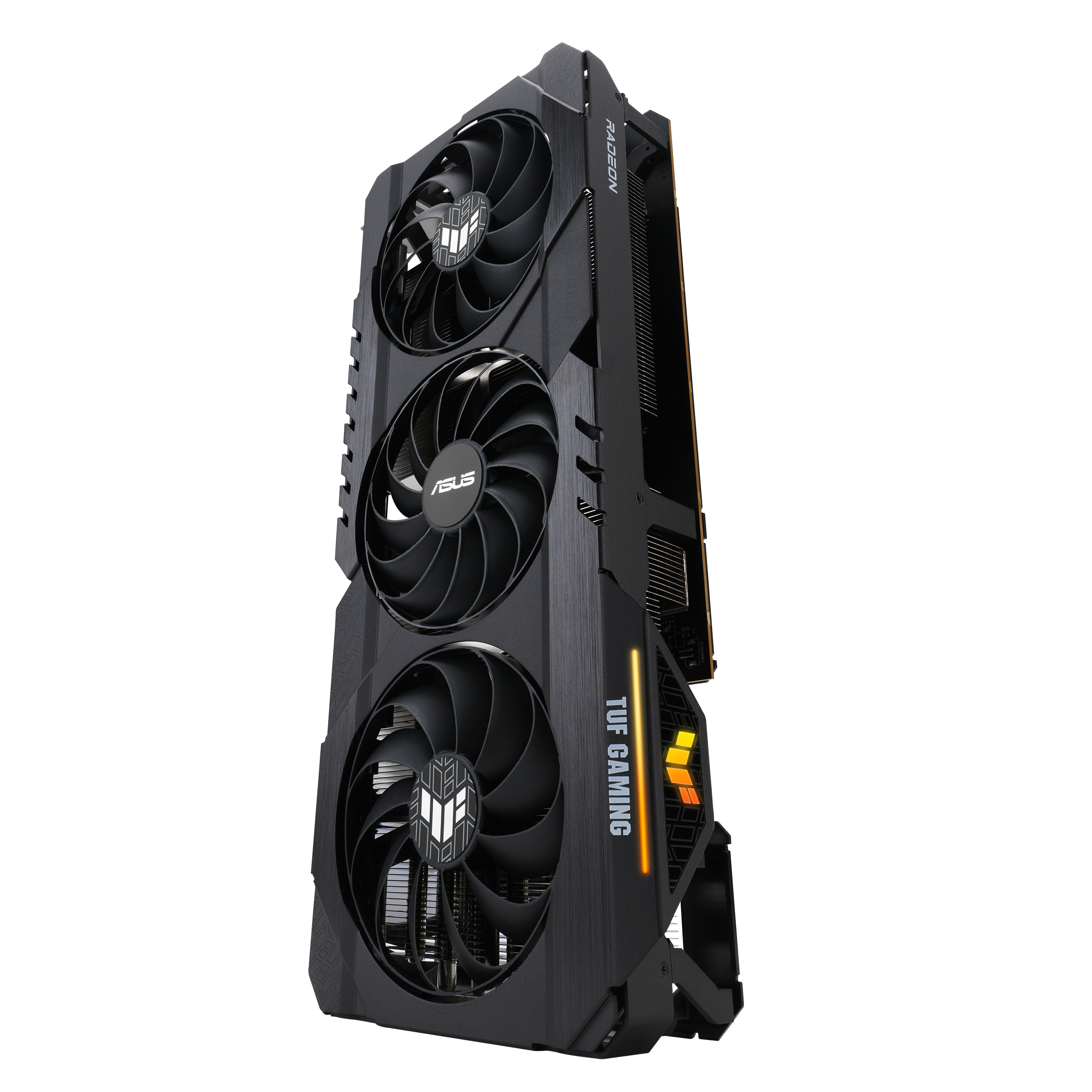

TUF Gaming Radeon™ RX 6950 XT OC Edition 16GB GDDR6

ASUS TUF Gaming Radeon™ RX 6950 XT is a truly tenacious performer

• Factory Mode: Up to 2324 MHz (Boost Clock)/up to 2116 MHz (Game Clock)
• Axial-tech fan design has been enhanced with more fan blades and a new rotation scheme.
• Dual ball fan bearings can last up to twice as long as sleeve bearing designs.

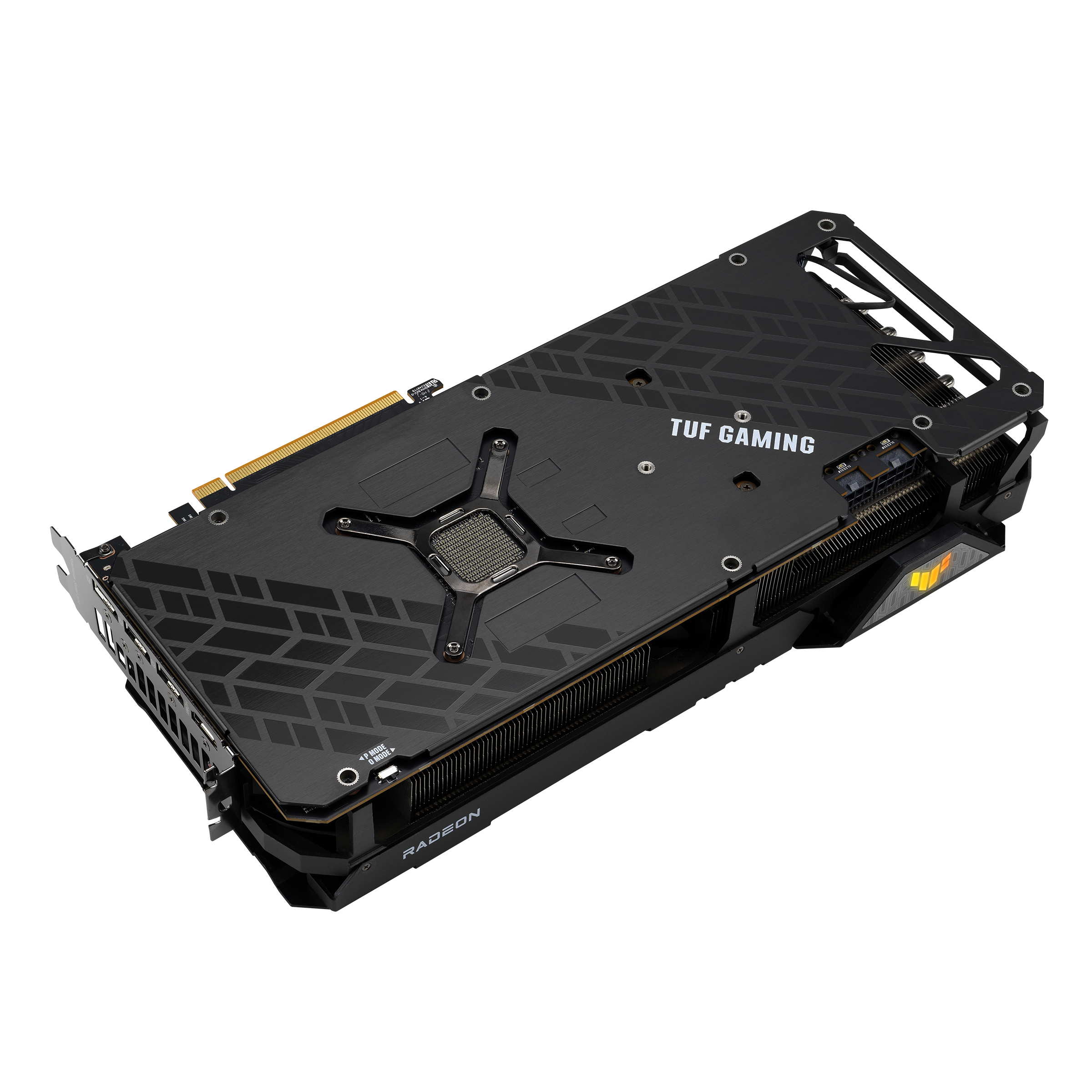

• An all-aluminum shroud, reinforced frame, and metal backplate enhance durability.
• MaxContact heat spreader features a super flat surface for improved thermal transfer.
• A vented backplate prevents hot air from recirculating through the cooling array.
• GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.

Graphic Engine

Radeon RX 6950 XT

Bus Standard

PCI Express 4.0

OpenGL

OpenGL4.6

Video Memory

16GB GDDR6

Engine Clock

Factory mode
Up to 2324 MHz(Boost Clock)
Up to 2116 MHz(Game Clock)

Stream Processors

5120

Memory Speed

18 Gbps

Memory Interface

256-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 1 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

Yes

Accessories

1 x TUF certificate of Reliability
1 x Collection card
1 x Speedsetup Manual
1 x ASUS ruler

Software

ASUS GPU Tweak II & Drivers: please download all software from the support site.

Dimensions

13 x 5.52 x 2.28 inches
320 x 140.2 x 57.8 mm

Recommended PSU

1000W

Power Connectors

2 x 8-pin

Slot

2.9 Slot

AURA SYNC

ARGB

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* Crossfire Support for DirecX 12 and Vulkan
* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
