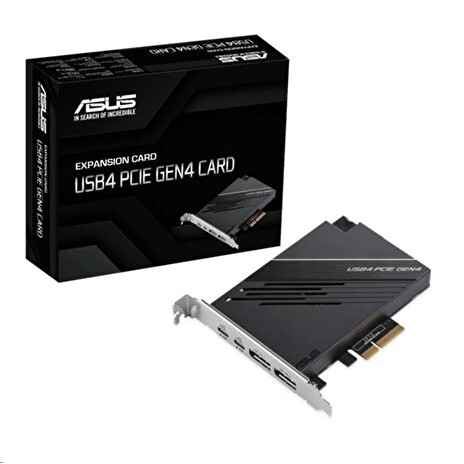

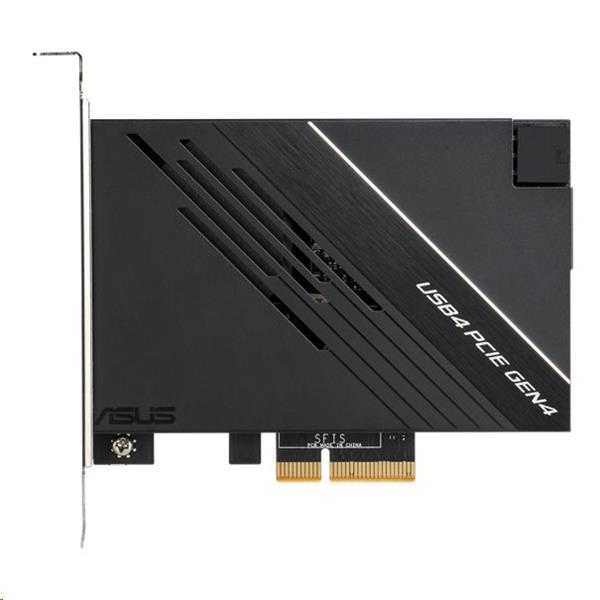

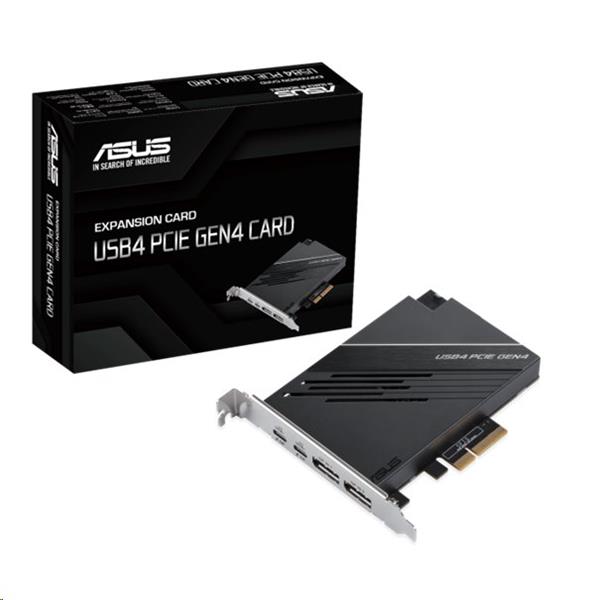

ASUS USB4 PCIe Gen4 Card - rozširujúca karta dual USB4 (USB-C), DP, PCIe 4.0x4

Karta ASUS USB4 PCIe Gen4, dva porty USB4® (USB-C®), porty DisplayPort™ 1.4, rozhranie PCIe® 4.0 x4
Certifikovaný ovládač USB4® vo vnútri prídavnej karty USB4®
Podpora dvoch portov typu C Funkcia rýchleho nabíjania až 20 V/3 A 60 W
Obojsmerná šírka pásma 40 Gbps pre superrýchle prenosy dát a video výstup
Dva porty USB4® (USB-C®) s podporou až piatich zariadení USB4® v reťazci
DisplayPort™ 1.4 pre podporu 8K Ultra HD

Špecifikácie:

Chipset
asmedia® USB4® ASM4242 Controller

External Connectors

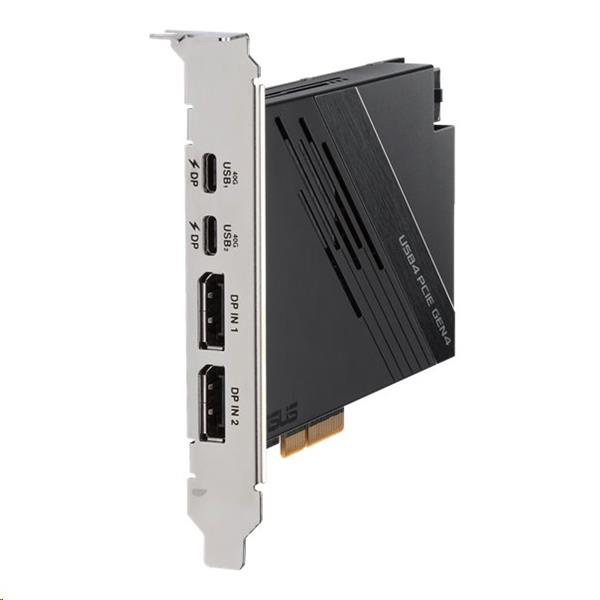

2 x USB Type-C® ports (Support USB4® technology)
- Up to USB 40Gbps for USB4® devices
- The Type-C_1 and Type-C_2 supports up to 20V/3A, 60W quick charge feature
2 x DisplayPort IN ports
1 x 6-pin PCIe power connector for quick charge function
1 x USB 2.0 header
1 x USB4 header

Interface
PCIe 4.0 x4 interface

VGA
Supports max. 8K@60Hz as specified in DisplayPort 1.4*
* Max resolution support will depend on your VGA source

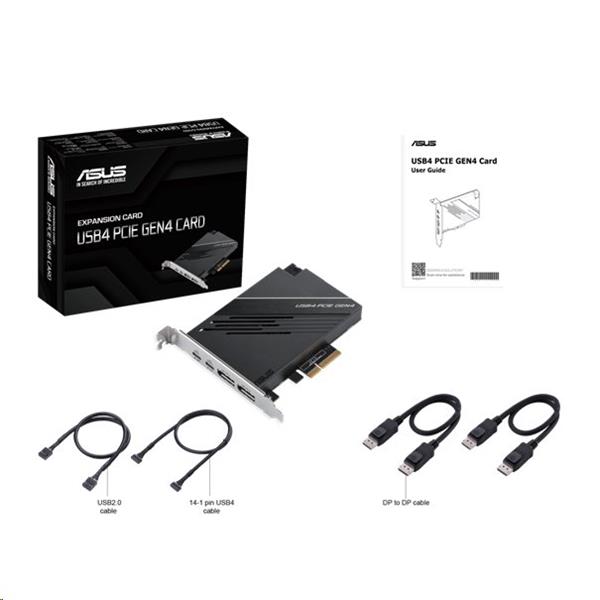

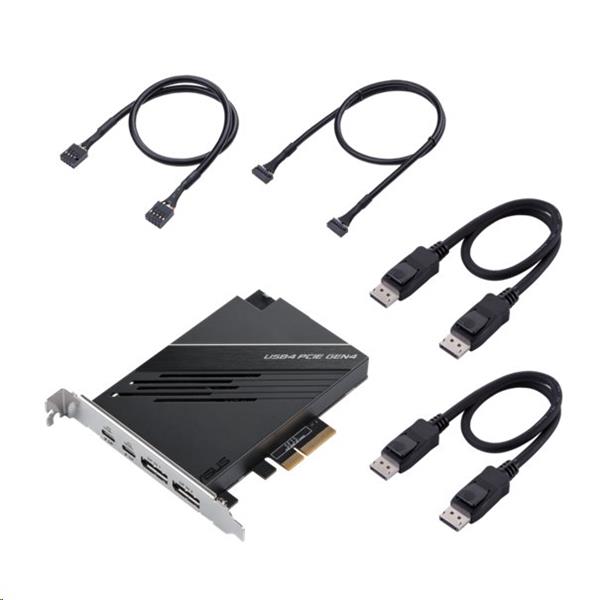

Accessory
2 x DisplayPort cables (links graphics output from motherboard’s or discrete graphics card’s DisplayPort to the DisplayPort IN port on the USB4 PCIE GEN4 CARD)
1 x USB 2.0 cable
1 x 14-1 pin USB4 header cable
1 x User manual

Compatible Models
Support list under the Support tab of product information site or visit https://www.asus.com/support/

Operating System
Windows® 11, Windows® 10 64-bit

Dimensions
4.6 inch x 7.1 inch (11.77 cm*18.05 cm)
