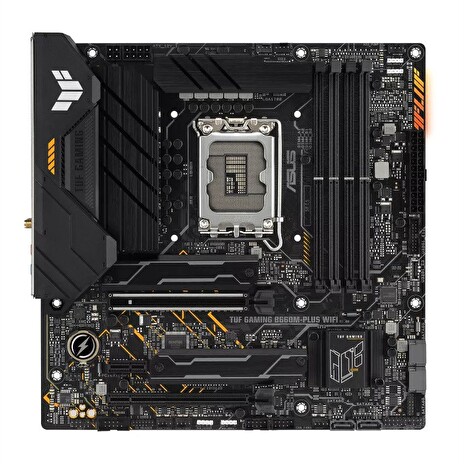

ASUS TUF GAMING B660M-PLUS WIFI/LGA 1700/mATX

Chipset:Intel B660 Chipset

Rozměrový formát:mATX Form Factor ( 24.4 cm x 24.4 cm )
Podpora pro procesory:12th Gen Intel Core, Pentium Gold and Celeron Processors
Patice procesoru:LGA 1700

Pozice na paměti:4 x DIMM, Dual Channel Memory Architecture
Podpora pro paměti:DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MHz
Max.velikost operační paměti:128 GB
Podpora pro paměti typu:XMP

Grafická karta:(na základě procesoru)
*1 x DisplayPort
*1 x HDMI port

Zvuková karta:Realtek 7.1 Surround Sound High Definition Audio CODEC
*optical S/PDIF out port

Síťová karta:
*1 x Realtek 2.5Gb Ethernet
*Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
*Bluetooth v5.2

Rozšiřující sloty:
*1 x PCIe 5.0 x16 slot
*1 x PCIe 3.0 x16 slot (supports x4 mode)
*1 x PCIe 4.0 x1 slot

RAID řadič:RAID 0/1/5/10

SATA:4 x SATA 6Gb/s ports

M.2:2 x M.2 slots (Key M)

USB:
*Interní:
*1 x USB 3.2 Gen 1 connector (supports USB Type-C)
*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support additional 4 USB 2.0 ports
*Externí:
*1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
*4 x USB 3.2 Gen 2 ports (4 x Type-A)
*1 x USB 3.2 Gen 1 port (1 x Type-A)
*2 x USB 2.0 ports (2 x Type-A)

Interní porty:
*Fan and Cooling related
*1 x 4-pin CPU Fan header
*1 x 4-pin CPU OPT Fan header
*1 x 4-pin AIO Pump header
*3 x 4-pin Chassis Fan headers
*Power related
*1 x 24-pin Main Power connector
*1 x 8-pin +12V Power connector
*1 x 4-pin +12V Power connector
*Storage related
*2 x M.2 slots (Key M)
*4 x SATA 6Gb/s ports
*USB
*1 x USB 3.2 Gen 1 connector (supports USB Type-C)
*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
*2 x USB 2.0 headers support additional 4 USB 2.0 ports
*Miscellaneous
*3 x Addressable Gen 2 headers
*1 x AURA RGB header
*1 x Clear CMOS header
*1 x COM Port header
*1 x Front Panel Audio header (AAFP)
*1 x 20-3 pin System Panel header with Chassis intrude function
*1 x Thunderbolt header

Externí porty:
*1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
*4 x USB 3.2 Gen 2 ports (4 x Type-A)
*1 x USB 3.2 Gen 1 port (1 x Type-A)
*2 x USB 2.0 ports (2 x Type-A)
*1 x DisplayPort
*1 x HDMI port
*1 x Wi-Fi Module
*1 x Realtek 2.5Gb Ethernet port
*5 x Audio jacks
*1 x Optical S/PDIF out port

BIOS:UEFI AMI BIOS, 128 Mb Flash ROM
