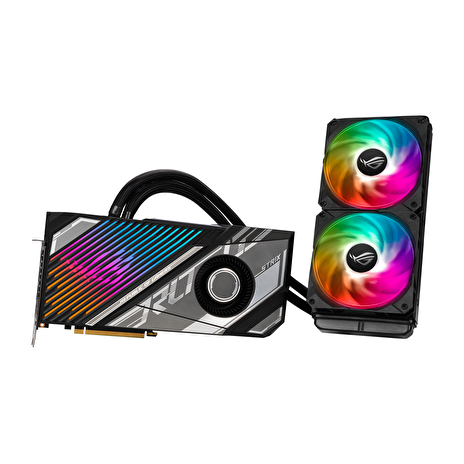

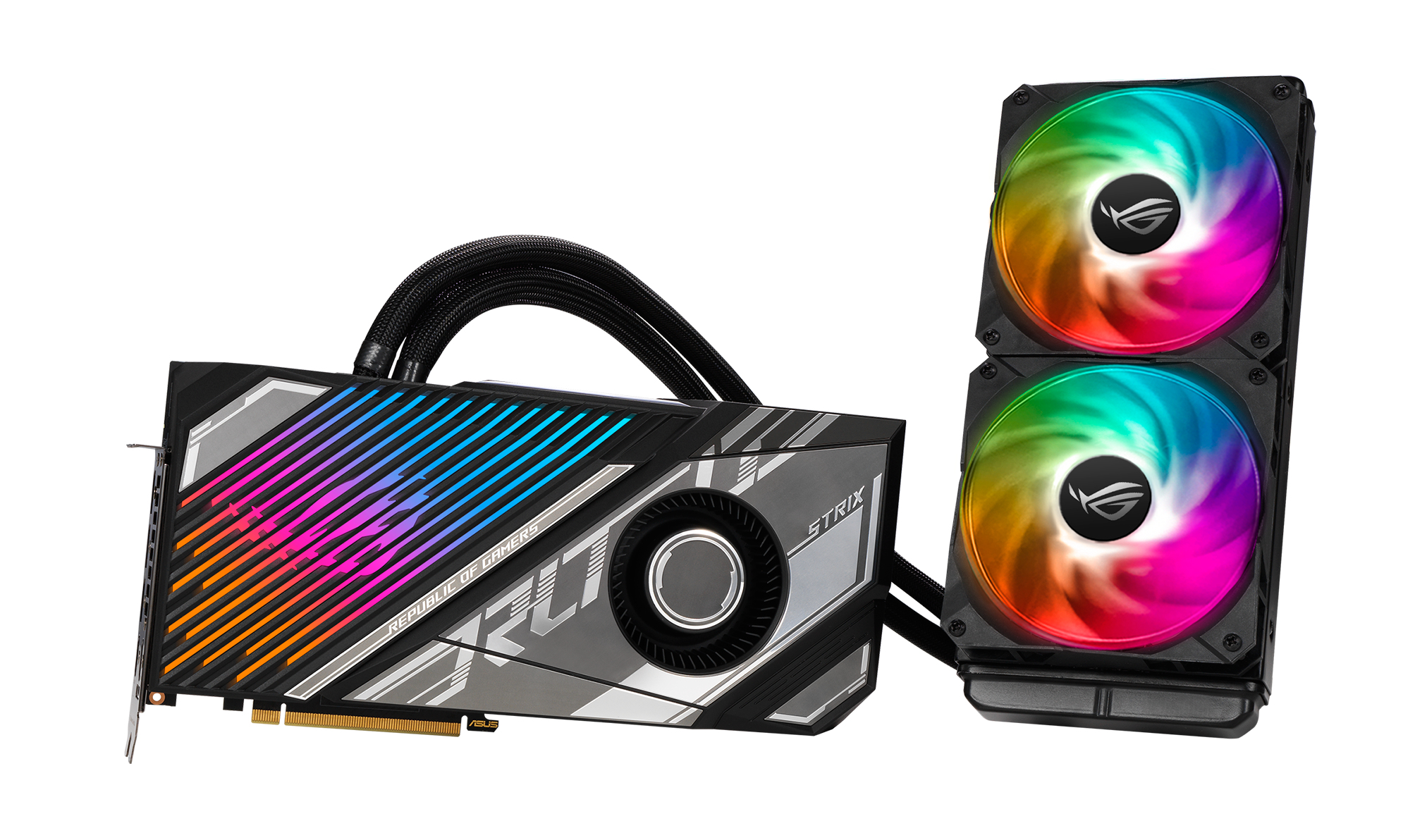

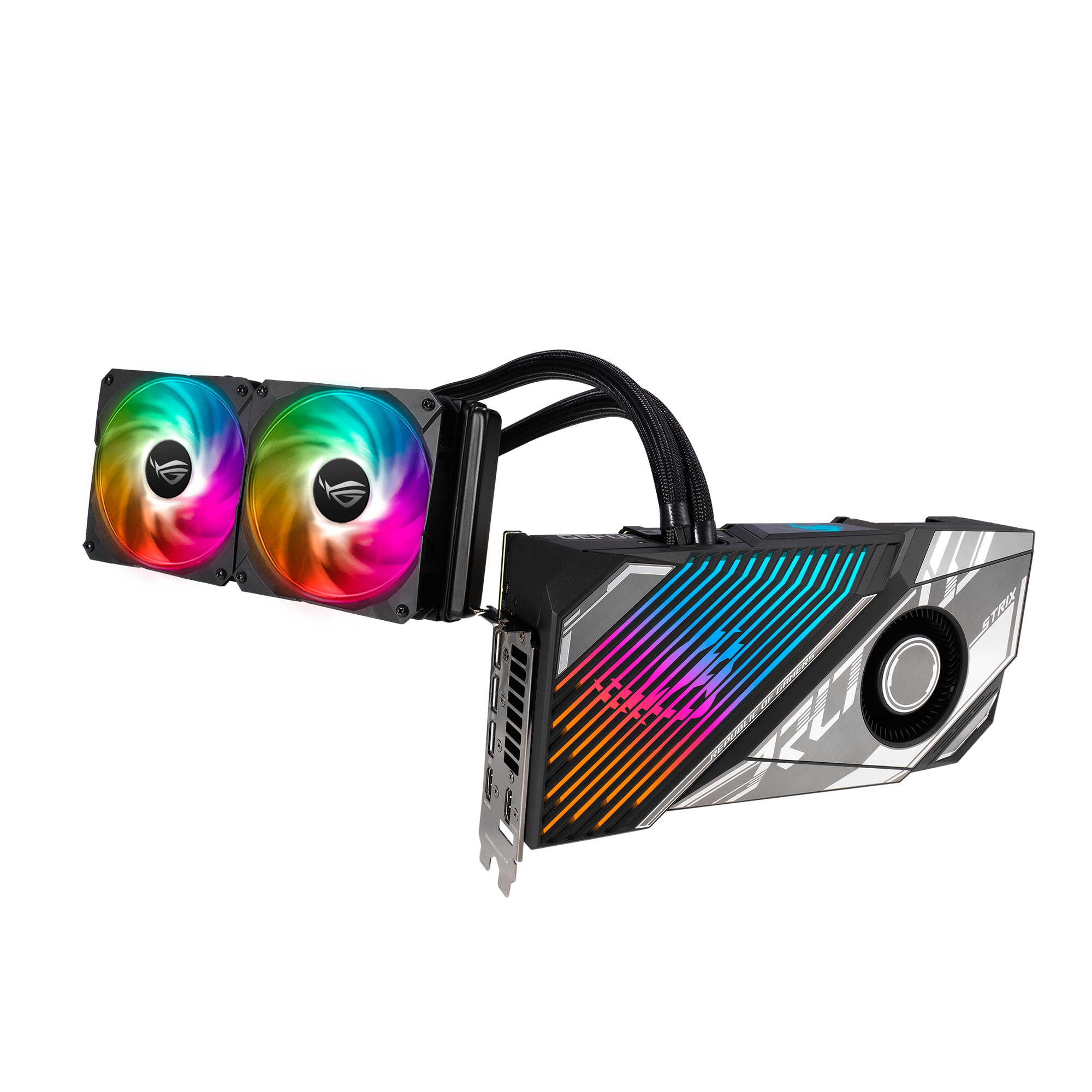

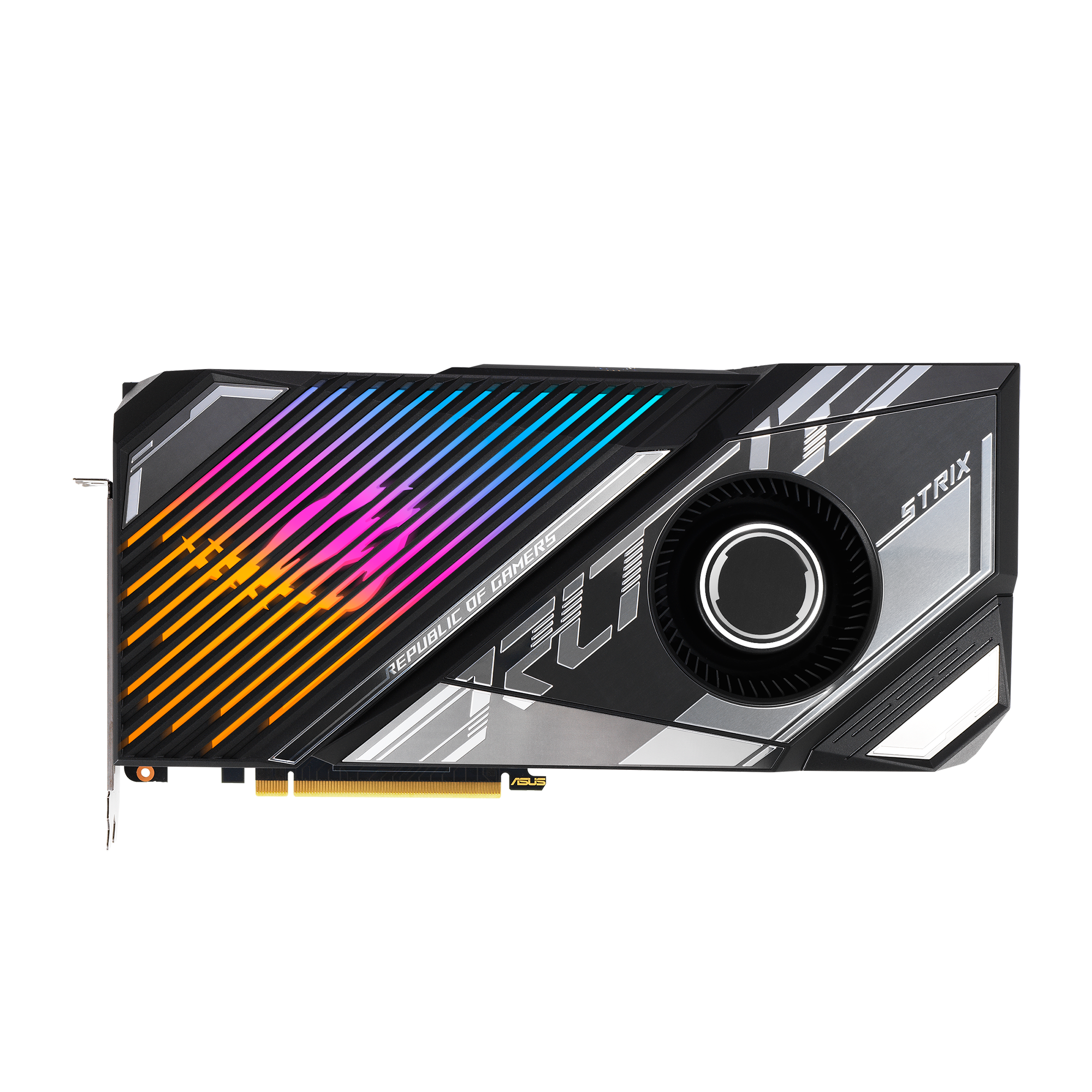

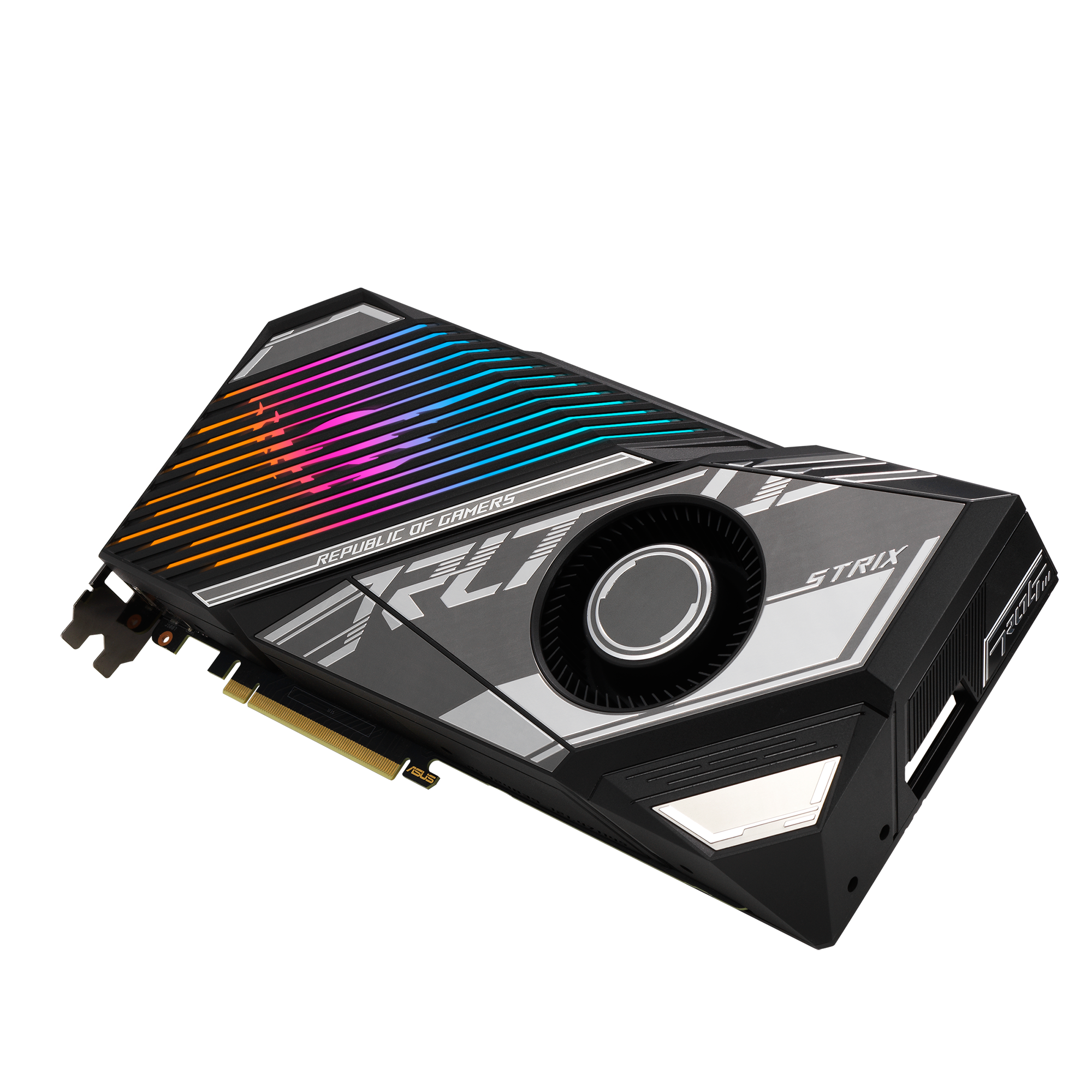

ROG Strix LC GeForce RTX™ 3080 Ti 12GB GDDR6X reigns supreme by
combining liquid cooling with the NVIDIA Ampere architecture.
NVIDIA Ampere Streaming Multiprocessors: The building blocks for
the world’s fastest, most efficient GPUs, the all-new Ampere SM
brings 2X the FP32 throughput and improved power efficiency.
2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT
Cores, plus concurrent RT and shading for a whole new level of ray
tracing performance.
3rd Generation Tensor Cores: Get up to 2X the throughput with
structural sparsity and advanced AI algorithms such as DLSS. These
cores deliver a massive boost in game performance and all-new AI
capabilities.

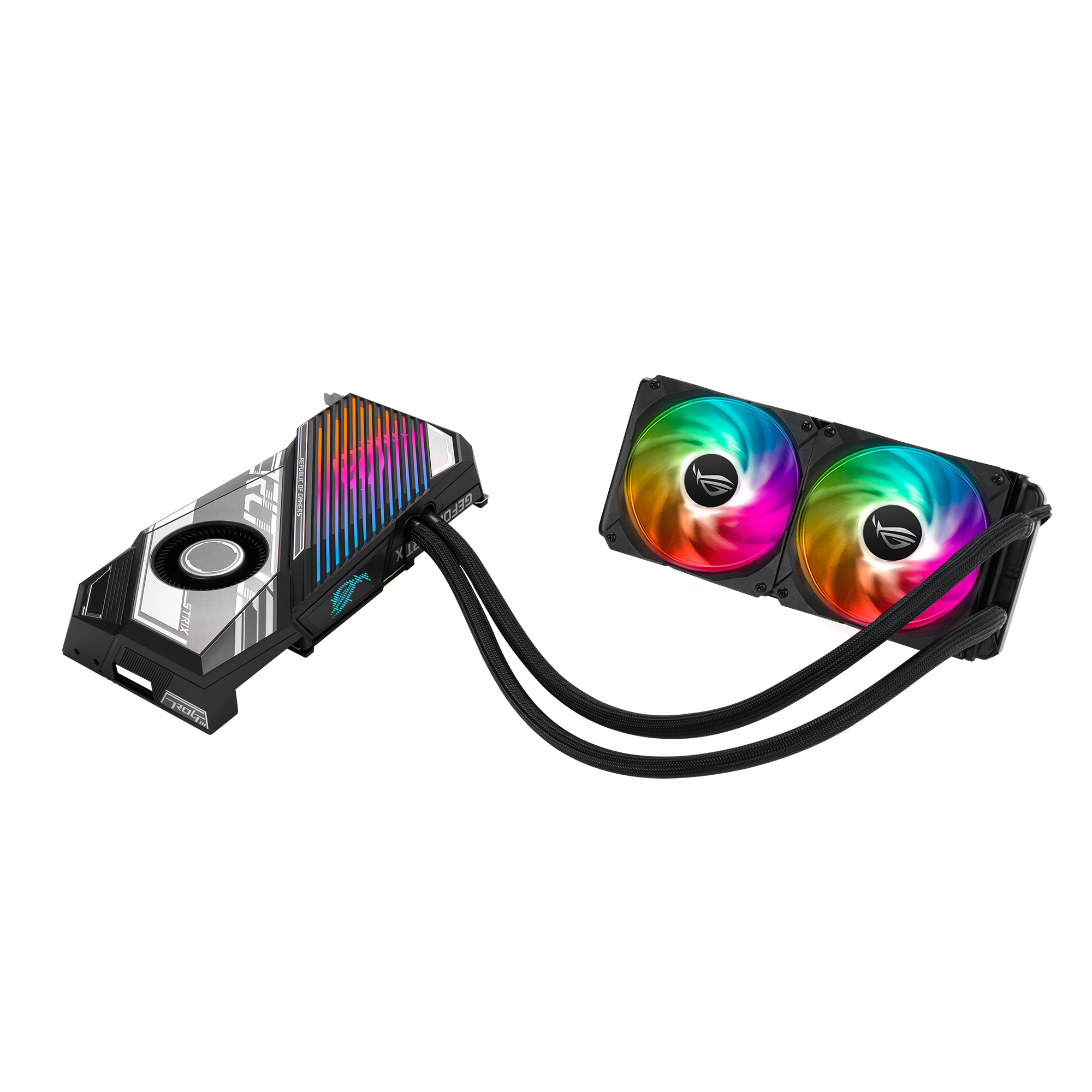

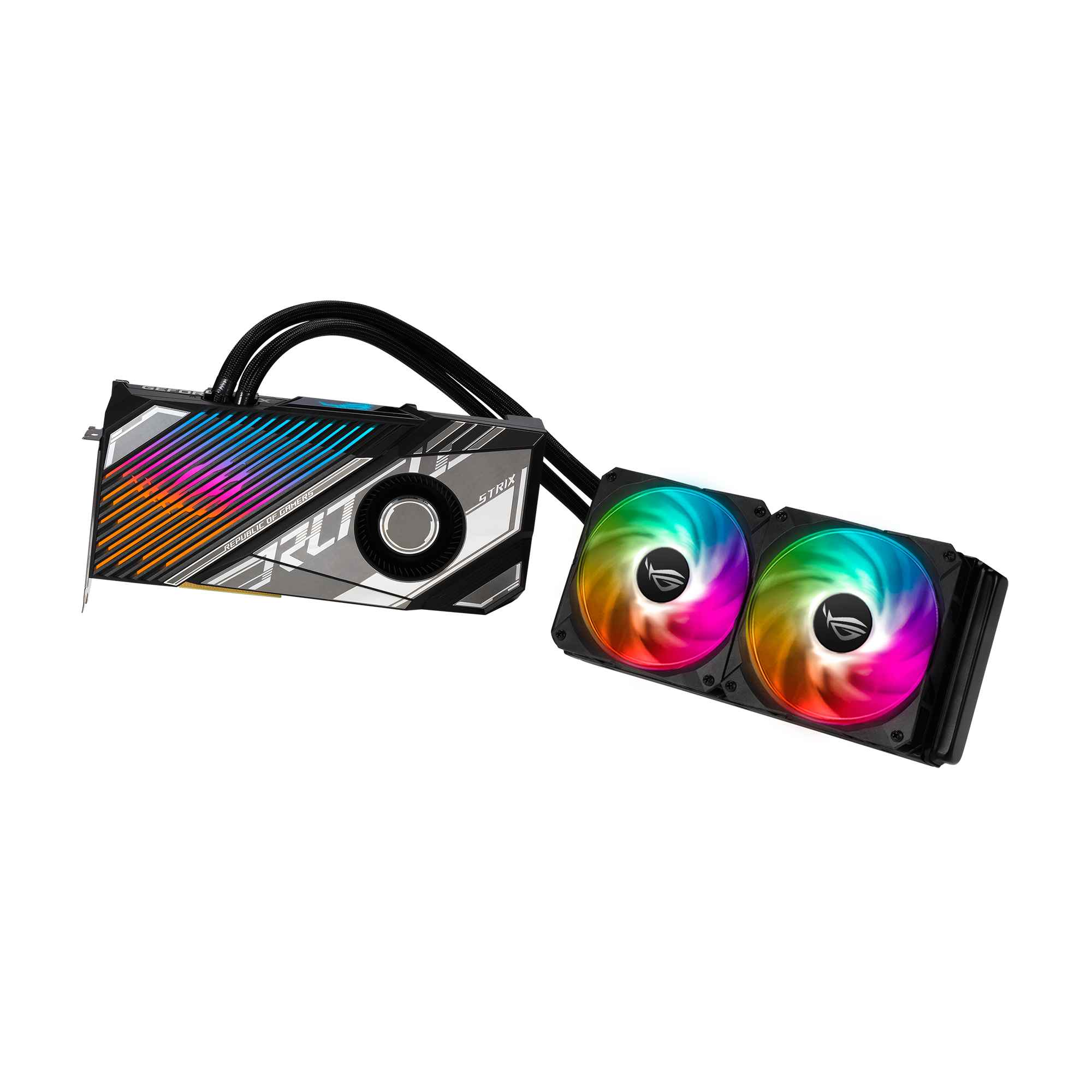

Full-coverage cold plate brings liquid cooling to GPU die and
memory.

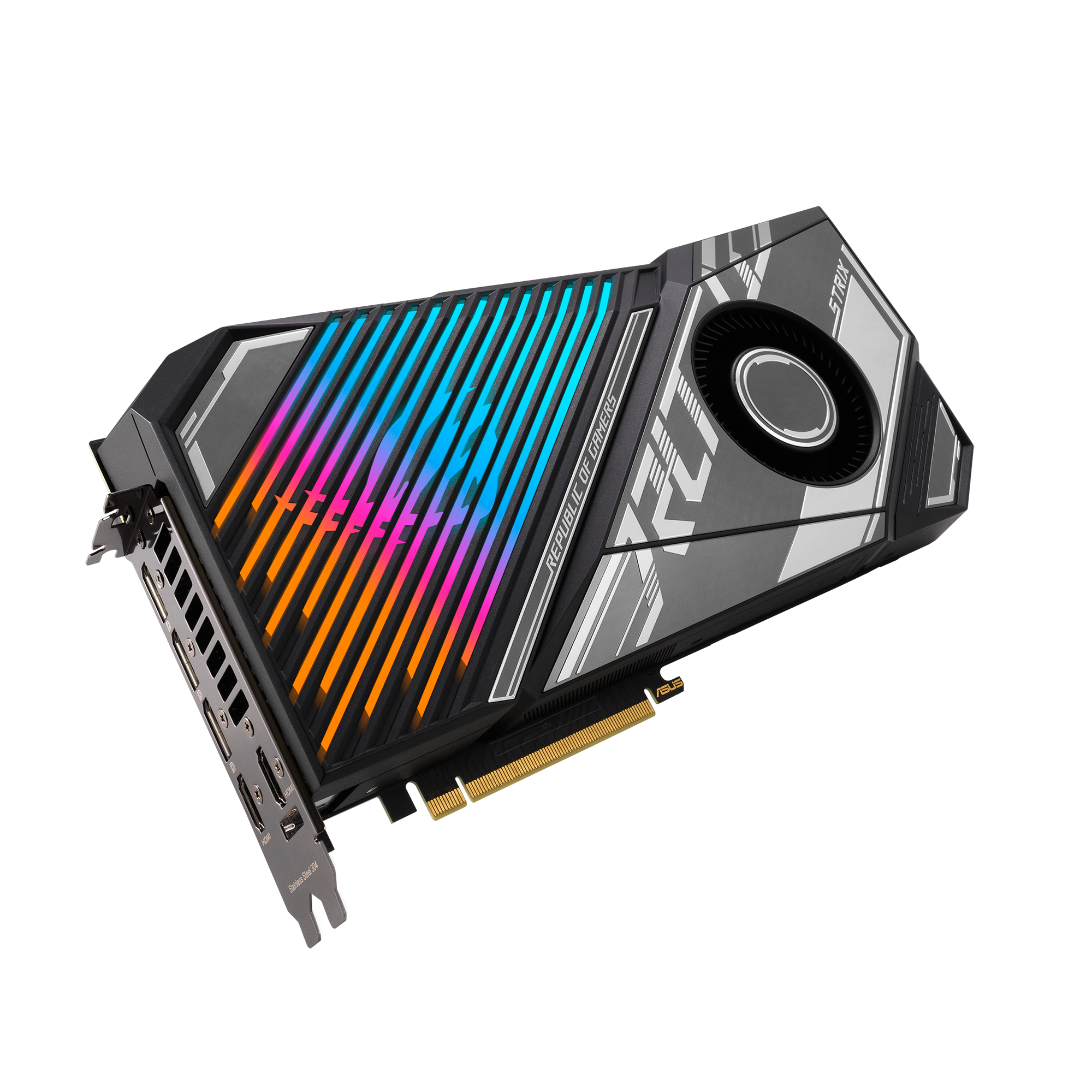

On-board cooling for power-delivery is handled by a blower-style
fan and low-profile heatsink.

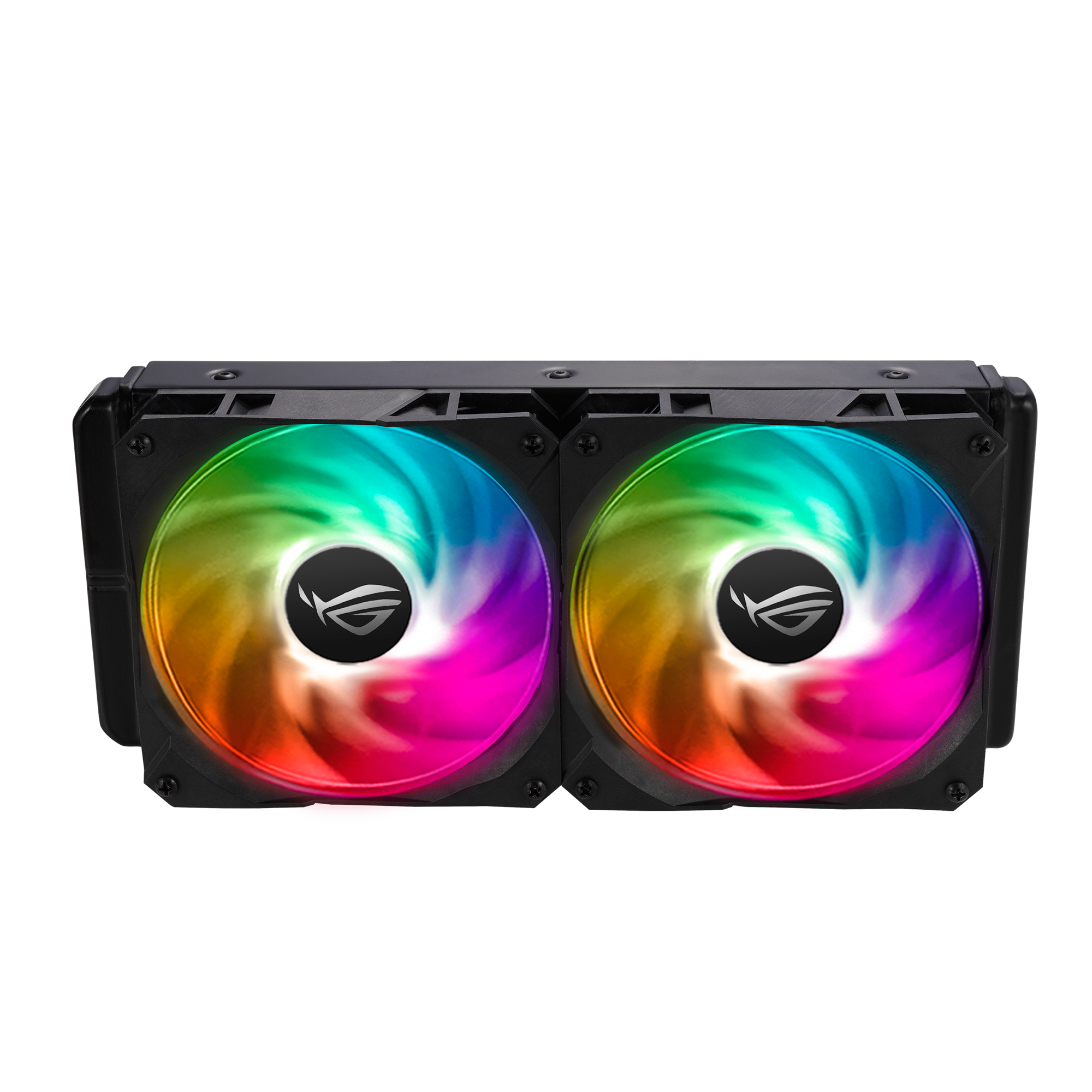

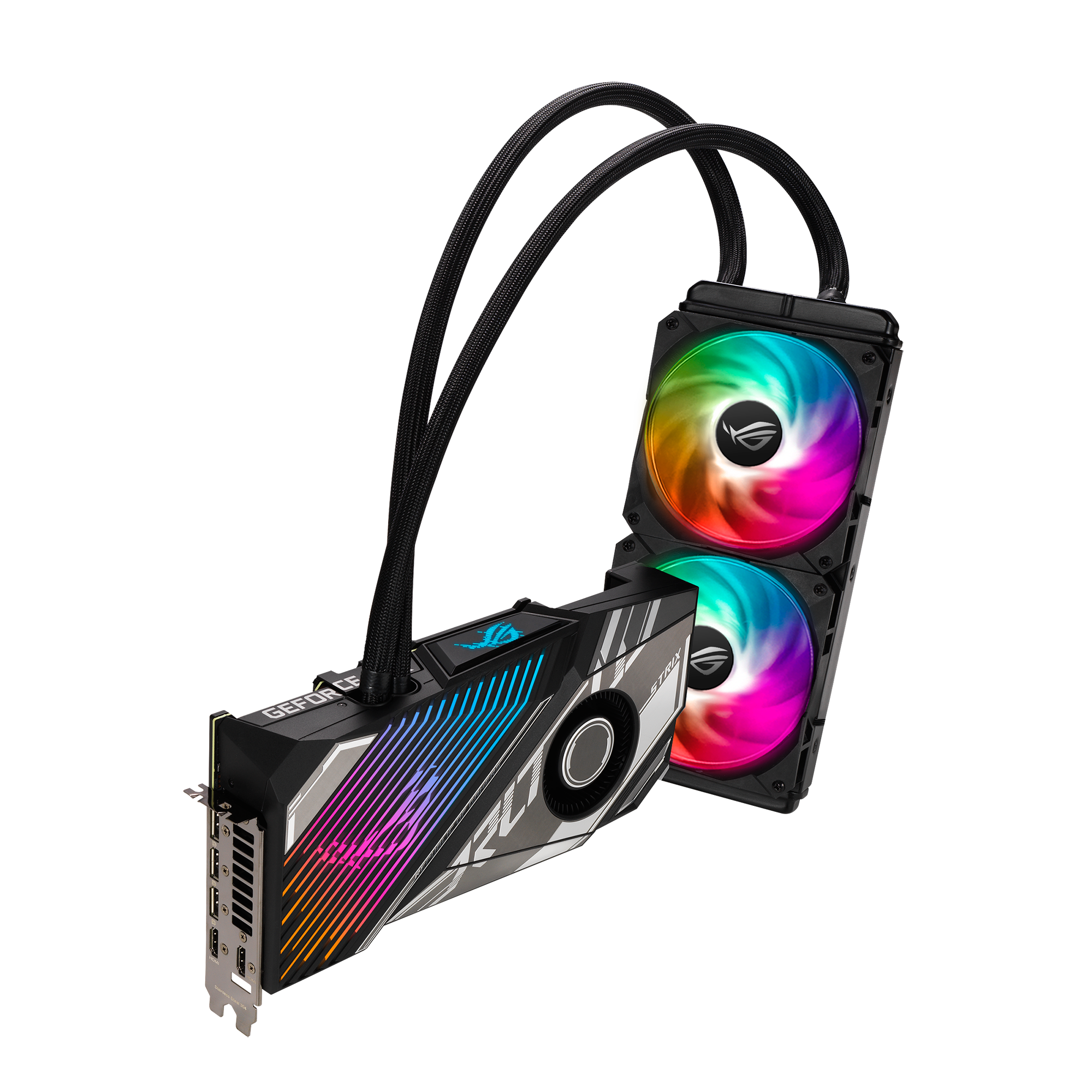

240mm radiator balances compatibility and performance.
560mm tubing for compatibility with EATX chassis and alternative
mounts.
Graphic Engine
NVIDIA® GeForce RTX™ 3080 Ti
Bus Standard
PCI Express 4.0
OpenGL
OpenGL®4.6
Video Memory
12GB GDDR6X
Engine Clock
OC mode : 1695 MHz (Boost Clock)
Gaming mode : 1665 MHz (Boost Clock)
CUDA Core
10240
Memory Speed
19 Gbps
Memory Interface
384-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 2 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x ROG Velcro Hook & Loop
1 x ROG ruler
1 x ROG sticker
1 x Collection card
1 x Speedsetup Manual
Software
ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver:
please download all software from the support site.
Dimensions
Card: 29.3 x 13.3 x 5.2 cm
Radiator: 27.2 x 12.1 x 5.4 cm (including fan)
Recommended PSU
850W
Power Connectors
3 x 8-pin
Slot
2.6 Slot
Note
* Our wattage recommendation is based on a fully overclocked GPU
and CPU system configuration. For a more tailored suggestion,
please use the “Choose By Wattage” feature on our PSU product page:
https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please
check with your supplier for exact offers. Products may not be
available in all markets. If you do not use the latest and current
specifications of ASUS products, you shall be liable for all loss
and damage claimed by third party to ASUS based on false
advertising or any other issues caused from using false
specifications of ASUS products.liable for all loss and damage
claimed by third party to ASUS based on false advertising or any
other issues caused from using false specifications of ASUS
products.
