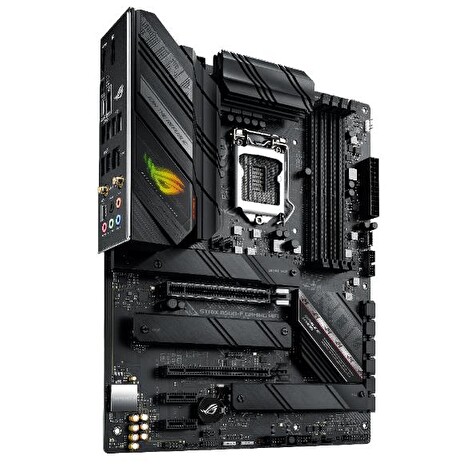

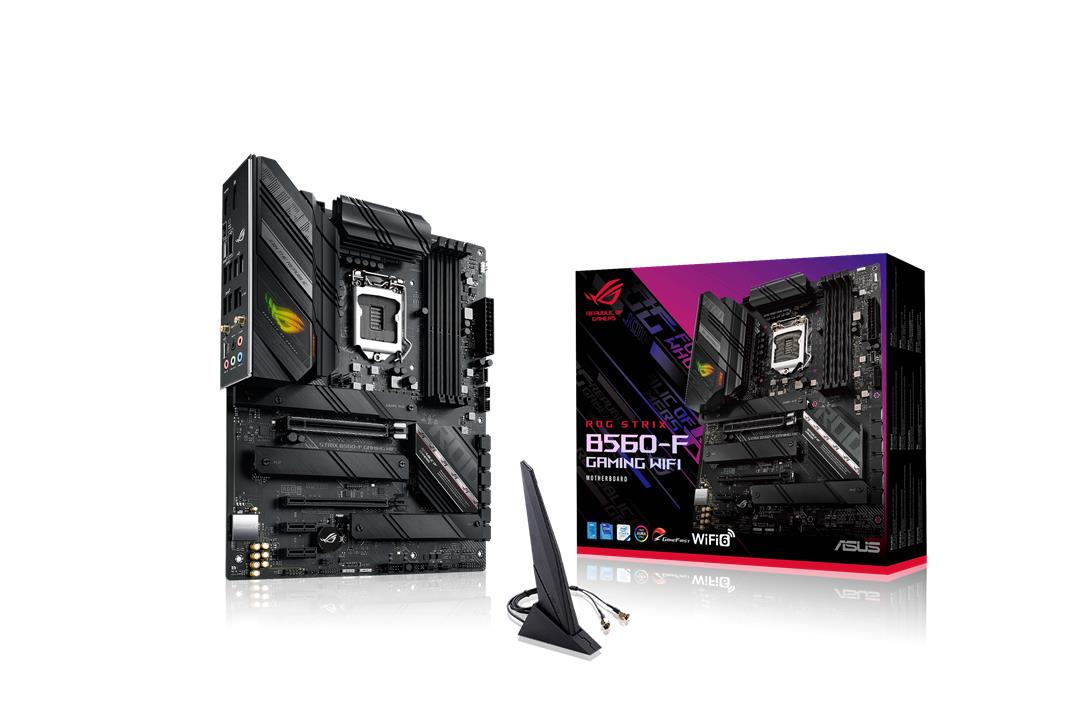

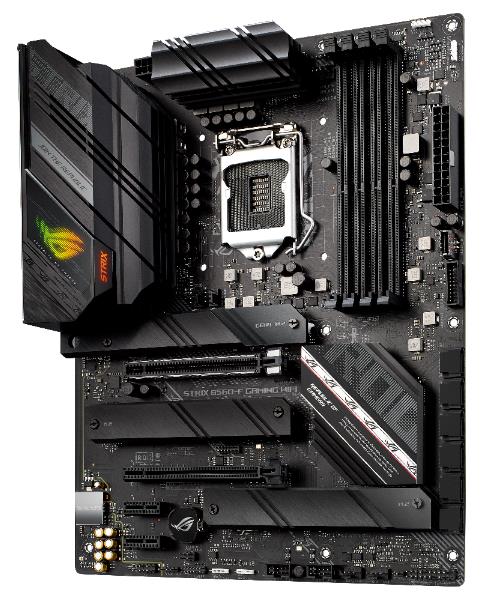

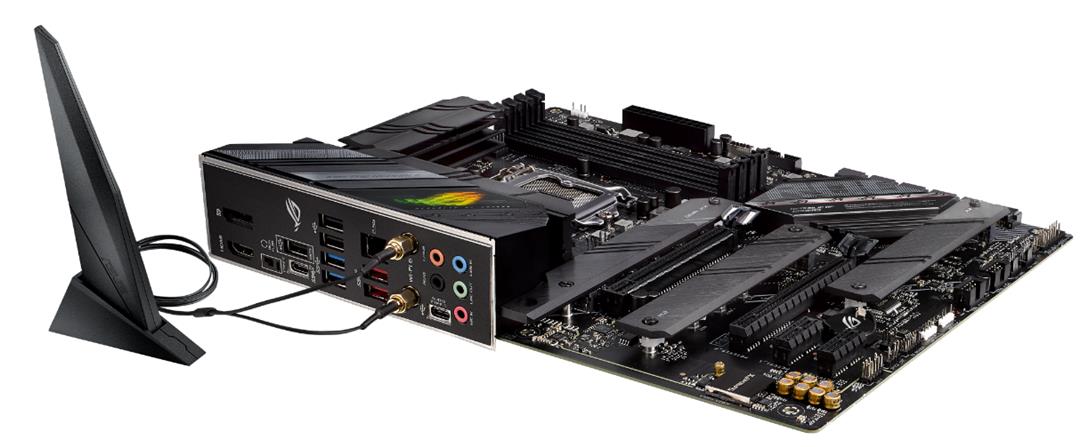

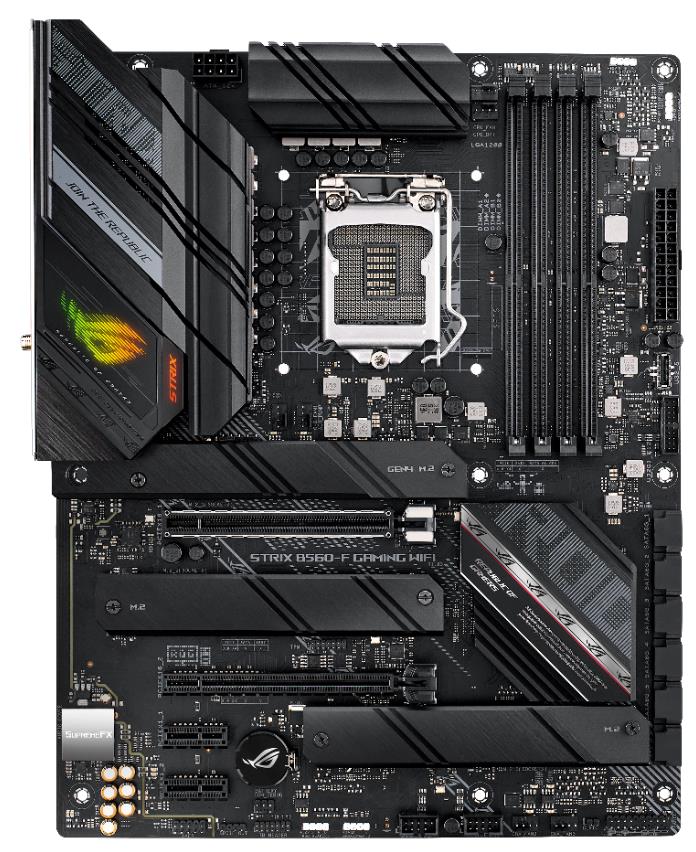

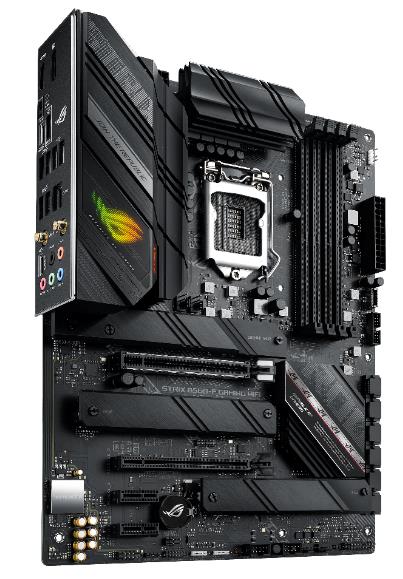

ASUS ROG STRIX B560-F GAMING WIFI

Chipset:Intel® B560 Chipset

Rozměrový formát:ATX Form Factor (305 mm x 244 mm)
Podpora pro procesory:Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Patice procesoru:LGA 1200

Pozice na paměti:4x DDR4 DIMM
Podpora pro paměti:
*10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
*11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.
Max.velikost operační paměti:128 GB
Podpora pro paměti typu:DDR4
*Dual Channel Memory Architecture
*Intel® Extreme Memory Profile (XMP)
*OptiMem II

Grafická karta:
*Integrated Graphics Processor (na základě procesoru)

Zvuková karta:
*ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

Síťová karta:
*1x Intel® 2.5Gb Ethernet
*Intel® Wi-Fi 6

Rozšiřující sloty:
*1x PCIe 4.0/3.0 x16 slot(s)
*1x PCIe 3.0 x16 slot (supports x4 mode)
*2x PCIe 3.0 x1 slots

SATA:
*6x SATA 6Gb/s ports

M.2:
*M.2_1 slot (Key M), type 2242/2260/2280/22110
*M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
*M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)

USB:
*zadní USB porty ( celkem 9 )
*1x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
*2x USB 3.2 Gen 2 port (2 x Type-A)
*2x USB 3.2 Gen 1 port (2 x Type-A)
*4x USB 2.0 port(s) (3 x Type-A, 1 x audio USB Type-C®)
*přední USB porty ( celkem 7 )
*1x USB 3.2 Gen 1 connector(s) (suppport(s) USB Type-C®)
*2x USB 3.2 Gen 1 ports
*4x USB 2.0 ports

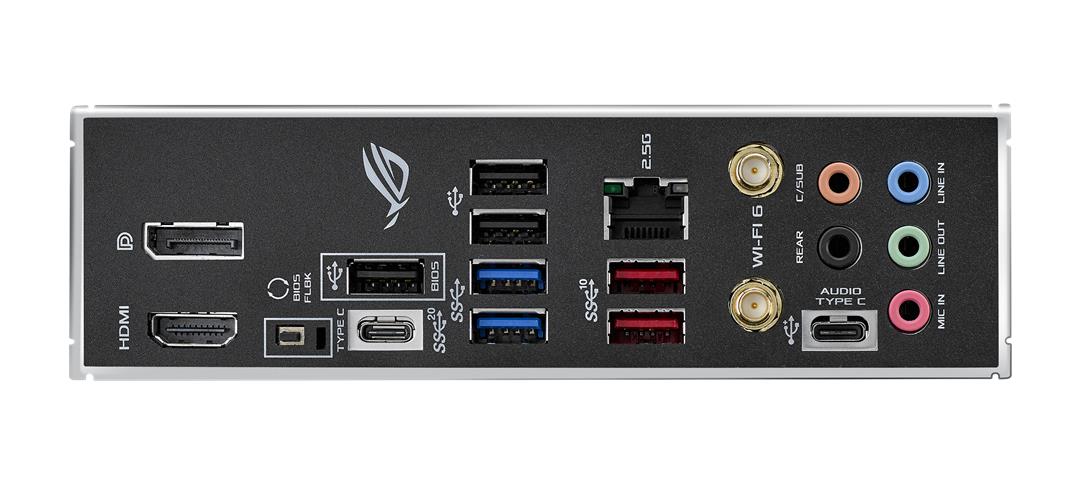

Externí porty:
*1x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
*2x USB 3.2 Gen 2 port(s) (2 x Type-A)
*2x USB 3.2 Gen 1 port(s) (2 x Type-A)
*4x USB 2.0 port(s) (3 x Type-A, 1 x audio USB Type-C®)
*1x HDMI™ port
*1x DisplayPort
*1x ASUS Wi-Fi Module
*1x Intel® I225-V 2.5Gb Ethernet
*5x Audio jacks
*1x BIOS FlashBack™ button

Obsah balení:
*4x SATA 6Gb/s cables
*1x ROG audio USB Type-C® cable
*1x ASUS Wi-Fi moving antennas
*1x Cable ties pack
*1x M.2 Q-Latch package
*2x M.2 Rubber Packages
*1x ROG key chain
*1x ROG STRIX stickers
*1x ROG STRIX thank you card
*1x Support DVD
*1x User manual

BIOS:128 Mb Flash ROM, UEFI AMI BIOS

Stránka výrobce:https://rog.asus.com/motherboards/rog-strix/rog-strix-b560-f-gaming-wifi-model
