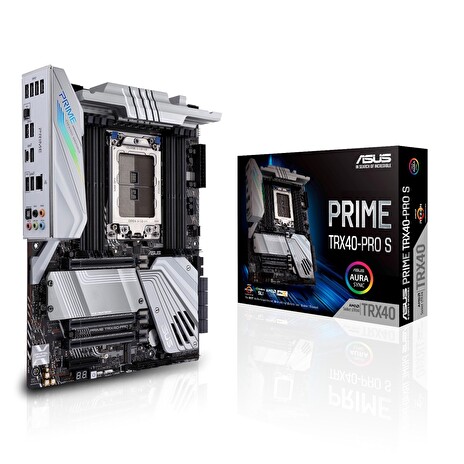

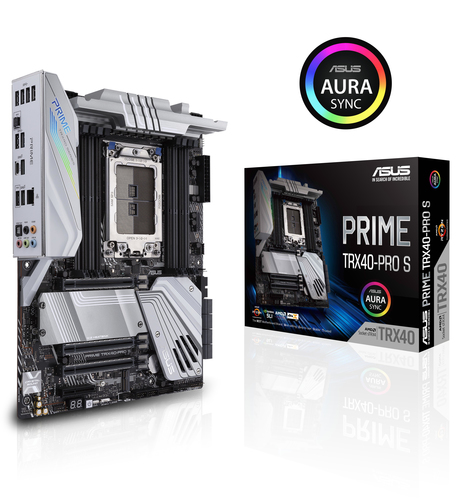

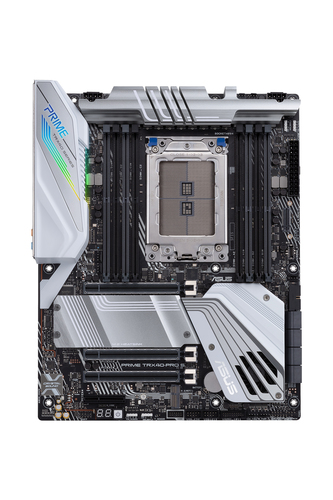

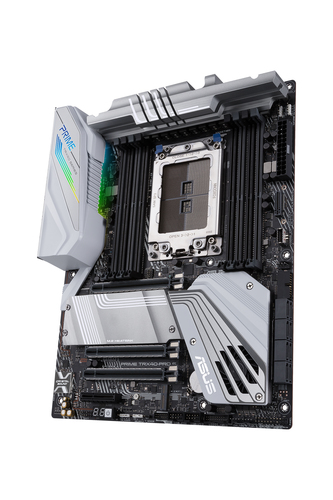

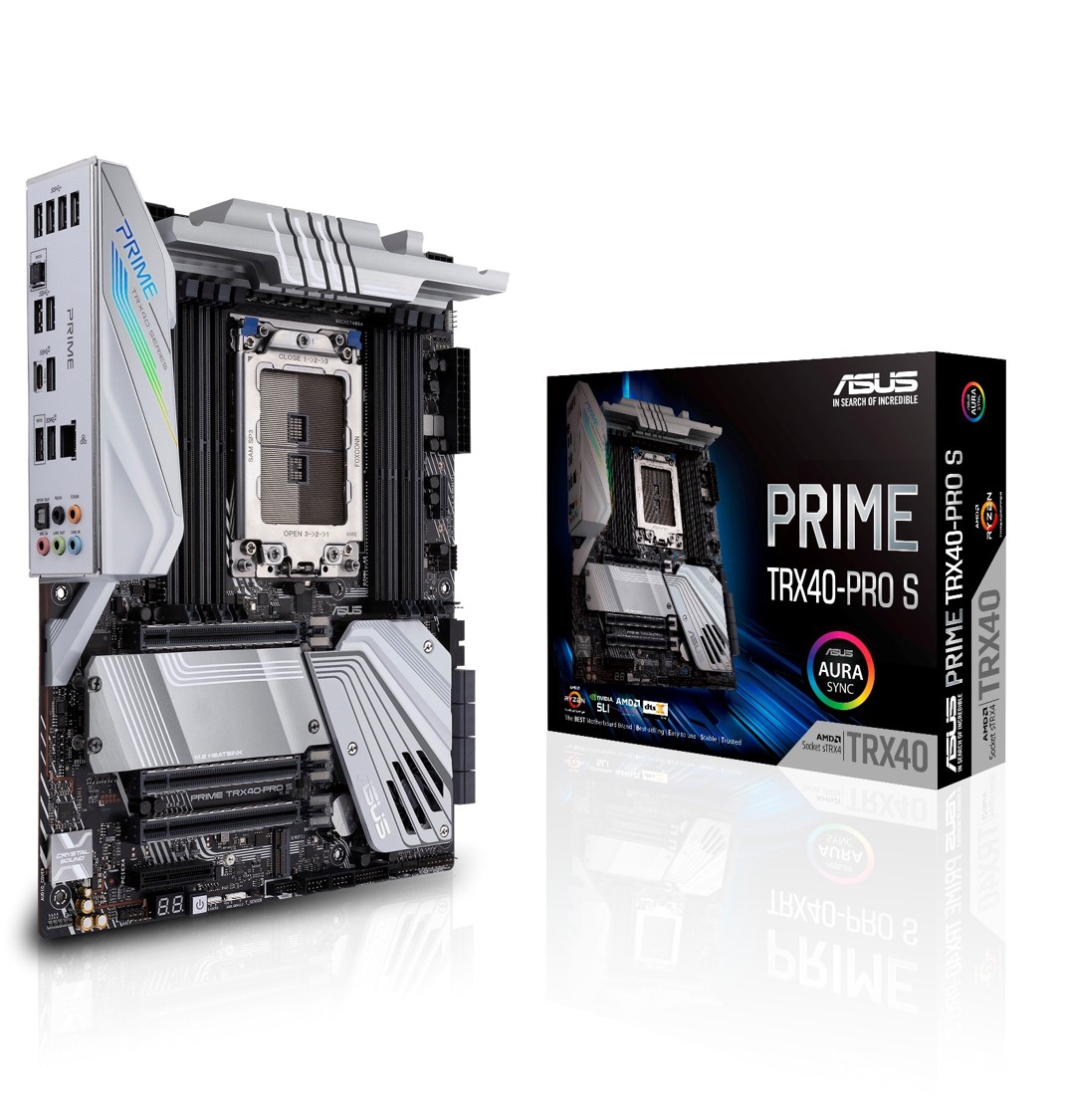

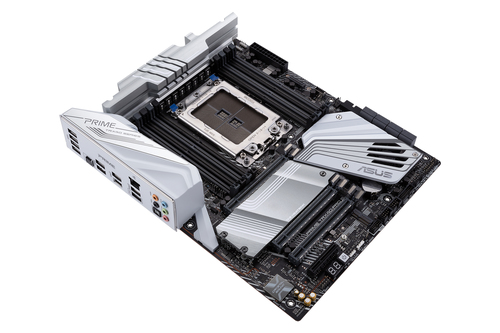

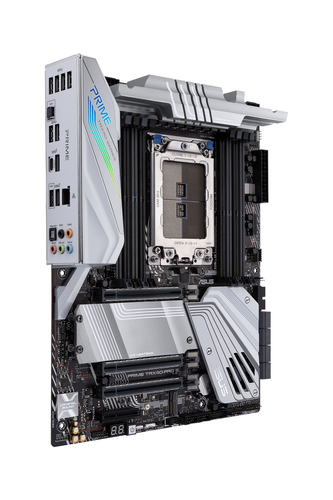

ASUS MB Sc sTRX4 PRIME TRX40-PRO S, AMD TRX40, 8xDDR4, VGA
ASUS MB Sc sTRX4 PRIME TRX40-PRO S, AMD TRX40, 8xDDR4, VGAASUS MB Sc sTRX4 PRIME TRX40-PRO S, AMD TRX40, 8xDDR4, VGAASUS MB Sc sTRX4 PRIME TRX40-PRO S, AMD TRX40, 8xDDR4, VGAASUS MB Sc sTRX4 PRIME TRX40-PRO S, AMD TRX40, 8xDDR4, VGAASUS MB Sc sTRX4 PRIME TRX40-PRO S, AMD TRX40, 8xDDR4, VGA
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Ochota, vstřícnost, odborná zdatnost

Ověřený zákazník

ASUS MB Sc sTRX4 PRIME TRX40-PRO S, AMD TRX40, 8xDDR4, VGA

PRIME TRX40-PRO S AMD TRX40 ATX motherboard sTRX4 for 3rd Gen Ryzen Threadripper-series processors (up to 64 cores) with 16 power stages, DDR4 4666+ MHz (O.C.), triple PCIe 4.0 M.2s, USB 3.2 Gen 2 Type-C front-panel connector and Aura Sync RGB lighting AMD Socket sTRX4: Ready for the latest 3rd Gen AMD Ryzen™ Threadripper™ series processors (support up to 64 cores) Robust…
Kód: 2943267PN: 90MB14J0-M0EAY0Výrobce: ASUSZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
Aktuálně není v nabídce

Popis produktu

PRIME TRX40-PRO S

AMD TRX40 ATX motherboard sTRX4 for 3rd Gen Ryzen Threadripper-series processors (up to 64 cores) with 16 power stages, DDR4 4666+ MHz (O.C.), triple PCIe 4.0 M.2s, USB 3.2 Gen 2 Type-C front-panel connector and Aura Sync RGB lighting

  • AMD Socket sTRX4: Ready for the latest 3rd Gen AMD Ryzen™ Threadripper™ series processors (support up to 64 cores)
  • Robust power design: 16 power stages, ProCool II connectors with solid pins, and premium chokes and capacitors for stable power delivery
  • Comprehensive thermal solutions: VRM heatsink, M.2 heatsink, SoC VRM heatsink, active chipset heatsink solution, and an array of hybrid fan headers
  • Next-gen connectivity: Three PCIe 4.0 NVMe M.2 slots, USB 3.2 Gen 2 Type-C™ front-panel connector, and Intel Gigabit Ethernet
  • Intelligent tuning: ASUS 5-Way Optimization software and renowned UEFI BIOS offer easy configuration options for all experience levels

TECHNICAL SPECIFICATIONS

CPU AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors *
Supports CPU up to 64 cores
* Refer to www.asus.com for CPU support list
Chipset AMD TRX40
Memory 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors
8 x DIMM, Max. 256GB, DDR4 4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2933/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Multi-GPU Support Supports NVIDIA Quad-GPU SLI Technology
Supports NVIDIA 2-Way SLI Technology
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 2-Way CrossFireX Technology
Expansion Slots 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors
3 x PCIe 4.0 x16 (x16/x16/x16) *
AMD TRX40 chipset
1 x PCIe 4.0 (x4 mode)
Storage 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors:
2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode)
AMD TRX40 chipset:
1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10
LAN Intel I211-AT
ASUS Turbo LAN Utility
ASUS LAN Guard
Audio Realtek ALC S1220 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB (Line-out at rear) and 108 dB SNR recording input (Line-in)
Audio Feature:
- DTS X:Ultra
- Optical S/PDIF out port(s) at back panel
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
USB Ports AMD Ryzen™ Threadripper™ Processors:
4 x USB 3.2 Gen 2 port(s) (4 at back panel, 3 x Type-A+1 x Type-C)
AMD TRX40 chipset:
1 x USB 3.2 Gen 2 front panel connector port(s) (1 at mid-board)
AMD TRX40 chipset:
6 x USB 3.2 Gen 1 port(s) (2 at back panel, Type-A, 4 at mid-board)
AMD TRX40 chipset:
2 x USB 2.0 port(s) (2 at mid-board)
ASMedia USB 3.2 Gen 1 controller:
4 x USB 3.2 Gen 1 port(s) (4 at back panel, Type-A)
GL852G USB Hub:
2 x USB 2.0 port(s) (2 at mid-board)
Special Features ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5:
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
ASUS SafeSlot - Protect your graphics card Investment
AURA:
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Addressable Gen 2 Header
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Onboard Button : Power
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- Turbo LAN
- Crystal Sound 3
- Armoury Crate
- Pre-mounted I/O Shield
ASUS Quiet Thermal Solution:
- Stylish Design Heat-pipe solution
- Stylish Fanless Design with M.2 Heat-sink solution
- ASUS Fan Xpert 4
ASUS EZ DIY:
- ASUS EZ Flash 3
- ASUS USB BIOS FlashBack™
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design:
- ASUS Q-Code
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
Back I/O Ports 1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 2 (teal blue) (3 x Type-A+1 x Type-C) (one port can be switched to USB BIOS FlashBack™)
6 x USB 3.2 Gen 1 (blue)
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS FlashBack™ Button(s)
Internal I/O Ports 1 x Q_Code
2 x Aura RGB Strip Header(s)
2 x Addressable Gen 2 header(s)
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 3 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 with E key for Wi-Fi module
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x W_PUMP+ connector (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
2 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Q-Connector) x With flexkey function
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x USB 3.2 Gen 2 front panel connector
Accessories User´s manual
1 x Vertical M.2 bracket set
4 x SATA 6Gb/s cable(s)
2 x M.2 Screw Package
1 x Supporting DVD
1 x Q-Connector
1 x Extension Cable for RGB strips (40 cm)
1 x Extension cable for Addressable LED
1 x CPU Fan Holder
BIOS 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
Manageability WfM 2.0, WOL by PME, PXE
Operating System Windows 10 64-bit
Form Factor ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm)
Note Recommend you to install add-on cards on (PCIEX16_1 and PCIEX16_2) or (PCIEX16_1 and PCIEX16_3) to enjoy 2 way SLI™ or CrossFireX™.

Parametry

BlueToothNe
COM port (interní)Ne
DisplayPort / miniDisplayPortNe
DVINe
eSATANe
Grafická kartaNe
HDMINe
ChipsetTRX40
IEEE 1394Ne
Integrované CPU na MBNe
LPT port (interní)Ne
Max. velikost op. paměti (GB)256
Maximální frekvence pamětí4666
PaticesTRX4
Počet konektorů SATA 6Gb/s8
Počet LAN výstupů1x LAN konektor
Počet paměťových slotů8
Počet pinů USB 2.0 (interní)2
Počet pinů USB 3.x (interní)3
Počet slotů M.23
Počet slotů PCIe x11
Počet slotů PCIe x163
Počet USB 3.x (externí)9
Podpora pro paměti typuDDR4
Podpora pro paměti typu ECCAno
Podpora vProNe
RAID řadičAno
ThunderBolt (interní)Ne
TPM HeaderNe
Typ síťové kartyIntel
Velikost základní deskyATX
VGANe
Výrobce chipsetuAMD
WiFiNe
XMPNe
