ASUS MB Sc LGA1700 PRO H610T D4-CSM, Intel H610, 2xDDR4, 1xDP, 1xHDMI, 1xLVDS, mini-ITX
ASUS MB Sc LGA1700 PRO H610T D4-CSM, Intel H610, 2xDDR4, 1xDP, 1xHDMI, 1xLVDS, mini-ITXASUS MB Sc LGA1700 PRO H610T D4-CSM, Intel H610, 2xDDR4, 1xDP, 1xHDMI, 1xLVDS, mini-ITXASUS MB Sc LGA1700 PRO H610T D4-CSM, Intel H610, 2xDDR4, 1xDP, 1xHDMI, 1xLVDS, mini-ITXASUS MB Sc LGA1700 PRO H610T D4-CSM, Intel H610, 2xDDR4, 1xDP, 1xHDMI, 1xLVDS, mini-ITXASUS MB Sc LGA1700 PRO H610T D4-CSM, Intel H610, 2xDDR4, 1xDP, 1xHDMI, 1xLVDS, mini-ITX
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Hodnocení obchodu 100%, ale v případě dodání nabízenou přepravní službou, tento nákup byl poslední.

Ověřený zákazník

ASUS MB Sc LGA1700 PRO H610T D4-CSM, Intel H610, 2xDDR4, 1xDP, 1xHDMI, 1xLVDS, mini-ITX

Pro H610T D4-CSM Thin mini-ITX H610 business motherboard with enhanced security, reliability, manageability and efficiency. Intel LGA 1700 socket: Ready for 12th Gen Intel processors ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards ASUS Control Center Express: Integrated IT monitoring and management…
Kód: 3500844PN: 90MB1AM0-M0EAYCVýrobce: ASUSZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
4 199   včetně DPH
Cena bez DPH: 3 470 Kč
Cena po registraci:
3 999 Kč
Cena bez DPH: 3 305 Kč
Nákup po telefonu
+420 587 407 456
Skladem
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již 10.10. / ZDARMA!
Přepravní službou (ČR)12.10. / od 120 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.

Popis produktu

Pro H610T D4-CSM

Thin mini-ITX H610 business motherboard with enhanced security, reliability, manageability and efficiency.

  • Intel LGA 1700 socket: Ready for 12th Gen Intel processors
  • ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
  • ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
  • Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs
  • Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
  • Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
  • Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes

CPU

Intel Socket LGA1700 for 12th Gen Intel Core™, Pentium Gold and Celeron Processors*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
*CPU only support up to 65W
*Refer to www.asus.com for CPU support list.
**Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel H610 Chipset

Memory

2 x SO-DIMM, Max. 64GB, DDR4 3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP)
*Actual Memory data rate support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphics

1 x DisplayPort**
1 x HDMI port***
1 x LVDS connector
*Graphics specifications may vary between CPU types.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

Storage

Total supports 1 x M.2 slot and 2 x SATA 6Gb/s ports
Intel 12th Gen Processors
- 1 x M.2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 & SATA modes)
Intel H610 Chipset
- 2 x SATA 6.0 Gb/s ports

Ethernet

1 x Realtek 1Gb Ethernet
ASUS LANGuard

USB

Rear USB (Total 4 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 2.0 ports
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
1 x USB 2.0 header supports additional 1 USB 2.0 port

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback "
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

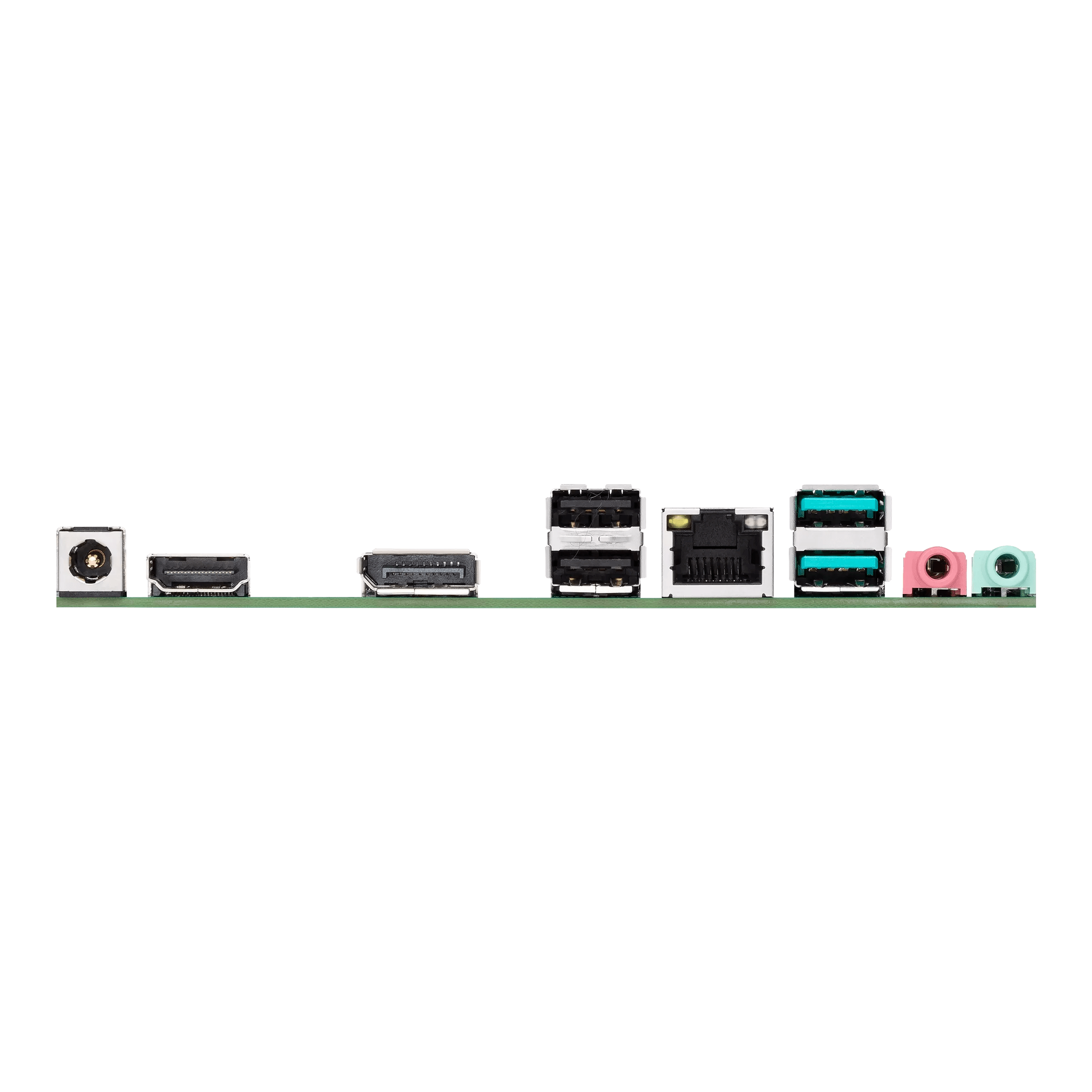

Back Panel I/O Ports

2 x USB 3.2 Gen 2 ports
2 x USB 2.0 ports
1 x DisplayPort
1 x HDMI port
1 x Realtek 1Gb Ethernet port
2 x Audio jacks
1 x DC Power Connector (Support 19V)

Internal I/O Connectors

Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 2-pin +19V Power connector
1 x SATA power connector
Storage related
1 x M.2 slot (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header supports additional 4 USB 2.0 ports
1 x USB 2.0 header supports additional 1 USB 2.0 ports
AIO System related
1 x 2-pin internal DC power connector
1 x Stereo speaker connector
1 x DMIC header
Flat panel display related
1 x Backlight inverter voltage selection header
1 x FPD brightness header
1 x Panel voltage selection header
1 x Panel off header
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
1 x COM Port header
1 x COM debug header
1 x Front Panel Audio header (AAFP)
1 x LVDS connector
1 x M.2 slot (Key E)
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
1 x SATA power cable
Miscellaneous
2 x I/O Shields
Installation Media
1 x Support DVD
Documentation
1 x ACC Express Activation Key Card
1 x User guide

Operating System

Windows 11 64-bit, Windows 10 64-bit

Form Factor

Thin Mini-ITX Form Factor
6.7”x 6.7” (17.0cm x 17.0cm)

Parametry

3.5mm JackAno
Bezdrátové připojeníbez
COM portAno
Další rozhraníM.2
DisplayPort1
DVI0
Formát základní deskyMini-ITX
HDMI1
ChipsetIntel H610
LAN1Gbit/s
LPT portNe
M.2 slot1
Počet paměťových slotů2
Podpora RAIDBez RAID podpory
Pro procesoryIntel
SATA 32
Socket (patice)Socket 1700
Technologie paměti RAMDDR4
TPMAno
USB 33
VGA0
