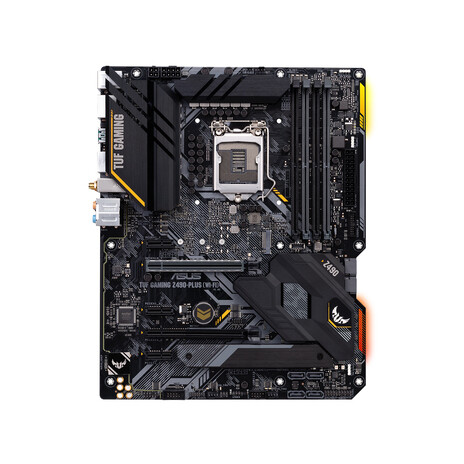

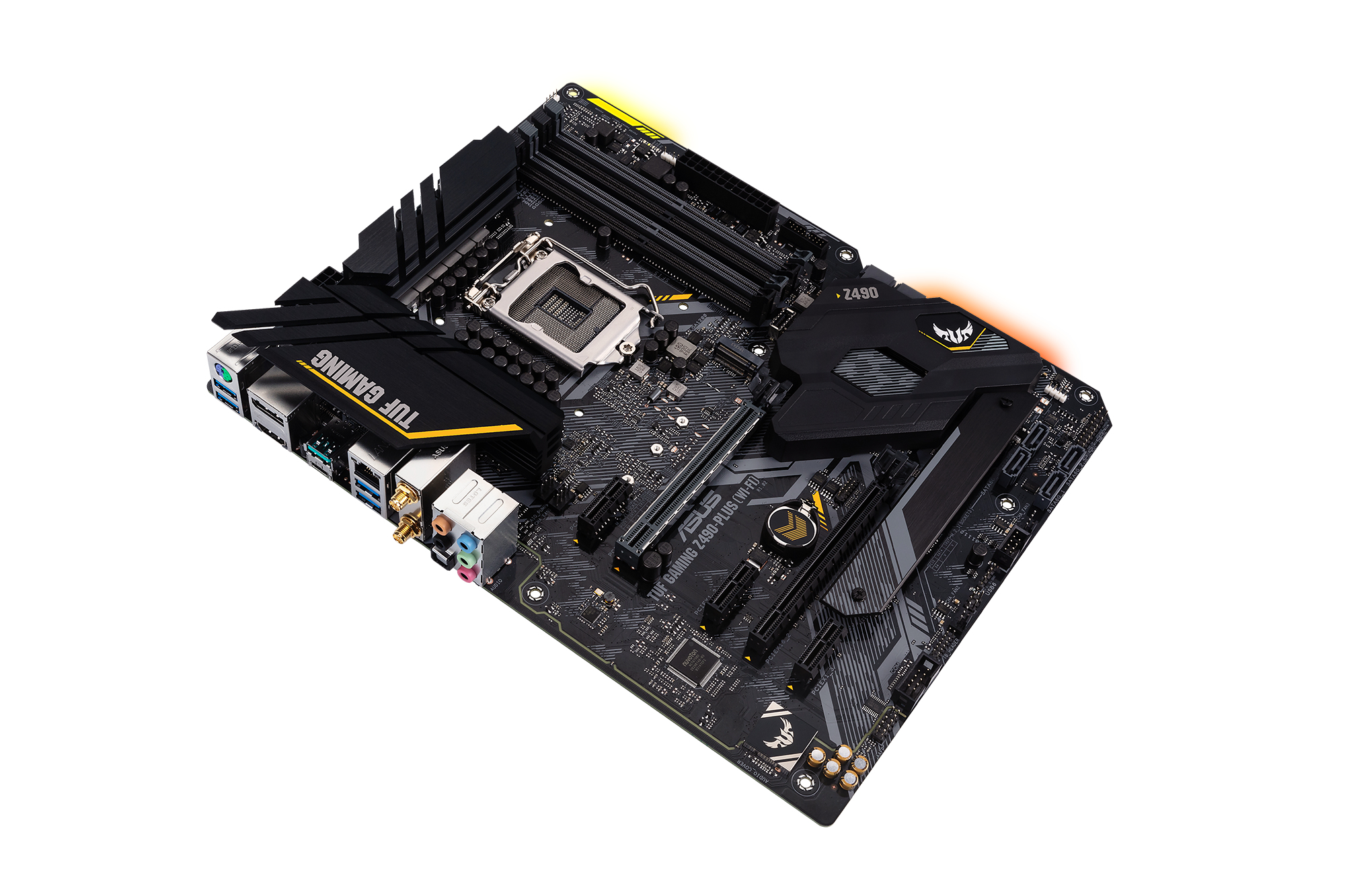

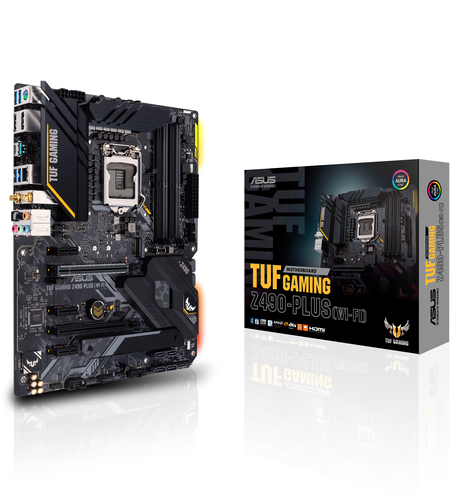

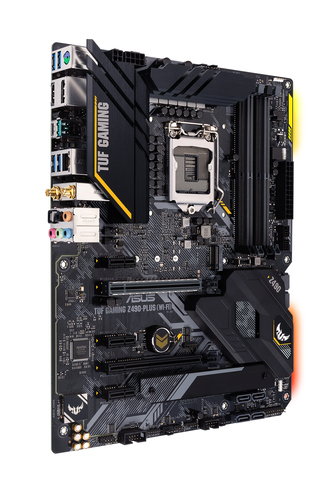

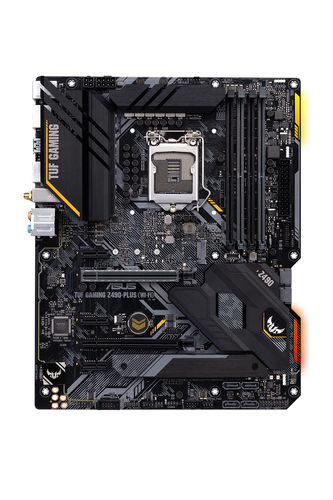

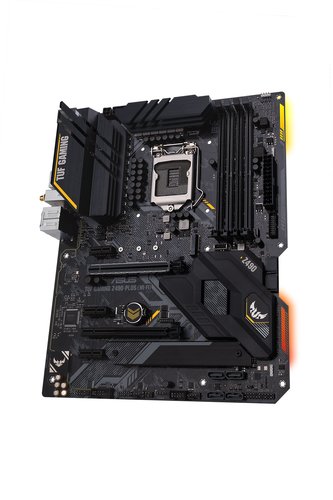

ASUS MB Sc LGA1200 TUF GAMING Z490-PLUS (WI-FI), Intel Z490, 4xDDR4, 1xDP, 1xHDMI, WI-FI
TUF GAMING Z490-PLUS (WI-FI)
Intel Z490 (LGA 1200) ATX gaming motherboard with M.2, 14 DrMOS power stages, Intel WiFi 6, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 ports, Thunderbolt™ 3 support, and Aura Sync RGB lighting
Intel LGA 1200 socket: Ready for 10th Gen Intel Core™ processors
Enhanced power solution: 12+2 DrMOS power stages, 6-layer PCB, ProCool sockets…
Kategorie: Základní desky ASUS
Kód: 2776074PN: 90MB1330-M0EAY0Výrobce: ASUSZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
Aktuálně není v nabídce
Popis produktu
TUF GAMING Z490-PLUS (WI-FI)
Intel Z490 (LGA 1200) ATX gaming motherboard with M.2, 14 DrMOS power stages, Intel WiFi 6, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 ports, Thunderbolt™ 3 support, and Aura Sync RGB lighting
- Intel LGA 1200 socket: Ready for 10th Gen Intel Core™ processors
- Enhanced power solution: 12+2 DrMOS power stages, 6-layer PCB, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive cooling: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
- Next-gen connectivity: Front header for USB 3.2 Gen 2 Type-C and Thunderbolt 3™ support
- Made for online gaming: Intel WiFi 6, Intel Ethernet Connection I219-V, TUF LANGuard and TurboLAN technology
- Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
- Aura Sync RGB: Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips
TECHNICAL SPECIFICATIONS
| CPU | Build in Intel Socket 1200 for 10th Gen
Intel Core™, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list **Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Build in Intel Z490 |
| Memory | 4 x DIMM, Max. 128GB, DDR4
4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133
MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel Core™i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Graphic | Integrated Graphics Processor 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b *Graphics specifications may vary between CPU types. **Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. |
| Multi-GPU Support | Supports AMD 2-Way CrossFireX Technology |
| Expansion Slots | Intel 10th Gen
Processors 1 x PCIe 3.0 x16 (x16 mode) Intel Z490 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe x1 |
| Storage | Total supports 2 x M.2 slots
and 6 x SATA 6Gb/s ports Intel Z490 Chipset: 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane™ Memory Ready |
| LAN | Intel I219-V 1Gb Ethernet TUF LANGuard |
| Wireless Data Network | Intel Wi-Fi 6 AX201 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports CNVI interface |
| Bluetooth | Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later. |
| Audio | Realtek ALC S1200A 7.1 Surround Sound
High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature: - Optical S/PDIF out port(s) at back panel - Audio cover - Audio Shielding - Dedicated audio PCB layers - Premium Japanese audio capacitors * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
| USB Ports | Rear USB Port ( Total
6 ) 2 x USB 3.2 Gen 2 port(s)(1 + Type-A +1 + USB Type-C) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) Front USB Port ( Total 6 ) 1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C) 1 x USB 3.2 Gen 1 port(s)(2 x Type-A) 1 x USB 2.0 port(s)(2 x Type-A) 1 x USB 2.0 port(s)(1 x Type-A) |
| Software Features | ASUS Exclusive Software Armoury Crate - Aura Sync AI Suite 3: - Performance And Power Saving Utility Turbo V Evo EPU Digi+ VRM Fan Xpert 4 System information - EZ update AI Charger ASUS Turbo LAN DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial for 90 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| ASUS Special Features | ASUS TUF PROTECTION - ASUS DIGI+ VRM (- Digital power design with Dr. MOS) - ASUS Enhanced DRAM Overcurrent Protection - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Stylish heatsink ASUS EZ DIY - Procool AURA Sync - Standard RGB headers - Addressable Gen 2 RGB header |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo
port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C) 4 x USB 3.2 Gen 1 (blue) Type-A 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x ASUS Wi-Fi Module |
| Internal I/O Ports | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 1 USB 2.0 port(s) 2 x M.2 Socket 3 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) |

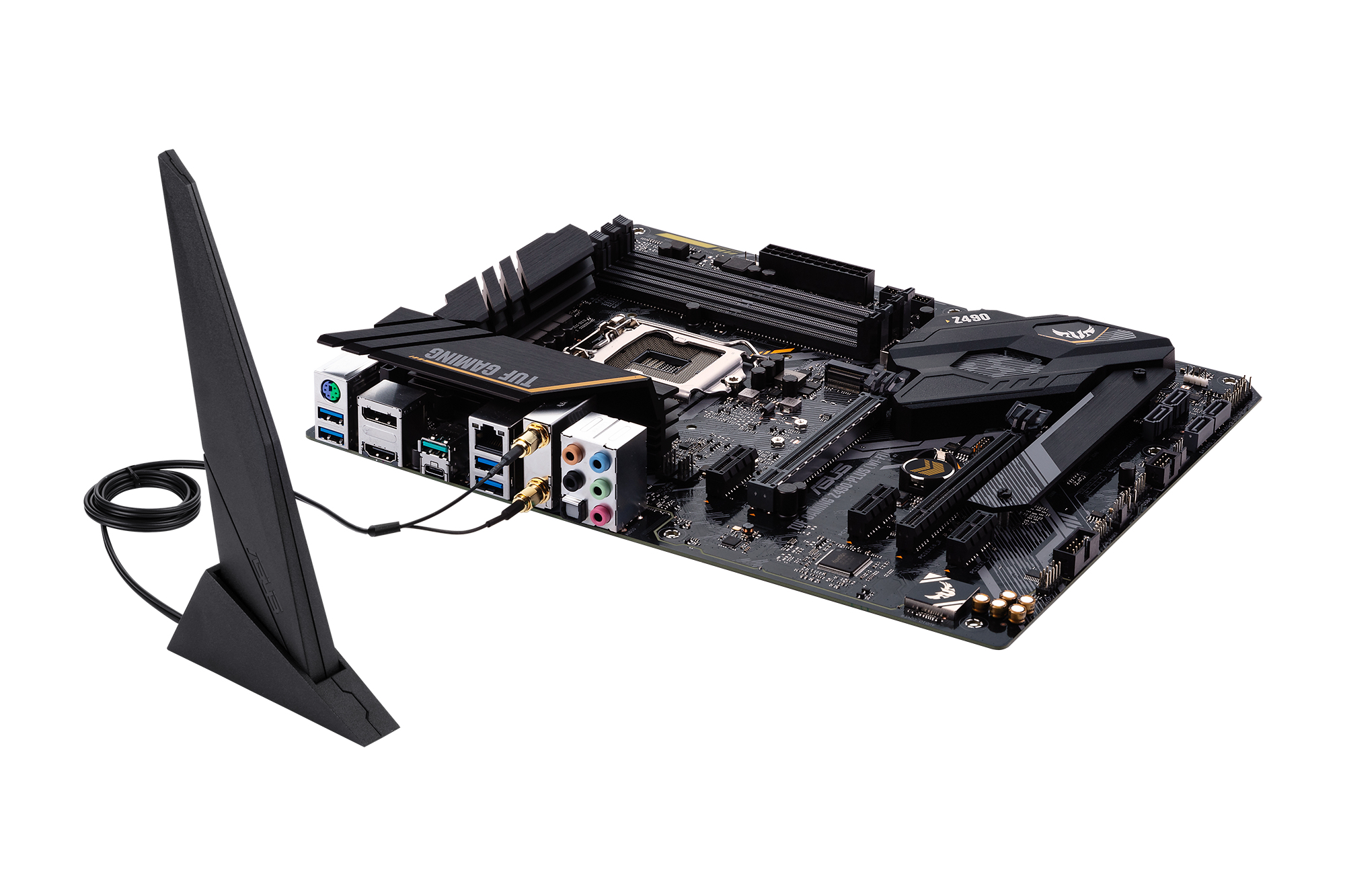

| Accessories | User's manual 1 x ASUS Fan Holder I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x TUF GAMING Sticker 1 x TUF Certification card(s) 1 x Wi-Fi moving antenna |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows 10 64-bit |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Note | *1 M.2_1 shares bandwidth with
SATA6G_2. When M.2_1 runs SATA mode, SATA6G_2 will be disabled. *2 M.2_2 shares bandwidth with SATA6G_56. When M.2_2 is occupied, SATA6G_56 will be disabled. |
Parametry
| BlueTooth | Ano |
|---|---|
| COM port (interní) | Ano |
| DisplayPort / miniDisplayPort | Ano |
| DVI | Ne |
| Grafická karta | Ano (v závislosti na CPU) |
| HDMI | Ano |
| Chipset | Z490 |
| IEEE 1394 | Ne |
| Integrované CPU na MB | Ne |
| LPT port (interní) | Ne |
| Max. velikost op. paměti (GB) | 128 |
| Maximální frekvence pamětí | 4800 |
| Patice | LGA 1200 |
| Počet konektorů SATA 6Gb/s | 6 |
| Počet LAN výstupů | 1x LAN kontektor |
| Počet paměťových slotů | 4 |
| Počet pinů USB 2.0 (interní) | 2 |
| Počet pinů USB 3.x (interní) | 1 |
| Počet slotů M.2 | 2 |
| Počet slotů PCIe x1 | 3 |
| Počet slotů PCIe x16 | 2 |
| Počet USB 3.x (externí) | 5 |
| Podpora pro paměti typu | DDR4 |
| Podpora pro paměti typu ECC | Ne |
| Podpora vPro | Ne |
| RAID řadič | Ano |
| ThunderBolt (interní) | Ano |
| TPM Header | Ne |
| Typ síťové karty | Intel |
| Velikost základní desky | ATX |
| VGA | Ne |
| Výrobce chipsetu | Intel |
| WiFi | Ano |
| XMP | Ano |
