  Počítače a kancelář  Počítačové komponenty  Základní desky  ASUS MB Sc AM4 TUF GAMING B450-PLUS II, AMD B450, 4xDDR4, 1xDP, 1xHDMI

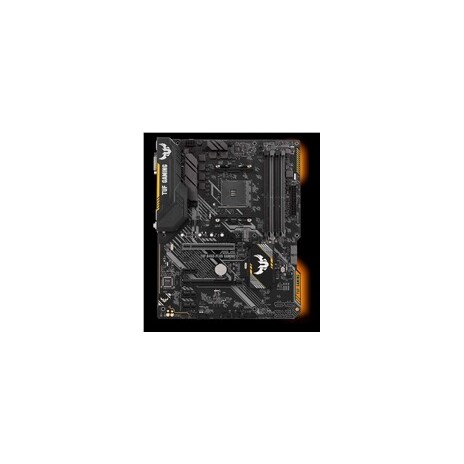

ASUS MB Sc AM4 TUF GAMING B450-PLUS II, AMD B450, 4xDDR4, 1xDP, 1xHDMI
ASUS MB Sc AM4 TUF GAMING B450-PLUS II, AMD B450, 4xDDR4, 1xDP, 1xHDMIASUS MB Sc AM4 TUF GAMING B450-PLUS II, AMD B450, 4xDDR4, 1xDP, 1xHDMIASUS MB Sc AM4 TUF GAMING B450-PLUS II, AMD B450, 4xDDR4, 1xDP, 1xHDMIASUS MB Sc AM4 TUF GAMING B450-PLUS II, AMD B450, 4xDDR4, 1xDP, 1xHDMI
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Ochota, vstřícnost, odborná zdatnost

Ověřený zákazník

ASUS MB Sc AM4 TUF GAMING B450-PLUS II, AMD B450, 4xDDR4, 1xDP, 1xHDMI

TUF B450-PLUS GAMING ASUS TUF B450-Plus Gaming AMD Ryzen 2 AM4 DDR4 HDMI DVI M.2 ATX Motherboard 2nd generation AMD Ryzen™ AM4 processors maximize connectivity and speed with NVMe M.2, USB 3.1 Gen2 and gigabit LAN Military-grade TUF components like TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs maximize durability TUF Protection with SafeSlot and Overvoltage…
Kód: 2918087PN: 90MB1650-M0EAY0Výrobce: ASUSZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
3 199   včetně DPH
Cena bez DPH: 2 644 Kč
Nákup po telefonu
+420 587 407 456
Skladem
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již zítra / ZDARMA!
Přepravní službou (ČR)7.12. / od 120 Kč
Na výdejním místě (ČR)7.12. / od 120 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.

Popis produktu

TUF B450-PLUS GAMING

ASUS TUF B450-Plus Gaming AMD Ryzen 2 AM4 DDR4 HDMI DVI M.2 ATX Motherboard

  • 2nd generation AMD Ryzen™ AM4 processors maximize connectivity and speed with NVMe M.2, USB 3.1 Gen2 and gigabit LAN
  • Military-grade TUF components like TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs maximize durability
  • TUF Protection with SafeSlot and Overvoltage protection ensures component stability and dependability
  • Unmatched personalization with ASUS exclusive Aura Sync RGB lighting and additional RGB header
  • 3-Year Warranty for guaranteed reliability built on military-grade engineering



TECHNICAL SPECIFICATIONS

CPU AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors
Supports CPU up to 8 cores
* Refer to www.asus.com for CPU support list
Chipset AMD B450
Memory AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors
Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Multi-GPU Support Supports AMD CrossFireX™ Technology
Expansion Slots AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD Ryzen™ with Radeon™ Vega Graphics Processor
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD B450 chipset
1 x PCIe 2.0 x16 (max at x4 mode)
3 x PCIe 2.0 x1
Storage AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors:
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
2 x SATA 6Gb/s port(s)
AMD B450 chipset:
4 x SATA 6Gb/s port(s)
Support Raid 0, 1, 10
LAN Realtek RTL8111H
TUF LANGuard
Audio Realtek ALC887-VD2 8-Channel High Definition Audio CODEC *
Audio Feature:
- Exclusive DTS Custom for GAMING Headsets.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality.
USB Ports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation:
2 x USB 3.1 Gen 1 port(s) (2 at back panel, Type-A)
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation:
1 x USB 3.1 Gen 1 port(s) (1 at back panel, USB Type-CTM)
AMD B450 chipset:
2 x USB 3.1 Gen 2 port(s) (2 at back panel, Type-A)
AMD B450 chipset:
2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
AMD B450 chipset:
6 x USB 2.0 port(s) (2 at back panel, 4 at mid-board)
Special Features ASUS TUF PROTECTION
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
AURA:
- Aura Lighting Control
- Aura RGB Strip Headers
ASUS Exclusive Features:
- AI Suite 3
- Ai Charger
- PC Cleaner
ASUS Quiet Thermal Solution:
- Stylish Fanless Design Heat-sink solution & MOS Heatsink
- ASUS Fan Xpert 4 Core
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design:
- ASUS Q-Shield
- ASUS Q-Slot
- ASUS Q-DIMM
Overclocking Protection:
- ASUS C.P.R.(CPU Parameter Recall)
Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
1 x 5Gb/s port(s) USB Type-CTM
2 x USB 3.1 Gen 2 (teal blue)Type-A,
2 x USB 3.1 Gen 1 (blue) Type-A,
2 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports 1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header
Accessories User's manual
ASUS Q-Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x TUF GAMING Sticker
1 x TUF Certification card(s)
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WOL by PME, PXE
Operating System Windows 10 64-bit
Form Factor ATX Form Factor
12.0 x 9.6 inch (30.5 x 24.4 cm)
Note *Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

Parametry

FormátATX
ChipsetAMD
Integrovaná grafická kartaAno (CPU)
Integrovaná LAN karta1
PCI express 16x1
Podpora RAID1
Podpora RAID10
RozhraníHDMI
RozhraníUSB 2.0
RozhraníUSB 3.1
Rozhraní3.5mm Jack
RozhraníLAN
RozhraníDVI
RozhraníUSB Type-C
Socket (patice)Socket AM4
Technologie paměti RAMDDR4
