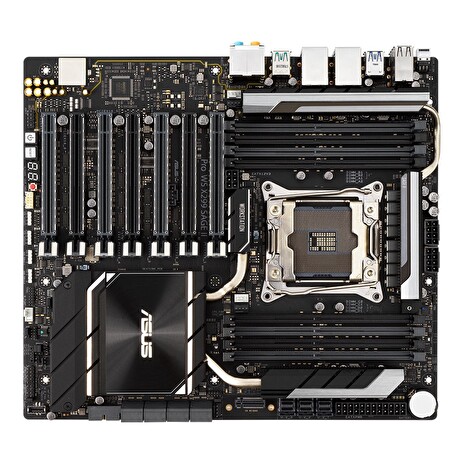

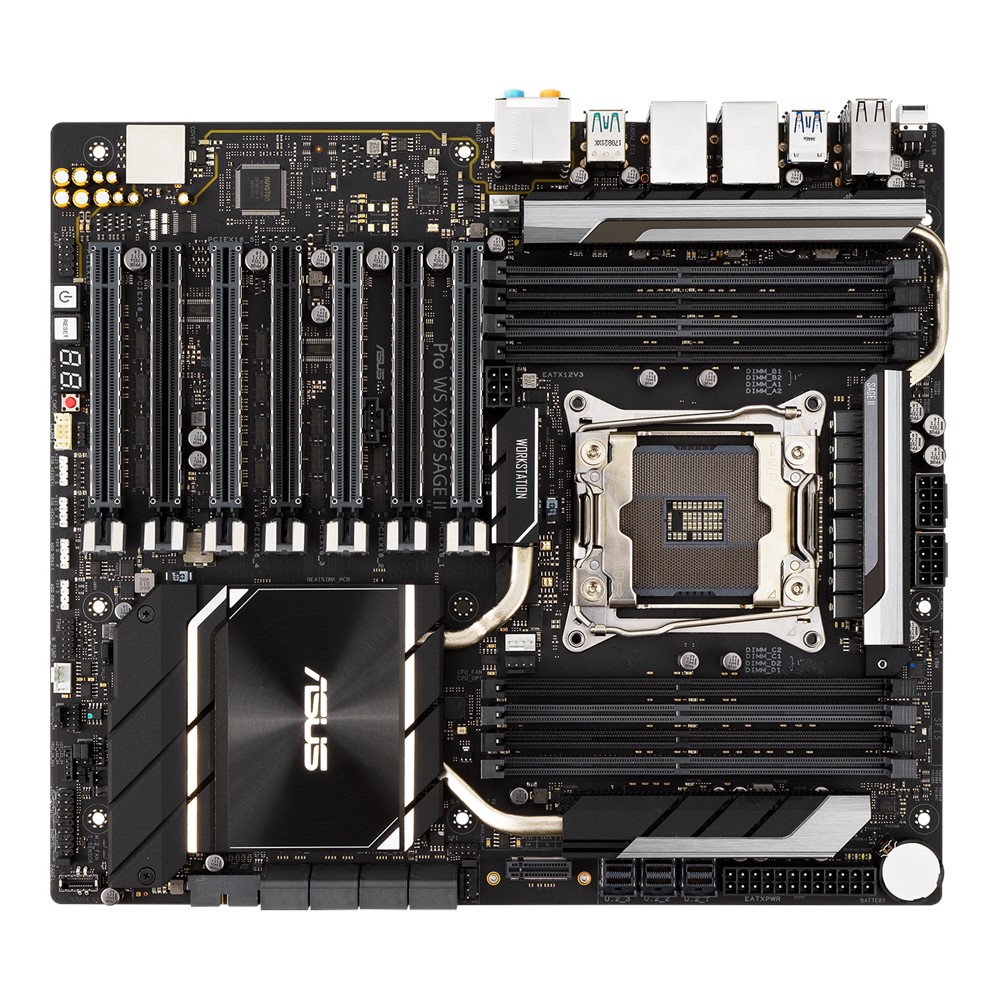

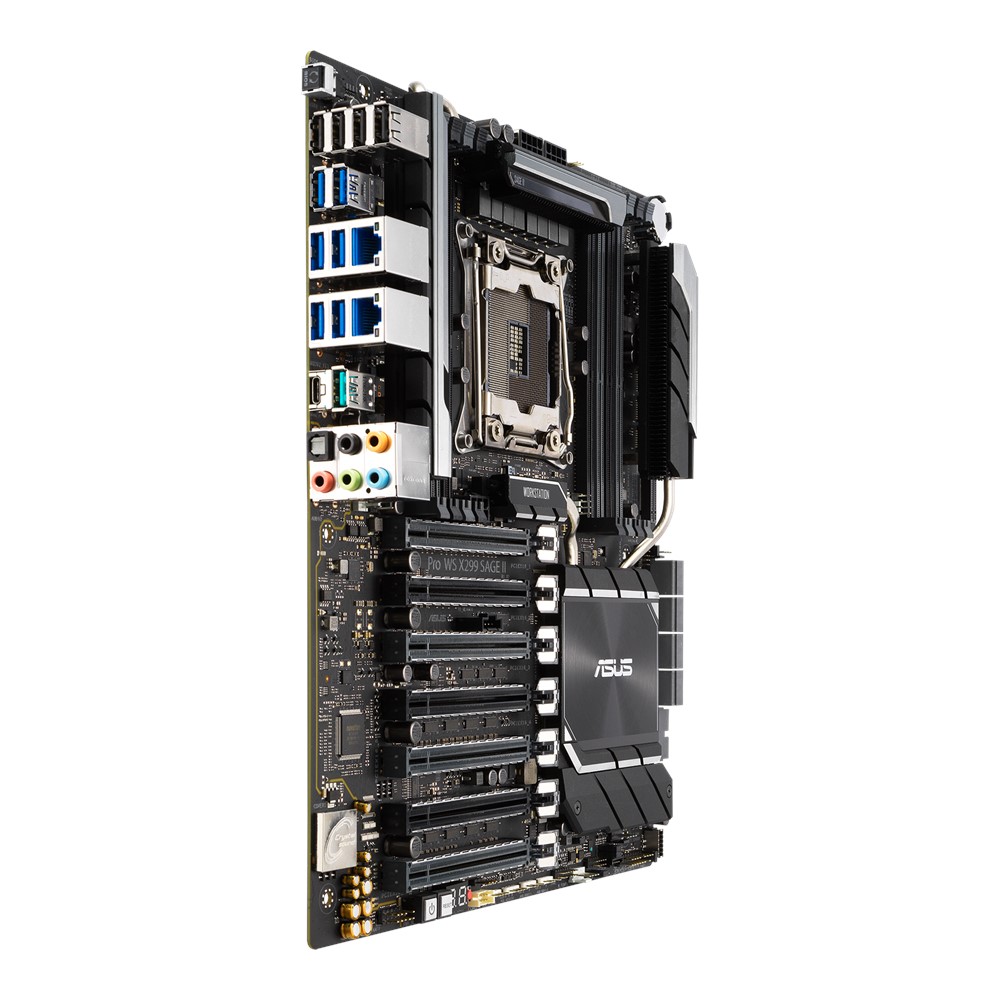

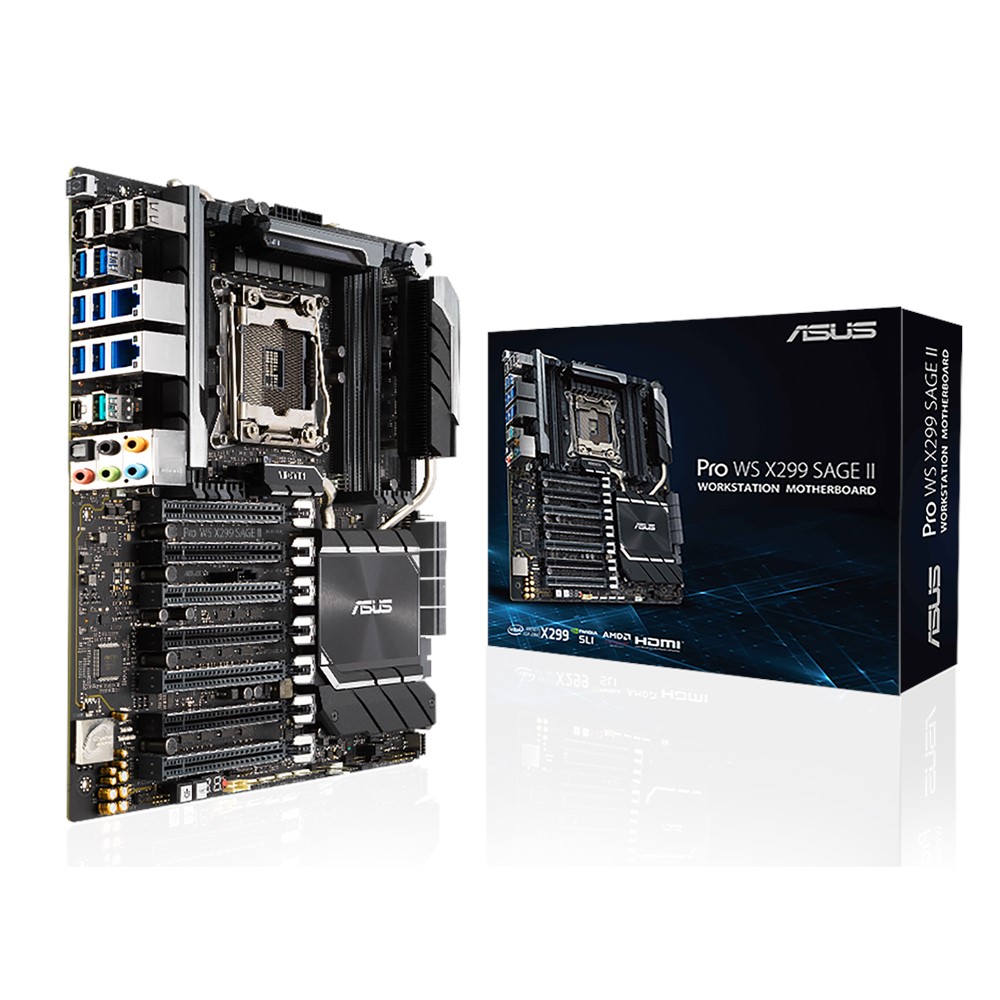

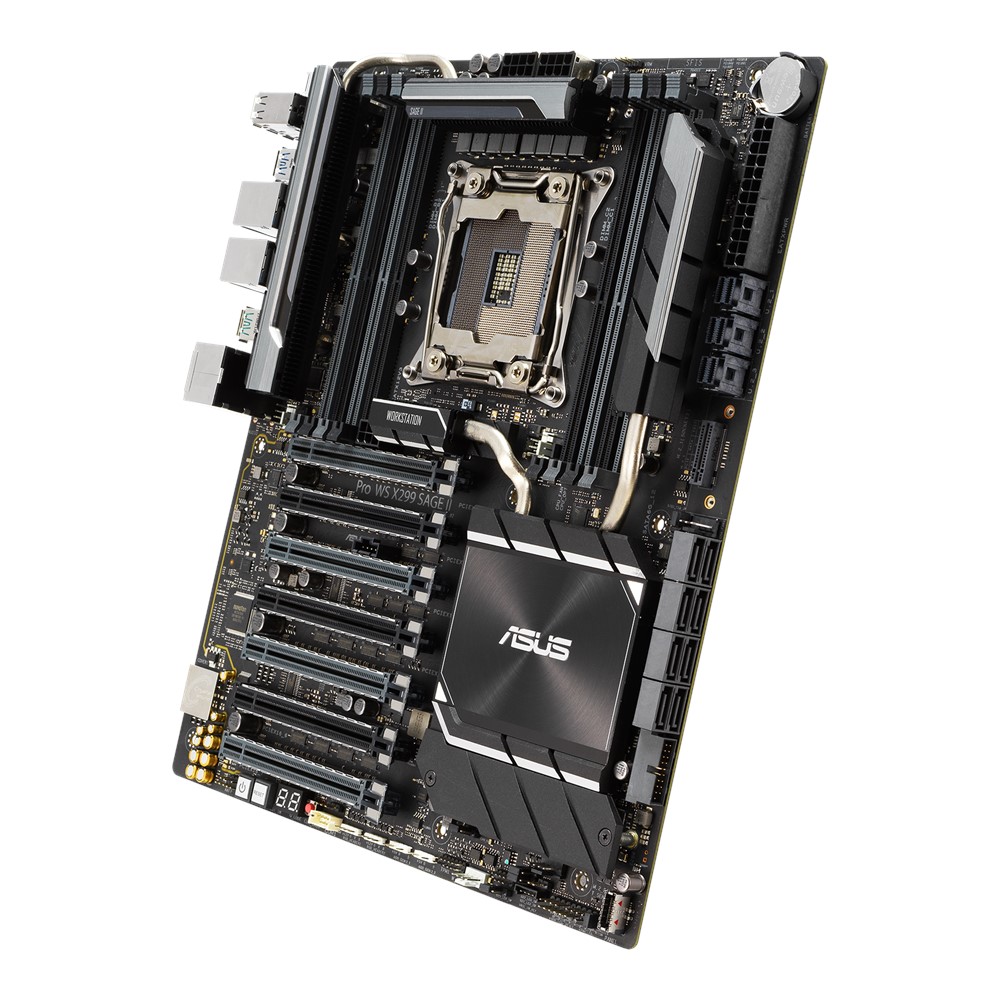

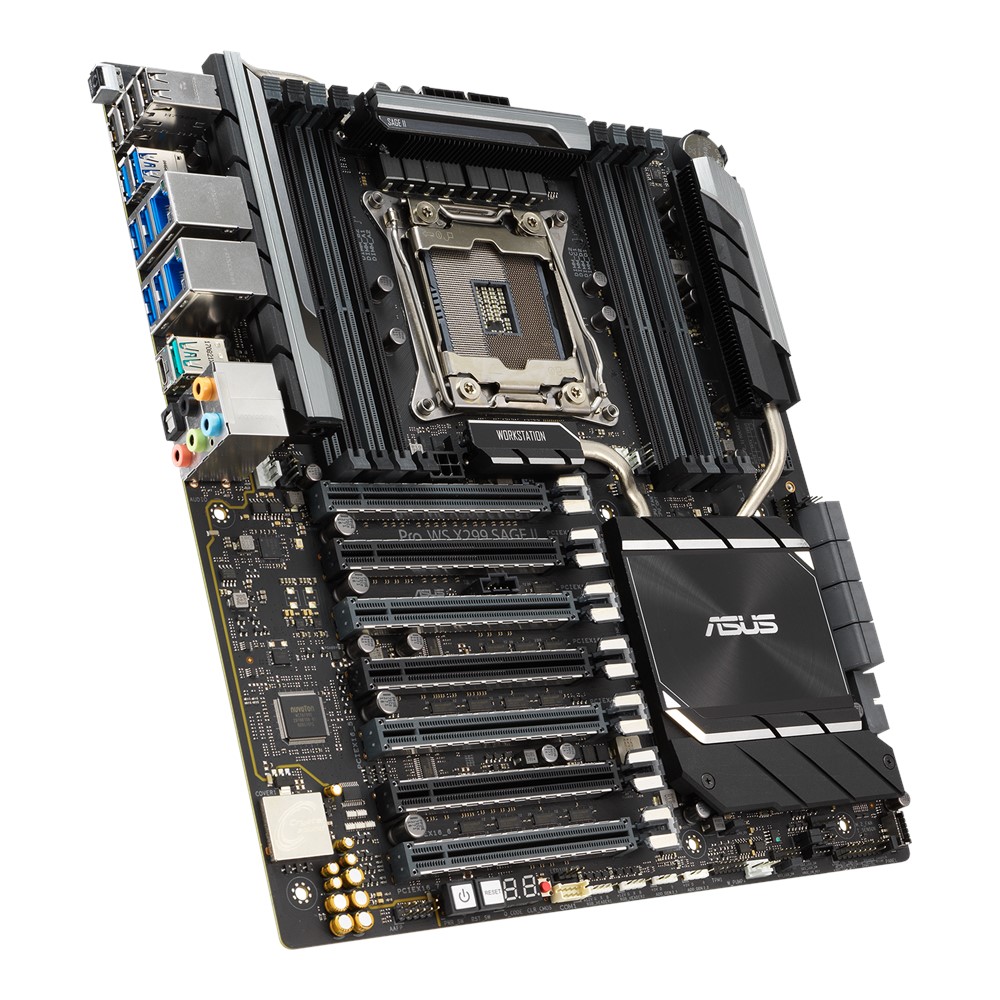

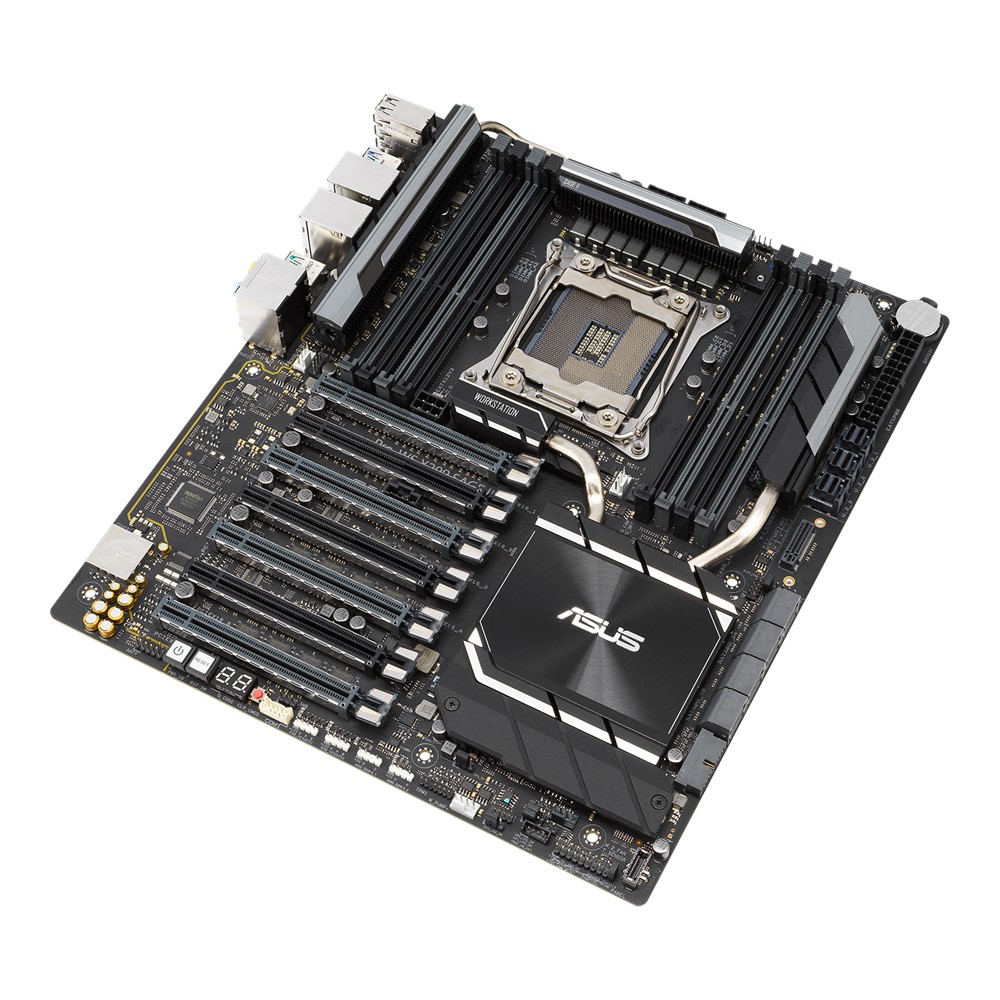

ASUS MB Sc 2066 WS X299 SAGE II, Intel X299, 8xDDR4, CEB
ASUS MB Sc 2066 WS X299 SAGE II, Intel X299, 8xDDR4, CEBASUS MB Sc 2066 WS X299 SAGE II, Intel X299, 8xDDR4, CEBASUS MB Sc 2066 WS X299 SAGE II, Intel X299, 8xDDR4, CEBASUS MB Sc 2066 WS X299 SAGE II, Intel X299, 8xDDR4, CEBASUS MB Sc 2066 WS X299 SAGE II, Intel X299, 8xDDR4, CEBASUS MB Sc 2066 WS X299 SAGE II, Intel X299, 8xDDR4, CEB
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Zboží přišlo bez problému,spokojenost

Ověřený zákazník

ASUS MB Sc 2066 WS X299 SAGE II, Intel X299, 8xDDR4, CEB

Pro WS X299 SAGE II Intel CEB motherboard LGA 2066 for Intel Core X-series processors, with AI Overclocking, dual Intel 2.5G Ethernet, 7 PCIe Gen 3 slots, DDR4 4266 MHz memory support, dual M.2, triple U.2, USB 3.2 Gen 2 Type-C and Aura Sync RGB lighting Intel LGA 2066 socket: Ready for the latest Intel Core™ X-series processors AI Overclocking: Quickly optimizes CPU…
Kód: 3338983PN: 90SW00U0-M0EAY0Výrobce: ASUSZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
Aktuálně není v nabídce

Popis produktu

Pro WS X299 SAGE II

Intel CEB motherboard LGA 2066 for Intel Core X-series processors, with AI Overclocking, dual Intel 2.5G Ethernet, 7 PCIe Gen 3 slots, DDR4 4266 MHz memory support, dual M.2, triple U.2, USB 3.2 Gen 2 Type-C and Aura Sync RGB lighting

  • Intel LGA 2066 socket: Ready for the latest Intel Core™ X-series processors
  • AI Overclocking: Quickly optimizes CPU performance by profiling the CPU and cooler, achieving results that are extremely close to manual tuning by experts
  • Dual Intel 2.5G LAN: Offers increased data throughput and improved efficiency, making it ideal for large file transfers and backup
  • Fits up to 4-way graphics cards: Includes 7 PCIe Gen 3 x16 slots and supports NVIDIA SLI and AMD CrossFire™
  • Ultra-efficient VRM heatsink: Metal-fin-array design maximizes surface area for heat dissipation to enable unthrottled performance
  • Next-gen connectivity: Next-gen transfer speeds with dual M.2, triple U.2 and USB 3.2 Gen 2 Type-A and Type-C™

CPU

Intel Socket 2066 Core™ X-Series Processors
Supports Intel Virtual RAID on CPU (VROC)
* Refer to www.asus.com for CPU support list
* The Intel Turbo Boost Technology 3.0 Support Depends on the CPU types.

Chipset

Intel X299

Memory

Intel Core™ X-series Processors (6-core above)
8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2933/2666/2400 MHz Non-ECC, Un-buffered Memory
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.

Multi-GPU Support

Supports NVIDIA 4-Way SLI Technology
Supports AMD 4-Way CrossFireX Technology

Expansion Slots

7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8) *1

Storage

Intel X299 Chipset :
1 x M.2_1 socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*2
1 x M.2_2 socket 3, with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
8 x SATA 6Gb/s port(s)
3 x U.2 connector*3
Support Raid 0, 1, 5, 10
Support Intel Rapid Storage Technology enterprise 5.1 for X-Series(6-core and above) CPU RAID
Supports Intel Smart Response Technology
Intel Rapid Storage Technology 15 support
Intel Optane™ Memory Ready
Intel Virtual RAID (VROC) support for CPU RAID

LAN

Intel I225-LM

Audio

Realtek S1200A 7.1-Channel High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports : Jack-detection, Multi-recording, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output (Line-out at rear) and 113 dB (Line-in)
Audio Feature :
- DTS Connect
- DTS Headphone:X
- DTS X:Ultra
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
Separate layer for left and right track, ensuring both sound deliver equal quality

USB Ports

Intel X299 Chipset :
8 x USB 3.2 Gen 1 port(s) (6 at back panel, , 2 at mid-board)
Intel X299 Chipset :
4 x USB 2.0 port(s) (4 at back panel, )
ASMedia USB 3.2 Gen 2 controller :
2 x USB 3.2 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM)
ASMedia USB 3.2 Gen 2 controller :
1 x USB 3.2 Gen 2 port(s) (1 at mid-board)

Special Features

OC Design - ASUS PRO Clock II Technology
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App
TPU

Fan Xpert4
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
- ASUS ESD Guards - Enhanced ESD protection
ASUS EPU :
- EPU
ASUS Digital Power Design :
- Industry leading Digital 8 Phase CPU Power Design
- Industry leading Digital 2 Phase DRAM Power Design
AURA :
- Aura RGB Strip Headers
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger+
- Crystal Sound 3
ASUS EZ DIY :
- ASUS CrashFree BIOS
- ASUS EZ Flash
- ASUS USB BIOS FlashBack™
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-Cable
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector
M.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)
Thunderbolt 3 support

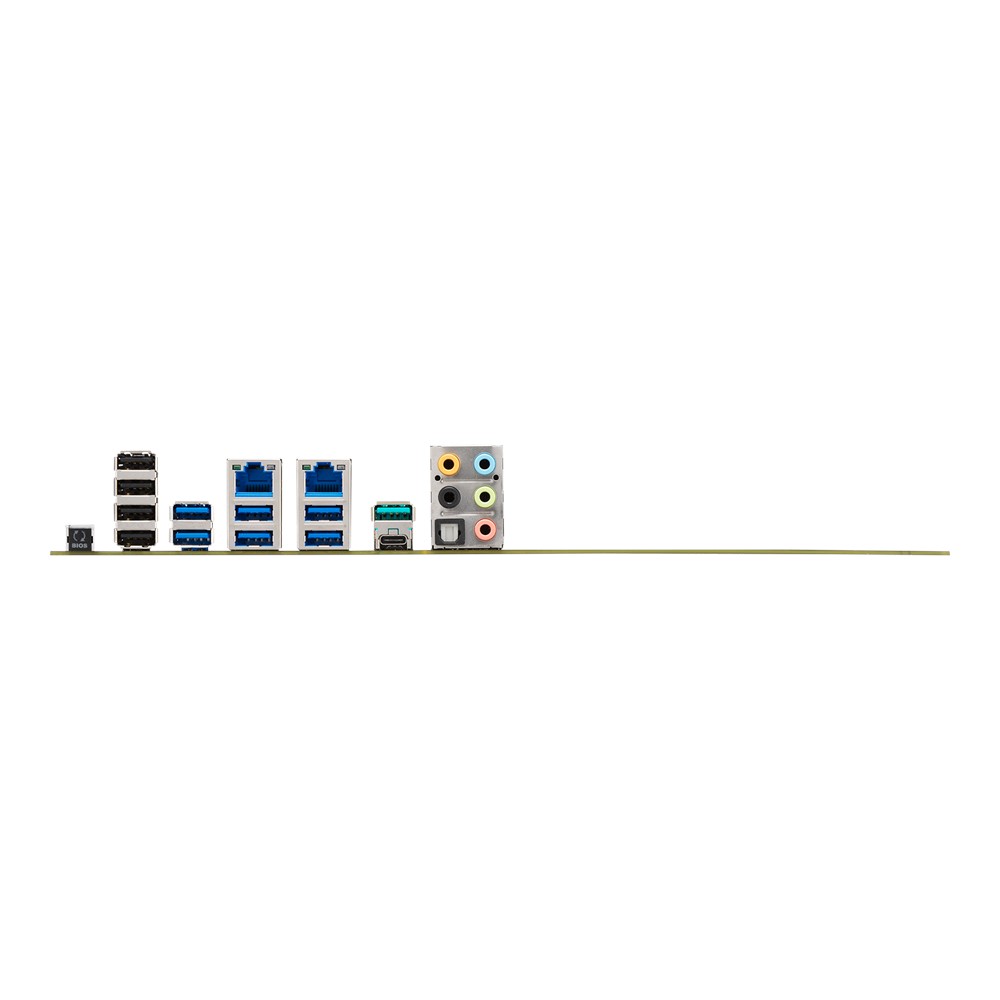

Back I/O Ports

2 x LAN (RJ45) port(s)
1 x USB 3.2 Gen 2(teal blue)Type-A
1 x USB 3.2 Gen 2 (black)USB Type-CTM,
6 x USB 3.2 Gen 1 (blue)
4 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)
1 x Optical S/PDIF out
1 x USB BIOS FlashBack™ Button(s)
1 x 8-channel Audio I/O

Internal I/O Ports

2 x CPU Fan connector(s)
2 x Chassis Fan connector(s)
2 x Addressable RGB header
1 x AAFP connector
2 x Aura RGB Strip Headers
1 x M.2 Socket 3 with M key, type 2242/2260 storage devices support (both SATA & PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
1 x TPM header
8 x SATA 6Gb/s connector(s)
1 x VROC_HW_Key
1 x AIO_PUMP connector
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
2 x 8-pin ATX 12V Power connector(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS button(s)
3 x U.2 connector
1 x System panel connector
1 x COM port header
1 x W_Pump+ Header
1 x Thermal sensor connector
1 x CPU_OV jumper
1 x M.2 Fan Header
1x 6-pin ATX 12V Power connector
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
3 x U.2 LED switch header

Accessories

User´s manual
Addressable LED extension cable
1 x Vertical M.2 bracket set
I/O Shield
1 x COM port cable(s)
8 x SATA 6Gb/s cable(s)
1 x M.2 screws
1 x Supporting DVD
1 x MOS Cooling kit (fan bracket and 40mm x 40mm fan)
1 x 3-Way SLI bridge(s)
1 x 4-Way SLI bridge(s)
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-connector(s) (0 in 1)

Operating System

Windows 10 64-bit
Please find the latest OS support from https://www.asus.com/event/Server/OS_support_list/OS.html

Form Factor

CEB Form Factor
12 inch x 10.5 inch ( 30.5 cm x 26.7 cm )

Weight

Color Box(3-in-1)
Net Weight: 5.55kg
Gross Weight: 8.06kg

Bulk Pack(5-in-1)
Net Weight: 6.99kg
Gross Weight: 9.37kg

Environment

Operation temperature: 10? ~ 35?
Non operation temperature: -40? ~ 70?
Non operation humidity: 20% ~ 90% ( Non condensing)

Note

*Intel VROC is supported via RSTe, and Intel VROC_HW_key. VROC_HW_Key is purchased separately. NVMe RAID type and function will depend on the Intel VROC_HW_key installed.

*1 Please refer to the block diagrams in the Appendix for more details in the manual.
*2 M.2 PCIE RAID support,M.2_1 socket shares bandwidth with SATA6G_1 port. When M.2_1 socket runs in
SATA mode, SATA6G_1 port will be disabled.
*3 The U.2 connectors are only supported on 48/44-Lane CPUs

Parametry

3.5mm JackAno
Bezdrátové připojeníbez
COM portAno
Další rozhraníS/PDIF
DisplayPort0
DVI0
Formát základní deskyCEB
HDMI0
ChipsetIntel
Integrovaná grafická kartaNe
Integrovaná LAN karta2
LAN1Gbit/s
Led HeaderAno
LPT portNe
M.2 slot2
PCI0
PCI Express x10
PCI Express x167
Počet paměťových slotů8
Podpora RAID1
Podpora RAID5
Podpora RAID10
Pro procesoryIntel
SATA 38
Socket (patice)Socket 2066
Technologie paměti RAMDDR4
TPMAno
USB 24
USB C1
VGA0
