ASRock Rack X570D4U-2L2T AM4, 4x DDR4 ECC, 8x SATA, 2x M.2(22110/22080), 3x PCIe, 2x 1Gb + 2x 10Gb LAN, IPMI

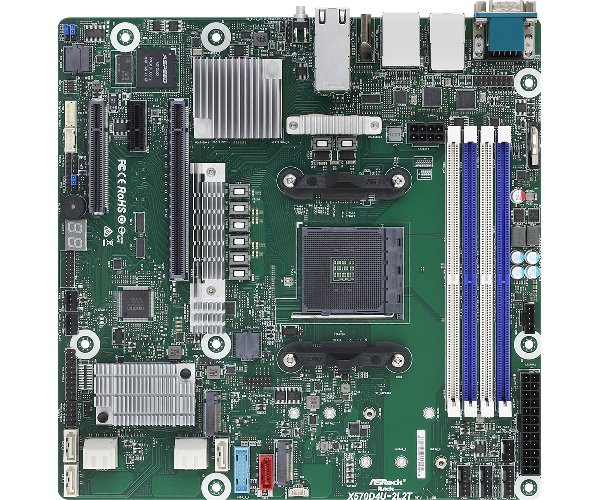

Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Ochota, vstřícnost, zájem vyhovět ☺

Ověřený zákazník

ASRock Rack X570D4U-2L2T AM4, 4x DDR4 ECC, 8x SATA, 2x M.2(22110/22080), 3x PCIe, 2x 1Gb + 2x 10Gb LAN, IPMI

X570D4U-2L2T/BCM     Micro-ATX (9.6"x 9.6") Supports AMD Ryzen™ 5000 Series Desktop Processors 4 DIMM slots (2DPC), supports DDR4 ECC/non-ECC UDIMM 1 PCIe4.0 x16, 1 PCIe4.0 x8, 1 PCIe4.0 x1 Supports 2 M.2 (PCIe4.0 x4 or SATA 6Gb/s) 8 SATA 6Gb/s 2 RJ45 (10GbE) by Broadcom BCM57416 2 RJ45 (1GbE) by Intel®  i210 HDMI Remote management…
Kód: 3641410PN: X570D4U-2L2T/BCMVýrobce: ASRockZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
Aktuálně není v nabídce

Popis produktu

X570D4U-2L2T/BCM



  1. Micro-ATX (9.6"x 9.6")
  2. Supports AMD Ryzen™ 5000 Series Desktop Processors
  3. 4 DIMM slots (2DPC), supports DDR4 ECC/non-ECC UDIMM
  4. 1 PCIe4.0 x16, 1 PCIe4.0 x8, 1 PCIe4.0 x1
  5. Supports 2 M.2 (PCIe4.0 x4 or SATA 6Gb/s)
  6. 8 SATA 6Gb/s
  7. 2 RJ45 (10GbE) by Broadcom BCM57416
  8. 2 RJ45 (1GbE) by Intel® i210
  9. HDMI
  10. Remote management (IPMI)



Specifications

 Physical Status
Form Factor Micro-ATX
Dimensions 9.6"x9.6" (244mmx 244mm)
 Processor System
CPU Supports:
AMD Ryzen™ 5000, 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics
AMD Ryzen™ 5000 and 3000 Series Desktop Processors
AMD Ryzen™ PRO 5000, 4000 and 3000 Series Desktop Processors
Socket Single Socket AM4 (PGA1331)
Thermal Design Power 105W
Chipset AMD X570
 System Memory
Supported DIMM Quantity 4 DIMM slots (2DPC)
Supported Type Supports DDR4 288-pin ECC*/non-ECC UDIMM
*For AMD Ryzen Desktop Processors with Radeon Graphics, ECC support is only with Processors with PRO technologies.
Max. Capacity per DIMM up to 32GB
Max. DIMM Frequency up to 3200 MHz*
* AMD Ryzen™ 3000 G-Series Desktop Processors with Radeon™ Graphics support up to 2666 MHz
Voltage 1.2V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 SLOT6: PCIe x16 (PCIe 4.0 x16)* [CPU], auto switch to x8 when SLOT4 is occupied
*Supports PCIe3.0 x8 when using AMD Ryzen™ 3000 G-Series Desktop Processors with Radeon™ Graphics
*Supports PCIe3.0 x16 when using AMD Ryzen™ 5000, 4000 G-Series Desktop Processors with Radeon™ Graphics
PCIe x 8 SLOT4: Open-end PCIe x8 (PCIe 4.0 x8)* [CPU]
*Disabled when using AMD Ryzen™ 3000 G-Series Desktop Processors with Radeon™ Graphics
*Supports PCIe3.0 x8 when using AMD Ryzen™ 5000, 4000 G-Series Desktop Processors with Radeon™ Graphics
PCIe x 1 SLOT5: PCIe4.0* x1 [FCH] *Supports PCIe3.0 when using AMD Ryzen™ 5000, 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics
 Other PCIe Expansion Connectors
M.2 slot 1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 22110/2280/2260/2242 [CPU]
1 M-key (PCIe4.0* x4 or SATA 6Gb/s); Form factor: 2280/2260/2242 [FCH]
*Supports PCIe3.0 when using AMD Ryzen™ 5000, 4000 and 3000 G-Series Desktop Processors with Radeon™ Graphics
 SATA/SAS Storage
PCH Built-in Storage AMD X570:
8 SATA 7-pin connectors, including 1 support SATA DOM
 Ethernet
Additional GbE Controller 2 RJ45 (10GbE) by Broadcom BCM57416
2 RJ45 (1GbE) by Intel® i210
 Server Management
BMC Controller ASPEED AST2500 : IPMI (Intelligent Platform Management Interface) 2.0
IPMI Dedicated GLAN 1 x Realtek RTL8211E for dedicated management GLAN
 Graphics
Controller ASPEED AST2500:
1 DB15, 1 (15-pin) header
AMD Ryzen™ Processors with Radeon™ Graphics:
1 HDMI
 Rear I/O
UID Button/LED 1 UID button w/ LED
VGA Port 1 DB15 (VGA), 1 HDMI
Serial Port 1 DB9 (COM)
USB 3.2 Gen2 Port 2 Type-A (USB3.2 Gen2)
RJ45 2 RJ45 (10GbE), 2 RJ45(1GbE), 1 dedicated IPMI
 Internal Connector/Headers
Power Connector 1 (24-pin, ATX main power), 1 (8-pin, ATX 12V)
Auxiliary Panel Header 1 (18-pin): chassis intrusion, location button & LED, front LAN LED, system fault, and BMC alert
System Panel 1 (9-pin): RST, PWRBTN, HDDLED, PWRLED
VGA header 1
Speaker Header 1
Buzzer 1
Fan Header 3 (6-pin), 3 (4-pin)
Thermal Sensor Header 1
TPM Header 1 (17-pin, LPC), 1 (13-pin, SPI)
SMBus header 1
PMBus header 1
IPMB Header 1
Clear CMOS 1 (contact pads)
Front Lan LED Connector 1
USB 3.2 (Gen1) Header 1 (19-pin, 2 USB3.2 Gen1)
 LED Indicators
Standby PWR LED 5vsb 1 (5VSB)
80 Debug Port LED 1
Fan Fail LED 6
BMC heartbeat LED 1
 System BIOS
BIOS Type 32MB AMI UEFI Legal BIOS
BIOS Features Plug and Play, ACPI 6.2 compliance wake up events, SMBIOS 3.30, ASRock Rack instant flash
 Hardware Monitor
Temperature CPU, X570, TR1, DDR, MB, Card Side, LAN Temperature sensing
Fan Fan Tachomete
Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage 3VSB, 5VSB, VCPU, VSOC, VCCM, APU VDDP, PM VDD CLDO, PM VDDCR S5, PM VDDCR, BAT, 3V, 5V, 12V, BCM_VDD1P8, BCM_V10PHYDIG
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
