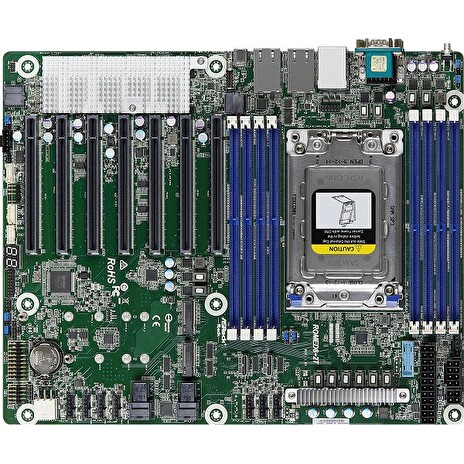

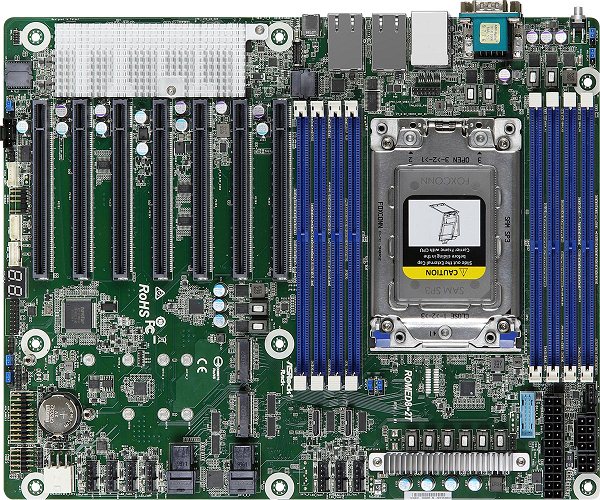

| Physical Status | |
| Form Factor | ATX |
| Dimensions | 12'' x 9.6'' (305 mm x 244 mm) |
| Processor System | |
| CPU | Supports AMD EPYC™ 7003 (with AMD 3D V-Cache™
Technology*)/7002 Series
Processors *A BIOS update is required to support AMD EPYC™ 7003 series processors with AMD 3D V-Cache™ Technology |
| Socket | Single Socket SP3 (LGA4094) |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 8 DIMM slots (1DPC) |
| Supported Type | Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, NVDIMM-N |
| Max. Capacity per DIMM | RDIMM: up to 64GB LRDIMM: up to 128GB RDIMM/LRDIMM-3DS: up to 256GB NVDIMM-N: up to 32GB |
| Max. DIMM Frequency | RDIMM/ LRDIMM/NVDIMM-N: max. 3200MHz |
| Voltage | 1.2V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | SLOT7: PCIe4.0 x16 SLOT6: PCIe4.0 x16 SLOT5: PCIe4.0 x16 SLOT4: PCIe4.0 x16 SLOT3: PCIe4.0 x16 SLOT2: PCIe4.0 x16 or PCIe4.0 x8 + 1 M.2+1 miniSASHD or no PCIe SLOT +2 OCuLink+1 M.2+1 miniSAS HD (by jumper) SLOT1: PCIe4.0 x16 |
| Other PCIe Expansion Connectors | |
| M.2 slot | 1 M-key* (PCIe4.0 x4 or
SATA 6Gb/s), supports 2280/2260/2242/2230 form factor 1 M-key* (PCIe4.0 x4 or SATA 6Gb/s), supports 22110/2280/2260/2242/2230 form factor *Share with SLOT2 by jumper |
| OCuLink | 2 OCuLink* (PCIe4.0 x4) *Shared with SLOT2 by jumper |
| SATA/SAS Storage | |
| PCH Built-in Storage | AMD EPYC 7003/7002 (10 SATA 6Gb/s): 2 Mini-SAS HD, 2 M.2 |
| Ethernet | |
| Additional GbE Controller | 1 Broadcom BCM57416: 2 RJ45 (10GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2500 |
| IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2500 |
| VRAM | DDR4 512MB |
| Rear I/O | |
| UID Button/LED | 1 |
| VGA Port | 1 DB15 |
| Serial Port | 1 DB9 |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (10GbE) 1 dedicated IPMI |
| Internal Connector/Headers | |
| Power Connector | 1 (24-pin, ATX main power), 1 (8-pin, ATX 12V), 1 (4-pin, ATX 12V) |
| Auxiliary Panel Header | 1 (includes chassis intrusion, location button & LED, and front LAN LED) |
| System Panel | 1 (rst, pwrbtn, hddled, pwrled) |
| Speaker Header | 1 (4-pin) |
| Fan Header | 7 (6-pin) [1CPU/4Front/2Rear] |
| Thermal Sensor Header | 2 |
| TPM Header | 1 (17-pin, LPC), 1 (13-pin, SPI) |
| SMBus header | 1 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| USB 3.2 (Gen1) Header | 1 (19-pin, 2 USB3.2 Gen1) |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED 5vsb | 1 (5VSB) |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 7 |
| BMC heartbeat LED | 1 |
| System BIOS | |
| BIOS Type | 32MB AMI UEFI Legal BIOS |
| BIOS Features | Plug and Play (PnP), ACPI 6.3 Compliance Wake Up Events, SMBIOS 3.3.0, ASRock Rack Instant Flash |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side, TR1, TR2 Temperature sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | Vsoc,Vcpu, VCCM, VPPM, 3V/5V/12V, +BAT, 3VSB, 5VSB |
| Supported OS | |
| OS | Microsoft® Windows: Server 2016 (64 bit) Server 2019 (64 bit) Linux: RedHat Enterprise Linux Server 8.0 (64 bit) / 7.6 (64 bit) CentOs 8.0 (64 bit) / 7.6 ( 64 bit) SUSE SLES 15.1 (64 bit) / 12.4 (64 bit) UBuntu 18.04.3 (64 bit) / 16.04.6 (64 bit) CITRIX Hypervisor 8.1 Virtual: VMWare® ESXi 6.5 u3 / 6.7 u3 vSphere 6.5 u3/ / 6.7 u3 * The SUSE Enterprise Linux Server 15.1 (64 bit) / 12.4 (64 bit) system only supports UEFI BOOT. * Please refer to our website for the latest OS support list. |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
| M.2 slot | 2 |
|---|---|
| Maximální frekvence paměti [MHz] | 3200 |
| Počet paměťových slotů | 8 |
| Podpora ECC | ANO |
| Typ paměti | DDR4 |
| Čipová sada | System on Chip |
| Patice (CPU Socket) | LGA 4094 socket |
| Počet CPU socketů | Single socket |
| Výrobce čipsetu | Intel |
| Formát | ATX |
| Určení | Servery |
