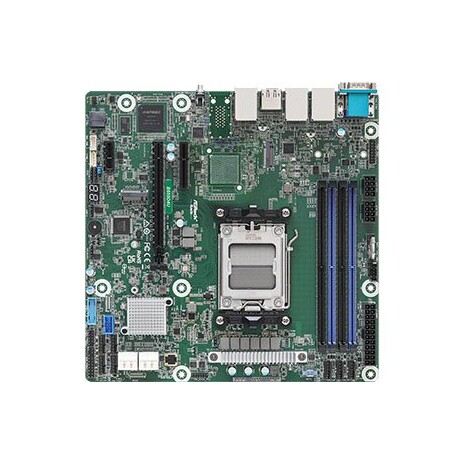

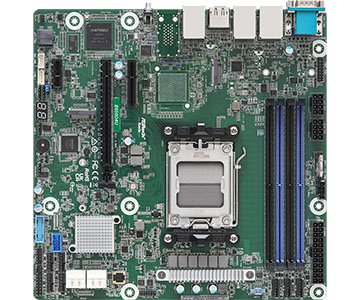

ASRock Rack B650D4U AM5, 4x DDR5 ECC, 4x SATA, 1x M.2(2280), 3x PCIe, 2x10Gb+2x 1Gb, IPMI
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Rychlé a bezproblémové doručení

Ověřený zákazník

ASRock Rack B650D4U AM5, 4x DDR5 ECC, 4x SATA, 1x M.2(2280), 3x PCIe, 2x10Gb+2x 1Gb, IPMI

Micro-ATX (9.6"x 9.6") Support AMD Ryzen 7000 series Processors 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1 Supports 1 M.2 (PCIe5.0 x4) 2 RJ45 (10GbE) by Broadcom BCM57416 2 RJ45 (1GbE) by Intel®  i210 4 SATA 6Gb/s 1 HDMI, 1 DisplayPort Remote management (IPMI) Specifications…
Kód: 3625183PN: B650D4U-2L2T/BCMVýrobce: ASRockZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
Aktuálně není v nabídce

Popis produktu

  1. Micro-ATX (9.6"x 9.6")
  2. Support AMD Ryzen 7000 series Processors
  3. 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  4. 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1
  5. Supports 1 M.2 (PCIe5.0 x4)
  6. 2 RJ45 (10GbE) by Broadcom BCM57416
  7. 2 RJ45 (1GbE) by Intel® i210
  8. 4 SATA 6Gb/s
  9. 1 HDMI, 1 DisplayPort
  10. Remote management (IPMI)

Specifications

 Physical Status
Form Factor Micro-ATX
Dimensions 9.6" x 9.6"
 Processor System
CPU Supports AMD Ryzen 7000 series Processors
Socket Single Socket AM5 (LGA 1718)
Thermal Design Power 120W (Air)/170W (Liquid)
Chipset AMD B650E
 System Memory
Supported DIMM Quantity 4 DIMM slots (2DPC)
Supported Type DDR5 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM 32GB
Max. DIMM Frequency 5200 MHz (1DPC); 3600 MHz (2DPC)
Voltage 1.1V
 PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16 SLOT6: PCIe5.0 x16 [CPU]
PCIe x 4 SLOT7: PCIe5.0 x4 [CPU]
PCIe x 1 SLOT4: PCIe4.0 x1 [FCH]
 Other PCIe Expansion Connectors
M.2 slot 1 M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU]
 SATA/SAS Storage
PCH Built-in Storage AMD B650E (4 SATA 6Gb/s):
4 SATA 7-pin
 Ethernet
Additional GbE Controller Broadcom BCM57416: 2 RJ45 (10GbE)
Intel® i210: 2 RJ45 (1GbE)
 Server Management
BMC Controller ASPEED AST2600
IPMI Dedicated GLAN 1 Realtek RTL8211F for dedicated management GLAN
 Graphics
Controller ASPEED AST2600:
1 DB15 (VGA), 1 (15-pin) header
AMD Processors with Graphics:
1 HDMI, 1 DisplayPort
 Rear I/O
UID Button/LED 1 UID button w/ LED
VGA Port 1 DB15 (VGA), 1 DisplayPort, 1 HDMI
Serial Port 1 DB9 (COM)
USB 3.2 Gen1 Port 4 Type-A (USB3.2 Gen1)
RJ45 2 RJ45 (10GbE)
2 RJ45 (1GbE)
1 dedicated IPMI
 Internal Connector/Headers
Power Connector 1 (24-pin, ATX main power), 2 (8-pin, ATX 12V)
Auxiliary Panel Header 1 (18-pin): chassis intrusion, system fault LED, LAN activity LED
System Panel 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
VGA header 1
Speaker Header 1
Buzzer 1
Fan Header 7 (6-pin)
TPM Header 1 (13-pin, SPI)
SMBus header 1
PMBus header 1
IPMB Header 1
Clear CMOS 1
Others 1 (3-pin, 80 debug port header)
Front Lan LED Connector 1
 LED Indicators
Standby PWR LED 5vsb 1 (5VSB)
80 Debug Port LED 1
Fan Fail LED 7
BMC heartbeat LED 1
 System BIOS
BIOS Type AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM
BIOS Features Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5
 Hardware Monitor
Temperature CPU, DDR, MB, Card Side, Chipset, 10G LAN, M.2 slot
Fan Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Voltage VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_V10_PHY_DIG, VOLT_VDD_1P8, VOLT_MD_VDDO, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V
 Environment
Temperature Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity Non operation humidity: 20% ~ 90% ( Non condensing)

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
