ASRock mini PC H470 1x LGA1200 (65W),2x SODIMM DDR4, M.2+2x 2,5 SATA,1Gb LAN, HDMI, DP, DP via USB-C, VGA, 120W

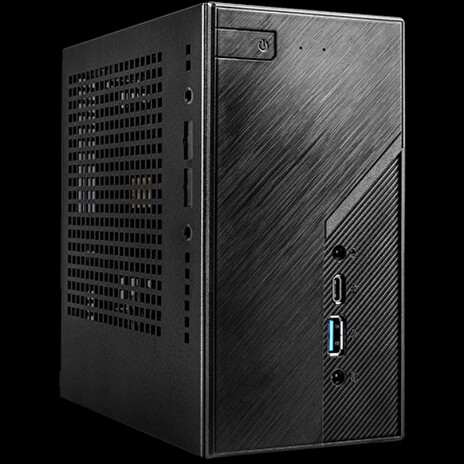

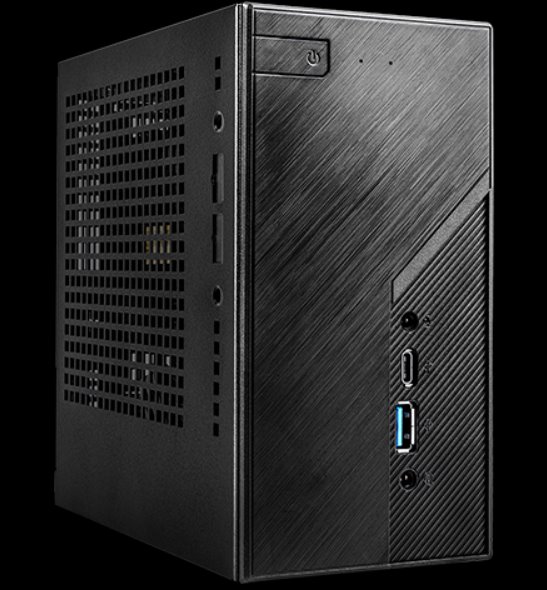

DeskMini H470

• CPU
  - Supports Intel^® 10th Gen LGA1200 Processors (Max. TDP 65W)
• Memory
  - Supports 2 x SO-DIMM DDR4-2933MHz, Max. 64GB (non-ECC)
• Chipset
  - Intel^® H470
• Graphics
  - HDMI(4K@30Hz)
  - DisplayPort1.4
  - DisplayPort 1.4 (over USB Type-C Alt Mode)
  - D-Sub


  *Supports up to 3 displays simultaneously
• Audio
  - 1 x Head Phone with MIC Jack, 1 x MIC-In (Realtek ALC233)
• Front USB
  - 1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen2 Type-A
• Rear USB
  - 1 x USB 3.2 Gen1 Type-C, 4 x USB 3.2 Gen1 Type-A


  *Rear side supports USB Type-C Alt Mode
• Storage
  - 2 x SATA3 with Power connectors (RAID 0/1)
  - 1 x Ultra M.2 (2280) PCIe Gen3 x4 SSD Slot
• LAN
  - Gigabit LAN (Intel^® I219V)
• WLAN
  - 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
• Connectors
  - 1 x USB 2.0 Header
  - 1 x Front Panel Header
  - 2 x 4-Pin fan connectors (CPU, SYS)
  - 1 x DC-In Jack (Supports 19V Power Adapters)
  - 1 x Internal Speaker Header (4-Pin)
  - 1 x Chassis Intrusion Header (2-Pin)
  - 1 x Audio Header (4-Pin)
• Accessory
  - 2 x SATA Data with Power Cable
  - 1 x 120W/19V adapter
  - 1 x Screws Pack
• Dimension
  - 155 x 155 x 80 mm (1.92L)
