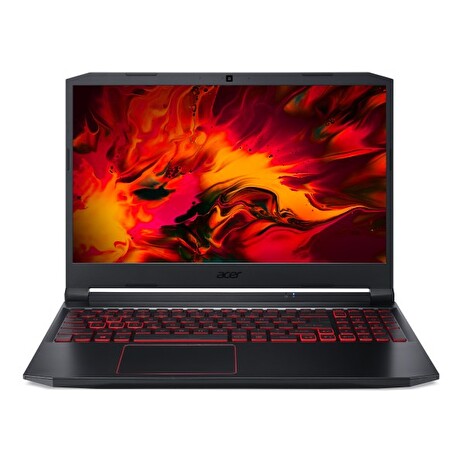

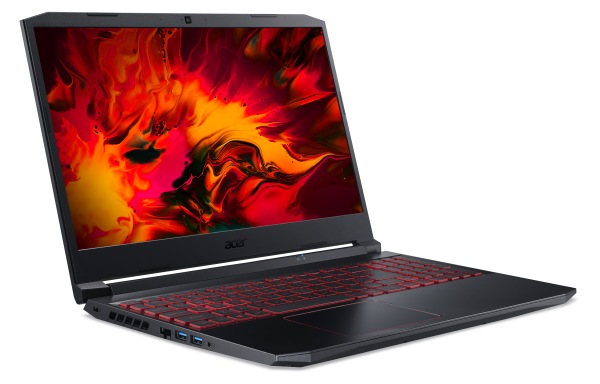

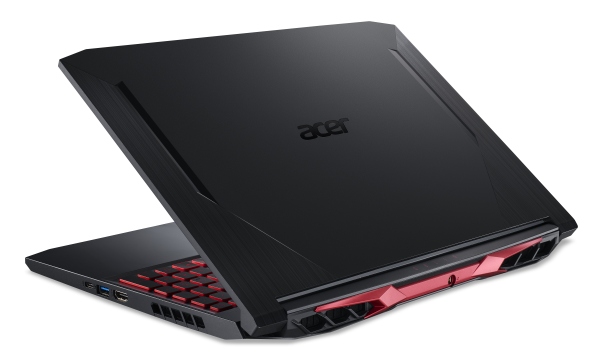

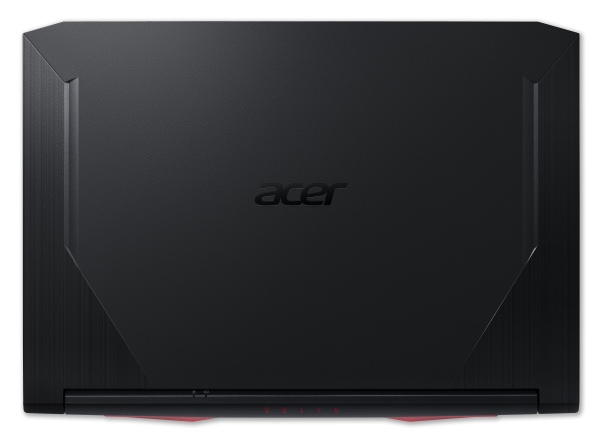

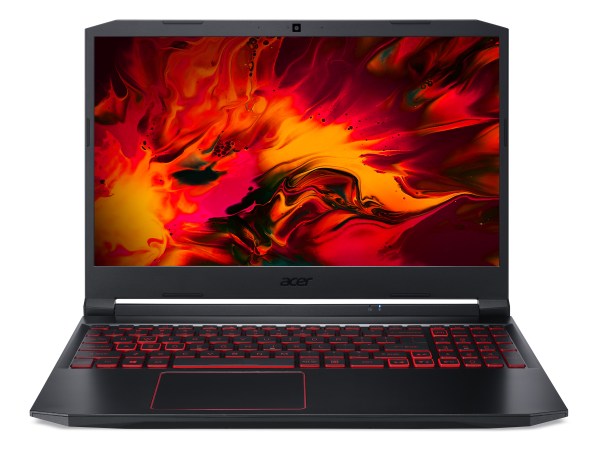

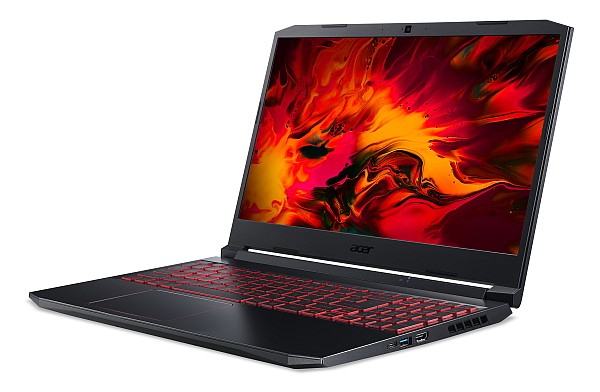

Nitro 5 (AN515-55-57LN) - ESHELL (Boot-up Linux only) - Intel®
Core™ i5-10300H - 8 GB DDR4 2933MHz Memory + 8 GB DDR4 2933MHz
Memory - 512GB PCIe NVMe SSD + N (HDD upgrade kit) - 15.6" FHD IPS
144Hz slim bezel LCD - NVIDIA® GeForce RTX™ 3050Ti
4G-GDDR6(2C*256*16*4) 1485MHz MGP 75W - Wifi 6 Intel AX201 802.11ax
+ BT 5.0 - HD Camera with 2Mic. - HDMI 2.0 - USB Type-C™ 3.2 Gen 2
(up to 10 Gbps) - 1x USB 3.2 Gen2 - 2x USB 3.2 Gen1 - RJ-45 - Red
Backlight KB - Dual fans with Acer CoolBoost - NitroSense app -
57Wh Li-ion battery - 180W 5.5phy AC Adapter Slim - Obsidian Black
AN515-55-57LN
Part Number: NH.QB1EC.005
Processor
Processor Manufacturer Intel®
Processor Type Core™ i5
Processor Generation 10th Gen
Processor Model i5-10300H
Processor Core Quad-core (4 Core™)
Processor Speed 2.50 GHz
Maximum Turbo Speed 4.50 GHz
Cache 8 MB
64-bit Processing Yes
Chipset Chipset Manufacturer Intel®
Chipset Model HM470
Memory
Standard Memory 16 GB
Maximum Memory Supported 32 GB
Memory Technology DDR4 SDRAM
Number of Total Memory Slots 2
Memory Card Reader No
Storage
Total Solid State Drive Capacity 512 GB
Solid State Drive Interface PCI Express
Solid State Drive Configuration 1 x 512GB
Optical Drive Type No
Display & Graphics
Screen Size 39.6 cm (15.6")
Display Screen Type LCD
Display Screen Technology In-plane Switching (IPS) Technology
Display Screen Technology ComfyView
Aspect Ratio 16:9
Standard Refresh Rate 144 Hz
Screen Mode Full HD
Screen Resolution 1920 x 1080
Backlight Technology LED
HDCP Supported Yes
Graphics Controller Manufacturer NVIDIA®
Graphics Controller Model GeForce® RTX™ 3050Ti
Graphics Memory Capacity Up to 4 GB
Graphics Memory Technology GDDR6
Graphics Memory Accessibility Dedicated
GPU Boost Clock Up to 1485 MHz
Maximum Graphics Power Up to 70 W
Network & Communication
Wireless LAN Yes
Wireless LAN Manufacturer Intel®
Wireless LAN Model Wireless Wi-Fi 6 AX201
Wireless LAN Standard IEEE 802.11 a/b/g/n/ac/ax
Bluetooth Yes
Bluetooth Standard Bluetooth 5.0
Built-in Devices
Front Camera/Webcam Yes
Front Camera/Webcam Video Resolution 1280 x 720
Microphone Yes
Number of Microphones 2
Finger Print Reader No
Speakers Yes

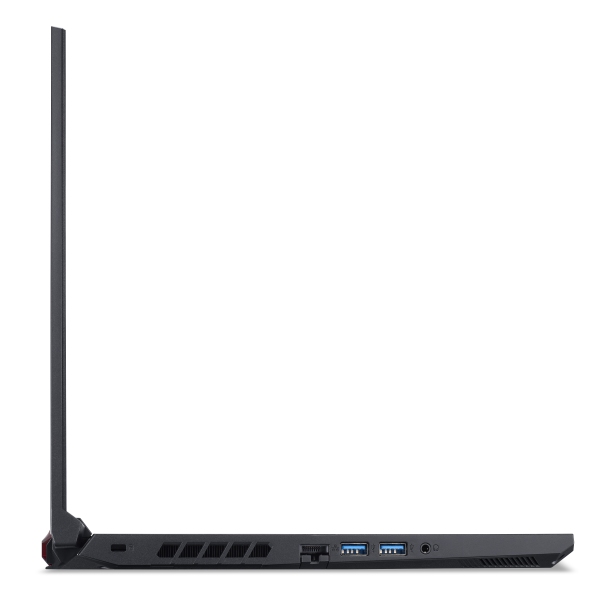

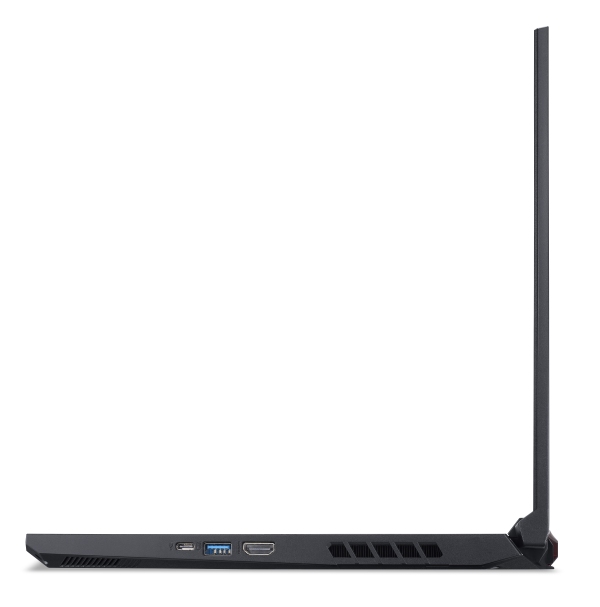

Interfaces/Ports
HDMI Yes
Number of HDMI Outputs 1
Total Number of USB Ports 4
Number of USB 3.2 Gen 1 Type-A Ports 2
Number of USB 3.2 Gen 2 Type-A Ports 1
Number of USB 3.2 Gen 2 Type-C Ports 1
USB Type-C Yes
USB Type-C Detail USB Type-C port supporting: USB 3.2 Gen 2 (up to
10 Gbps)
Network (RJ-45) Yes
Headphone/Microphone Combo Port Yes
Software
Operating System Platform Linux
Operating System Endless OS

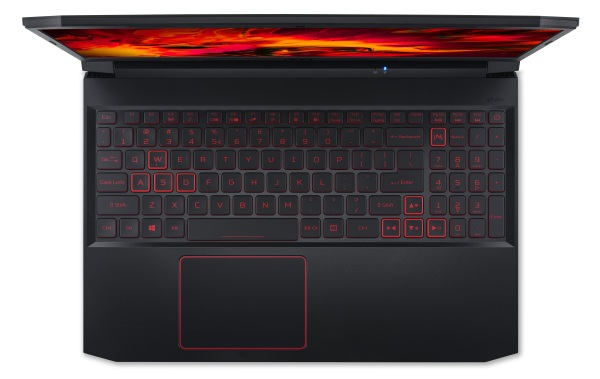

Input Devices
Keyboard Yes
Numeric Pad Yes
Keyboard Backlight Yes
Keyboard Localization Slovak
Keyboard Localization Czech
Pointing Device Type TouchPad
TouchPad Features Multi-touch Gesture
Battery Information
Number of Cells 4-cell
Battery Chemistry Lithium Ion (Li-Ion)
Battery Energy 57.50 Wh
Maximum Battery Run Time 11 Hour
Power Description
Maximum Power Supply Wattage 180 W
Physical Characteristics
Colour Obsidian Black
Height 23.90 mm
Width 363.4 mm
Depth 255 mm
Weight (Approximate) 2.30 kg
Miscellaneous
Package Contents
" Nitro 5 AN515-55-57LN Gaming Notebook
" Lithium Ion Battery
" AC Adapter
Security Features
" Kensington lock slot
" BIOS Passwords:
" User
" Supervisor
