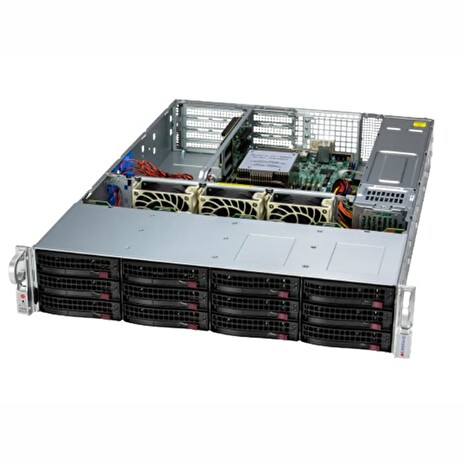

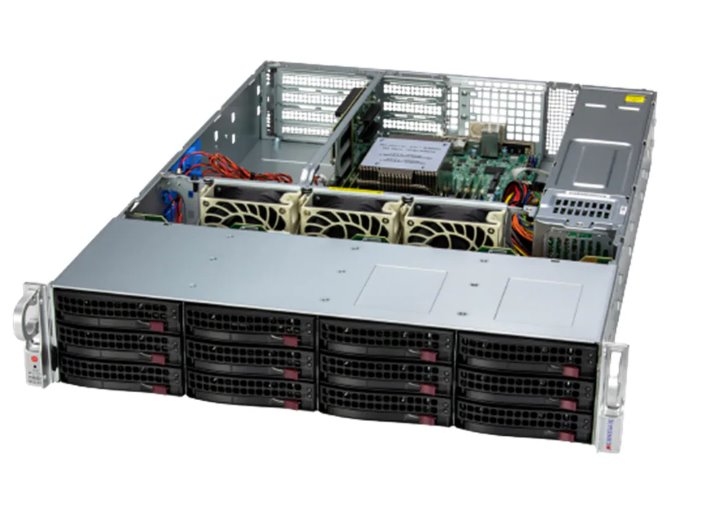

SUPERMICRO WIO A+ Ser 2U UP WIO with 12 hot-swap 3.5" NVMe/SAS/SATA (6 NVMe hybrid) bays and 2 PCIe 5.0 x16 FHFL slots +
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Obchod z hlediska kvality služeb určitě doporučuji. Uváděná skladová dostupnost zboží byla pravdivá a expedice se proto zvládla podle očekávání bez jakýchkoliv…

Ověřený zákazník

Supermicro WIO A+ Ser 2U UP WIO with 12 hot-swap 3.5" NVMe/SAS/SATA (6 NVMe hybrid) bays and 2 PCIe 5.0 x16 FHFL slots +

Product SKUs A+ Server AS -2015SV-WTNRT Motherboard Super H13SVW-NT Processor CPU Single processor(s) AMD EPYC™ 8004 Series Processor…
Kód: 3829064PN: AS-2015SV-WTNRTVýrobce: SupermicroZáruka: 6 měsíců
Výrobek pochází z oficiální české distribuce.Více informací…
64 699 Kč  včetně DPH
Cena bez DPH: 53 470 Kč
Běžná maloobchodní cena: 67 491 Kč
Nákup po telefonu
+420 587 407 456
Skladem
Toto zboží je možné koupit pouze na IČ.

Popis produktu

Product SKUs
A+ Server AS -2015SV-WTNRT
Motherboard
Super H13SVW-NT
Processor
CPU
  • Single processor(s)
  • AMD EPYC™ 8004 Series Processor
Core Count
  • Up to 64C/128T
Note
  • Supports up to 225W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width or 2 single-width GPU(s)
Supported GPU
System Memory
Memory
  • Slot Count: 6 DIMM slots
  • Max Memory (1DPC): Up to 576GB 4800MT/s ECC DDR5 RDIMM
  • View Memory Options
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
  • 2 RJ45 10GBASE-T with Broadcom® BCM57416
  • View AOC Options
NVMe
  • View NVMe Options
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
  • 2 RJ45 10 GBASE-T LAN port(s)
USB
  • 4 port(s) (rear)
Video
  • 1 VGA port(s)
Serial
  • 1 COM port(s) (Rear)
TPM
  • 1 TPM Onboard/port 80
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • ACPI 6.4
    SMBIOS 3.5 or later
    UEFI 2.8
    Plug and Play (PnP)
    USB Keyboard support
Management
Software
Power configurations
  • 1U redundant 800W Titanium AC Power Supply
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-826BTS-R000WNBP4
Dimensions and Weight
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.6" (650 mm)
Package
  • 11.5" (H) x 26.5" (W) x 34" (D)
Weight
  • Gross Weight: 58 lbs (26.3 kg)
  • Net Weight: 34 lbs (15.4 kg)
Available Color
  • Black
Front Panel
LED
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power Failure LED
  • Power status
  • System information
Buttons
  • Power On/Off
  • System Reset
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default
    • 2 PCIe 5.0 x16 FHFL slot(s)
    • 2 PCIe 5.0 x8 LP slot(s)
  • View AOC Options
M.2
  • 2 M.2 PCIe 4.0 x4 NVMe slot(s) (M-key)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bay(s)
    • 12 front hot-swap 3.5" SATA drive bay(s)
  • Option A: Total 12 bay(s)
    • 6 front hot-swap 3.5"/2.5" PCIe 5.0 NVMe*/SATA drive bay(s)
    • 6 front hot-swap 3.5"/2.5" SATA drive bay(s)
  • Option B: Total 12 bay(s)
    • 12 front hot-swap 2.5" SAS* drive bay(s)
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
  • View Drive Options
M.2
System Cooling
Fans
  • 3 Heavy duty PWM 80x80x38mm Fan(s)
Power Supply
2x 800W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL) 76 x 40 x 336 mm
AC Input 800W: 100-240Vac / 50-60Hz
800W: 200-240Vdc / 50-60Hz
+12V Max: 66A / Min: 0A (100Vac-240Vac)
Max: 66A / Min: 0A (200Vdc-240Vdc)
5V SB Max: 4A / Min: 0A
Output Type Backplanes (gold finger)

Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
