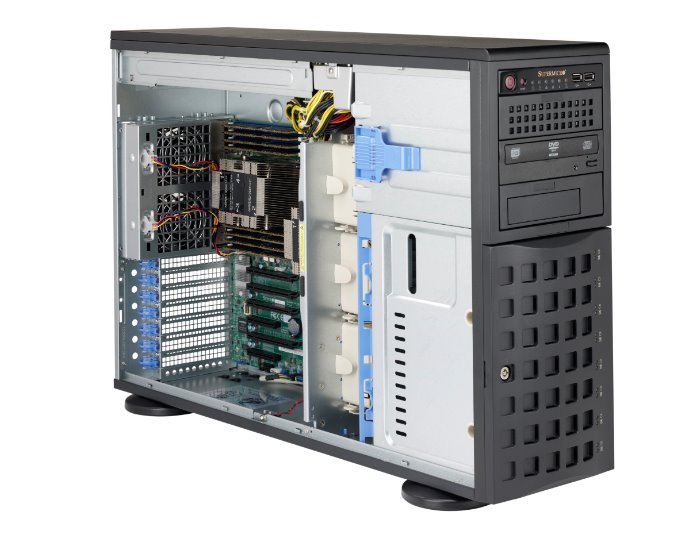

SUPERMICRO Tower/4U CSE-745BAC-R1K23B-SQ 4U, 8x 3.5"/ 2.5" SAS3/SATA3 Backplane for Hot-Swappable Drives, Front I/O Port
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Vše OK

Ověřený zákazník

Supermicro Tower/4U CSE-745BAC-R1K23B-SQ 4U, 8x 3.5"/ 2.5" SAS3/SATA3 Backplane for Hot-Swappable Drives, Front I/O Port

Product SKUs SuperChassis 745BAC-R1K23B-SQ Form Factor 4U tower chassis - supports maximum motherboard sizes up to E-ATX 13.68" x 13" Processor Support Dual…
Kód: 3867441PN: CSE-745BAC-R1K23B-SQVýrobce: SupermicroZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
27 599 Kč  včetně DPH
Cena bez DPH: 22 809 Kč
Běžná maloobchodní cena: 29 578 Kč
Ušetříte 1 979 Kč (6,69 %)
Cena po registraci:
27 299 Kč
Cena bez DPH: 22 561 Kč
Nákup po telefonu
+420 587 407 456
Skladem
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již 7.7. / ZDARMA!
Přepravní službou (ČR)9.7. / od 250 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.

Popis produktu

Product SKUs
SuperChassis 745BAC-R1K23B-SQ
Form Factor
  • 4U tower chassis - supports maximum motherboard sizes up to E-ATX 13.68" x 13"
Processor Support
  • Dual and Single Intel® and AMD processors
Dimensions
Height
  • 17.8" (452 mm)
Width
  • 7" (178 mm)
Depth
  • 25.5" (647 mm)
Gross Weight
  • 62 lbs (28.12 kg)
Net Weight
  • 59 lbs (26.76 kg)
Packaging (W x H x L)
  • 14" (356 mm) x 24.6" (625 mm) x 31.3" (795 mm)
Available Color
  • Black
Expansion Slots
  • 7x Full-height, Full-length expansion slot(s)
Drive Bays
  • 8x 3.5"/2.5" hot-swap SAS drive bay with SES3
Backplane
  • 8-Port 4U/Tower 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane for SC743/SC745 chassis
Peripheral Drives
  • 3x standard 5.25" drive bay
Front Panel
Button
  • Power On/Off button
  • System Reset button
LED
  • Power status LED
  • HDD activity LED
  • System Information LED
  • Power Fail LED
  • 2 Network Activity LEDs
Port
  • 2x USB 3.0 Port(s)
Systems Cooling
Fans
  • 1x 2700 RPM fan(s)
  • 2x 2800 RPM fan(s)
System Monitoring
  • Chassis intrusion switch
Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Power Supply
1U, Redundancy, Titanium, Input: 100-127Vac, 200-240Vac, and 240Vdc, output: +12V/+5Vsb, PMBUS 1.2, (L)336x(W)76x(H)40 mm, EMI Class B,
Power Efficiency
  • 96%
Total Output Power and Input
  • 1200W with Input 200 - 240Vac
  • 1000W with Input 100 - 127Vac
  • 1200W with Input 200 - 240Vdc
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (connector)
+12V
  • Max: 100A / Min: 0A (200Vac - 240Vac)
  • Max: 83A / Min: 0A (100Vac - 127Vac)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT747-4648
  • O/P: 12/212
  • +5V Max: 30A
  • +3.3V Max: 24A
  • -12V Max: 0.6A
Certification
  • N/A
Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC
  • FCC class B
  • UL/CB

Motherboard (for CSE-745BAC-R1K23B-SQ)
Motherboard Name
X12DAI-N6X13SWA-TFX13SRA-TF
