Supermicro 1U server 1xXeon D-2146NT 2x 64GB DDR4 RDIMM, SSD M.2 NVMe PCIe4 1.9TB 1DWPD, SPI Capable Vertical TPM 2.0 Pr

Product SKUs
SYS-E300-9D-8CN8TP

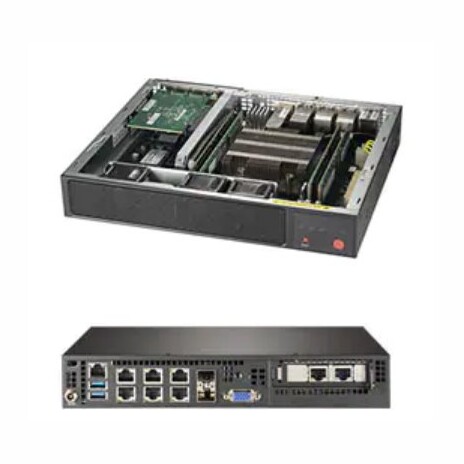

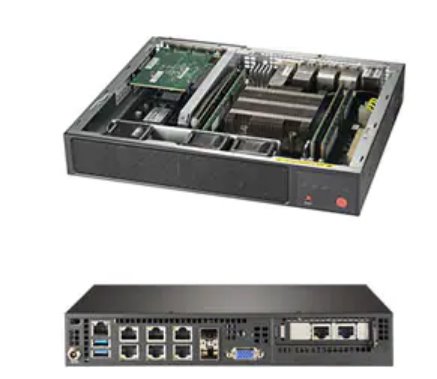

SuperServer E300-9D-8CN8TP (Black)
Motherboard
Super X11SDV-8C-TP8F
Processor/Cache
CPU
Intel® Xeon® processor D-2146NT,
CPU TDP support 80W
Cores / Cache
8 Cores, 16 Threads
System Memory
Memory Capacity
Up to 512GB DDR4 ECC LRDIMM
Up to 256GB DDR4 ECC DIMM
4 DIMM slots
Memory Type
2666/2400/2133MHz ECC LRDIMM and ECC DIMM
Operating speed up to 2400MHz
DIMM Sizes
RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
LRDIMM: 16GB, 32GB, 64GB, 128GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
Detects double-bit errors
(using ECC memory)
On-Board Devices
Chipset
System on Chip
SATA
SATA3 (6Gbps) ports via SoC controller
Network Controllers
Quad 1GbE with Intel I350-AM4
Dual 10GBase-T with Intel X557
Dual 10G SFP+ via SoC
IPMI
Support for Intelligent Platform
Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
Aspeed AST2500 BMC
Input / Output
SATA
SoC controller for 4 SATA3 (6Gbps) ports
LAN
2x 10G SFP+ ports
2x 10GBase-T LAN ports
4x 1GbE LAN ports
1 Dedicated IPMI LAN port
USB
2 USB 3.0 ports (rear)
Display
1 VGA port
TPM
1 TPM 2.0 header
Chassis
Form Factor
Compact
Model
CSE-E300
Dimensions
Width
10" (254mm) / 15" (381mm) - pkg.
Height
1.7" (43mm) / 10.87" (276mm) - pkg.
Depth
8.9" (226mm) / 5.59" (142mm) - pkg.
Weight
Gross Weight: 7.5 lbs (3.4 kg)
Net Weight: 3.45 lbs (1.56 kg)
Available Colors
Black
Front Panel
Buttons
Power On/Off button
LEDs
Power LED (Hard drive activity LED)
Expansion Slots
PCI-Express
1 PCI-E 3.0 x8 slot
Drive Bays
Internal
1 Fixed 2.5" drive bay with bracket (when AOC area is not occupied)
System Cooling
Fans
3x 40x28mm 4-PIN PWM Fan
Power Supply
DC Power Adapter with PFC
System BIOS
BIOS Type
128Mb SPI Flash with AMI BIOS
BIOS Features
PCI 3.0
ACPI 5.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.8
UEFI 2.4
RTC (Real Time Clock) Wakeup
Management
Software
Intel® Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SUM
SuperDoctor® 5
Watch Dog
Power Configurations
ACPI Power Management
+12V DC Power Input
Control of power-on for recovery from AC power loss
CPU thermal trip support for processor protection
M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL
Fan
Fans with tachometer status monitoring
Status monitor for speed control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors
Operating Environment / Compliance
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
0°C to 35°C (32°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
