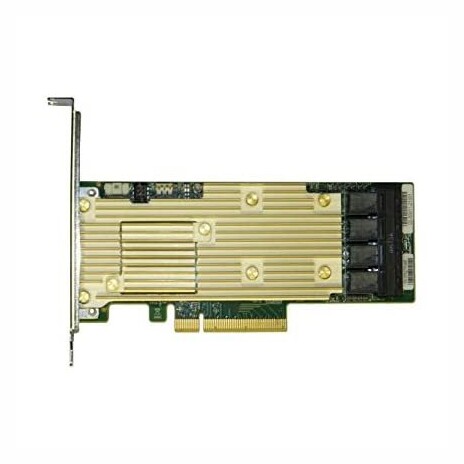

Intel® RAID tri-mode Adapter RSP3TD160F 16P intenal, 4GB, R0,1,10,5,50,6,60, SAS3516, PCIe3.0 x8
Essentials
Download Specifications
Product Collection
Intel® RAID Controllers
Code Name
Products formerly Trinity Dunes
Status
Launched
Launch Date
Q3'17
Expected Discontinuance
2025
Target Market
Full-featured
Board Form Factor
Low-Profile MD2 PCIe AIC
Supported…
Kód: 3176730PN: RSP3TD160FVýrobce: IntelZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
Aktuálně není v nabídce
Popis produktu
Essentials
Product Collection
Code Name
Status
Launched
Launch Date
Q3'17
Expected Discontinuance
2025
Target Market
Full-featured
Board Form Factor
Low-Profile MD2 PCIe AIC
Supported Devices
PCIe/SAS/SATA
Supported Operating Systems
Windows, Linux, VMWare
Compatible Cache Backup Options
AXXRMFBU7
RAID Level Supported
0, 1, 10, 5, 50, 6, 60
JBOD Mode
Yes
# of Ports Internal
16
# of Ports External
0
# of Devices Supported
240
Embedded Memory
4GB
PCIe Host Interface
PCIe x8 Gen3
IO Processor Model
SAS3516
Keying
PCIe x8 Connector
Connector Orientation
Vertical
Extended Warranty Available for Purchase (Select Countries)
Yes
Additional Extended Warranty Details
Additional Features
Support for optional Maintenance Free Backup Unit and Premium
Feature upgrade keys.
Included Items
(1) Intel® RAID Adapter, (1) low-profile mounting bracket
Supplemental Information
Description
Tri-mode PCIe(NVMe)/SAS/SATA Full-Featured RAID Adapter, 16
internal ports
Datasheet
