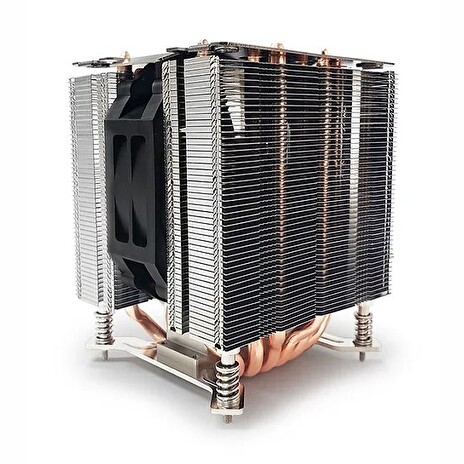

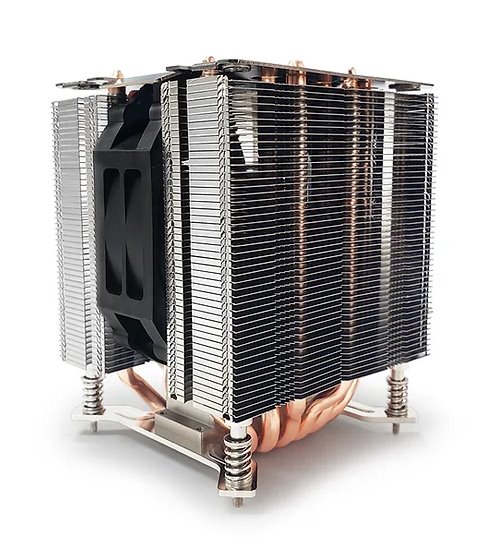

Dynatron Cooler Q11 Intel 1700 - 4U Active RoHS, up to 125W

CPU Support

Intel

CPU Socket

Socket LGA 1700

Weight

710 g

Material

Heatpipes with Aluminum Base and Aluminum Fin Stack

Solution

4U Server and Up

Dimensions

95 x 95.0 x 130 mm

Fan Dimension

103 x 103 x 30 mm

Rated Voltage

12V

Bearing

2 Ball Bearing

Speed

At Duty Cycle 0~20%: 800± 200 RPM
At Duty Cycle 50%: 1300± 10% RPM
At Duty Cycle 100%: 1800 ± 10% RPM

Power

At Duty Cycle 0~20%: 0.3 W
At Duty Cycle 50%: 0.48 W
At Duty Cycle 100%: 0.96 W

Air Flow

At Duty Cycle 0~20%: 14.88 CFM
At Duty Cycle 50%: 25.26 CFM
At Duty Cycle 100%: 35.03 CFM

Air Pressure

At Duty Cycle 0~20%: 0.44 mm-H2O
At Duty Cycle 50%: 1.16 mm-H2O
At Duty Cycle 100%: 2.06 mm-H2O

Acoustical Noise

At Duty Cycle 0~20%: 10.8 dBA
At Duty Cycle 50%: 15.2 dBA
At Duty Cycle 100%: 21.3 dBA

Lead Wir Pin Out

Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)
