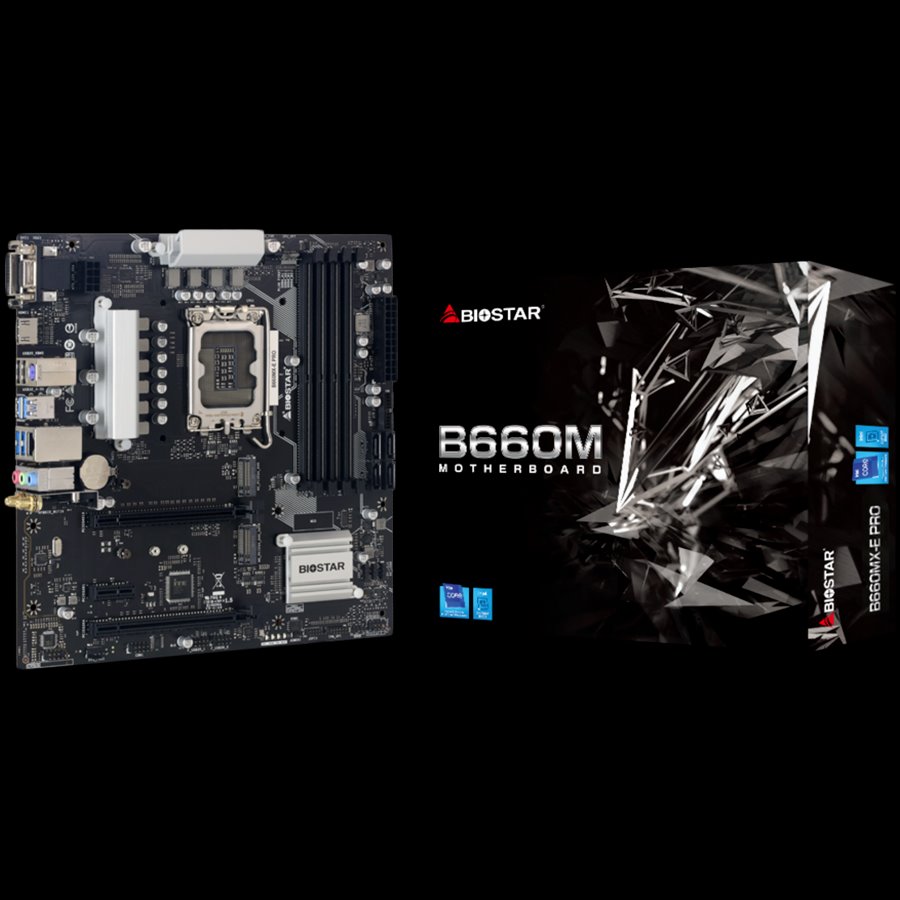

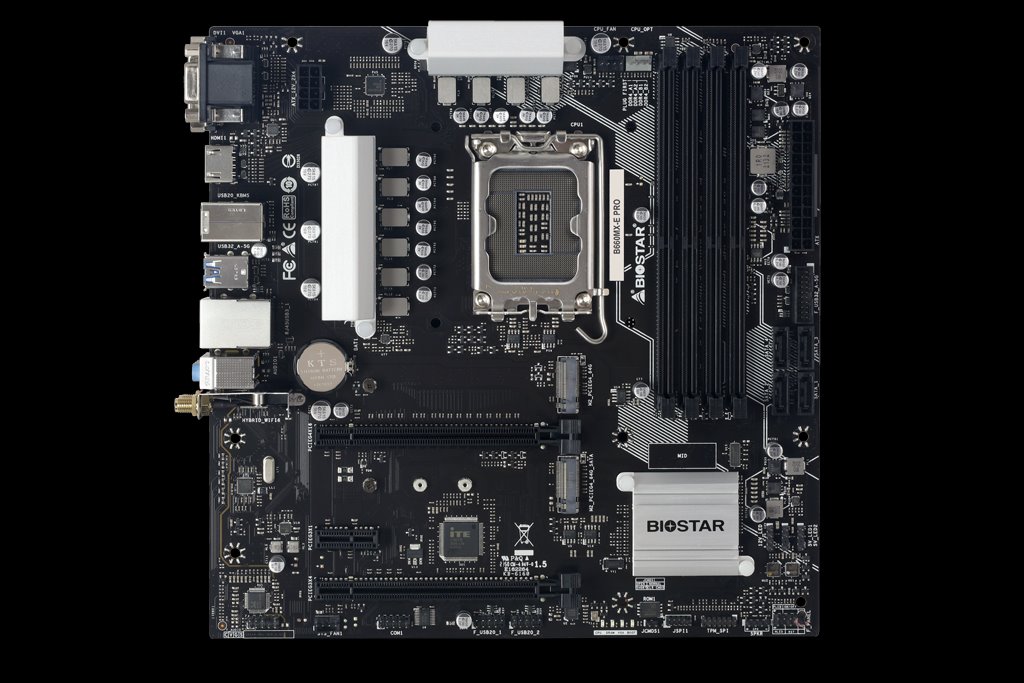

BIOSTAR MB B660 LGA1700 4xDDR4, HDMI DVI VGA 4xSATA, 2xM.2 PCIe 4.0, Support WiFi Micro ATX
BIOSTAR MB B660 LGA1700 4xDDR4, HDMI DVI VGA 4xSATA, 2xM.2 PCIe 4.0, Support WiFi Micro ATXBIOSTAR MB B660 LGA1700 4xDDR4, HDMI DVI VGA 4xSATA, 2xM.2 PCIe 4.0, Support WiFi Micro ATX
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Obchod z hlediska kvality služeb určitě doporučuji. Uváděná skladová dostupnost zboží byla pravdivá a expedice se proto zvládla podle očekávání bez jakýchkoliv…

Ověřený zákazník

BIOSTAR MB B660 LGA1700 4xDDR4, HDMI DVI VGA 4xSATA, 2xM.2 PCIe 4.0, Support WiFi Micro ATX

Socket: 1700   Supports 12 th / 13 th / 14 th  Generation Intel Core™ Processor Intel B660 single chip architecture Supports 4-DIMM DDR4- 1866/ 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/ 3733(OC)/ 3800(OC)/ 3866(OC)/ 4600+(OC) up to 128 GB Memory Supports PCIe 4.0 Supports PCIe M.2 4.0 (64Gb/s) Supports HDMI 4K2K Supports USB 3.2 Gen1…
Kód: 3776128PN: B660MX-E PROZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
Aktuálně není v nabídce

Popis produktu

Socket : 1700



  • Supports 12th/ 13th/ 14th Generation Intel Core™ Processor
  • Intel B660 single chip architecture
  • Supports 4-DIMM DDR4- 1866/ 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/ 3733(OC)/ 3800(OC)/ 3866(OC)/ 4600+(OC) up to 128 GB Memory
  • Supports PCIe 4.0
  • Supports PCIe M.2 4.0 (64Gb/s)
  • Supports HDMI 4K2K
  • Supports USB 3.2 Gen1
  • Support WiFi 6 & 6E module (No WiFi card included)
Chipset Intel B660
CPU SUPPORT Support for 12th / 13th / 14th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/ 3733(OC)/ 3800(OC)/ 3866(OC)/ 4600+(OC)
4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
Support Intel Extreme Memory Profile (XMP) memory modules
* Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO Supports DX12
Supports HDCP
STORAGE Total supports 2 x M.2 socket and 4x SATA III (6Gb/s) ports
Intel 12th/13th/14th Processors
1 x M.2 (M Key) Socket (M2_PCIEG4_64G):
Supports M.2 Type 2280 SSD module
Supports PCIe 4.0 x 4 (64Gb/s)
Intel B660 Chipset
1 x M.2 (M Key) Socket (M2_PCIEG4_64G_SATA):
Supports M.2 Type 2242/2260/2280 SSD module
Supports PCIe 4.0 x 4 (64Gb/s) & SATA lll (6Gb/s) SSD
4 x SATA III Connector (6Gb/s): Supports AHCI, RAID 0, 1, 5, 10 & Intel® Rapid Storage Technology
* Specifications vary by CPU types
LAN Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC ALC897
7.1 Channels, High Definition Audio, Hi-Fi(Front)
USB 6 x USB 3.2 (Gen1) port (4 on rear I/Os and 2 via internal headers)
6 x USB 2.0 port (2 on rear I/Os and 4 via internal headers)
EXPANSION SLOT INTEL 12th/13th/14th Processors
1 x PCIe 4.0 x16 Slot (x16 mode)
INTEL B660 Chipset
1 x PCIe 3.0 x16 Slot (x4 mode)
1 x PCIe 3.0 x1 Slot
* Specifications vary by CPU types

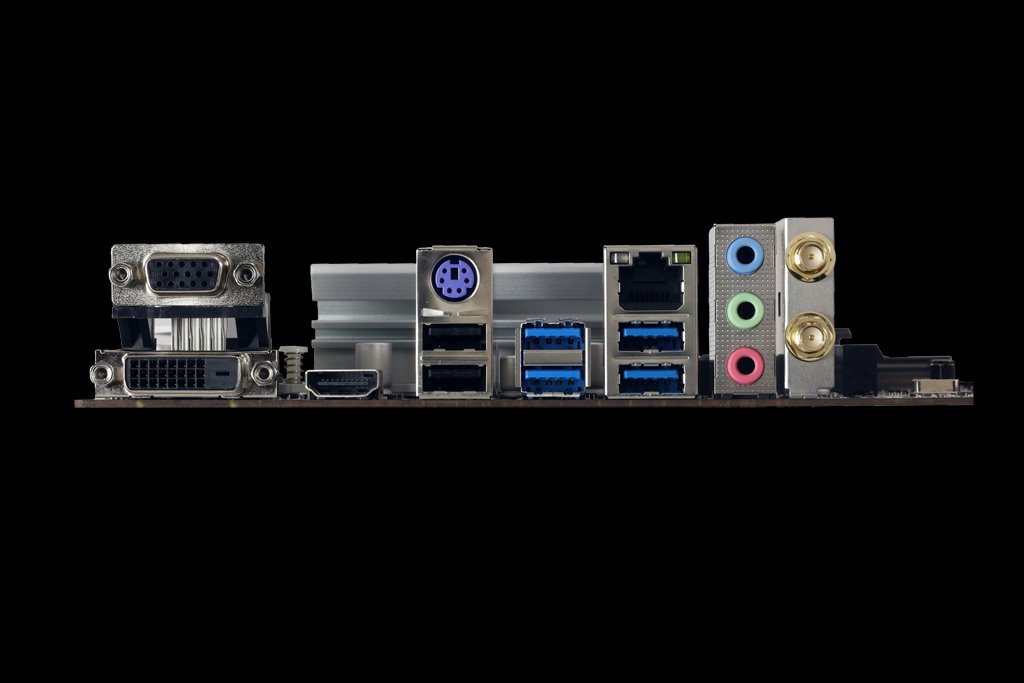

REAR I/O 2 x WIFI Antenna Port
1 x PS/2 Keyboard/ Mouse Port
1 x HDMI
1 x VGA+DVI Port
4 x USB 3.2 (Gen1) port
2 x USB 2.0 port
1 x LAN port
3 x Audio Jack
INTERNAL I/O 4 x SATA III Connector (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x CPU water cooling connector (CPU_OPT)
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x SPI TPM Header
2 x LED Header (5V)
1 x LED Header (12V)
* M.2 (E key) Wi-Fi card is not provided
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
DIMENSION Micro ATX Form Factor Dimension: 24.4cm x 24.4cm ( W x L )
OS SUPPORT Supports Windows 10 (64bit) / 11(64bit)
?Biostar reserves the right to add or remove support for any OS with or without notice.
BUNDLE SOFTWARE BullGuard
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
1 x WiFi antenna accessories
FEATURES VIVID LED DJ
BIO-FLASHER
A.I FAN
Caution!! The specification and pictures are subject to change without notice!

Parametry

M.2 slot2
Maximální frekvence paměti [MHz]4600
Podpora ECCNE
Typ pamětiDDR4
Čipová sadaIntel B660
Patice (CPU Socket)LGA 1700 socket
Počet CPU socketůSingle socket
Výrobce čipsetuIntel
FormátmATX
HerníANO
UrčeníHraní a multimedia
