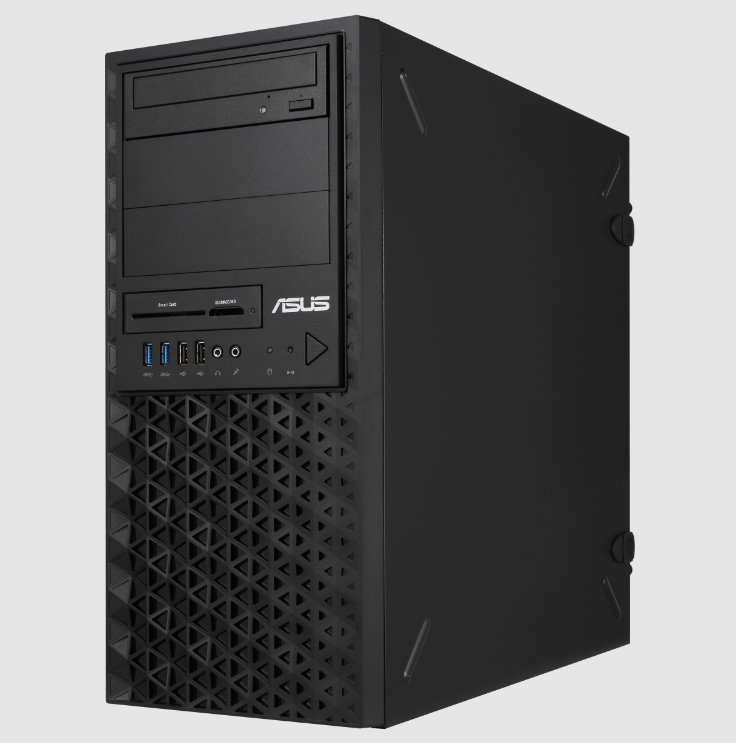

ASUS TS100 TWR server s1200, C256, 4x DDR4e, 8x SATA, 4xPCIe, 300Wb, 2x LAN
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Dobré ceny, ochotný personál.

Ověřený zákazník

ASUS TS100 TWR server s1200, C256, 4x DDR4e, 8x SATA, 4xPCIe, 300Wb, 2x LAN

Powered by the Intel® Xeon® E platform 95W CPU and up to 128GB memory support (4 DIMMs) High scalability with two PCIe Gen4 slots and two PCIe Gen3 slots Flexible storage design with internal 5.25" to 3.5"/2.5" drive cage (Optional) Dual Intel® Gigabit Ethernet with teaming support Supports the latest 10Gb/s USB 3.2 Gen2 onboard for high transfer speed…
Kód: 3601885PN: 90SF02N1-M000Z0Výrobce: ASUSZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
Aktuálně není v nabídce

Popis produktu

  • Powered by the Intel® Xeon® E platform
  • 95W CPU and up to 128GB memory support (4 DIMMs)
  • High scalability with two PCIe Gen4 slots and two PCIe Gen3 slots
  • Flexible storage design with internal 5.25" to 3.5"/2.5" drive cage (Optional)
  • Dual Intel® Gigabit Ethernet with teaming support
  • Supports the latest 10Gb/s USB 3.2 Gen2 onboard for high transfer speed
  • Complete server management with ASUS Control Center
  • Easily serviceable design
  • Design for SMB, Web/Print/File/Mail Server, entry storage applications
  • Onboard audio for workstation applications





  • Processor / System Bus

    1 x Socket LGA1200
    Intel® Xeon® processor E-2300 family(95W)
    Intel® Pentium Processors
    *Refer to support page for more information

  • Core Logic

    Intel® C256 Chipset

  • Memory

    Total Slots : 4 (2-channel)
    Capacity : Maximum up to 128GB UDIMM
    Memory Type :
    DDR4 3200  ECC UDIMM
    Memory Size :
    32GB, 16GB, 8GB
    * Refer to support page for more information

  • Expansion Slots

    Total:4

    2 x PCI-E x4 slot, x8 Gen3 Link
    1 x PCI-E x8 slot, x8 Gen4 Link
    1 x PCI-E x16 slot, x16 Gen4 Link
    (Auto switch to x8 link if slot 4 is occupied )


  • Storage

    SATA Controller :
    Intel® C256 Chipset
    8 x SATA3 6Gb/s ports


  • Drive Bays

    3 x Internal 3.5“ (or 2 x 2.5” optional cage) drive bays
    1 x Internal 2.5" drive bay


    2 x M.2 (Up to 22110)
    Gen4 x4 Link and Gen3 x2 Link
    gray SATA port will disable when M.2 is SATA signal

  • Auxiliary Storage FDD/CD/DVD

    2 x 5.25" media bays
    (Options: No ODD/DVD-RW)

  • Networking

    2 x Intel® I210AT + 1 x Mgmt LAN

  • Graphic

    Please find the latest GPU support from https://servers.asus.com/support/gpu

  • Front I/O Ports

    2 x USB 3.2 Gen1
    2 x USB 2.0
    1 x Headphone port
    1 x Microphone port

  • Rear I/O Ports

    2 x USB 3.2 Gen2 ports
    2 x USB 3.2 Gen1 ports
    1 x VGA port (support by ASMB10)
    1 x HDMI port from CPU (useable only with iGPU)
    2 x LAN Ports
    1 x PS/2 Keyboard/ Mouse Port

  • Switch/LED

    Front:
      1 x Power Switch/LED
      1 x Reset Switch
      1 x HDD Access LED

  • OS Support

    Please find the latest OS support from https://servers.asus.com/support/os

  • Management Solution

    Bundle ASMB10-iKVM for KVM-over-IP
    ASUS Control Center Enterprise (Optional)

  • Regulatory Compliance

    BSMI, CE, FCC(Class B)

  • Dimensions

    423mm x 190mm x 435mm
    16.65" x 7.48" x 17.1"

  • Weight

    Net Weight : 11.56 KG
    Gross Weight : 14.68 KG

  • Power Supply

    300W 80PLUS Single Power Supply, Bronze
    Rating: 100-127/220-240Vac, 6/3A, 60-50Hz, Class I
    550W/750W 80PLUS Single Power Supply, Gold
    Rating: 100-240Vac,50-60 Hz,9-4.5A

  • Environment

    Operation temperature: 10? ~ 35?
    Non operation temperature: -40? ~ 70?
    Non operation humidity: 20% ~ 90% ( Non condensing)

  • Optional Items

    Smart Card Reader
    Anti-Virus CD pack
    Keyboard and mouse
    DVD-RW
    Print port cable
    Com port cable
