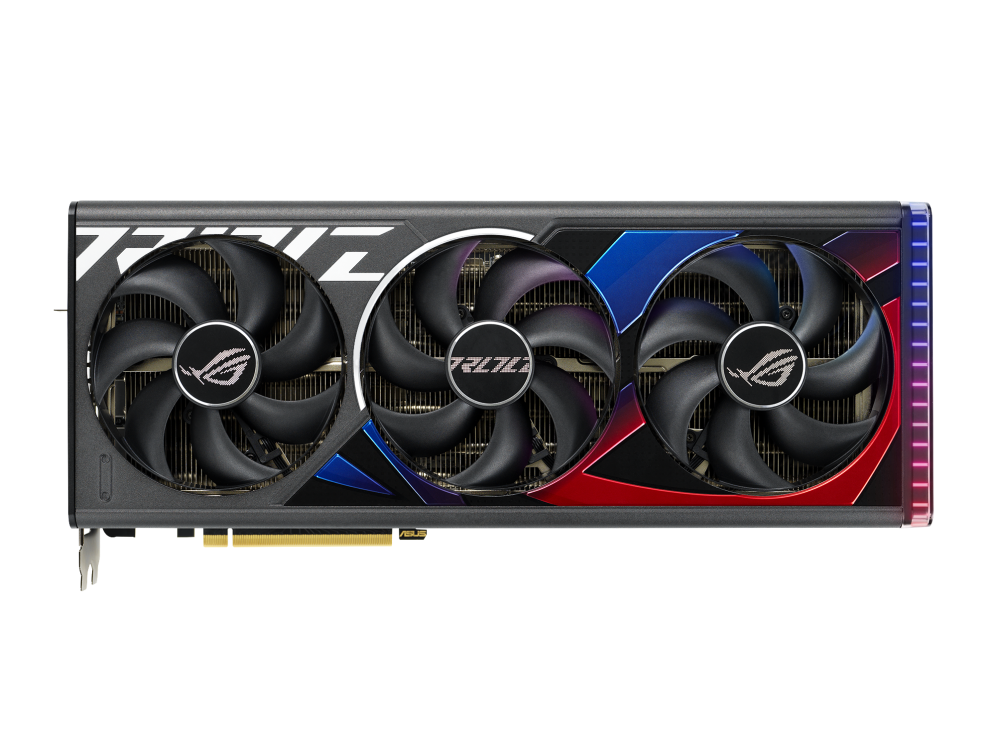

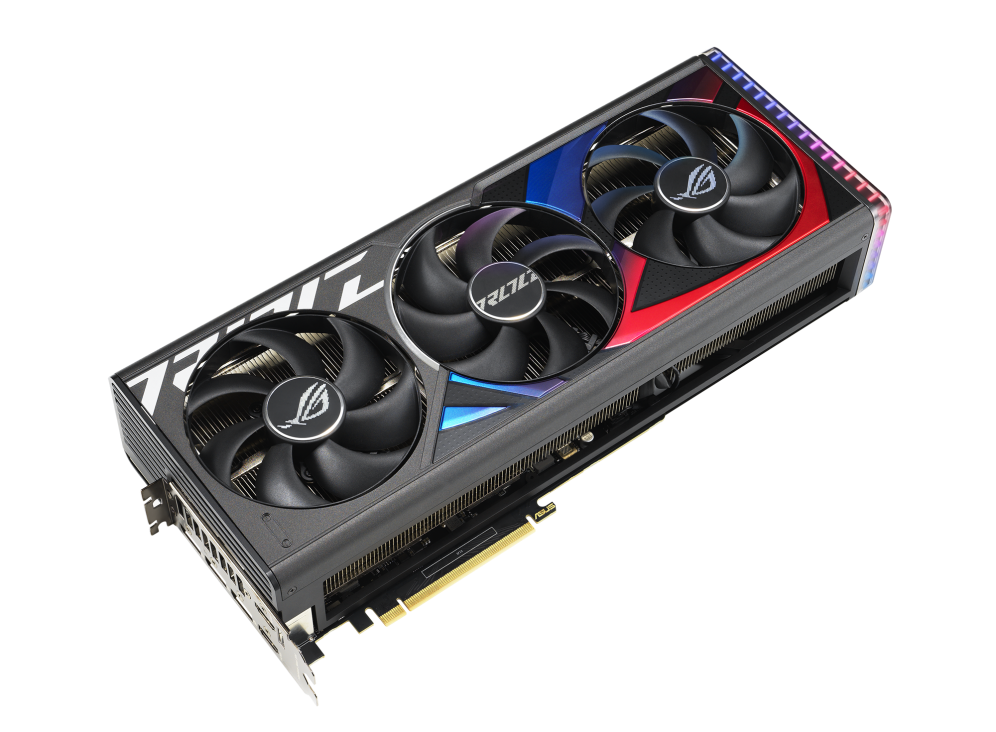

ROG Strix GeForce
RTX® 4090 24GB GDDR6X with DLSS 3 and chart-topping
thermal performance
- NVIDIA Ada Lovelace
Streaming Multiprocessors: Up to 2x performance and
power efficiency
- 4th Generation Tensor
Cores: Up to 4x performance with DLSS 3 vs.
brute-force rendering
- 3rd Generation RT
Cores: Up to 2X ray tracing performance

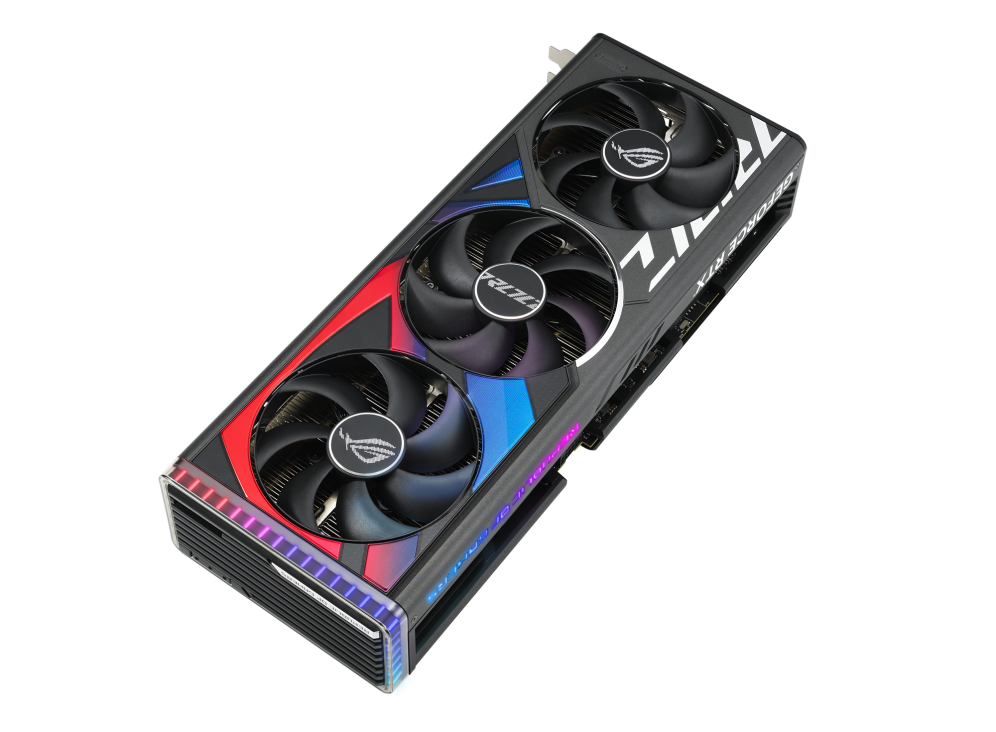

- Axial-tech
fans scaled up for 23% more airflow
- New patented vapor
chamber with milled heatspreader for lower GPU
temps

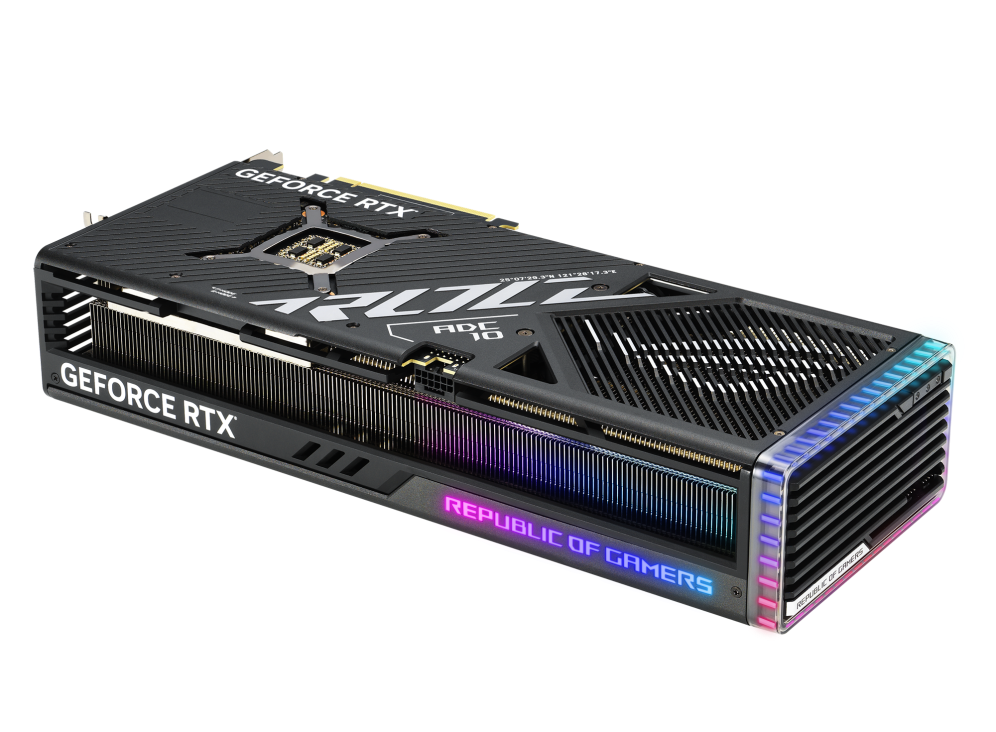

- 3.5-slot
design: massive fin array optimized
for airflow from the three Axial-tech fans

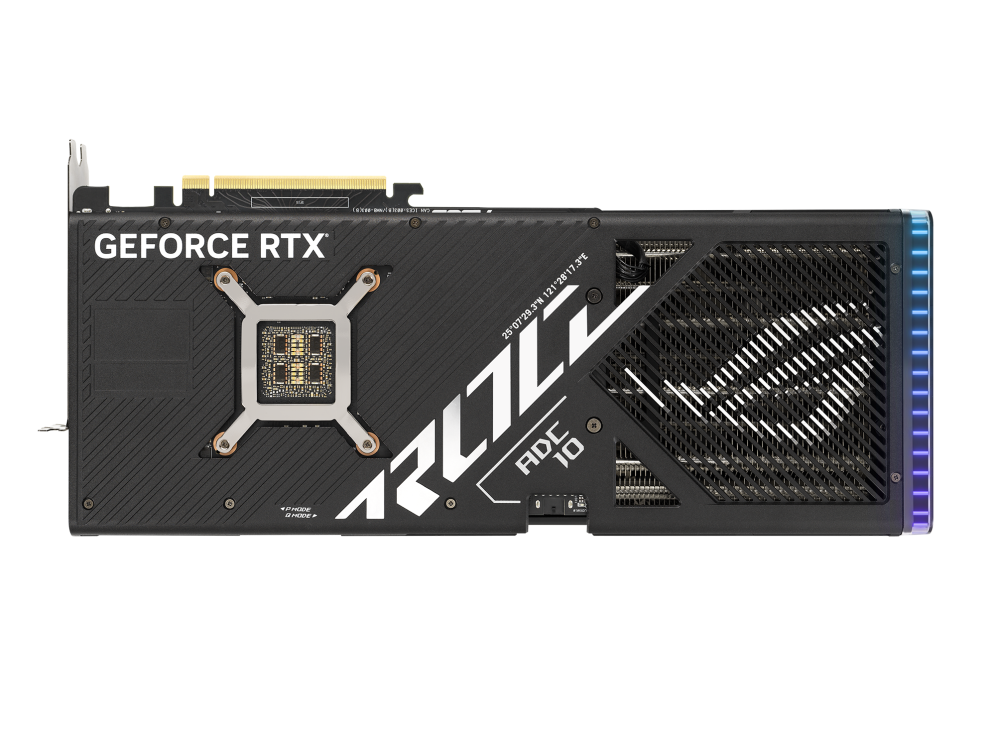

- Diecast shroud, frame,
and backplate add rigidity and are vented to further
maximize airflow and heat dissipation
- Digital
power control with high-current
power stages and 15K capacitors to fuel maximum performance
-
Auto-Extreme precision automated
manufacturing for higher reliability
- GPU Tweak
III software provides intuitive performance tweaking,
thermal controls, and system monitoring
Graphic Engine
NVIDIA® GeForce RTX™ 4090
Engine Clock
OC mode: 2550 MHz Default mode: 2520 MHz (Boost Clock)
Resolution
Digital Max Resolution 7680 x 4320

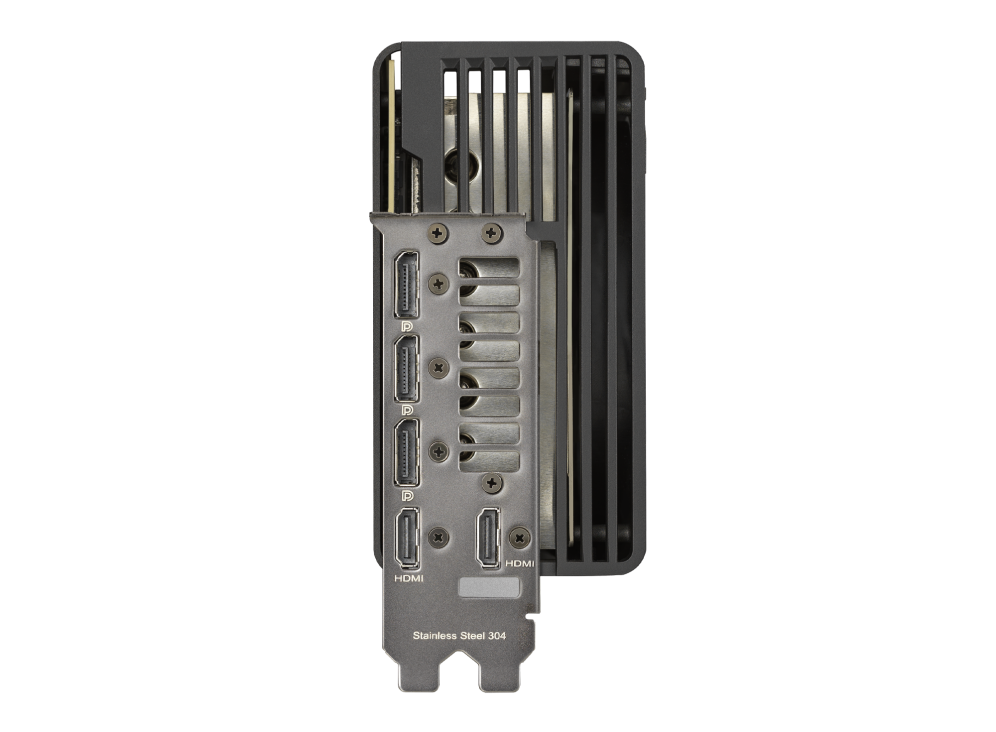

Interface
Yes x 2
(Native HDMI 2.1a)
Yes x 3
(Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
NVlink/ Crossfire
Support
Accessories
1 x Collection Card? 1 x Speedsetup Manual? 1 x Adapter Cable? 1 x
ROG Graphics Card Holder 1 x ROG Velcro Hook & Loop 1 x Thank you
Card
Software
ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver:
please download all software from the support site.
Note
* Our wattage recommendation is based on a fully overclocked GPU
and CPU system configuration. For a more tailored suggestion,
please use the “Choose By Wattage” feature on our PSU product page:
https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html *
All specifications are subject to change without notice. Please
check with your supplier for exact offers. Products may not be
available in all markets. If you do not use the latest and current
specifications of ASUS products, you shall be liable for all loss
and damage claimed by third party to ASUS based on false
advertising or any other issues caused from using false
specifications of ASUS products.
