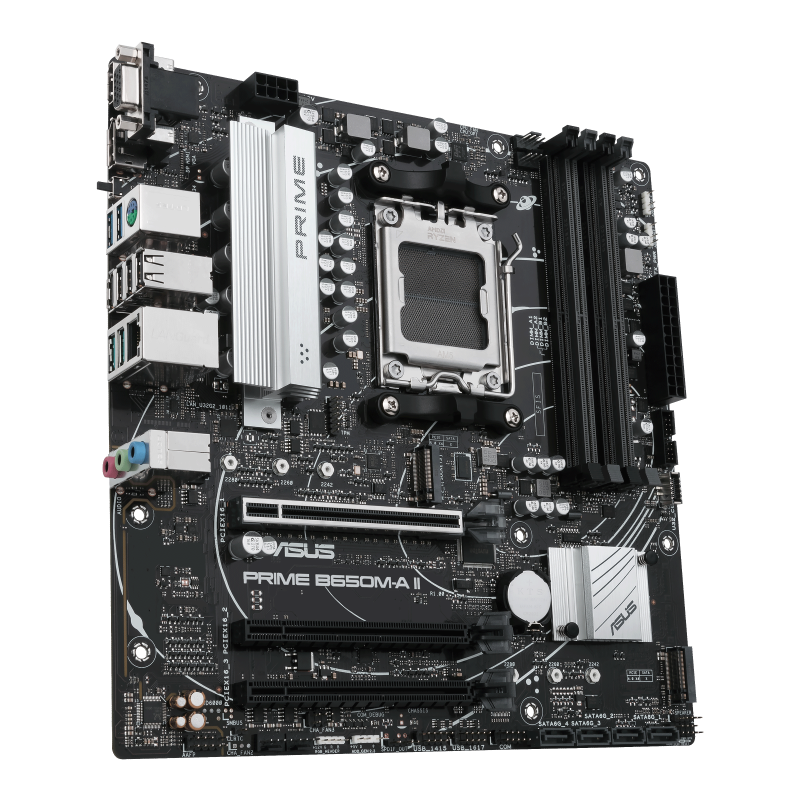

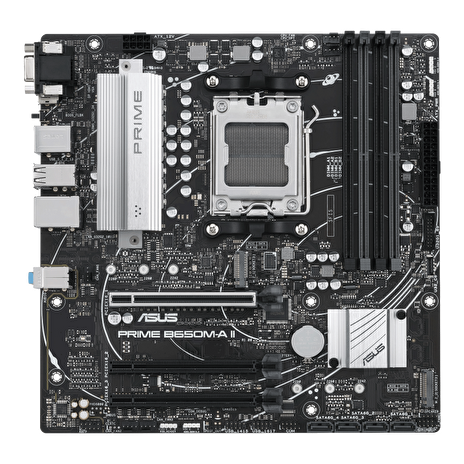

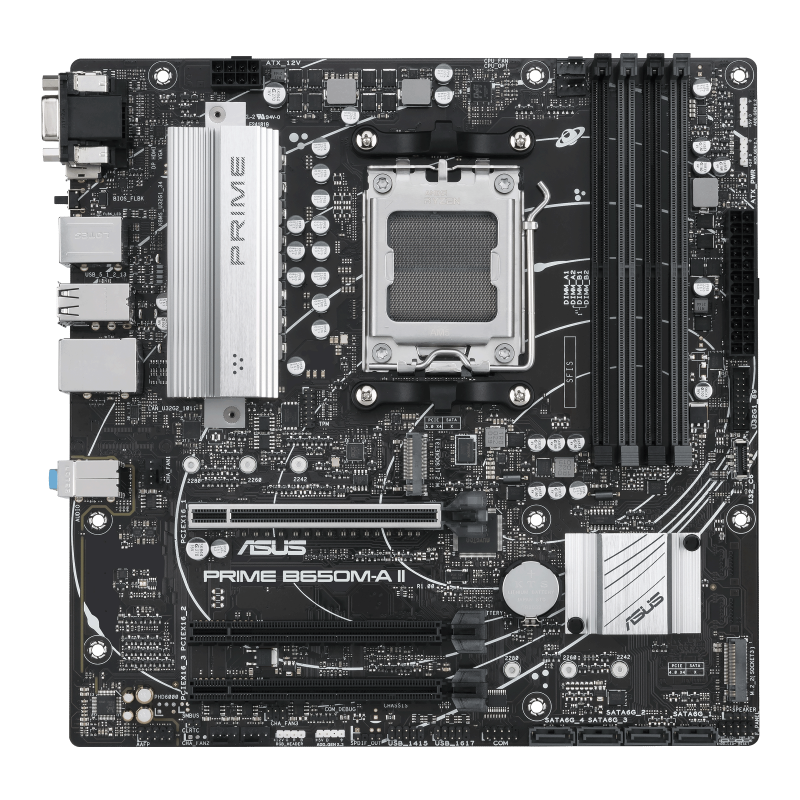

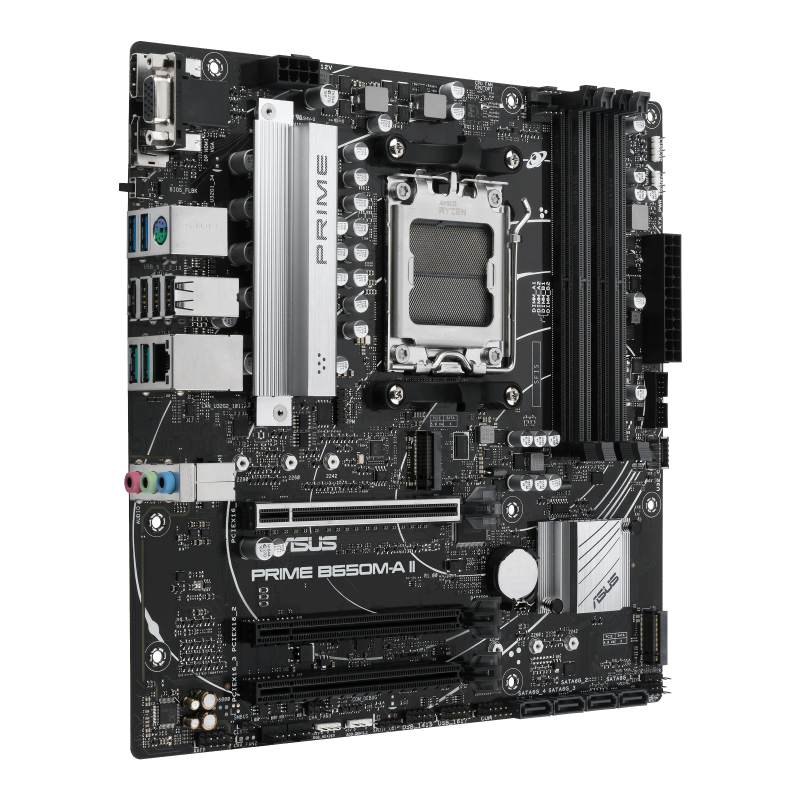

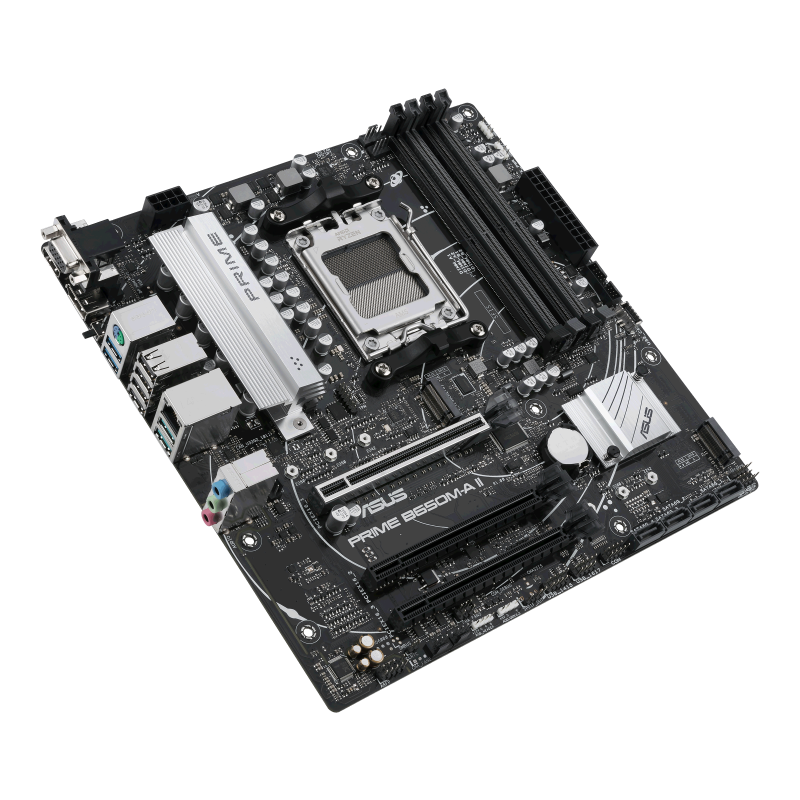

ASUS PRIME B650M-A II socket AM5 DDR5 B650 mATX D-Sub HDMI DP

Základná doska AMD B650 Micro-ATX s DDR5, PCIe 5.0 M.2, 2,5 Gb Ethernet, DisplayPort, HDMI®, VGA, zadná USB 3.2 Gen 2, predná USB 3.2 Gen 1 Type-C®, BIOS FlashBack™, Arua Sync
Zásuvka AMD AM5: Pripravená pre stolné procesory AMD Ryzen™ 7000 Series
Ultrarýchle pripojenie: M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, porty USB 3.2 Gen 2, predný USB 3.2 Gen 1 Type-C®
ASUS OptiMem II: Starostlivé smerovanie stôp a priechodov plus optimalizácia základnej vrstvy na zachovanie integrity signálu pre lepšie pretaktovanie pamäte
Komplexné chladenie: chladič VRM, chladič PCH, hybridné hlavičky ventilátora a Fan Xpert 2+
Osvetlenie Aura Sync RGB: Integrované adresovateľné záhlavia Gen 2 a záhlavie Aura RGB pre RGB LED pásy, ľahko synchronizovateľné s hardvérom s podporou Aura Sync


CPU
AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.

Chipset
AMD B650 Chipset

Memory
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Graphics
1 x DisplayPort**
1 x VGA port
1 x HDMI® port***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI® 2.1.

Expansion Slots
AMD Ryzen™ 7000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD B650 Chipset
2 x PCIe 4.0 x16 slots (support x1 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD B650 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet
1 x Realtek 2.5Gb Ethernet

USB
Rear USB (Total 8 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback

Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

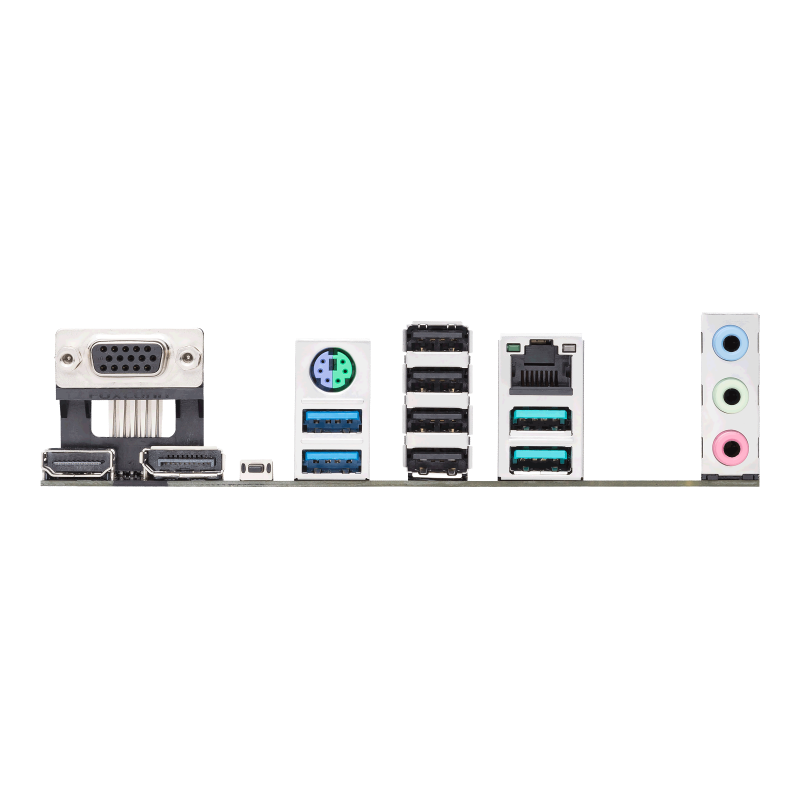

Back Panel I/O Ports
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI® port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- Safeslot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Software Features

ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

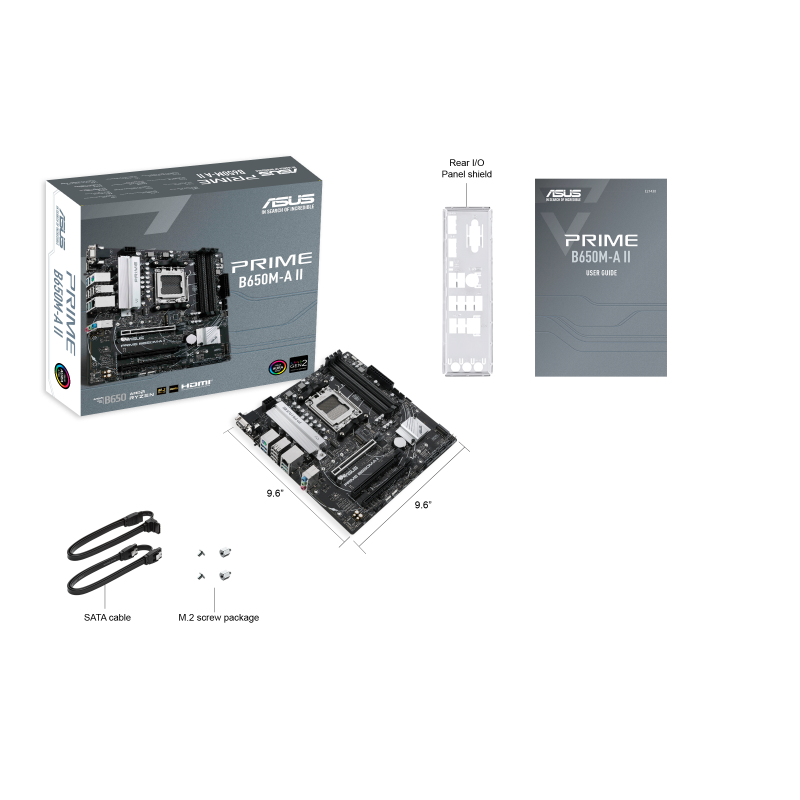

Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x Screw Package for M.2 SSD
Documentation
1 x User guide

Operating System
Windows® 11, Windows® 10 64-bit

Form Factor
mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
